ATEAP-PTC500-FPD

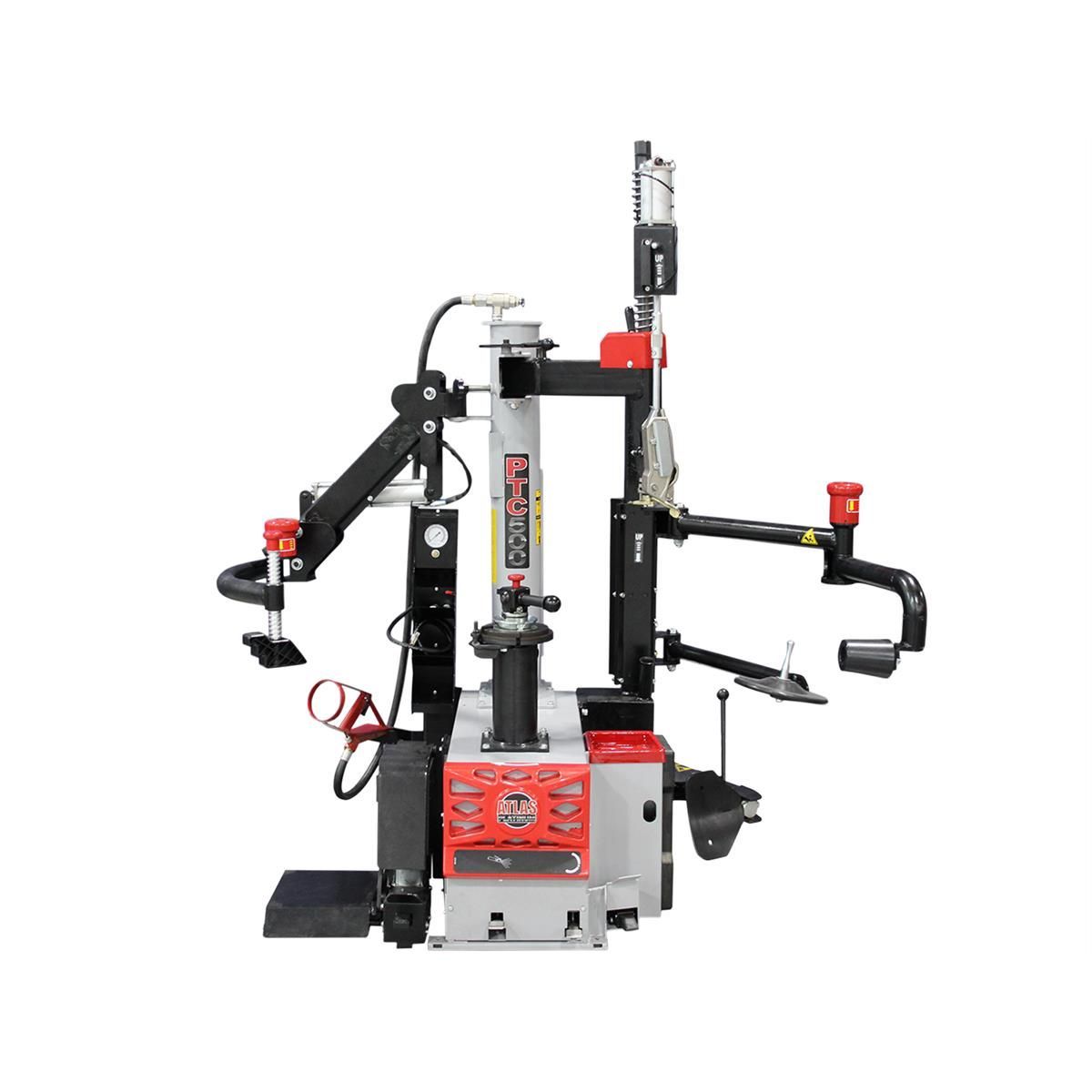

Atlas Platinum PTC500 Center-Post Tire Changer

SKU: ATEAP-PTC500-FPD

$8,999.00
Ships from manufacturer

Premium center-post tire changer with leverless mount/demount system, Smart Lock mounting, and integrated bead-blasting. Clamping range 12"-30", max tire diameter 47", designed for high-volume operations.

Part #: ATEAP-PTC500-FPD

MFR #: ATEAP-PTC500-FPD

Atlas Platinum PTC500 Center-Post Tire Changer

The Atlas Platinum PTC500 is a professional-grade center-post tire changer engineered for demanding shop environments. Featuring a leverless mount/demount system and Smart Lock center-post mounting, the PTC500 delivers exceptional performance and versatility for shops handling 300+ tire changes weekly.

Leverless Mount/Demount Technology

The PTC500's innovative Lever/No-Lever Changing System allows operators to mount and demount tires using either standard tire tools or leverless mode for maximum efficiency. This dual-capability design accommodates operator preference while maintaining consistent results across high-volume cycles. The system reduces physical strain and accelerates cycle times in busy service environments.

Smart Lock Center-Post Mounting

The exclusive Smart Lock center-post mounting system eliminates manual threading. Simply flip the lever to lock the wheel securely in position. This innovative design reduces mounting time, minimizes setup errors, and enhances operator safety by eliminating repetitive threading operations. The Smart Lock system is engineered for thousands of cycles without wear or adjustment.

Comprehensive Equipment Package

The PTC500 comes equipped with dual assist arms for operator support and comfort, an integrated wheel lift for convenient wheel positioning, an external flexible bead-blasting system for precise bead separation, and a metal mount/demount head with replaceable plastic inserts. The external air-operated bead breaker delivers 6,924 lbs of force (3,200 kg at 10 bar), ensuring reliable bead separation even with challenging modern tire constructions.

Technical Specifications and Capabilities

The machine accommodates wheels from 12" to 30" with external clamping capability (14"-26" internal clamping) and supports maximum tire diameters of 47" (1,200mm) with maximum wheel widths of 15" (390mm). The turntable operates at 7 RPM with maximum torque of 110 Kgm. The machine requires 110V single-phase power (US market) with a 0.75kW / 1HP single-phase motor. Air requirements are 120-145 PSI (8-10 bar). The machine operates quietly at less than 70 dB(A) within a temperature range of 32°-131°F (0°-55°C).

Durable Construction and Italian Engineering

The PTC500 features Italian-designed components and precision engineering throughout. Steel, aluminum, and alloy rims are all supported. The machine weighs 485 lbs (220 kg) with shipping weight of 885 lbs. It is backed by a 2-year parts-only manufacturer's warranty. The robust construction ensures years of reliable service in professional tire shops.

Ideal Applications

The PTC500 is perfect for tire retailers, dealership service centers, fleet service operations, and independent shops serving diverse vehicle types. Its wide clamping range and powerful bead breaker make it equally comfortable with passenger car tires, light truck applications, low-profile sidewalls, and specialty vehicle wheels.

Features & Benefits

Leverless Mount/Demount System

Dual-mode operation using standard tools or leverless technique for maximum flexibility.

  • Standard tire tool compatible
  • Leverless mode option
  • Reduced operator strain

Smart Lock Center-Post Mounting

Flip-lever locking eliminates manual threading for faster setup.

  • No manual threading required
  • Flip-lever quick lock
  • Enhanced operator safety

Integrated Bead-Blasting System

External flexible bead-blasting delivers 6,924 lbs separation force.

  • 6,924 lbs bead breaker force
  • 3,200 kg at 10 bar
  • External air-operated system

Wide Clamping Range & Capacity

Handles 12"-30" wheels with maximum 47" tire diameter capability.

  • 12"-30" clamping range
  • 47" maximum tire diameter
  • 15" maximum wheel width

Complete Assist Equipment

Dual assist arms and integrated wheel lift for operator comfort.

  • Dual assist arms included
  • Integrated wheel lift
  • Replaceable plastic inserts

Italian Design & Engineering

Premium components with 2-year parts warranty for professional durability.

  • Italian-designed components
  • 7 RPM turntable speed
  • 110 Kgm maximum torque

Specifications

ModelATEAP-PTC500-FPD
Price
$8,999.00
Shipping Weight885 lbs
Product TypeTire Changers
Machine StyleLeverless Center Post
CE CertifiedYes
Clamping Range (External)12" - 30" inches
Clamping Range (Internal)14" - 26" inches
Max Tire Diameter47" inches
Max Wheel Width15" inches
Bead Breaker Force6,924 lbs lbs
Turntable Speed7 RPM RPM
Air Pressure Required120-145 PSI PSI
Motor0.75 kW / 1 HP HP
Voltage110V, 60Hz, 1Ph

Before You Buy

Leverless & Smart Lock Technology

The dual-mode mount/demount system and Smart Lock center-post design significantly reduce operator fatigue and cycle time compared to traditional manual threading systems.

Professional-Grade Bead Breaker

The 6,924 lbs external air-operated bead breaker handles modern low-profile, run-flat, and ultra-high-performance tires with ease and consistency.

Wide Wheel Compatibility

From 12"-30" clamping range with 47" maximum tire diameter, the PTC500 handles passenger cars, light trucks, and specialty applications in one machine.

Free Shipping

Free shipping on all orders within the contiguous United States.

Ships via Freight

This item ships via freight carrier. Someone must be present to receive delivery.

Frequently Asked Questions

The Smart Lock system eliminates repetitive manual threading by using a simple flip-lever mechanism. This reduces setup time, minimizes operator fatigue, and eliminates threading errors—especially beneficial in high-volume operations running 300+ tire changes daily.
Yes, the PTC500's Lever/No-Lever Changing System accommodates both standard tire tools and leverless operation. Operators can choose the method that suits their preference while maintaining consistent performance.
The PTC500 provides external clamping from 12"-30" and internal clamping from 14"-26". This wide range covers virtually all passenger vehicles, light trucks, and many specialty applications. Maximum tire diameter is 47" (1,200mm).
The air-operated bead breaker delivers 6,924 lbs of force (3,200 kg at 10 bar), which is sufficient for challenging modern tire constructions including low-profile, run-flat, and ultra-high-performance formulations.
The PTC500 requires 110V single-phase power (US market) with a 0.75kW / 1HP motor. Compressed air supply must deliver 120-145 PSI (8-10 bar). Most professional shop air systems are compatible.
Routine maintenance includes monitoring pneumatic pressure, monthly lubrication of bearings, regular inspection of clamping components, and quarterly safety checks. The robust Italian engineering minimizes maintenance needs. A detailed manual is provided with your machine.
Absolutely. The wide clamping range (12"-30"), 47" maximum diameter, and powerful bead breaker make it ideal for dealerships and shops serving luxury vehicles, performance tire markets, and diverse fleet applications.
The PTC500 includes the base machine with dual assist arms, integrated wheel lift, metal mount/demount head with plastic inserts, and external flexible bead-blasting system. Freight delivery is included; installation support and operator training are available.
The machine operates at less than 70 dB(A), which is comparable to standard conversation levels. This low noise profile makes it suitable for retail tire shops and customer-facing service environments.
The PTC500 is backed by a 2-year parts-only manufacturer's warranty. Panther Lift provides installation support, operator training, and ongoing technical assistance. Extended warranty and premium service plans are also available.
