ATEAP-PTC400-FPD

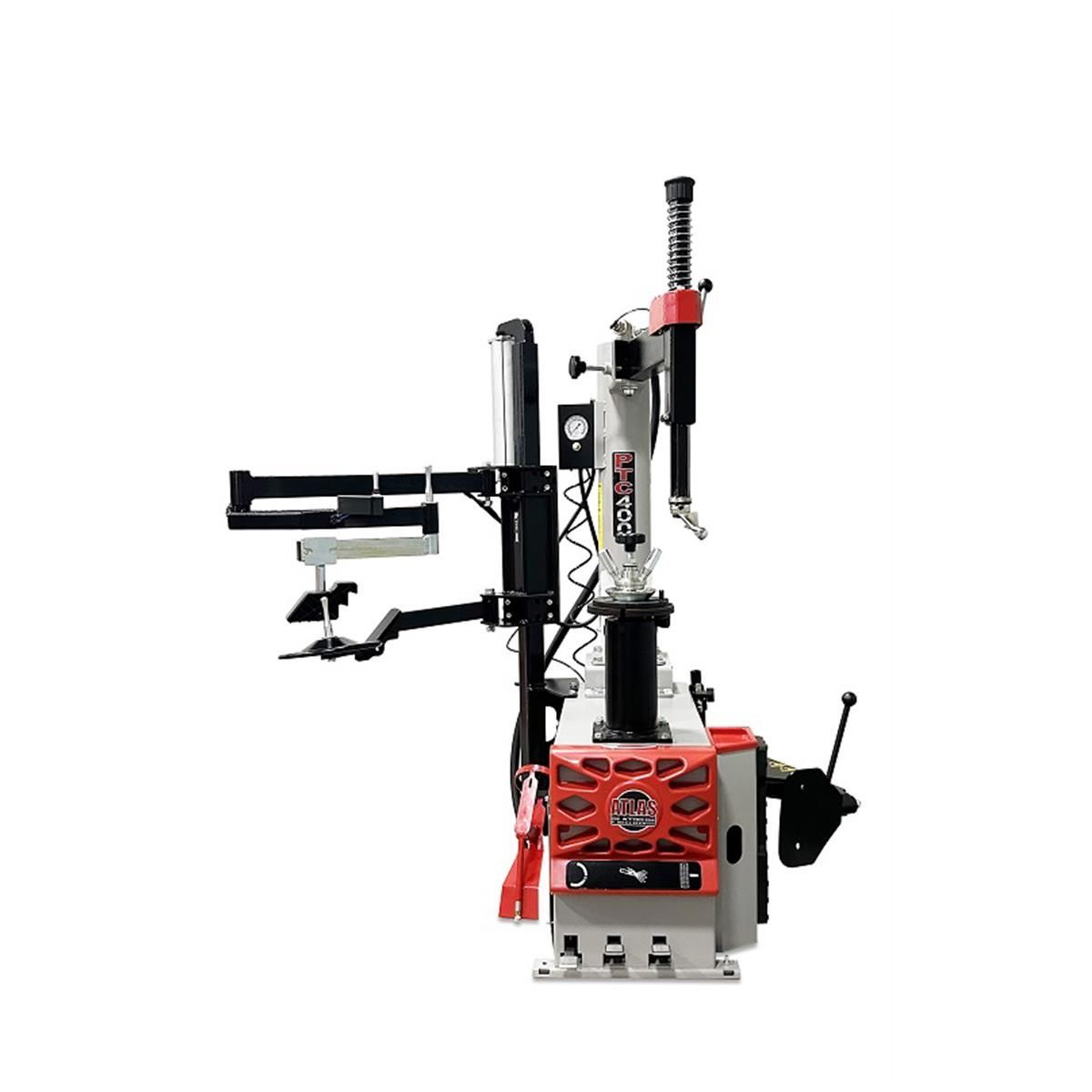

Atlas Platinum PTC400 — Center-Post Tire Changer with Power Assist

SKU: ATEAP-PTC400-FPD

$6,749.00
Ships from manufacturer

The Atlas Platinum PTC400 is an Italian-engineered center post tire changer with left-hand assist arm, 10-26 inch clamping range, 6,924 lb bead breaker force, integrated bead blaster, and 7 RPM electric turntable.

Part #: ATEAP-PTC400-FPD

MFR #: ATEAP-PTC400-FPD

Atlas Platinum PTC400 — Center Post Tire Changer with Left-Hand Assist Arm

The Atlas Platinum PTC400 combines the proven swing-arm architecture of the PTC300 with a versatile center post mounting system and a left-hand bead pressing and bead lifting assist arm. Italian engineered and built with premium components, the PTC400 is designed for shops that need to handle a wider range of wheel sizes and tackle more challenging tires — including low-profile, run-flat, and ultra-high-performance fitments — without fighting the machine. The center post design extends the clamping range to 10-26 inches, two inches beyond the PTC300, while the 6,924 lb bead breaker force handles even the most stubborn beads.

Center Post & Assist Arm Advantage

The center post mounting system provides a rigid, centered clamping point that reduces wheel deflection during the mount/demount cycle. The included left-hand assist arm acts as a bead pressing and bead lifting device, applying controlled downward pressure on the tire sidewall during mounting to keep the bead seated in the drop center. This eliminates the need for manual bead levers on difficult tires and significantly reduces the risk of rim damage. The assist arm makes changing stiff-sidewall tires — run-flats, UHP, and low-profile fitments — faster and less physically demanding for the technician.

Bead Breaking & Blasting

The air-operated bead breaker delivers 6,924 lbs of breaking force, powered by an external compressed air supply at 120-145 PSI. An external flexible bead-blasting system is integrated into the machine, providing high-volume air injection to seat stubborn beads onto the rim during the final mounting step. The anodized aluminum bead breaker cylinder resists corrosion and maintains smooth operation over thousands of cycles.

Turntable & Specifications

The electric turntable rotates at 7 RPM on 110V single-phase power, providing smooth and consistent rotation during tire changes. The rim-clamp system handles wheels from 10 to 26 inches in exterior diameter with a maximum tire diameter of 43 inches and a maximum wheel width of 15 inches (13 inches if reverse-mounted). The metal mount/demount head features a replaceable plastic insert to protect alloy, painted, and chrome wheels. A filter/regulator/lubricator is included with the machine for clean, regulated air delivery to all pneumatic components.

Included Equipment & Warranty

The PTC400 ships with the left-hand assist arm, tire tools, a lube bucket with brush, the replaceable plastic head insert, and the filter/regulator/lubricator assembly. Some assembly is required after delivery. Shipping weight is 620 lbs. All replacement parts and wear items are stocked for immediate availability. The Atlas Platinum PTC400 is backed by a 2-year parts-only warranty.

Features & Benefits

10"-26" Center Post Clamping

Center post mounting system with rim-clamp turntable handles wheels from 10 to 26 inches — two inches beyond the PTC300 — with a maximum tire diameter of 43 inches and 15-inch wheel width.

  • 10"-26" exterior clamping range (13" reverse)
  • 43" maximum tire diameter, 15" max wheel width
  • Center post reduces wheel deflection during service

Left-Hand Bead Pressing Assist Arm

Integrated assist arm applies controlled downward pressure on the tire sidewall during mounting, keeping the bead seated in the drop center and eliminating the need for manual bead levers.

  • Bead pressing and bead lifting in one arm
  • Handles run-flat, UHP, and low-profile tires
  • Reduces physical effort and rim damage risk

6,924 lb Bead Breaker Force

Air-operated bead breaker with anodized aluminum cylinder delivers 6,924 lbs of breaking force at 120-145 PSI for even the most stubborn passenger and light-truck tire beads.

  • 6,924 lb breaking force
  • 120-145 PSI air requirement
  • Anodized aluminum cylinder resists corrosion

External Flexible Bead-Blasting System

Integrated bead blaster provides high-volume air injection to seat stubborn beads onto the rim during the final mounting step, eliminating the need for a separate bead seater.

  • High-volume pneumatic bead seating
  • Flexible external design for precise aiming
  • Integrated into the machine — no separate unit needed

7 RPM Electric Turntable

110V single-phase electric motor drives the turntable at 7 RPM for smooth, controlled rotation with foot pedal controls for clamp, reverse, and rotation.

  • 7 RPM rotation speed on 110V/60Hz power
  • Metal mount/demount head with replaceable plastic insert
  • Foot pedal controls for hands-free operation

Italian Engineered — 2-Year Warranty

Designed and engineered in Italy with premium components including the filter/regulator/lubricator assembly. All replacement parts and wear items are kept in stock.

  • Italian-designed precision components
  • Filter/regulator/lubricator included
  • 2-year parts-only warranty with parts always in stock

Specifications

ModelATEAP-PTC400-FPD
Price
$6,749.00
Shipping Weight620 lbs
Product TypeTire Changers
CE CertifiedYes
Clamping Range (External)10" - 26" inches
Machine StyleSwing Arm
Max Tire Diameter43" inches
Max Wheel Width15" (13" reverse mount) inches
Bead Breaker Force6,924 lbs lbs
Turntable Speed7 RPM RPM
Air Pressure Required120-145 PSI PSI
Motor110V HP
Voltage110V, 60Hz, 1Ph

Before You Buy

Professional Freight Delivery

This item ships via freight carrier with delivery to your loading dock or business address. Residential delivery and liftgate service available at checkout for an additional fee. Please inspect all packaging for visible damage before signing the delivery receipt.

Ships Within 2-5 Business Days

This item typically ships within 2-5 business days from our warehouse. Freight transit times vary by destination, generally 3-7 additional business days. You will receive tracking information via email once your order ships.

Frequently Asked Questions

The PTC400 upgrades the PTC300 in three key areas. First, it adds a center post mounting system that extends the clamping range from 10-24 inches to 10-26 inches. Second, it includes a left-hand assist arm for bead pressing and bead lifting, making stiff-sidewall tires much easier to change. Third, it delivers 6,924 lbs of bead breaker force and includes an external flexible bead-blasting system and a filter/regulator/lubricator. The PTC300 is the entry-level Platinum tire changer; the PTC400 is the mid-range upgrade for shops handling more challenging tires.
The PTC400 clamps wheels from 10 to 26 inches in exterior diameter (13 inches if reverse-mounted). Maximum tire diameter is 43 inches and maximum wheel width is 15 inches. This covers standard passenger wheels, light-truck sizes, and most SUV fitments.
The PTC400 requires an external compressed air supply at 120-145 PSI for the bead breaker, bead blaster, and pneumatic assist functions. A filter/regulator/lubricator is included with the machine to ensure clean, regulated air delivery. A shop compressor capable of maintaining this pressure during continuous operation is required.
Yes. The left-hand assist arm is specifically designed for challenging tires with stiff sidewalls, including run-flat, ultra-high-performance (UHP), and low-profile fitments. The assist arm applies controlled downward pressure to keep the bead seated in the drop center during mounting, and the 6,924 lb bead breaker handles stubborn bead separation.
The PTC400 operates on standard 110V/60Hz single-phase power for the electric turntable motor. It plugs into a standard shop outlet. The bead breaker, bead blaster, and assist arm functions are powered by compressed air.
The PTC400 ships with the complete tire changer assembly, left-hand assist arm, metal mount/demount head with replaceable plastic insert, filter/regulator/lubricator assembly, tire tools, and a lube bucket with brush. Some assembly is required after delivery. Shipping weight is 620 lbs.
Yes. The metal mount/demount head features a replaceable plastic insert that prevents direct metal-to-metal contact with the wheel rim. The center post clamping system also provides even pressure distribution to minimize the risk of rim distortion or marring.
The external flexible bead-blasting system injects a high-volume burst of compressed air between the tire bead and the rim to seat the bead during the final mounting step. The flexible nozzle allows the operator to aim the air precisely at the bead gap. This eliminates the need for a separate bead seater tool or flammable methods.
The Atlas Platinum PTC400 is backed by a 2-year parts-only warranty. All replacement parts and wear items are kept in stock for fast fulfillment. Contact Panther Lift for warranty claims or replacement part orders.
The PTC400 has a similar footprint to the PTC300, fitting comfortably in a single service bay. Shipping weight is 620 lbs. The machine requires floor space for the main unit plus clearance for the swing arm and assist arm movement during operation.
