ATEAP-PTC300-FPD

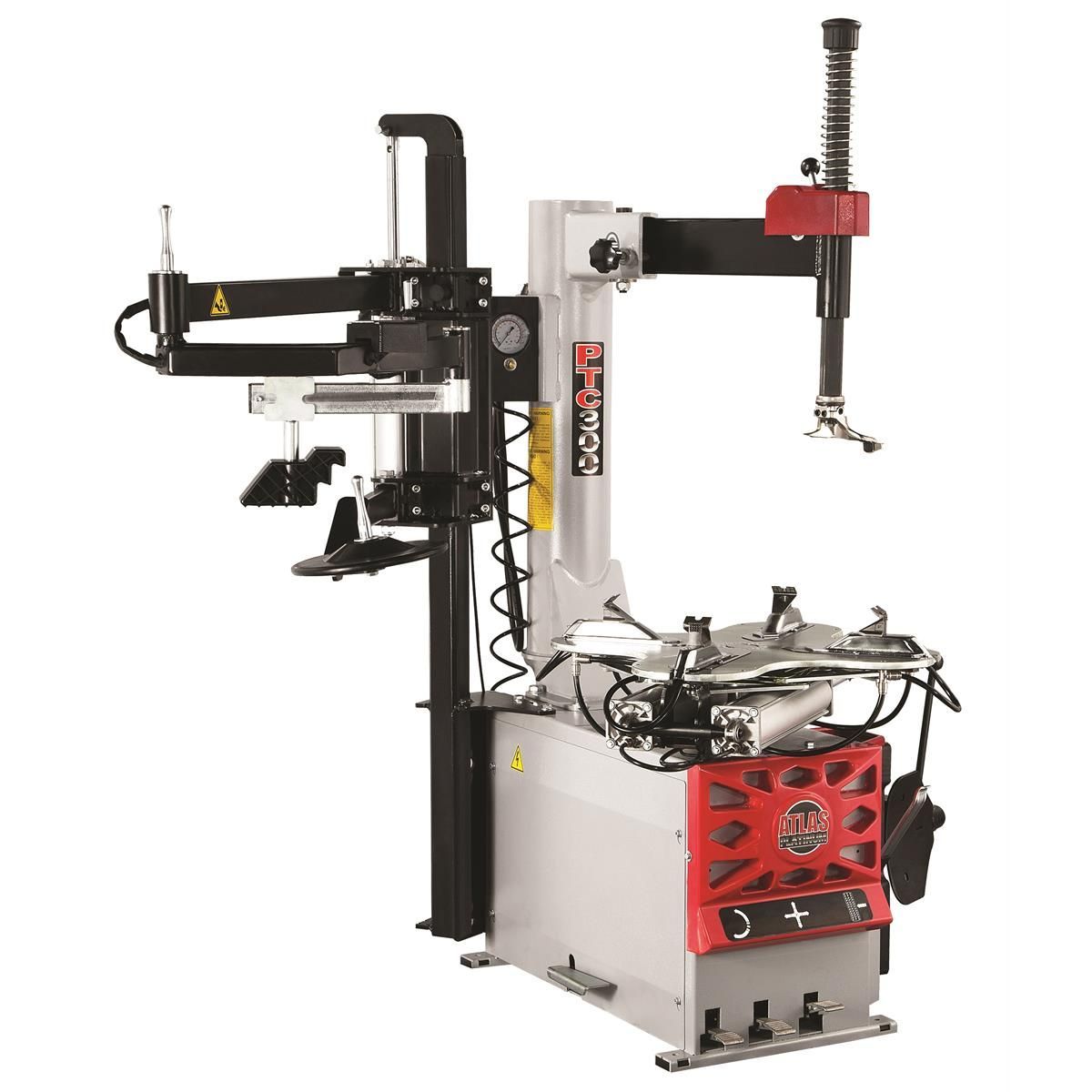

Atlas Platinum PTC300 — Rim-Clamp Tire Changer with Assist Arm

SKU: ATEAP-PTC300-FPD

$5,899.00
Ships from manufacturer

The Atlas Platinum PTC300 is an Italian-engineered semi-automatic rim-clamp tire changer with a swing-arm mount/demount head, 10-24 inch clamping range, 43-inch max tire diameter, and air-operated bead breaker at 8-10 bar.

Part #: ATEAP-PTC300-FPD

MFR #: ATEAP-PTC300-FPD

Atlas Platinum PTC300 — Rim-Clamp Swing-Arm Tire Changer with Assist Arm

The Atlas Platinum PTC300 is a semi-automatic rim-clamp tire changer engineered in Italy for professional tire service shops. The swing-arm design positions the mounting and demounting head precisely over the wheel, while the rim-clamp turntable secures wheels from 10 to 24 inches in exterior diameter. The metal mount/demount head features a replaceable plastic insert that protects alloy and painted rims from scratching during tire changes. An air-operated bead breaker with pneumatic cylinder delivers consistent breaking force for passenger and light-truck tires up to 43 inches (1,100mm) in overall diameter.

Swing-Arm Operation & Turntable

The PTC300 uses a horizontal and vertical arm assembly that swings the mount/demount head into position over the turntable. A locking lever secures the arm during operation, preventing unwanted movement while the electric turntable rotates the wheel at a controlled speed for smooth tire mounting and demounting. The rim-clamp system grips the wheel from the outside using four self-centering jaws, accommodating standard steel and alloy wheels from 10 to 24 inches. Clamp and reverser control pedals at the base of the machine give the operator hands-free turntable control during the tire change process.

Air-Operated Bead Breaker

The pneumatic bead breaker operates at 8-10 bar (115-145 PSI) of compressed air, supplied through the machine's integrated air system with an inline gauge for pressure monitoring. The bead breaker shovel is protected by a plastic cover to prevent rim damage during bead separation. A dedicated bead breaker control pedal allows the operator to actuate the breaker while keeping both hands free to position the tire. The bead lifting lever assists with seating stubborn beads during the mounting phase.

Machine Specifications & Footprint

The PTC300 measures approximately 36 to 44 inches wide (910-1,120mm), 38 inches deep (970mm), and 57 to 69 inches tall (1,460-1,750mm) depending on arm position. The compact footprint fits comfortably in a single service bay. The machine operates on 110V single-phase power for the electric turntable motor and requires an external compressed air supply at 8-10 bar for the bead breaker and pneumatic functions. Shipping weight is approximately 575 lbs.

Included Accessories

The PTC300 ships with the mounting bar, tire tools, a lube bucket with brush, the replaceable plastic mount/demount head insert, and the bead breaker shovel cover. All replacement parts and wear items are kept in stock for fast availability. The Atlas Platinum PTC300 is backed by a 2-year parts-only warranty.

Features & Benefits

10"-24" Rim-Clamp Turntable

Four self-centering jaws grip wheels from 10 to 24 inches in exterior diameter, accommodating standard steel and alloy rims for passenger vehicles and light trucks.

  • 10"-24" exterior clamping range
  • Self-centering four-jaw clamp system
  • Handles steel and alloy wheels with rim protection

Air-Operated Bead Breaker

Pneumatic bead breaker operates at 8-10 bar (115-145 PSI) with a dedicated foot pedal for hands-free actuation and a plastic shovel cover to protect rims.

  • 8-10 bar (115-145 PSI) operating pressure
  • Foot pedal actuation for hands-free operation
  • Plastic shovel cover prevents rim damage

Swing-Arm Mount/Demount Head

Horizontal and vertical arm assembly positions the metal mount/demount head precisely over the wheel with a locking lever for secure operation.

  • Metal head with replaceable plastic insert
  • Locking lever secures arm during operation
  • Protects alloy and painted rims from scratching

110V Electric Turntable

Single-phase 110V electric motor drives the turntable at controlled speed for smooth, consistent tire mounting and demounting cycles.

  • 110V/60Hz single-phase power
  • Controlled rotation speed for precision work
  • Foot pedal controls for clamp, reverse, and rotation

43" Maximum Tire Diameter

Handles tires up to 43 inches (1,100mm) in overall diameter, covering standard passenger tires through light-truck and SUV sizes.

  • 1,100mm (43") maximum tire diameter
  • Covers passenger cars through light trucks
  • Compact footprint: ~36-44" W × 38" D × 57-69" H

Italian Engineered Quality

Designed and engineered in Italy with premium components, backed by a 2-year parts-only warranty with all replacement parts and wear items kept in stock.

  • Italian-designed precision components
  • 2-year parts-only warranty
  • All replacement parts and wear items in stock

Specifications

ModelATEAP-PTC300-FPD
Price
$5,899.00
Shipping Weight575 lbs
Product TypeTire Changers
Machine StyleSwing Arm
CE CertifiedYes
Clamping Range (External)10" - 24" inches
Max Tire Diameter43" inches
Air Pressure Required115-145 PSI (8-10 bar) PSI
Motor110V HP
Voltage110V, 60Hz, 1Ph

Before You Buy

Professional Freight Delivery

This item ships via freight carrier with delivery to your loading dock or business address. Residential delivery and liftgate service available at checkout for an additional fee. Please inspect all packaging for visible damage before signing the delivery receipt.

Ships Within 2-5 Business Days

This item typically ships within 2-5 business days from our warehouse. Freight transit times vary by destination, generally 3-7 additional business days. You will receive tracking information via email once your order ships.

Frequently Asked Questions

The PTC300 clamps wheels from 10 to 24 inches in exterior diameter using its four self-centering jaw system. This covers standard passenger car wheels through light-truck sizes. The maximum tire diameter is 43 inches (1,100mm).
The PTC300 requires an external compressed air supply at 8-10 bar (115-145 PSI) for the pneumatic bead breaker and air-operated functions. The machine includes an inline air gauge for monitoring supply pressure. A shop compressor capable of maintaining this pressure range during continuous use is recommended.
The PTC300 operates on standard 110V/60Hz single-phase power for the electric turntable motor. It plugs into a standard shop outlet. The air-operated bead breaker runs on compressed air, not electricity.
Yes. The metal mount/demount head features a replaceable plastic insert that prevents direct metal-to-metal contact with the wheel rim during tire changes. This protects alloy, painted, and chrome wheels from scratching and marring. The plastic insert is a wear item and can be replaced when worn.
The PTC300 ships with the complete tire changer assembly, mounting bar, tire tools, a lube bucket with brush, the replaceable plastic mount/demount head insert, and a plastic bead breaker shovel cover. All replacement parts and wear items are stocked for fast availability.
The PTC300 measures approximately 36 to 44 inches wide (depending on arm position), 38 inches deep, and 57 to 69 inches tall. The compact footprint fits comfortably in a single service bay alongside a wheel balancer. Shipping weight is approximately 575 lbs.
The PTC300 is a rim-clamp swing-arm design that handles 10-24 inch wheels. The PTC400 adds a center post mounting system and a left-hand assist arm, extends clamping range to 10-26 inches, and delivers 6,924 lbs of bead breaker force. The PTC400 also includes an external flexible bead-blasting system and a filter/regulator/lubricator. The PTC300 is the entry-level Platinum tire changer while the PTC400 is the mid-range upgrade.
The PTC300 requires some assembly after delivery. The machine ships with a detailed Installation and Operations Manual. Contact Panther Lift for setup guidance or to arrange professional installation services in your area.
The Atlas Platinum PTC300 is backed by a 2-year parts-only warranty. All replacement parts and wear items are kept in stock for fast fulfillment. Contact Panther Lift for warranty claims or replacement part orders.
The PTC300 can handle standard low-profile tires within its 10-24 inch clamping range and 43-inch diameter limit. For highly stiff run-flat tires and ultra-high-performance (UHP) tires with rigid sidewalls, the PTC400 or higher models with assist arms and higher bead breaker force are recommended for easier and safer operation.
