RV2-15A-S45-EC

Champion Pneumatic

Champion RV2-15A-S45-EC VRV15F-12,230/3,1800RPM,STR, VI

SKU: RV2-15A-S45-EC

$9,640.24
Ships from manufacturer

Special alloy steel reed valves with self-cleaning valve design maintain peak performance throughout the life of the compressor

Part #: RV2-15A-S45-EC

MFR #: RV2-15A-S45-EC

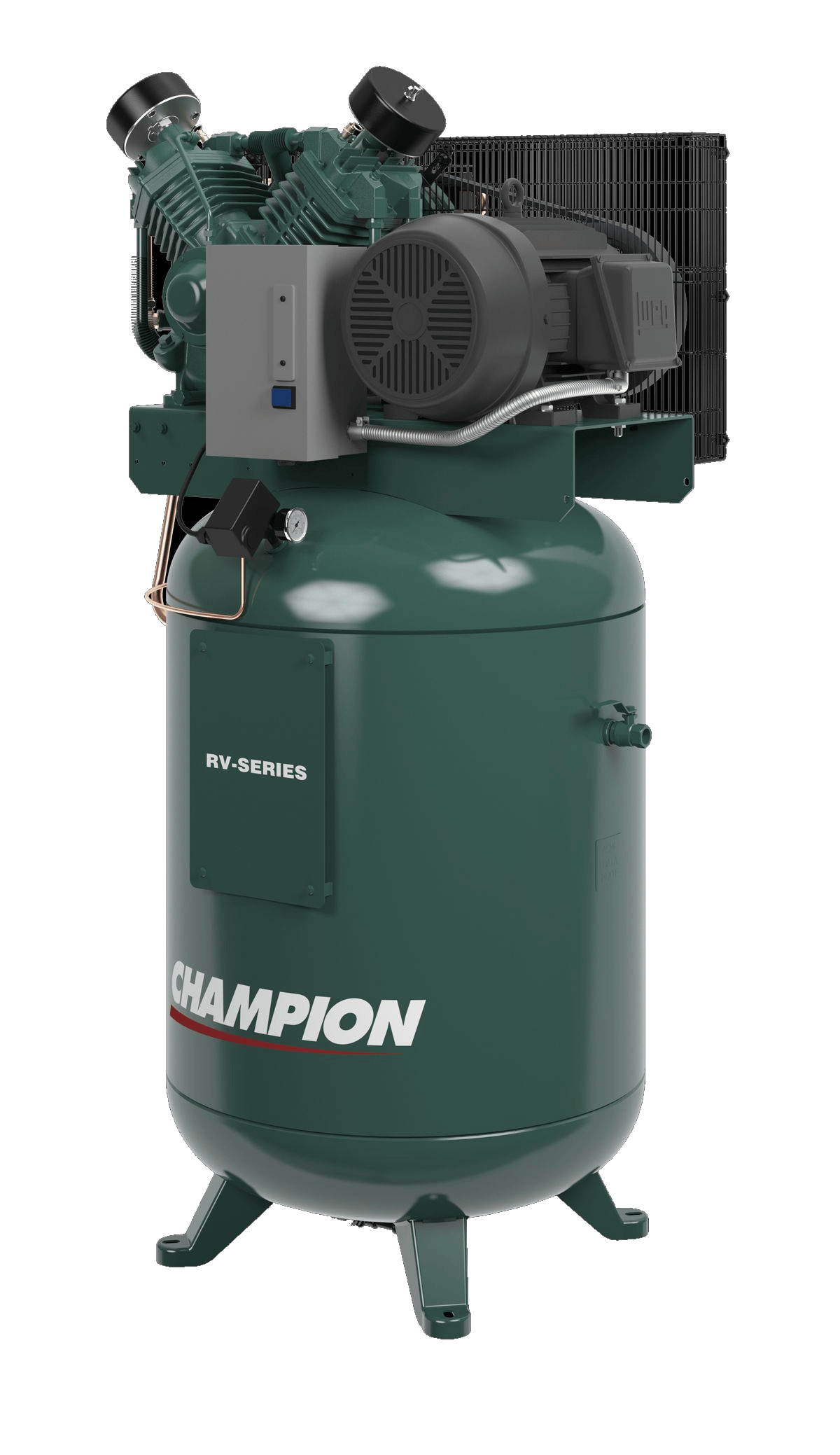

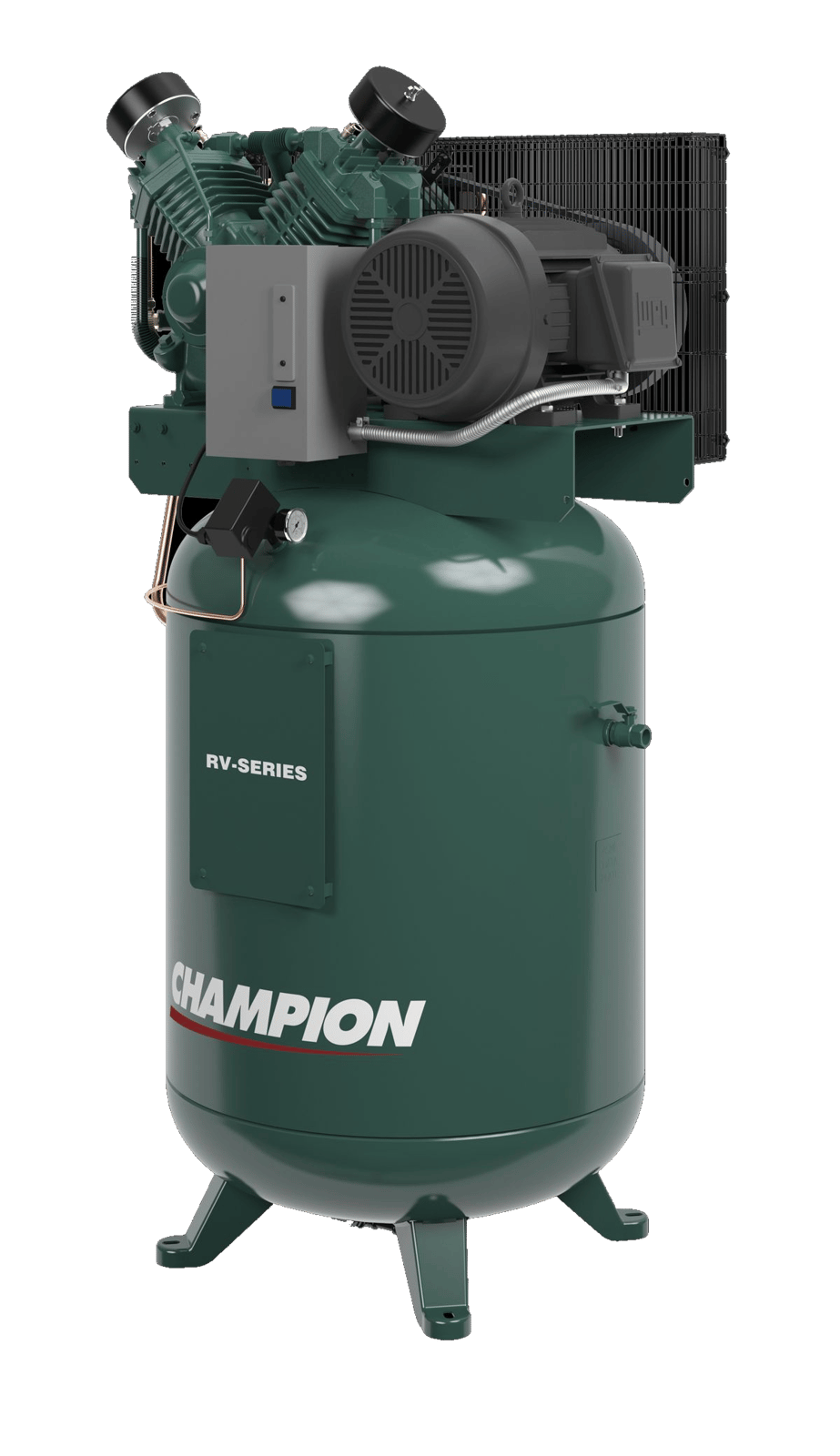

Champion RV-Series 15HP Reciprocating Compressor model VRV15-12. 15HP on a 120 Gallon California Coded Vertical Tank with Vibration Isolators, 230V/3 phase, 1800 RPM Motor with starter

Features & Benefits

Two-Stage Cast Iron Pump

100% cast iron compressor pump with two-stage design delivers maximum efficiency and durability for demanding industrial applications.

Splash Lubricated Design

Splash lubrication system ensures consistent oil distribution to all critical components, extending pump life and reducing maintenance.

Alloy Steel Reed Valves

Self-cleaning alloy steel reed valves maintain peak volumetric efficiency throughout the life of the compressor.

Deep Finned Intercooler

Large diameter finned tubing intercooler maximizes heat dissipation for cooler operating temperatures and improved efficiency.

Automotive-Style Crankshaft

Double-throw balanced and counterweighted crankshaft provides smooth, vibration-free operation and optimum compressor performance.

Factory Tested & Ready

Every pump is factory tested prior to shipment and filled with ChampLub AC Lubricant, ensuring reliable out-of-the-box performance.

Frequently Asked Questions

RV-Series compressors range from 4.5 CFM at 175 PSI (2 HP) up to 46.8 CFM at 175 PSI (15 HP), depending on the pump model and motor horsepower.
RV-Series compressors are available in single phase (208V, 230V) for 2-7.5 HP models and three phase (208V, 230V, 460V) for 5-15 HP models. Check your specific model's voltage requirements before installation.
Champion recommends a 500-hour service interval for mineral lubricant models and an annual service for synthetic lubricant models. Service kits include the correct lubricant and filter elements for your pump model.
Yes, RV-Series compressor packages include a 2-year pump warranty and a 1-year package warranty covering all components.
The RV-Series features a splash-lubricated, two-stage cast iron pump with alloy steel reed valves, automotive-style balanced crankshaft, and deep finned intercooler - delivering reliability and efficiency at a competitive price point.
