Challenger LE12 Symmetric 12,000 lb 2-Post Lift

Challenger Lifts

Challenger LE12 12,000 lb Heavy-Duty 2-Post Lift Symmetric Arms

SKU: LE12

$8,992.82
Ships from manufacturer

5-10 Business Days

Heavy-Duty Symmetric 2-Post Lift, 3-Stage Front & Rear Arms, 3HP Motor, Single-Point Mechanical Lock Release, Adjustable Column Height (166 In. / 175 In.), Stack Adapters Included

MFR #: LE12-3S

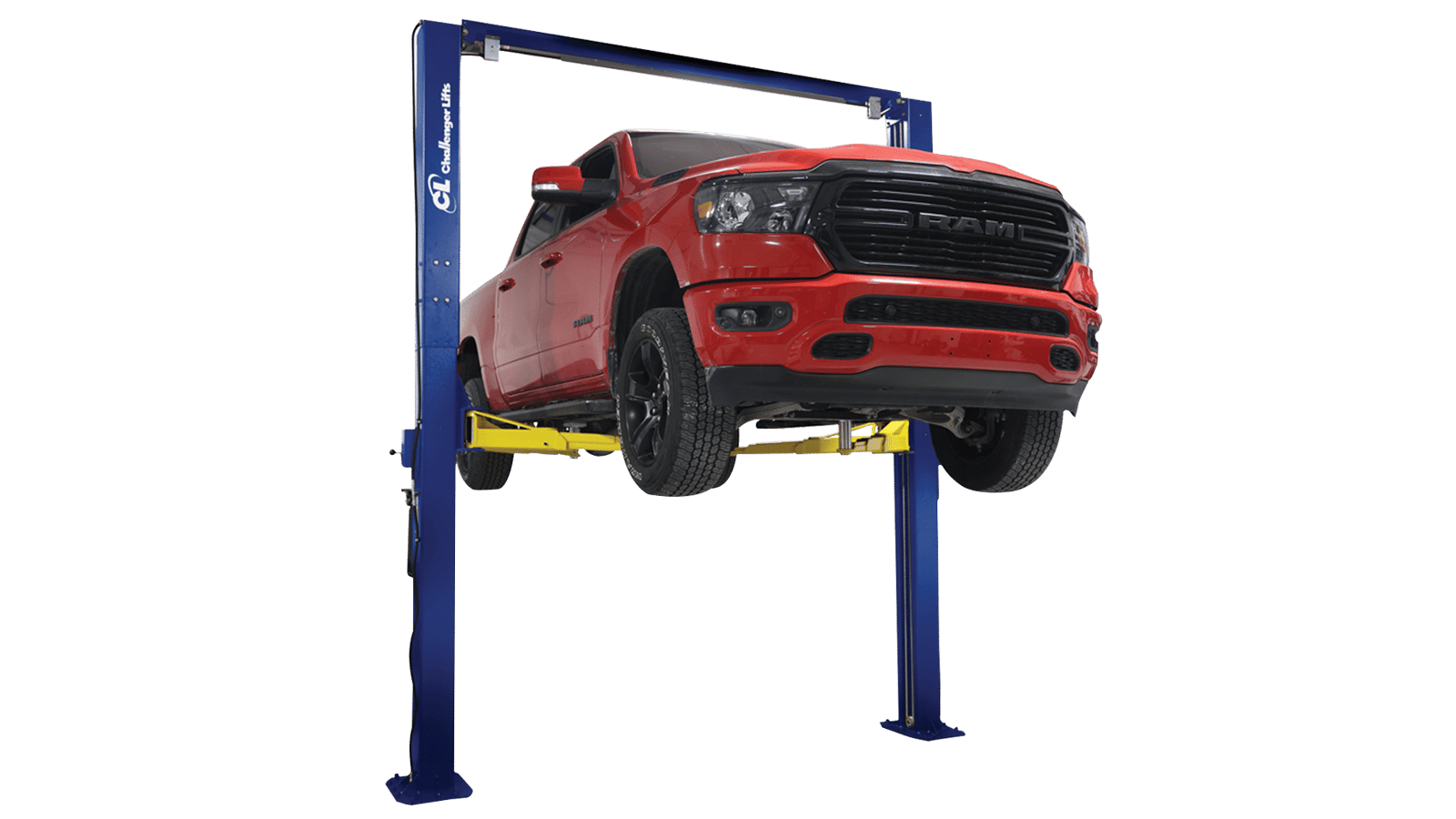

Challenger LE12 — 12,000 lb Heavy-Duty Symmetric 2-Post Lift

The Challenger LE12-3S is a 12,000 lb capacity ALI-Certified heavy-duty 2-post lift designed as the ideal economic solution for shops servicing trucks, vans, delivery vehicles, SUVs, and electric vehicles up to 12,000 lbs. Heavy-duty 3-stage front and 3-stage rear arms provide symmetric lifting with increased versatility, accommodating a significantly broader range of modern vehicles — including EVs and delivery trucks with wider OEM-required pickup points. The powerful 3HP single-phase motor delivers a full rise of 77 3/4 inches in approximately 61 seconds.

Adjustable Column Height

The LE12 installs in two column height configurations: Reduced Height at 166 inches (13 ft 10 in) or Standard Height at 175 inches (14 ft 7 in), selected during installation to match your shop's ceiling clearance. The Reduced setting requires a minimum ceiling height of 13 ft 11 in, while the Standard setting requires 14 ft 8 in. For shops that need even more overhead clearance, an optional 2-foot column extension (Part # E12EH2) is available to accommodate higher-profile vehicles and increase servicing headroom. The overall width of 11 ft 7 3/4 in provides 115 inches between columns and 8 ft 7 in of drive-thru clearance.

Standard Equipment

Every LE12 comes standard with heavy-duty polyurethane screw pads adjustable from 5 1/4 inches to 6 3/4 inches, plus included 3-inch and 6-inch stack adapters for reaching a wide range of manufacturer-specified lift points. The single-point mechanical lock release allows the technician to disengage column locks from both sides simultaneously for controlled, safe lowering. A padded overhead shut-off system prevents accidental vehicle contact with the overhead beam. Plated arm restraints and arm pins resist rust, the powder coat finish protects against chips and corrosion, and standard dual integrated rubber door guards protect vehicle panels during service.

Installation Requirements

The LE12 requires a minimum ceiling height of 13 ft 11 in (Reduced column setting) or 14 ft 8 in (Standard column setting), with a recommended bay width of 14 ft and depth of 24 ft. Minimum clearance of 6 ft to the nearest obstruction or 7 ft to the nearest wall on each side. The standard power unit operates on 208-230V single-phase 20A service with a dedicated circuit and disconnect switch. The concrete floor must be at least 4 inches thick, reinforced, free from cracks and seams, rated at 3,500 psi minimum, and cured for at least 28 days. Indoor installation only.

Features & Benefits

12,000 lb ALI-Certified Capacity

Heavy-duty lifting capacity handles trucks, vans, delivery vehicles, SUVs, and EVs up to 12,000 lbs with 3,000 lbs per arm rating.

  • 12,000 lb total capacity — 3,000 lbs per arm
  • ALI Certified and ETL Listed for safety compliance
  • Services trucks, vans, delivery vehicles, SUVs, and EVs

3-Stage Front & Rear Arms

Heavy-duty symmetric 3-stage arm design on both front and rear provides increased versatility for a broader range of vehicles, including those with wider OEM-required pickup points.

  • Arm reach from 27.5 in minimum to 54.5 in maximum
  • Symmetric configuration centers vehicle between columns
  • Accommodates EVs and delivery trucks with wider lift points

3HP Motor — Powerful Performance

The 3HP single-phase motor delivers strong, consistent lifting power for heavy vehicles with a full rise time of approximately 61 seconds.

  • 3HP motor — more powerful than standard 2HP lifts
  • 77 3/4 in rise height (6 ft 5 3/4 in) for comfortable working clearance
  • 208-230V single-phase 20A — standard shop electrical

Adjustable Column Height

Two installation height settings let you match the lift to your ceiling. An optional 2-foot extension adds even more overhead clearance for high-profile vehicles.

  • Reduced: 166 in (13 ft 10 in) — requires 13 ft 11 in ceiling
  • Standard: 175 in (14 ft 7 in) — requires 14 ft 8 in ceiling
  • Optional +2 ft extension available (Part # E12EH2)

Safety & Lock System

Single-point mechanical lock release allows both columns to disengage simultaneously for controlled lowering, with a padded overhead shut-off to prevent vehicle contact.

  • Single-point mechanical lock release on both columns
  • Padded overhead shut-off prevents accidental vehicle contact
  • Standard 3 in and 6 in stack adapters included

Durable Construction & Finish

Built for daily heavy-duty use with premium materials and finishes designed to resist wear, corrosion, and rust in demanding shop environments.

  • Powder coat finish protects against chips and corrosion
  • Plated arm restraints and arm pins inhibit rust
  • Standard dual integrated rubber door guards protect vehicle panels

Specifications

Shipping Weight~2,100-2,310 lbs
Product Type2 Post Lifts
Front Arm Reach27.5"-54.5"
Screw Pad Height5.25"-6.75"
ALI/ETL CertifiedYes
Motor3HP HP
Ceiling Height Required13' 11" / 14' 8"
Speed of Rise61s sec
Rise Height77.75" "
Drive-Thru Clearance103"
Overall Height166" / 175" in
Inside Columns115"
ControlsSingle-Point Mechanical Lock Release
Voltage208V-230V
Overall Width139.75
Rear Arm Reach27.5"-54.5"
Lift ConfigurationSymmetric
Colors AvailableRed, Blue
Arms3-Stage Front / 3-Stage Rear
Lifting Capacity12,000 lb lbs

Before You Buy

Installation Requirements

13 ft 11 in minimum ceiling height (Reduced) or 14 ft 8 in (Standard). 208-230V single-phase 20A dedicated circuit. 14 ft wide x 24 ft deep recommended bay. Concrete must be 4 in thick, reinforced, 3,500+ psi, cured 28+ days. Indoor installation only. Confirm concrete specs against the installation manual before purchase.

Heavy-Duty 12K Capacity

The LE12 delivers 12,000 lbs of lifting capacity with a powerful 3HP motor, 3-stage front and rear arms, and included 3 in and 6 in stack adapters. Designed for shops servicing trucks, vans, delivery vehicles, SUVs, and electric vehicles.

Available in 2 Colors

Choose from Textured Red or Textured Blue powder coat finishes to match your shop.

Free Freight Shipping

Ships free via freight carrier to the continental United States (48 states). Alaska, Hawaii, Puerto Rico, and Guam are excluded from free freight — contact us for a shipping quote to those locations.

Unloading Requirements

This lift ships curbside via freight truck and weighs approximately 2,100–2,310 lbs depending on configuration. You are responsible for offloading at your location. A forklift, tractor with forks, or equivalent heavy equipment must be available on-site at the time of delivery. The carrier will not unload the freight.

Review Product Manuals

Before purchasing, review the official Challenger Lifts installation manual and spec sheet for the LE12-3S. These documents contain critical details on concrete requirements, ceiling clearances, electrical specifications, and bay dimensions that must be verified for your shop.

Frequently Asked Questions

The LE12 has two column height settings chosen at installation. The Reduced Height setting (166 in columns) requires a minimum ceiling height of 13 ft 11 in. The Standard Height setting (175 in columns) requires a minimum ceiling height of 14 ft 8 in. An optional 2-foot column extension (Part # E12EH2) is available for shops needing additional overhead clearance, which increases the ceiling requirement accordingly.
The LE12 has a total lifting capacity of 12,000 lbs, distributed evenly across four arms at 3,000 lbs per arm. This heavy-duty capacity handles a wide range of vehicles including trucks, vans, delivery vehicles, SUVs, and electric vehicles. The lift is ALI Certified to the ANSI/ALI ALCTV safety standard.
The LE12-3S is Challenger's economic heavy-duty 12K lift. It features a more powerful 3HP motor (vs the CL12A's 2HP), symmetric-only arm design, two install heights (Reduced and Standard), and comes in two colors (Red and Blue). The CL12A offers more configuration options including three width settings, four column heights with LC model, QuickCycle speed upgrade, Dual Pendant Controls, three colors, and an EV adapter kit. Choose the LE12 for straightforward heavy-duty lifting at a lower price point.
The LE12 is designed to safely lift a broad range of vehicles up to 12,000 lbs including standard passenger cars, pickup trucks, full-size vans, delivery trucks, SUVs, and electric vehicles. The 3-stage front and rear arms with 27.5 in to 54.5 in reach accommodate vehicles with wider OEM-required pickup points, making it particularly well-suited for modern trucks and delivery vehicles.
The LE12 power unit requires 208-230V single-phase, 60Hz service with a 20-amp dedicated circuit and a disconnect switch within sight of the lift. The motor is 3HP, providing strong lifting power for heavy vehicles. All wiring must comply with local electrical codes.
The LE12 requires a concrete floor that is at least 4 inches thick, reinforced, free from cracks and seams, rated at a minimum of 3,500 psi compressive strength, and cured for at least 28 days. The floor must be level over the installation area, and no anchor bolts can be placed within 8 inches of any crack, edge, or expansion joint. If your existing slab doesn't meet these requirements, a concrete pad can be poured specifically for the lift installation.
The Challenger LE12 is available in two colors: Textured Red and Textured Blue. Both feature Challenger's durable powder coat finish for long-lasting protection against chips and corrosion.
Yes. The Challenger LE12-3S is ALI Certified to the ANSI/ALI ALCTV safety standard and ETL Listed for electrical safety compliance. ALI Certification means the lift has been independently tested and validated by the Automotive Lift Institute to meet rigorous performance and safety requirements.
The LE12 requires a minimum ceiling height of 14 ft and a recommended bay width of 14 ft and depth of 24 ft, with a minimum of 6 ft clearance from the columns to the nearest obstruction or 7 ft to the nearest wall on each side. The lift's overall width is 11 ft 7 3/4 in with 115 inches between columns and 8 ft 7 in of drive-thru clearance.
The LE12 comes standard with 3-inch and 6-inch stack adapter extensions. These adapters allow technicians to reach a wider range of manufacturer-specified vehicle lift points without needing aftermarket accessories. The heavy-duty polyurethane screw pads adjust from 5 1/4 in to 6 3/4 in for additional reach flexibility.
Yes. Panther Lift provides professional lift installation services throughout the tri-state area and surrounding regions. Our installation team handles everything from concrete inspection and electrical prep to full lift assembly, hydraulic setup, and final safety testing. Contact us to schedule an installation or to get a quote for your location.
The LE12 requires daily visual checks for loose or broken parts, hydraulic leaks, and adapter wear. Weekly, inspect synchronizer cables, sheaves, and lock release cable adjustment. Monthly, torque all concrete anchor bolts to the manufacturer-specified setting, lubricate carriage slide tracks with heavy viscous grease on all four corners of both columns, and inspect the concrete floor for cracks within 12 inches of the base plates. Always use genuine Challenger Lifts replacement parts.
