Challenger 40230-X Internal Air Line Kit — Dual Rolling Jacks for 4015X / 4115X / 4P14Xfx Series

SKU: 40230-X

$744.14
Ships from manufacturer

Internal air line routing kit for operating dual rolling jacks on Challenger 4P14Xfx, 4015X, and 4115X series 4-post lifts with extra-wide runways. Routes shop air through the runways to front and rear jack positions with coiled flex lines.

Part #: 40230-X

MFR #: 40230-X

Air Lines for Extra-Wide Runways

The Challenger 40230-X is an internal air line kit that routes compressed air through the extra-wide runways of 4P14Xfx, 4015X, and 4115X series 4-post lifts to power dual rolling jacks. The air line runs along the inside of the runway I-beam, providing a clean permanent installation that keeps hoses off the shop floor and out of the technician's work area. Sized specifically for extra-wide runway configurations where the standard 40230-E kit dimensions don't apply.

Complete Hardware Kit

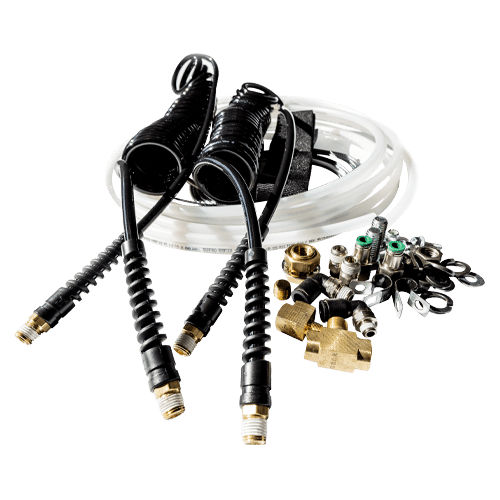

Everything you need for a full installation is in the box: tee fittings to splice into the lift's existing air supply, 3/8-inch plastic air hose with protective cloth sheath for runway routing, two 15-foot coiled flex air hoses for connecting to the rolling jacks, 1/4-inch NPT fittings and connectors, line clamps, bolt stops for correct jack positioning, and all mounting hardware. The front jack air valve mounts vertically, and the rear valve mounts at 45 degrees for clean hose routing.

Designed for the X-Series

The 40230-X is cut and configured for the wider runway spacing and longer hose runs found on X-series lifts. Bolt stops set the correct front and rear jack positions along the runway, and the coiled flex lines provide enough reach to connect to each jack across the full runway length. Compatible with all Challenger air/hydraulic rolling jacks designed for the 4015X and 4115X series.

Features & Benefits

Sized for Extra-Wide Runways

Internal Runway Routing

15' Coiled Flex Lines

Complete Kit Included

Specifications

Product Type4-Post Air Line Kits

Before You Buy

For 4015X / 4115X Series

Sized specifically for extra-wide runway 4-post lifts.

Clean Internal Routing

Air lines run inside the runway I-beam with no floor hoses.

Dual Jack Power

Powers front and rear rolling jacks from one shop air connection.

Complete Kit

All fittings, hoses, clamps, and hardware included.

Frequently Asked Questions

The 40230-X is designed for Challenger 4P14Xfx, 4015X, and 4115X series 4-post lifts with extra-wide runways. For extended-length runways, use the 40230-E.
Any Challenger air/hydraulic rolling jack compatible with the 4015X/4115X series. The kit provides 1/4" NPT connections matching the standard Challenger rolling jack quick disconnects.
The 40230-X is sized for extra-wide runway lifts (X-series) while the 40230-E is for extended-length runway lifts (E-series). The hose lengths and bolt stop positions differ to match each runway configuration.
Yes. Two 15-foot coiled flex air hoses are included for connecting the runway outlets to the front and rear rolling jacks.
Yes. All hardware, fittings, clamps, and hoses are included. The air line mounts along the inside of the runway I-beam with the provided line clamps.
Standard shop air pressure (typically 90-150 PSI). The tee fitting connects into the lift's existing pneumatic system.
