Challenger 40230-E Internal Air Line Kit — Dual Rolling Jacks for 4015E / 4115E / 4P14Efx Series

SKU: 40230-E

$744.12
Ships from manufacturer

Internal air line routing kit for operating dual rolling jacks on Challenger 4P14Efx, 4015E, and 4115E series 4-post lifts with extended-length runways. Routes shop air through the runways to front and rear jack positions with coiled flex lines.

Part #: 40230-E

MFR #: 40230-E

Power Your Rolling Jacks Through the Runway

The Challenger 40230-E is an internal air line kit that routes compressed air from your shop's air supply through the lift's extended-length runways directly to the front and rear rolling jack positions. Instead of running separate air hoses across the shop floor to each jack, the 40230-E provides a clean, permanent installation that keeps air lines out of the work area and eliminates trip hazards. This kit is sized specifically for 4P14Efx, 4015E, and 4115E series lifts with extended-length runways.

Complete Kit — Everything Included

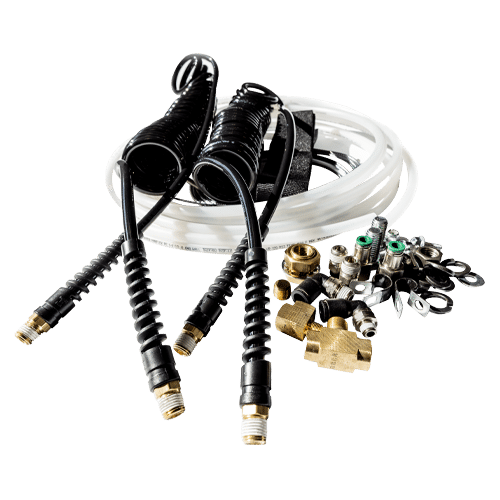

The kit includes tee fittings that splice into the lift's existing air supply, 3/8-inch plastic air hose with protective cloth sheath for routing along the runway I-beam, 15-foot coiled flex air hoses that connect from the runway outlets to each rolling jack, 1/4-inch NPT fittings, line clamps, bolt stops for jack positioning, and all hardware needed for installation. The front jack air valve mounts vertically, and the rear jack valve mounts at 45 degrees for optimal hose routing.

Installation & Compatibility

The air line routes along the inside of the runway I-beam, secured by line clamps at regular intervals. Bolt stops position at 50-3/4 inches and 105-3/8 inches from the front of the runway to set correct jack locations. The 15-foot coiled flex lines connect from the runway outlets to the 1/4-inch NPT quick disconnects on your rolling jacks. Compatible with all Challenger air/hydraulic rolling jacks designed for the 4015E and 4115E series.

Features & Benefits

Internal Runway Air Routing

Dual Jack Operation

15' Coiled Flex Lines

Complete Hardware Kit

Specifications

Product Type4-Post Air Line Kits

Before You Buy

For 4015E / 4115E Series

Sized for extended-length runway 4-post lifts. Use 40230-X for extra-wide models.

Clean Internal Routing

Air lines run inside the runway I-beam — no floor hoses or trip hazards.

Dual Jack Power

Powers front and rear rolling jacks from one shop air connection.

Complete Kit

All fittings, hoses, clamps, and hardware included.

Frequently Asked Questions

The 40230-E is designed for Challenger 4P14Efx, 4015E, and 4115E series 4-post lifts with extended-length runways. For standard-width runways, use the 40230. For extra-wide runways, use the 40230-X.
Any Challenger air/hydraulic rolling jack compatible with the 4015E/4115E series, including the RJ7.5. The kit provides 1/4" NPT connections that match the standard quick disconnect on Challenger rolling jacks.
Yes. Two 15-foot coiled flex air hoses are included for connecting the runway air outlets to the front and rear rolling jacks.
Bolt stops install at 50-3/4" and 105-3/8" from the front of the runway. These set the correct front and rear jack positions along the runway.
Yes. The kit includes all hardware and fittings needed for installation. The air line routes along the inside of the runway I-beam, secured with the included line clamps.
Standard shop air pressure (typically 90-150 PSI). The air supply connects through a tee fitting on the lift's existing pneumatic system.
