ATEATPK-PX16A-CF-FPD

Atlas Automotive Equipment

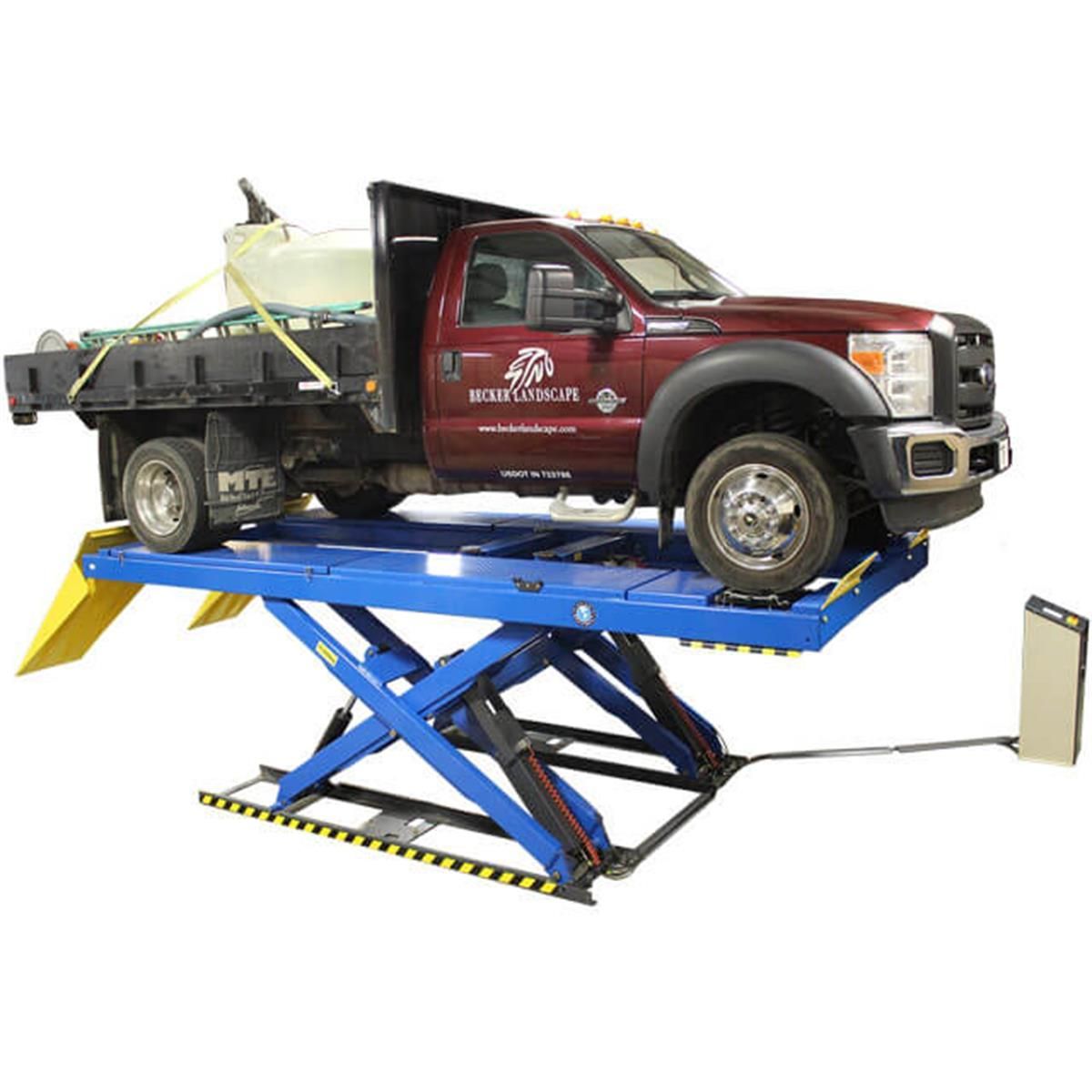

Atlas PX16A 16,000 lb Scissor Alignment Lift

SKU: ATEATPK-PX16A-CF-FPD

$23,999.00
Ships from manufacturer

16,000 lb Capacity, 73.625" Lift Height, Integrated Turntables, In-Ground Flush Design, 4.0HP Motor, Dual Synchronous Cylinders

Part #: ATEATPK-PX16A-CF-FPD

MFR #: ATEATPK-PX16A-CF-FPD

Professional Heavy-Duty Alignment Lift

The Atlas PX16A is the highest-capacity scissor lift in the Atlas lineup, engineered for professional auto shops, fleet service centers, and commercial facilities that demand maximum lifting power. With a robust 16,000 lb capacity, this in-ground flush-mount lift handles full-size trucks, SUVs, commercial vans, and heavy fleet vehicles with precision and reliability. Designed specifically for wheel alignment and complete undercarriage work, the PX16A delivers the performance and safety that professional technicians depend on every day.

Comprehensive Alignment Capabilities

This lift comes equipped with integrated turntables and built-in slip plates for complete wheel alignment functionality. The turntables allow vehicles to rotate freely for precise wheel positioning, while the skid-proof diamond plate runways with integrated rear slip plates provide secure vehicle positioning throughout the lifting and alignment process. The electric-air control system enables smooth, precise operation, giving technicians exact control over lift height and vehicle positioning for critical alignment measurements and adjustments.

Powerful and Efficient Operation

The 4.0HP motor combines with dual synchronous cylinders (four total) to deliver fast lifting in approximately 82 seconds, maximizing shop productivity. The safety self-lock mechanism provides dependable load holding at any height, ensuring vehicle and personnel safety during extended work sessions. The oil-water separator is included to maintain system cleanliness and extend equipment life.

Professional Installation and Support

The PX16A requires in-ground installation with pit excavation to create a flush-mount professional appearance. Panther Lift recommends professional installation to ensure proper concrete preparation, electrical setup, compressed air system configuration, and complete safety validation. This investment in proper installation ensures optimal performance, longevity, and full compliance with all safety standards.

Features & Benefits

16,000 lb Capacity

Highest-capacity scissor lift in the Atlas lineup, handling full-size trucks, SUVs, and commercial vehicles.

  • Rated for 16,000 lbs (7.3 metric tons)
  • Accommodates full-size trucks and fleet vehicles
  • Heavy-duty dual synchronous cylinder design

Professional Alignment System

Integrated turntables and slip plates for complete wheel alignment and positioning work.

  • Built-in turntables for wheel rotation
  • Integrated rear slip plates in diamond plate runways
  • Precise vehicle positioning for alignment measurements

In-Ground Flush Design

Clean, professional shop appearance with pit-mounted installation for maximum accessibility.

  • Flush-mount pit installation creates professional appearance
  • Maximizes shop floor space efficiency
  • Requires pit excavation to specific depth

Electric-Air Control System

Smooth, precise lift operation with responsive controls for technician safety and comfort.

  • Electric-air synchronized control for smooth operation
  • Responsive control cabinet (left or right side installation)
  • 82-second lifting cycle for productivity

Safety Self-Lock Mechanism

Dependable load holding at any height with integrated safety features throughout operation.

  • Self-locking hydraulic system at any height
  • Safety-rated component design
  • Reliable protection during extended work

System Maintenance & Cleanliness

Included oil-water separator maintains fluid quality and extends equipment service life.

  • Oil-water separator for system cleanliness
  • Reduced maintenance intervals
  • Extended equipment longevity

Before You Buy

Free Freight Shipping

Ships free via freight carrier to commercial addresses in the continental United States (48 states). Alaska, Hawaii, Puerto Rico, and Guam are excluded from free freight — contact us for a shipping quote to those locations.

Unloading Requirements

This lift ships curbside via freight truck and weighs approximately 6,132 lbs. You are responsible for offloading at your location. A forklift, tractor with forks, or equivalent heavy equipment must be available on-site at the time of delivery. The carrier will not unload the freight.

In-Ground Installation Required

The Atlas PX16A requires in-ground flush-mount installation with pit excavation. You must have suitable concrete flooring and space for pit construction. Professional installation is strongly recommended to ensure proper setup, electrical configuration, and full compliance with safety standards. Contact Panther Lift for a site assessment.

Compressed Air System Required

This lift operates via an electric-air control system requiring 58-87 PSI (0.4-0.6 MPa) compressed air. If your facility does not have an existing air system, you will need to install an air compressor and distribution lines. Panther Lift can recommend appropriate air system sizing during your installation consultation.

Frequently Asked Questions

The Atlas PX16A has a weight capacity of 16,000 lbs (7.3 metric tons), making it the highest-capacity scissor lift in the Atlas lineup. It is designed to safely lift full-size trucks, SUVs, commercial vans, and fleet vehicles.
The Atlas PX16A lifts to a maximum height of 73.625 inches (1870mm) from the pit floor. The minimum lowered height is 13 inches (330mm), providing approximately 60.6 inches of rise for comprehensive undercarriage access.
The PX16A operates on either 220V single-phase (22A thermal relay) or 380V three-phase (14A thermal relay) power. You will need to verify your facility's electrical capacity before ordering. Professional installation includes proper electrical setup and circuit breaker configuration.
Yes, the PX16A requires a compressed air system operating at 58-87 PSI (0.4-0.6 MPa). Most professional shops already have air systems in place. If your facility does not have compressed air, you will need to install an air compressor and distribution system as part of your lift installation. Panther Lift can provide guidance on air system sizing during the installation planning phase.
Yes, the Atlas PX16A is designed exclusively for in-ground flush-mount pit installation. This requires excavation to a specific depth to accommodate the lift's lowered position. You must have suitable concrete flooring and pit space available before ordering. Panther Lift provides concrete assessment as part of our installation consultation.
Yes. Panther Lift provides professional lift installation services throughout the United States. Our installation team handles everything from concrete inspection and electrical prep to full lift assembly, hydraulic setup, and final safety testing. Contact us to schedule an installation or to get a quote for your location.
The PX16A requires regular maintenance including hydraulic fluid level checks, air filter replacement, and annual safety inspections. The included oil-water separator reduces maintenance intervals. We recommend scheduling professional service annually to ensure optimal performance and safety compliance. Panther Lift provides maintenance packages and can schedule service visits.
The PX16A measures 274.125 inches (6964mm) in length with ramps, 94 inches (2390mm) in width, with a runway width of 24.625 inches (625mm) and 41.5 inches (1055mm) between runways. The gross weight is 6,132 lbs (2784kg). Verify these dimensions against your facility space before ordering.
The PX16A lifts to maximum height in approximately 82 seconds with its 4.0HP motor. This speed maximizes shop productivity while maintaining the precision and control needed for quality alignment work.
The PX16A package includes the lift unit with integrated turntables, slip plates, dual synchronous cylinders, safety self-lock mechanism, skid-proof diamond plate runways, electric-air control system, control cabinet, and oil-water separator. Professional installation is available and highly recommended for proper setup, safety validation, and warranty compliance.
