VLE10

VLE10

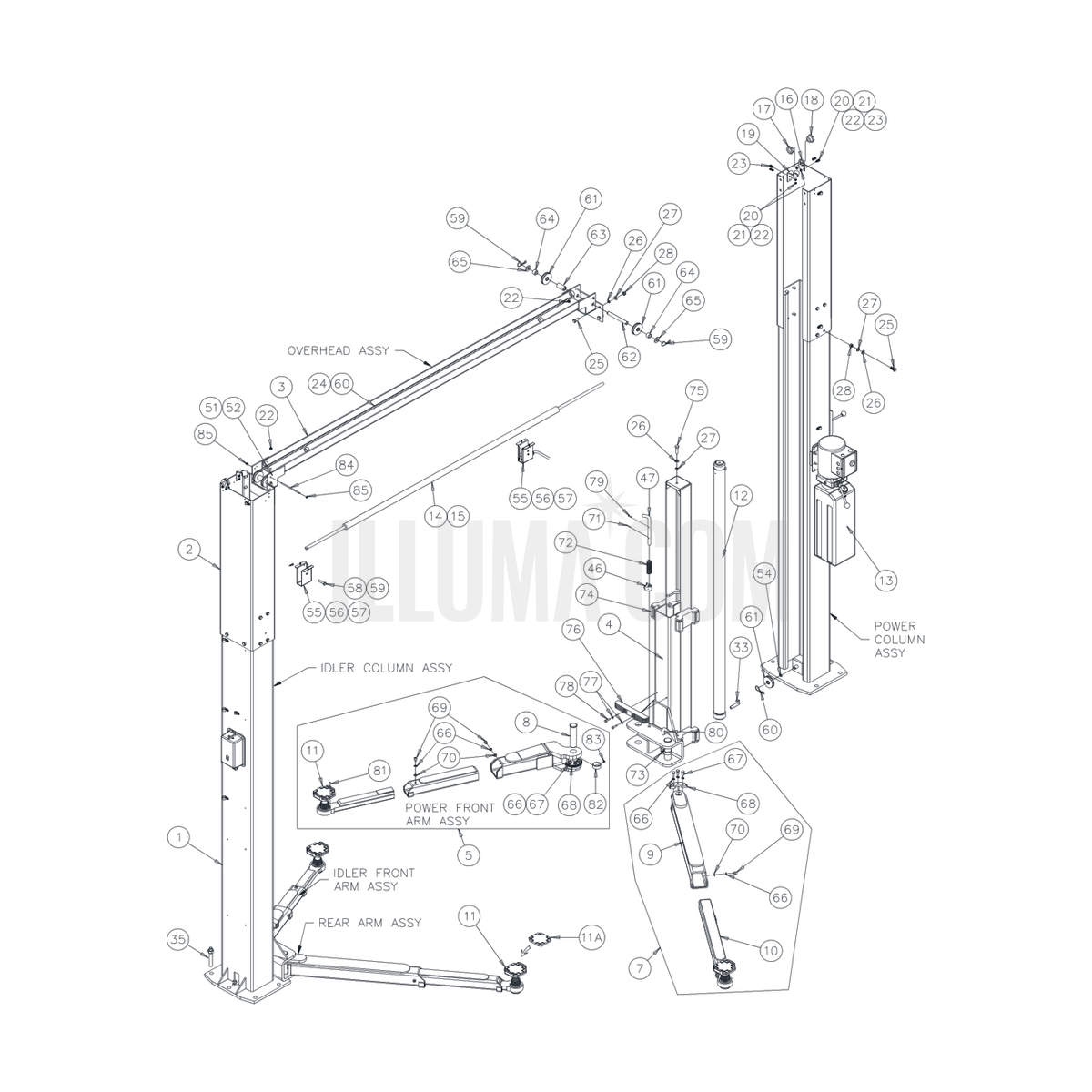

Illustrated Parts Lists

Click a diagram to see every part with clickable callouts — no PDFs.

All parts for this model

  • Bolt M8 x 25
    X10-060
    Bolt M8 x 25
    Qty 1$1.64View
  • Axle
    JSJ4-03-03
    Axle
    Qty 1$9.49View
  • Nut M16
    X10-095
    Nut M16
    Qty 1$0.71View
  • Idler Side Hose Guide
    CLJSJ5-02-03-00FQ
    Idler Side Hose Guide
    Qty 1$2.81View
  • Flat Washer 10mm
    X10-073
    Flat Washer 10mm
    Qty 1$0.54View
  • X
    X10-092
    Bolt M12 x 45
    Qty 1Not carried
  • M6 SERRATED FLANGE HEX NUT
    B2065-4
    M6 SERRATED FLANGE HEX NUT
    Qty 1$1.15View
  • Idler Column Hose
    JSJ5-18CH
    Idler Column Hose
    Qty 1$219.68View
  • Clamp, 5mm Dia.
    1-05082A
    Clamp, 5mm Dia.
    Qty 1$3.31View
  • M6 x 14mm PHILLIPS PAN HEAD SCREW
    B2065-3
    M6 x 14mm PHILLIPS PAN HEAD SCREW
    Qty 1$0.66View

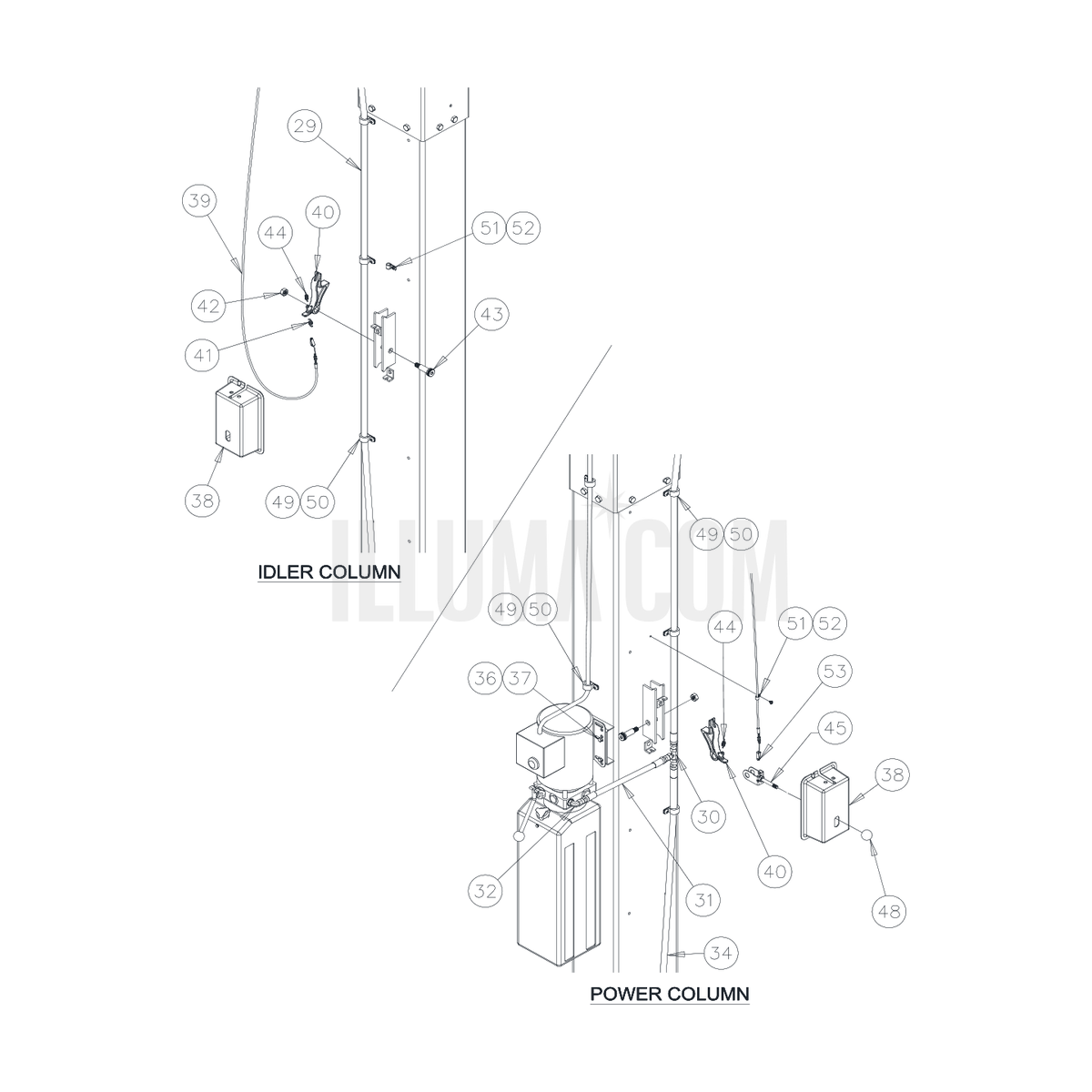

  • Lock Release Handle Assy.
    JSJ5020400CH
    Lock Release Handle Assy.
    Qty 1$22.43View
  • M6 Lock Nut
    B31061
    M6 Lock Nut
    Qty 1$0.23View
  • Lock Release Cable (Std. Ht)
    L5-06-00CH
    Lock Release Cable (Std. Ht)
    Qty 1$47.23View

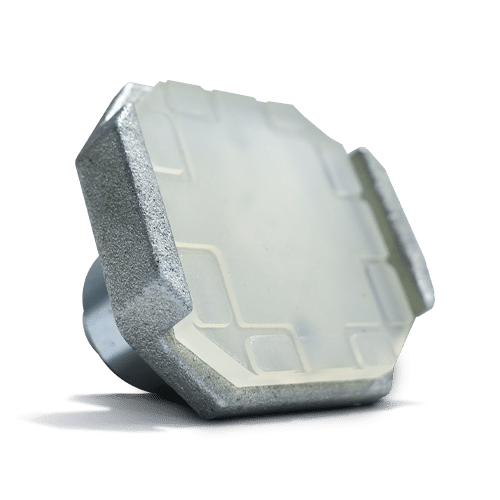

  • FOOT PAD ASSEMBLY (items 72-77)
    B2270
    FOOT PAD ASSEMBLY (items 72-77)
    Qty 1$165.03View
  • Rear Arm Restraint Pin
    JSJ5-13
    Rear Arm Restraint Pin
    Qty 1$9.57View
  • Power Side Hose Guide
    CLJSJ5-02-03-00Q
    Power Side Hose Guide
    Qty 1$2.81View
  • HAIRPIN COTTER PIN
    GJY12-3
    HAIRPIN COTTER PIN
    Qty 1$5.26View
  • Spacer Sleeve
    JSJ4-03-06
    Spacer Sleeve
    Qty 1$1.41View
  • Hose Guide
    JSJ4-02-17
    Hose Guide
    Qty 1$1.87View
  • M8 x 8 Set Screw Cup Point
    JSJ5-23CH
    M8 x 8 Set Screw Cup Point
    Qty 1$0.23View
  • HYD. HOSE ASSEMBLY (P/U – 22")
    JSJ5-17CH
    HYD. HOSE ASSEMBLY (P/U – 22")
    Qty 1$18.89View
  • M5 x 10 Screw
    X10-065
    M5 x 10 Screw
    Qty 1$0.47View
  • Spring Pin 4 x 30
    X10-081
    Spring Pin 4 x 30
    Qty 1$3.67View
  • J
    JSJ5-03-07CH
    Cable Trapping Rod
    Qty 1Not carried
  • CLEVIS PIN 10mm x 55 Lg.
    B2065-5
    CLEVIS PIN 10mm x 55 Lg.
    Qty 1$38.64View
  • Shutoff Bar Cushion
    JSJ5-03-03
    Shutoff Bar Cushion
    Qty 1$4.24View
  • Sync. Cable
    L5-04-00CH
    Sync. Cable
    Qty 1$105.79View
  • Extension Hose (2Ft Ext Height)
    JSJ5-21H
    Extension Hose (2Ft Ext Height)
    Qty 1$80.31View
  • M8 WASHER
    X10-087
    M8 WASHER
    Qty 1$0.24View
  • 2' Extended Ht. Extension
    L5-02-02-01CHH-04
    2' Extended Ht. Extension
    Qty 1$1,701.77View
  • Inner Gear (Rear)
    JSJ5-09-07
    Inner Gear (Rear)
    Qty 1$11.81View
  • Bolt M12 x 30
    X10-037
    Bolt M12 x 30
    Qty 1$1.87View
  • Hose Guide Bracket
    JSJ4-02-02-02
    Hose Guide Bracket
    Qty 1$47.23View
  • M12 LOCK WASHER
    X10-039
    M12 LOCK WASHER
    Qty 1$1.18View
  • Front Arm Restraint Pin
    EAM0172V16A
    Front Arm Restraint Pin
    Qty 1$11.60View
  • Washer
    X10-055
    Washer
    Qty 1$1.64View
  • LIMIT SWITCH PACKAGE (INCLUDES SWITCH w/ CORD, BOTH BRACKETS, & ITEMS 7-10)
    B2064-01
    LIMIT SWITCH PACKAGE (INCLUDES SWITCH w/ CORD, BOTH BRACKETS, & ITEMS 7-10)
    Qty 1$146.45View
  • Arm Pin
    JSJ5-11
    Arm Pin
    Qty 1$31.39View
  • X
    X10-074
    Spring Washer 10mm
    Qty 1Not carried
  • ANCHOR BOLT, 3/4 x 5 1/2"
    31058
    ANCHOR BOLT, 3/4 x 5 1/2"
    Qty 1$10.86View
  • Lock Knob
    JSJ3-01-02-2-9
    Lock Knob
    Qty 1$2.58View
  • M8 x 20mm Lg. SOCKET HEAD CAP SCREW
    X10-032
    M8 x 20mm Lg. SOCKET HEAD CAP SCREW
    Qty 1$0.23View
  • Clevis Pin Kit
    37119PR
    Clevis Pin Kit
    Qty 1$11.60View
  • Clamp, 20mm Dia.
    1-04982A
    Clamp, 20mm Dia.
    Qty 1$4.72View
  • Hose Guide Nut
    JSJ4-02-18
    Hose Guide Nut
    Qty 1$0.94View
  • POWER UNIT 3 PHASE, 230/460VAC
    AD-9367
    POWER UNIT 3 PHASE, 230/460VAC
    Qty 1$1,659.23View
  • M8 x 10 Screw
    VS10-10-25
    M8 x 10 Screw
    Qty 1$4.29View
  • Spring Washer 6mm
    X10-033
    Spring Washer 6mm
    Qty 1$0.23View
  • Slide Block
    JSJ5-08-15
    Slide Block
    Qty 1$11.81View
  • ROLL PIN, 6mm DIA x 30mm Lg
    B2211
    ROLL PIN, 6mm DIA x 30mm Lg
    Qty 1$0.75View
  • Nut M6
    X10-034
    Nut M6
    Qty 1$0.23View
  • Rear Outer Gear
    JSJ4-12
    Rear Outer Gear
    Qty 1$15.30View
  • LOCK SPRING (3/8" O.D.)
    A1131
    LOCK SPRING (3/8" O.D.)
    Qty 1$1.72View
  • Cylinder Elbow, O-Ring
    JSJ6-19
    Cylinder Elbow, O-Ring
    Qty 1$18.89View
  • Power Column Hose
    JSJ4-16
    Power Column Hose
    Qty 1$106.29View
  • RUBBER INSERT
    A1104-H
    RUBBER INSERT
    Qty 1$28.98View
  • J
    JSJ5-15
    Union Tee
    Qty 1Not carried
  • Inner Gear (Front)
    EAM0172V20A
    Inner Gear (Front)
    Qty 1$32.86View
  • 40.5 x 48 x 20 Lg. Collar
    JSJ5-22CH
    40.5 x 48 x 20 Lg. Collar
    Qty 1$2.35View
  • M8 x 30 SOCKET HEAD CAP SCREW
    X10-088
    M8 x 30 SOCKET HEAD CAP SCREW
    Qty 1$1.64View
  • Shutoff Bar
    JSJ5-03-02CH
    Shutoff Bar
    Qty 1$35.42View
  • O-Ring Elbow
    JSJ5-19
    O-Ring Elbow
    Qty 1$10.44View
  • E
    EAS2217V01A
    Power Column Weld
    Qty 1Not carried
  • M10 Screw
    JSJ4-09-08
    M10 Screw
    Qty 1$2.50View
  • Sync. Cable
    L5-04-00CHH
    Sync. Cable
    Qty 1$108.91View
  • Middle Spacer Sleeve
    JSJ4-03-05
    Middle Spacer Sleeve
    Qty 1$1.87View
  • Bolt M6 x 20
    X10-051
    Bolt M6 x 20
    Qty 1$0.23View
  • Screw M10 x 25
    X10-077
    Screw M10 x 25
    Qty 1$1.87View
  • Arm Restraint Spring
    JSJ4-14
    Arm Restraint Spring
    Qty 1$1.17View
  • Lock Release Cable (2Ft Ext Ht)
    L5-06-00CHH
    Lock Release Cable (2Ft Ext Ht)
    Qty 1$82.72View
  • Synch. Sheave
    JSJ3-03-02
    Synch. Sheave
    Qty 1$17.89View
  • Cylinder, O-Ring
    CLJSJ5-07-00CHA
    Cylinder, O-Ring
    Qty 1$942.53View
  • LOCK PAWL
    B1140
    LOCK PAWL
    Qty 1$21.25View
  • Lock Cover
    JSJ5-02-14CH
    Lock Cover
    Qty 1$23.56View
  • M12 WASHER
    X10-038
    M12 WASHER
    Qty 1$1.18View
  • POWER UNIT, 230v, SINGLE PHASE, 50/60Hz
    AB-9367-DLH
    POWER UNIT, 230v, SINGLE PHASE, 50/60Hz
    Qty 1$1,006.39View
  • Overhead Weld
    L5-03-01-04
    Overhead Weld
    Qty 1$467.81View
  • Rear Arm Assembly
    CLJSJ5-09-00CHB
    Rear Arm Assembly
    Qty 1$741.72View
  • M12 NUT
    X10-040
    M12 NUT
    Qty 1$0.71View
  • J
    JSJ4-05CH
    Door Guard
    Qty 1Not carried
  • Spring Pin 4 x 24
    X10-080
    Spring Pin 4 x 24
    Qty 1$0.50View
  • Idler Front Female Arm
    EAA0497V06A
    Idler Front Female Arm
    Qty 1$767.30View
  • X
    X10-048
    M8 NUT
    Qty 1Not carried
  • Carriage
    EAS2217V04A
    Carriage
    Qty 1$1,053.55View
  • Power Front Female Arm
    EAA0497V05A
    Power Front Female Arm
    Qty 1$767.30View
  • Washer 20mm
    X10-099
    Washer 20mm
    Qty 1$0.47View
  • LOCK PIN RETAINER (1/2-13NC HEX LOCK NUT)
    37013
    LOCK PIN RETAINER (1/2-13NC HEX LOCK NUT)
    Qty 1$0.38View
  • Front Outer Gear
    EAS2217V10A
    Front Outer Gear
    Qty 1$23.61View
  • CABLE SPRING (1/2" O.D.) - Idler side ONLY
    A1132
    CABLE SPRING (1/2" O.D.) - Idler side ONLY
    Qty 1$2.69View
  • Standard Ht. Extension
    L5-02-02-01CH-04
    Standard Ht. Extension
    Qty 1$216.49View
  • E
    EAS2217V02A
    Idler Column Weld
    Qty 1Not carried
  • LOCK PIN (5/8 x 1 1/2" Lg. SHOULDER BOLT)
    30020
    LOCK PIN (5/8 x 1 1/2" Lg. SHOULDER BOLT)
    Qty 1$9.08View
