SX14

SX14

Illustrated Parts Lists

Click a diagram to see every part with clickable callouts — no PDFs.

All parts for this model

  • 1
    1061040000
    M4 Flat Washer
    Qty 1Not carried
  • Capture Plate
    3036058078
    Capture Plate
    Qty 1$72.22View
  • 1
    1071450003
    45mm Snap Ring
    Qty 1Not carried

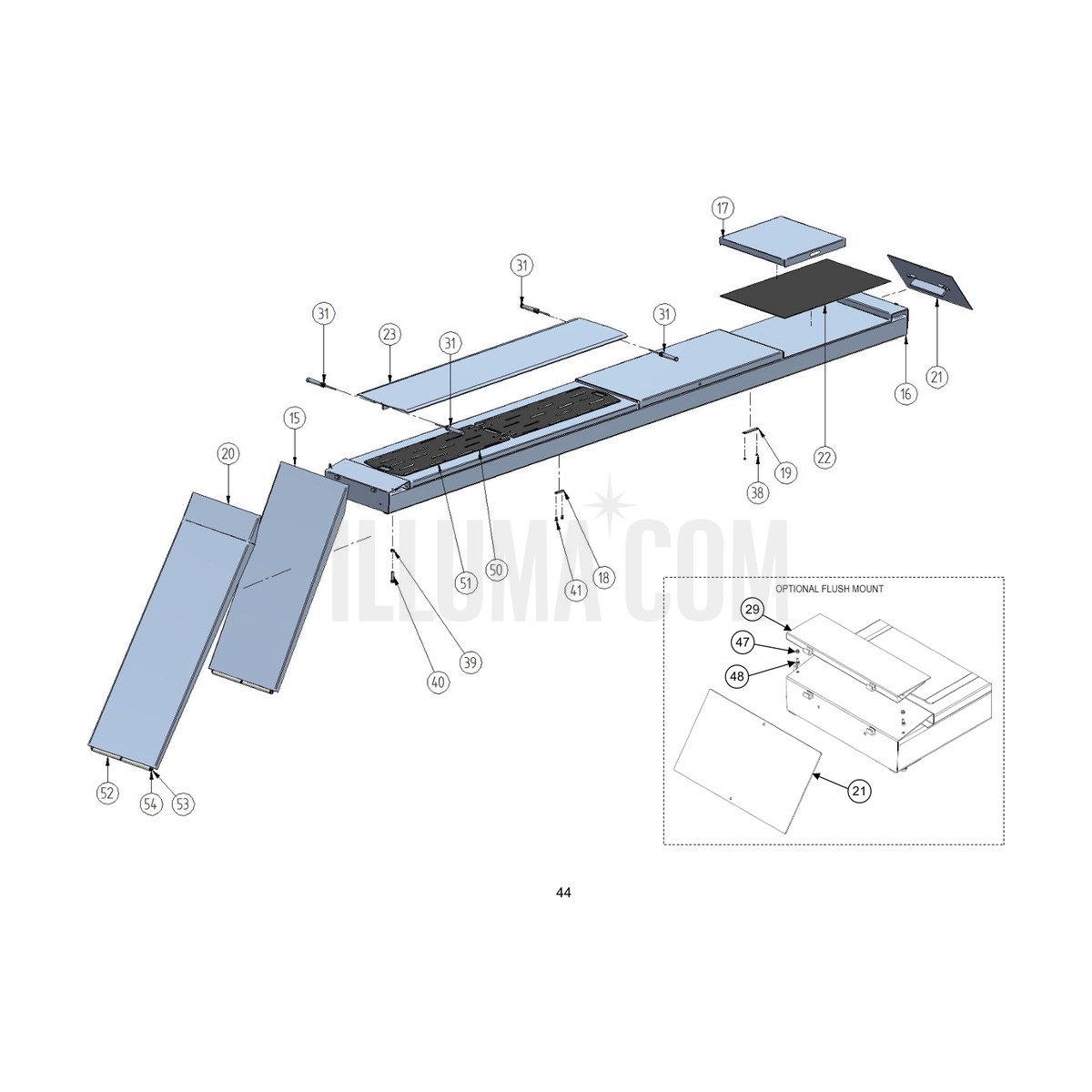

  • 3
    3036062600
    Driver Side Platform
    Qty 1Not carried
  • Flush Mount Spacer (Optional)
    3036001500
    Flush Mount Spacer (Optional)
    Qty 1$345.55View
  • Push Lock Elbow
    1265080009
    Push Lock Elbow
    Qty 1$67.10View
  • 3
    3036025099
    Hydraulic Block
    Qty 1Not carried
  • M8 x 30 Flat Head Screw
    1012080300
    M8 x 30 Flat Head Screw
    Qty 1$4.17View
  • Plastic Sheet
    3036062615
    Plastic Sheet
    Qty 1$399.37View
  • Ball Valve
    1251120000
    Ball Valve
    Qty 1$126.04View
  • 4mm Spiral Tube
    1291040038
    4mm Spiral Tube
    Qty 1$146.21View
  • 1/4 WASHER
    31115
    1/4 WASHER
    Qty 1$0.18View
  • Protective Cap
    1211110001
    Protective Cap
    Qty 1$70.29View
  • 1
    1291060008
    4mm Tube, 8M Long
    Qty 1Not carried
  • Pin
    3020191532
    Pin
    Qty 1$110.26View

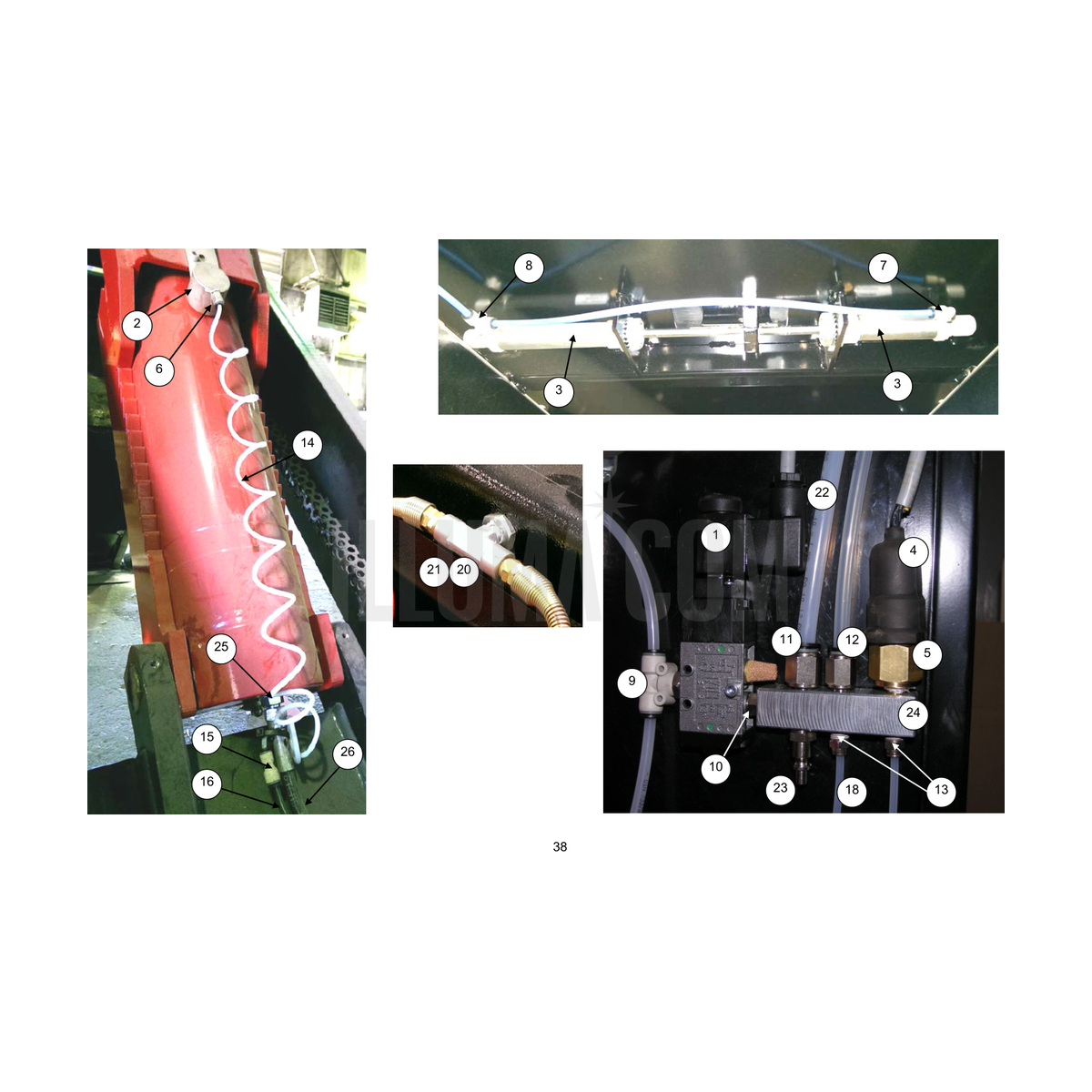

  • Pneumatic Valve w/ Knob
    1251050005
    Pneumatic Valve w/ Knob
    Qty 1$359.59View
  • Tee Fitting, 1/4" FNPT
    1263040009
    Tee Fitting, 1/4" FNPT
    Qty 1$120.80View

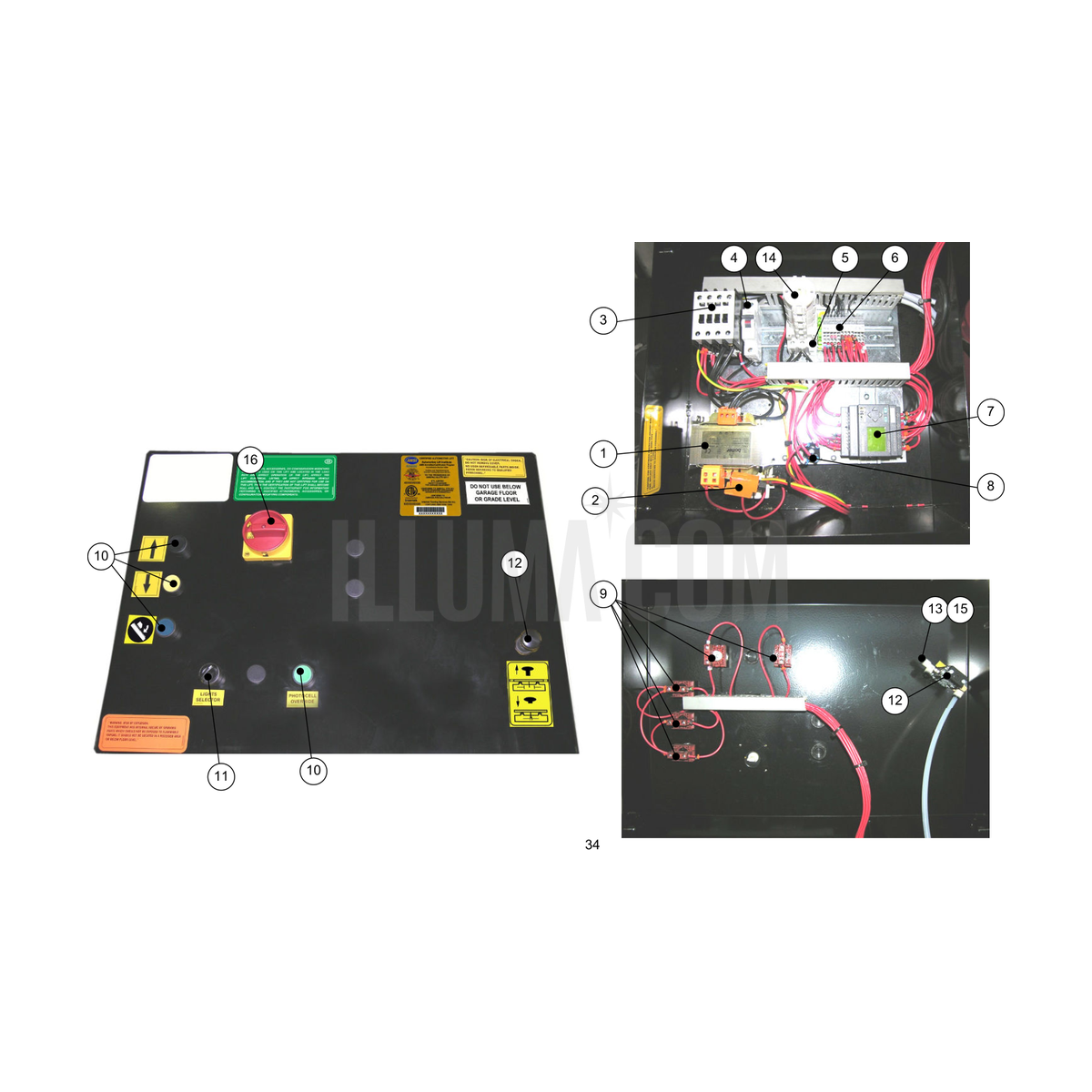

  • Main Switch
    1371080000
    Main Switch
    Qty 1$186.09View
  • Plate
    3036001300
    Plate
    Qty 1$132.33View
  • Platic Pad
    3036815832
    Platic Pad
    Qty 1$1,167.62View
  • Straight Fitting
    1175010008
    Straight Fitting
    Qty 1$79.08View

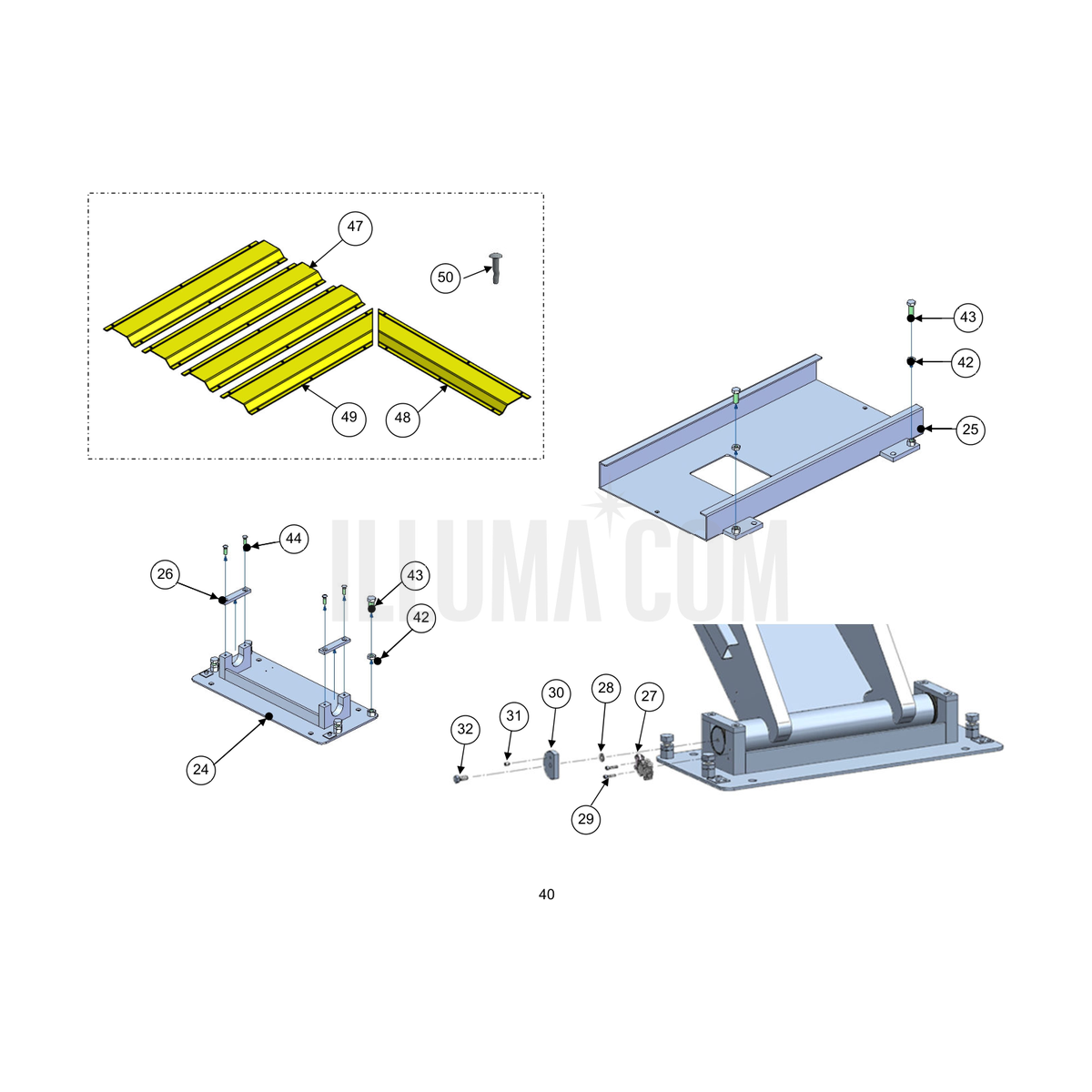

  • Angled Hose Cover Left
    30503-1
    Angled Hose Cover Left
    Qty 1$167.37View
  • AC/DC Transformer
    1554090000
    AC/DC Transformer
    Qty 1$100.79View
  • 1
    1022060101
    M6 x 10 Set Screw
    Qty 1Not carried
  • 1
    1291010008
    Return Tube, 8mm O.D.
    Qty 1Not carried
  • Microswitch
    1401680000
    Microswitch
    Qty 1$186.34View
  • Parachute Valve
    1281220011
    Parachute Valve
    Qty 1$135.66View

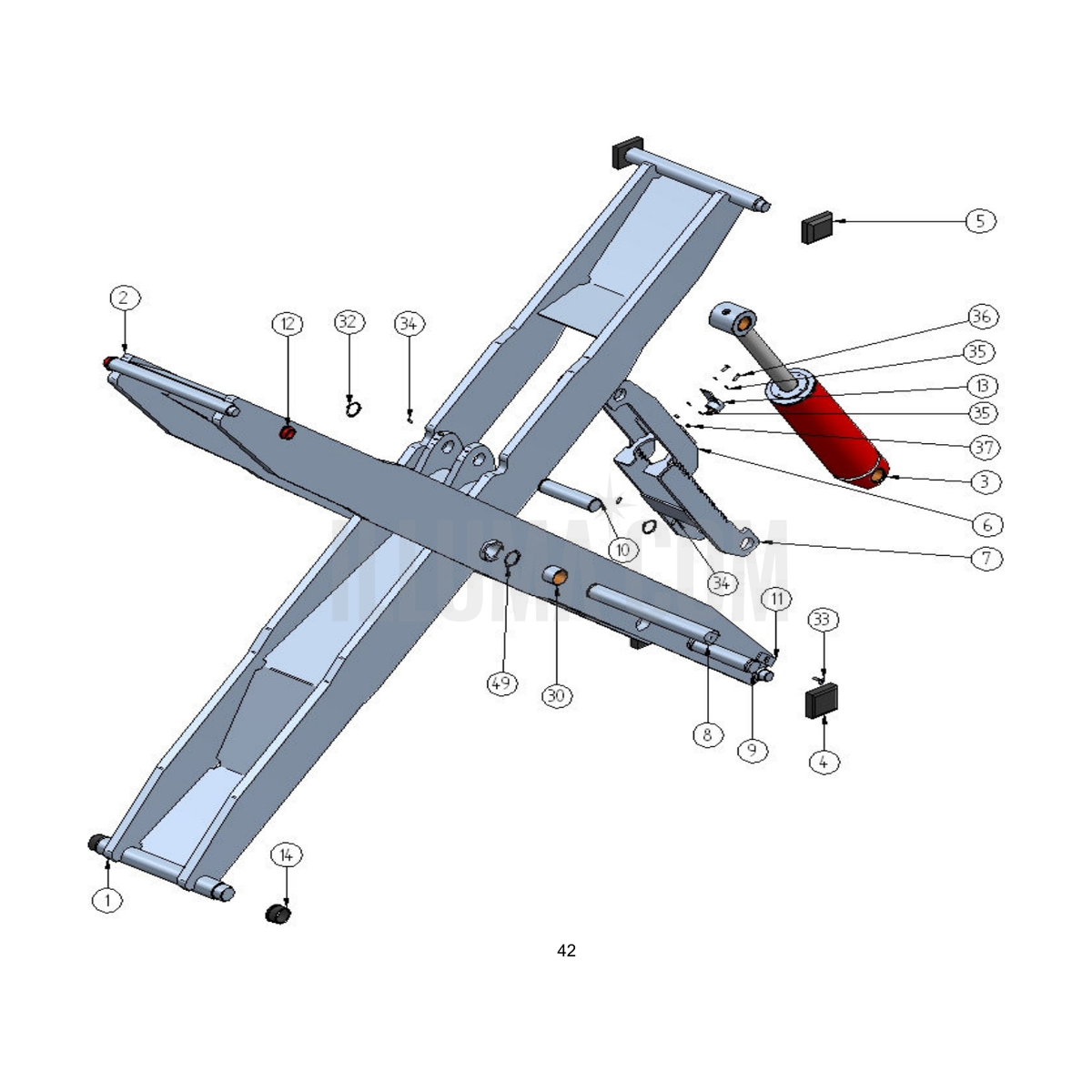

  • 3
    3036062200
    Inner Scissor Weldment
    Qty 1Not carried
  • Union Fitting
    1261090009
    Union Fitting
    Qty 1$34.99View
  • Tee Fitting
    1164120008
    Tee Fitting
    Qty 1$359.59View
  • Bushing
    1141590110
    Bushing
    Qty 1$46.01View
  • Pneumatic Manifold Block
    3036062580
    Pneumatic Manifold Block
    Qty 1$385.97View
  • Turn Knob, Red
    1371170000
    Turn Knob, Red
    Qty 1$60.52View
  • 1
    1061080000
    M8 Washer
    Qty 1Not carried
  • 8mm Push Lock Fitting
    1264020009
    8mm Push Lock Fitting
    Qty 1$47.66View
  • Check Valve
    1901900013
    Check Valve
    Qty 1$230.13View
  • Magnetothermic Switch
    1501710100
    Magnetothermic Switch
    Qty 1$240.66View
  • Angled Hose Cover Right
    30503-2
    Angled Hose Cover Right
    Qty 1$167.37View
  • Filler Platform
    3036062625
    Filler Platform
    Qty 1$654.46View
  • 3
    3036062100
    Outer Scissor Weldment
    Qty 1Not carried
  • Rear Base
    3036058067
    Rear Base
    Qty 1$766.21View
  • Pneumatic Tee Fitting
    1266050009
    Pneumatic Tee Fitting
    Qty 1$55.12View
  • Contactor
    1501770000
    Contactor
    Qty 1$548.26View
  • 1/4 x 1-1/2" Drive Anchor
    484985
    1/4 x 1-1/2" Drive Anchor
    Qty 1$1.94View
  • Transformer
    1361030010
    Transformer
    Qty 1$248.11View
  • 45mm Cylinder Base Pin
    3036062510
    45mm Cylinder Base Pin
    Qty 1$259.64View
  • Push Lock Elbow
    1265060009
    Push Lock Elbow
    Qty 1$48.87View
  • Bushing
    3036055076
    Bushing
    Qty 1$115.17View
  • 1
    1011040200
    M4 x 20 Socket Head Screw
    Qty 1Not carried
  • Pressure Relief Valve
    1120160101
    Pressure Relief Valve
    Qty 1$436.30View
  • PLC
    1556320100
    PLC
    Qty 1$1,206.67View
  • Terminal Board Contactors
    1422070133
    Terminal Board Contactors
    Qty 1$51.75View
  • Plastic Roller
    3036051687
    Plastic Roller
    Qty 1$4.59View
  • M16 x 40 Hex Bolt
    1003160400
    M16 x 40 Hex Bolt
    Qty 1$5.79View
  • 1
    1003080200
    M8 x 20 Hex Bolt
    Qty 1Not carried
  • 45mm Cylinder Rod Pin
    3036062500
    45mm Cylinder Rod Pin
    Qty 1$263.54View
  • Nut M6
    X10-034
    Nut M6
    Qty 1$0.23View
  • Nut M16
    X10-095
    Nut M16
    Qty 1$0.71View
  • #6JIC x BSPP Straight Fitting
    1161030010
    #6JIC x BSPP Straight Fitting
    Qty 1$37.86View
  • M8 x 20mm Lg. HEX LOCKING FLG. HD. CAP SCREW
    Q4P09-006
    M8 x 20mm Lg. HEX LOCKING FLG. HD. CAP SCREW
    Qty 1$1.21View
  • Safety Lock Base
    3036062400
    Safety Lock Base
    Qty 1$727.30View
  • Straight Hose Cover
    30501
    Straight Hose Cover
    Qty 1$121.26View
  • 1
    1265040000
    10mm Push Lock Elbow
    Qty 1Not carried
  • Oil Divider Cylinder
    3036002470
    Oil Divider Cylinder
    Qty 1$5,274.11View
  • Throttling Valve
    1120160103
    Throttling Valve
    Qty 1$171.63View
  • 1
    1003160700
    M16 x 70 Hex Bolt
    Qty 1Not carried
  • Bleed Screw
    1131100005
    Bleed Screw
    Qty 1$46.85View
  • Hose Barb Fitting
    1264110009
    Hose Barb Fitting
    Qty 1$139.02View
  • Front Base
    3036058080
    Front Base
    Qty 1$884.66View
  • Terminal Board Contactors
    1422070131
    Terminal Board Contactors
    Qty 1$37.39View
  • Rear Slip Plate
    3036815830
    Rear Slip Plate
    Qty 1$2,349.40View
  • M8 x 20 Cone Point Set Screw
    1023080200
    M8 x 20 Cone Point Set Screw
    Qty 1$3.65View
  • Lock Release Solenoid Valve, 24V
    1281130000
    Lock Release Solenoid Valve, 24V
    Qty 1$484.23View
  • #6JIC x BSPP Straight Fitting
    DX77-49
    #6JIC x BSPP Straight Fitting
    Qty 1$19.47View
  • Lower Slide Block
    3036062505
    Lower Slide Block
    Qty 1$122.99View
  • Lowering Valve
    1901900083
    Lowering Valve
    Qty 1$578.53View
  • Hydraulic Hose, Elbow
    1201210540
    Hydraulic Hose, Elbow
    Qty 1$105.00View
  • M8 Lock Nut (Optional)
    1056080000
    M8 Lock Nut (Optional)
    Qty 1$0.50View
  • 10mm Tube, 14M Long
    1291050008
    10mm Tube, 14M Long
    Qty 1$42.02View
  • Tee Fitting
    1266060009
    Tee Fitting
    Qty 1$45.53View
  • Relief valve, 110 BAR
    1120160100-110
    Relief valve, 110 BAR
    Qty 1$182.19View
  • Terminal Board Contactors
    1422070132
    Terminal Board Contactors
    Qty 1$40.75View
  • 6mm x 4mm Push Lock Reducer
    DX77-54
    6mm x 4mm Push Lock Reducer
    Qty 1$20.87View
  • 1
    1291020008
    6mm Tube, 14M Long
    Qty 1Not carried
  • 4mm Push Lock Fitting
    1265010109
    4mm Push Lock Fitting
    Qty 1$33.18View
  • Bushing
    1141590000
    Bushing
    Qty 1$41.71View
  • Pressure Switch
    1211110050R
    Pressure Switch
    Qty 1$402.17View
  • 1
    1141490000
    Bushing
    Qty 1Not carried
  • 1
    1422070135
    Terminal Board Contactors
    Qty 1Not carried
  • M8 x 13mm Phillips Flat Head Screw
    VS10-31-08
    M8 x 13mm Phillips Flat Head Screw
    Qty 1$5.41View
  • Safety Lock Arm
    3036062420
    Safety Lock Arm
    Qty 1$778.97View
  • 1
    1011040100
    M4 x 10 Pan Head Screw
    Qty 1Not carried
  • Fuse
    1451380000
    Fuse
    Qty 1$42.91View
  • Main Supply Hose
    1201470507
    Main Supply Hose
    Qty 1$109.79View
  • Slip Plate Lock Cylinder
    1251042060
    Slip Plate Lock Cylinder
    Qty 1$399.21View
  • Bushing
    3036058306
    Bushing
    Qty 1$109.31View
  • 1
    1012100300
    M10 x 30 FHSCS
    Qty 1Not carried
  • Power Unit Fitting
    1161090108
    Power Unit Fitting
    Qty 1$51.75View
  • 6mm Push Lock Y-Union (NOT SHOWN)
    1262090110
    6mm Push Lock Y-Union (NOT SHOWN)
    Qty 1$39.30View
  • Long Hydraulic Hose, 236"
    1201404810
    Long Hydraulic Hose, 236"
    Qty 1$356.17View
  • 3
    3036062590
    Cam
    Qty 1Not carried
  • Lights Control Switch
    1551350071
    Lights Control Switch
    Qty 1$134.01View
  • Roller
    3020191531
    Roller
    Qty 1$119.35View
  • Extension
    1371040001
    Extension
    Qty 1$30.52View
  • 1
    1291040028
    6mm Tube, 14M Long, Blue
    Qty 1Not carried
  • Lock Release Air Cylinder
    3036055730
    Lock Release Air Cylinder
    Qty 1$472.43View
  • 50mm Center Pin
    3036062515
    50mm Center Pin
    Qty 1$372.88View
  • Wheel Stop/ Ramp
    3036001132
    Wheel Stop/ Ramp
    Qty 1$568.27View
  • 10mm Push Lock Fitting
    1264070009
    10mm Push Lock Fitting
    Qty 1$50.02View
  • Greasing nipple
    1141030000
    Greasing nipple
    Qty 1$4.52View
  • Push Button
    1481010010
    Push Button
    Qty 1$96.50View
  • NO Contacts
    1411000010
    NO Contacts
    Qty 1$49.27View
  • Plate
    3036062525
    Plate
    Qty 1$64.41View
  • Anti Rotation Plate
    3036055009
    Anti Rotation Plate
    Qty 1$37.39View
  • Upper Slide Block
    3036062520
    Upper Slide Block
    Qty 1$115.17View
  • 4mm Push Lock Fitting
    1264050009
    4mm Push Lock Fitting
    Qty 1$37.86View
  • Hydraulic Hose, Straight Fittings
    1201967307
    Hydraulic Hose, Straight Fittings
    Qty 1$96.36View

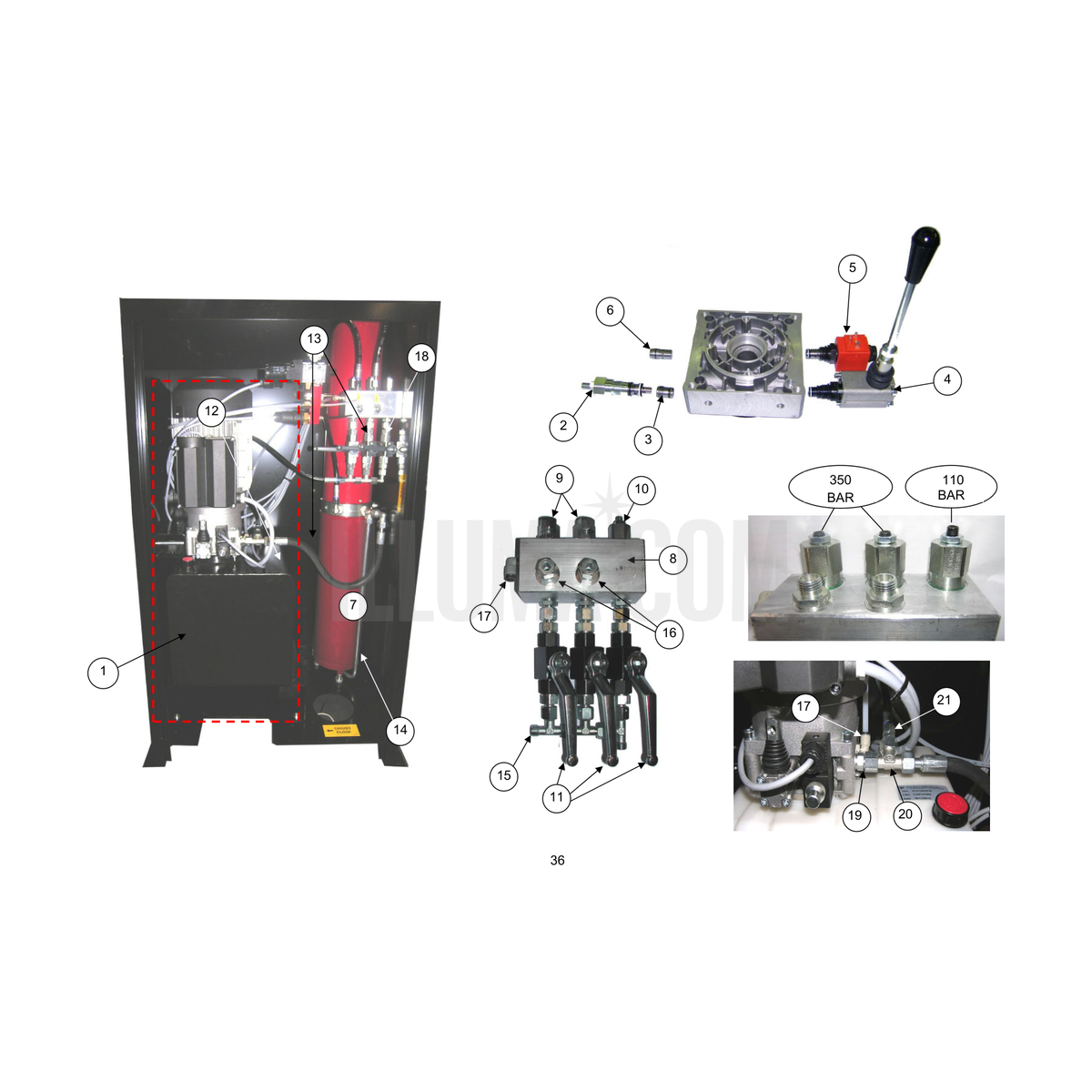

  • Power Unit Assembly
    3036026095
    Power Unit Assembly
    Qty 1$4,910.88View
  • Bolt M6 x 20
    X10-051
    Bolt M6 x 20
    Qty 1$0.23View

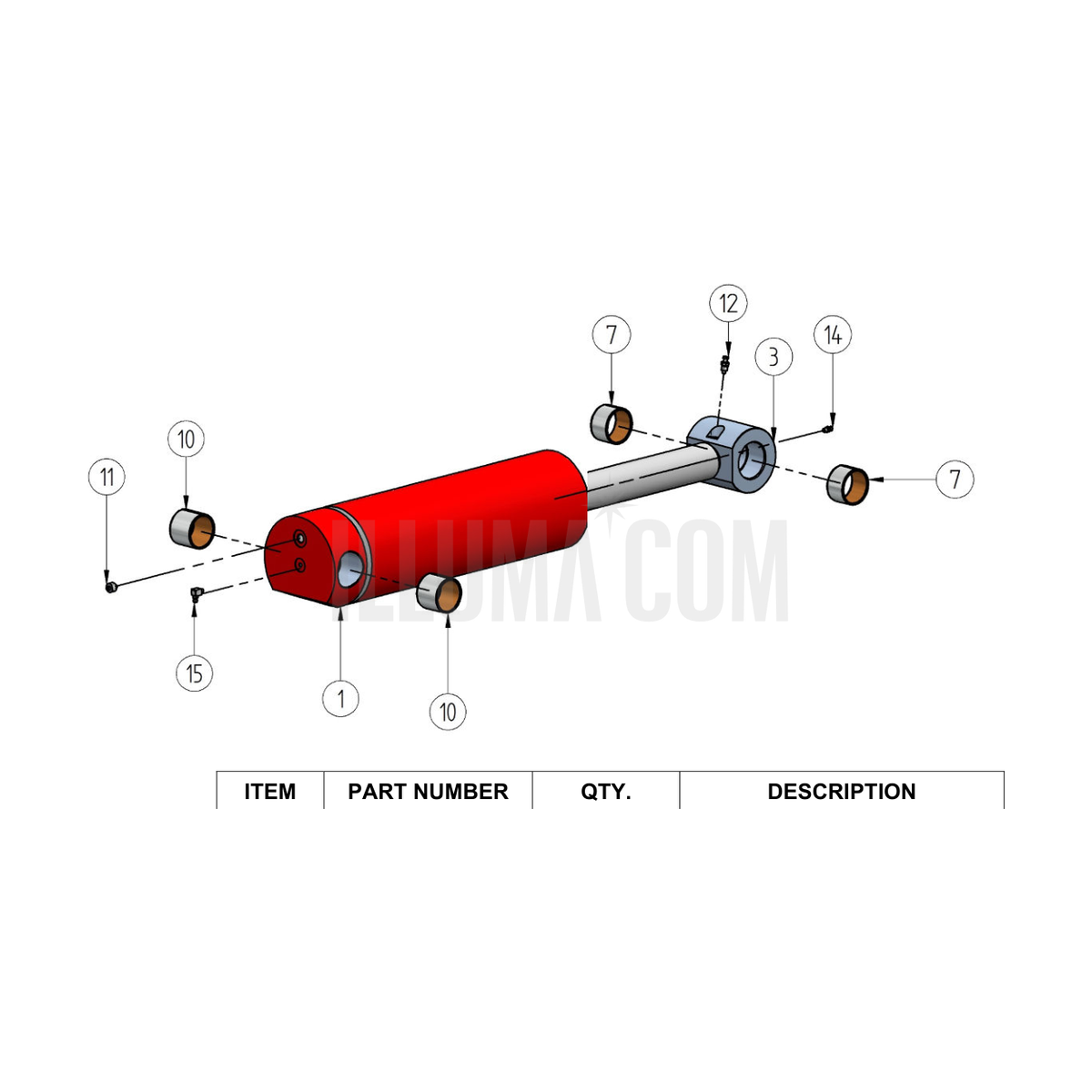

  • Lifting Cylinder
    3036062301
    Lifting Cylinder
    Qty 1$2,779.34View
  • Relief valve, 350 BAR
    1120160100
    Relief valve, 350 BAR
    Qty 1$160.07View
  • 14mm Snap Ring
    1071140003
    14mm Snap Ring
    Qty 1$4.20View
  • Standard Ramp
    3036056348
    Standard Ramp
    Qty 1$1,893.89View
  • Tee Fitting
    1166030008
    Tee Fitting
    Qty 1$110.26View
  • Greasing nipple
    1141050000
    Greasing nipple
    Qty 1$39.30View
  • Manual pump with Lever
    1120109011
    Manual pump with Lever
    Qty 1$891.78View
  • Extended Ramp (Optional)
    3036806280
    Extended Ramp (Optional)
    Qty 1$2,165.04View
  • 1
    1071500004
    50mm Snap Ring
    Qty 1Not carried
  • M10 x 20 Hex Bolt
    MR6-002
    M10 x 20 Hex Bolt
    Qty 1$0.47View
