SRM10

SRM10 Multi-Purpose Short-Rise Lift

Illustrated Parts Lists

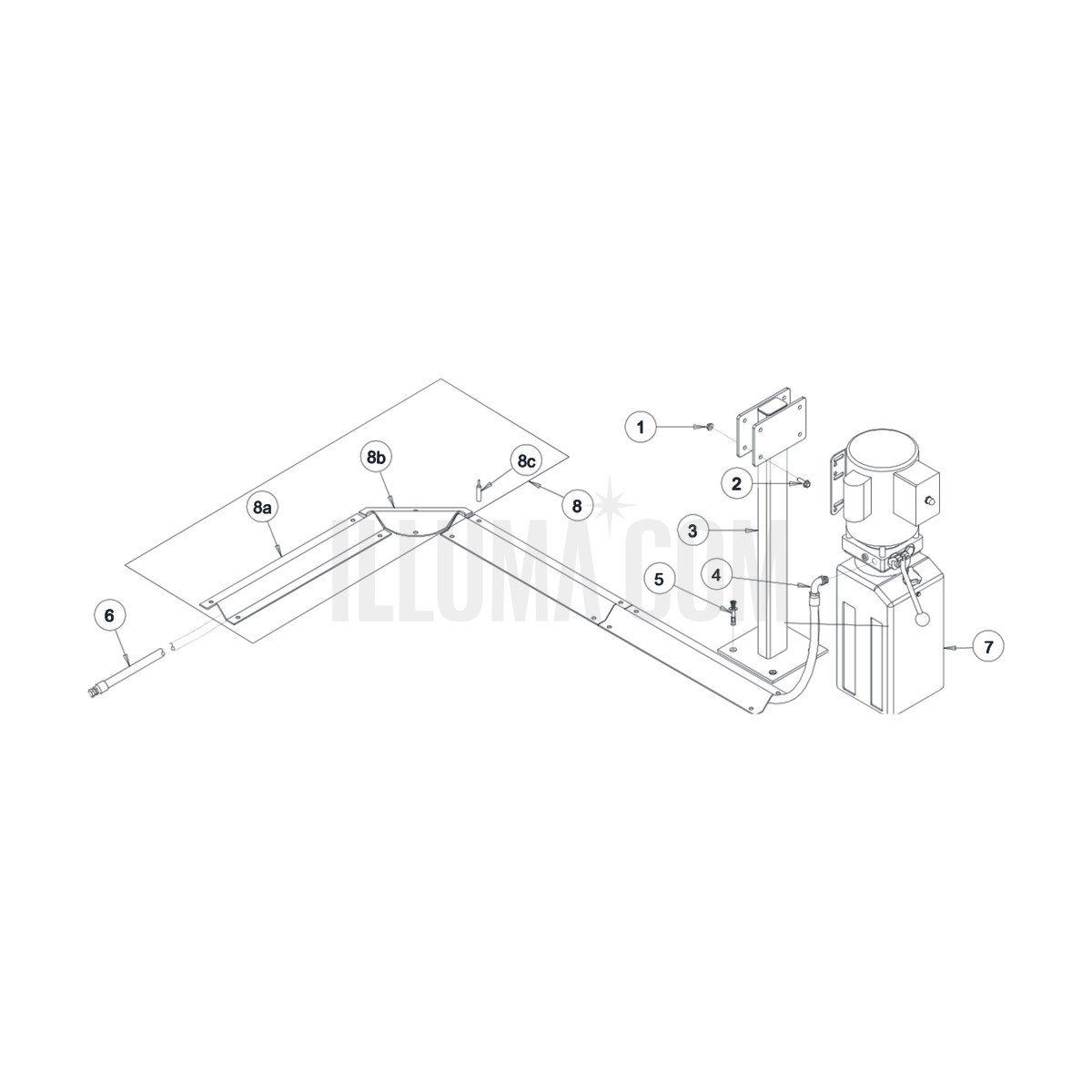

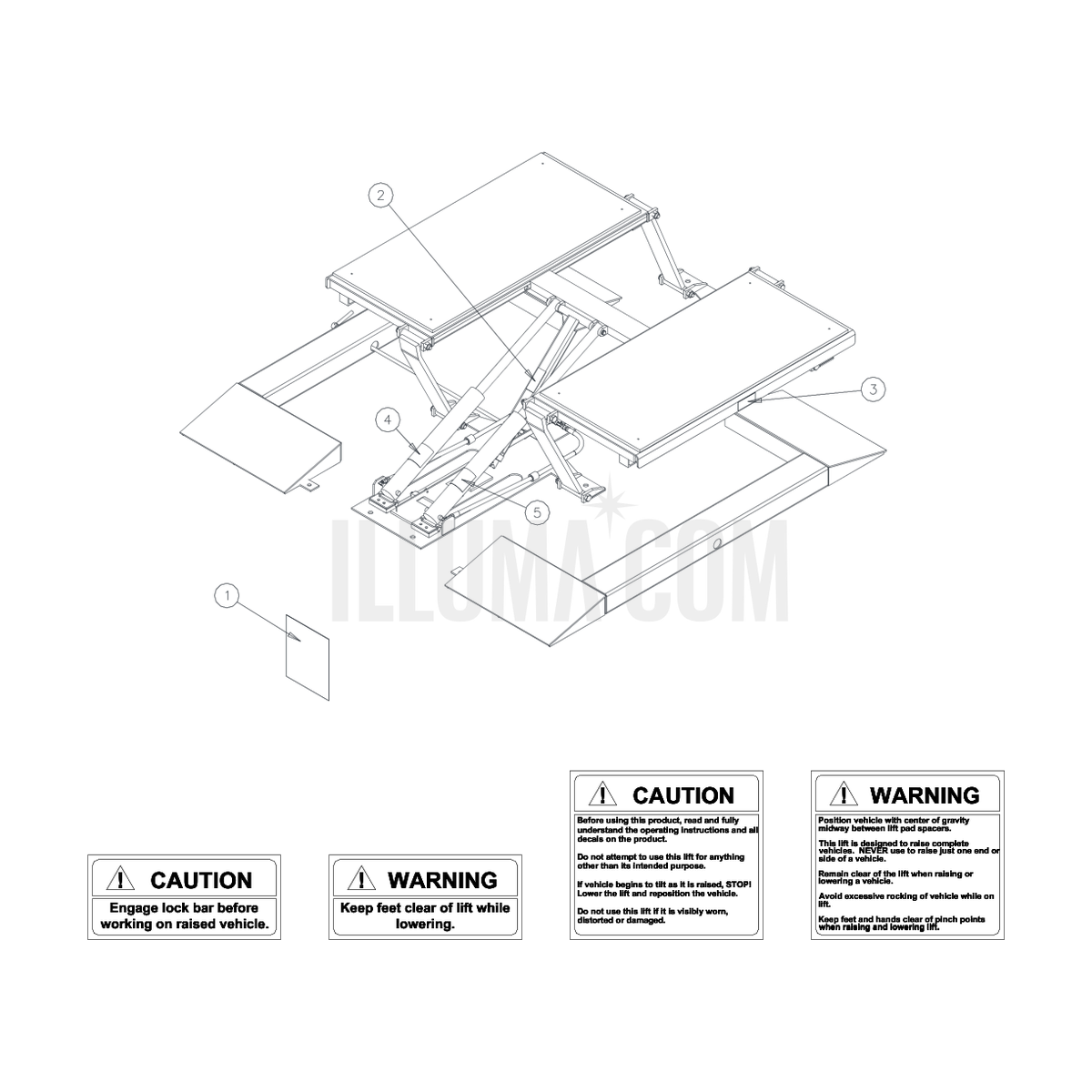

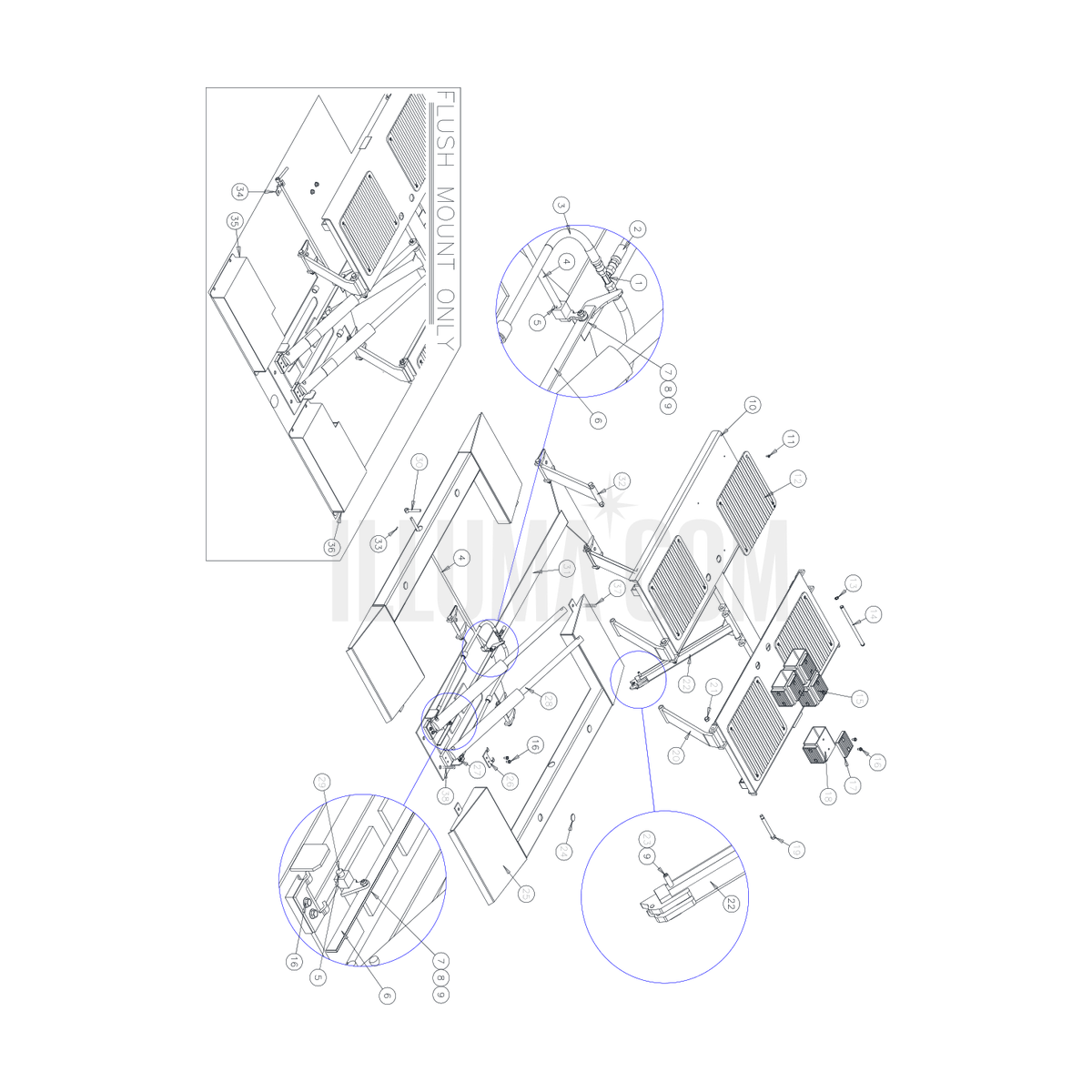

Click a diagram to see every part with clickable callouts — no PDFs.

All parts for this model

  • 30 Foot x 3/8" Hydraulic Hose, #6 JIC Female Ends
    62-0011-30
    30 Foot x 3/8" Hydraulic Hose, #6 JIC Female Ends
    Qty 1$224.23View
  • Hole Plug, 46mm, White
    SR-0120
    Hole Plug, 46mm, White
    Qty 1$3.09View
  • M19 Snap Ring
    SR-0121
    M19 Snap Ring
    Qty 1$1.30View
  • Hydraulic Cylinder, 2 1/4 x 18
    63-0022
    Hydraulic Cylinder, 2 1/4 x 18
    Qty 1$654.39View
  • 0
    03-0383
    Platform Weld
    Qty 1Not carried
  • 230VAC Power Unit, 50/60Hz
    AB-1563-220
    230VAC Power Unit, 50/60Hz
    Qty 1$1,012.09View
  • 0
    03-0385
    Base Weld
    Qty 1Not carried
  • 0
    03-0384
    Lock Leg Weld
    Qty 1Not carried
  • Caution Decal
    80-0150
    Caution Decal
    Qty 1$2.60View
  • Lock Release Bar
    SR-0103
    Lock Release Bar
    Qty 1$15.62View
  • Linkage Weld
    SR-0101
    Linkage Weld
    Qty 1$2.81View
  • M8 x 13mm Phillips Flat Head Screw
    VS10-31-08
    M8 x 13mm Phillips Flat Head Screw
    Qty 1$5.41View
  • 5/16"-18NC x 1 HEX FLANGE LOCKING HEAD CAP SCREW
    A1069
    5/16"-18NC x 1 HEX FLANGE LOCKING HEAD CAP SCREW
    Qty 1$0.39View
  • Caution Decal
    80-0147
    Caution Decal
    Qty 1$2.14View
  • 22 Foot x 3/8" Hydraulic Hose, #6 JIC Female Ends
    62-0011-22
    22 Foot x 3/8" Hydraulic Hose, #6 JIC Female Ends
    Qty 1$201.04View
  • Warning Decal
    80-0151
    Warning Decal
    Qty 1$3.60View
  • Hose and Fitting Kit (includes items 1, 3, and 27)
    SR10-002
    Hose and Fitting Kit (includes items 1, 3, and 27)
    Qty 1$170.00View
  • Hose Cover (20")
    10354-2
    Hose Cover (20")
    Qty 1$65.99View
  • ALI Warning Placard, Low Rise
    485412
    ALI Warning Placard, Low Rise
    Qty 1$13.52View
  • Locking Nut, M18
    SR-0114
    Locking Nut, M18
    Qty 1$3.54View
  • Hardware Box (Surface Mount)
    SR10-003
    Hardware Box (Surface Mount)
    Qty 1$197.13View
  • S
    SRM10R-HW
    Hardware Box (Flush Mount)
    Qty 1Not carried
  • Front Leg Weld
    03-0382
    Front Leg Weld
    Qty 1$87.08View
  • 115VAC Power Unit, 60Hz
    AB-1563-A-DLH
    115VAC Power Unit, 60Hz
    Qty 1$1,201.61View
  • M10 x 19mm Hex Flange Head Screw
    B1153
    M10 x 19mm Hex Flange Head Screw
    Qty 1$3.08View
  • 1/4 x 1-1/2" Drive Anchor
    484985
    1/4 x 1-1/2" Drive Anchor
    Qty 1$1.94View
  • Rubber Lift Pad
    482365
    Rubber Lift Pad
    Qty 1$24.42View
  • M6 Nylon Locknut
    SR-0113
    M6 Nylon Locknut
    Qty 1$0.71View
  • Front Platform, Right, Not Shown (Flush Mount)
    SR-0130R
    Front Platform, Right, Not Shown (Flush Mount)
    Qty 1$432.55View
  • Power Unit Stand / 7 Foot Stand
    03-0389
    Power Unit Stand / 7 Foot Stand
    Qty 1$647.86View
  • Leg Pivot Bolt, 19mm x 155mm with M18 Thread
    SR-0124
    Leg Pivot Bolt, 19mm x 155mm with M18 Thread
    Qty 1$11.81View
  • Literature Pack
    SR10-004
    Literature Pack
    Qty 1$46.23View
  • Rear Leg Weld
    03-0381
    Rear Leg Weld
    Qty 1$156.27View
  • 0
    03-0392
    Ramp Weldment (Surface Mount)
    Qty 1Not carried
  • 5mm x 19mm Roll Pin
    SR-0122
    5mm x 19mm Roll Pin
    Qty 1$0.47View
  • Front Platform, Left, Not Shown (Flush Mount)
    SR-0130L
    Front Platform, Left, Not Shown (Flush Mount)
    Qty 1$432.55View
  • HYD. TEE
    39103
    HYD. TEE
    Qty 1$7.33View
  • Cylinder Retainer
    73-0769
    Cylinder Retainer
    Qty 1$38.69View
  • Lock Rod Support Bracket, Not Shown (Flush Mount)
    SR-0131
    Lock Rod Support Bracket, Not Shown (Flush Mount)
    Qty 1$205.69View
  • S
    SR10-001
    Height Adapter Kit (4 pieces item 17)
    Qty 1$348.82View
  • Hose Cover Corner
    10354-3
    Hose Cover Corner
    Qty 1$67.19View
  • 16" x 3/8" Hydraulic Hose, #6 JIC Female Ends (Flush Mount)
    SR-0132
    16" x 3/8" Hydraulic Hose, #6 JIC Female Ends (Flush Mount)
    Qty 1$42.53View
  • T
    TPJ3-01-06
    Rubber Pad
    Qty 1Not carried
  • Spacer Block Assembly
    01-0235
    Spacer Block Assembly
    Qty 1$59.04View
  • Lock Release Handle
    SR-0102
    Lock Release Handle
    Qty 1$3.78View
  • Lock Release Rod Weld (Surface Mount)
    SR-0100
    Lock Release Rod Weld (Surface Mount)
    Qty 1$23.61View
  • Main Pivot Pin
    73-0934
    Main Pivot Pin
    Qty 1$7.55View
  • Lock Release Pin
    SR-0115
    Lock Release Pin
    Qty 1$2.58View
  • Lock Release Rod Weld (Flush Mount)
    SR-0100S
    Lock Release Rod Weld (Flush Mount)
    Qty 1$30.70View
  • Hose Cover Kit (Optional Acc.)
    10357
    Hose Cover Kit (Optional Acc.)
    Qty 1$711.29View
  • Union Elbow 1/4 NPT x #6 JIC Male
    SR-0116
    Union Elbow 1/4 NPT x #6 JIC Male
    Qty 1$13.52View
  • HYD ELBOW, 9/16 O-RING MALE TO #6 MALE FLARE
    16167
    HYD ELBOW, 9/16 O-RING MALE TO #6 MALE FLARE
    Qty 1$9.74View
  • 6
    68029
    Anchor Bolt, 1/2 x 3 1/2" lg
    Qty 1Not carried
  • 7
    74-0239
    Spacer Tube
    Qty 1Not carried
  • ANCHOR BOLT, 3/4 x 5 1/2"
    31058
    ANCHOR BOLT, 3/4 x 5 1/2"
    Qty 1$10.86View
  • 38" x 3/8" Hydraulic Hose, #6 JIC Female Ends (Surface Mount)
    62-0012
    38" x 3/8" Hydraulic Hose, #6 JIC Female Ends (Surface Mount)
    Qty 1$67.65View
  • 8mm x 8mm Countersunk Shoulder Bolt
    SR-0103-3
    8mm x 8mm Countersunk Shoulder Bolt
    Qty 1$1.41View
  • Washer, M8
    SR-0112
    Washer, M8
    Qty 1$0.23View
  • Warning Decal
    80-0148
    Warning Decal
    Qty 1$1.15View
  • 5/16"-18NC HEX FLANGE LOCKING NUT
    4100237
    5/16"-18NC HEX FLANGE LOCKING NUT
    Qty 1$0.27View
  • 5mm x 24mm Roll Pin
    SR-0126
    5mm x 24mm Roll Pin
    Qty 1$4.68View
  • Power Unit Stand / 7 Foot Stand
    03-0196
    Power Unit Stand / 7 Foot Stand
    Qty 1$342.73View
