SA10

SA10

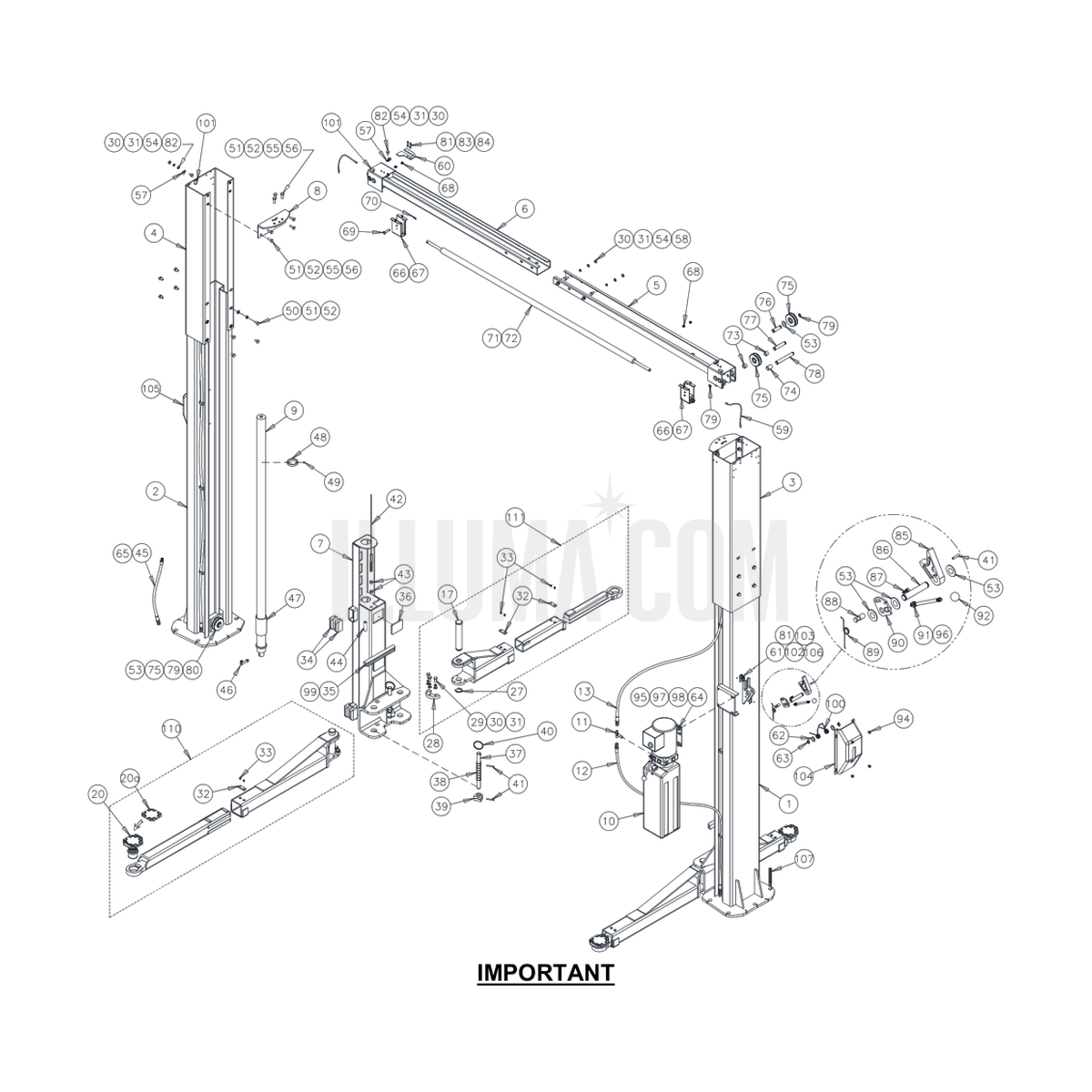

Illustrated Parts Lists

Click a diagram to see every part with clickable callouts — no PDFs.

All parts for this model

  • Carriage Weld
    3W-02A
    Carriage Weld
    Qty 1$498.41View
  • Cylinder Sleeve
    3W-02-18
    Cylinder Sleeve
    Qty 1$6.36View
  • M12 x 25 Hex Bolt
    VS10-40-13
    M12 x 25 Hex Bolt
    Qty 1$1.86View
  • 17mm Sheave Spacer (Asymmetric Only)
    3W-03-09B
    17mm Sheave Spacer (Asymmetric Only)
    Qty 1$3.54View
  • M8 Flat Washer
    VS10-10-26
    M8 Flat Washer
    Qty 1$0.23View
  • CLEVIS PIN 10mm x 55 Lg.
    B2065-5
    CLEVIS PIN 10mm x 55 Lg.
    Qty 1$38.64View
  • ANCHOR BOLT, 3/4 x 5 1/2"
    31058
    ANCHOR BOLT, 3/4 x 5 1/2"
    Qty 1$10.86View
  • M8 Hex Nut
    HEXNM8
    M8 Hex Nut
    Qty 1$0.23View
  • Arm Restraint Shaft Spring
    3W-02-15
    Arm Restraint Shaft Spring
    Qty 1$1.64View
  • Cylinder Elbow Fitting
    3W-06-14A
    Cylinder Elbow Fitting
    Qty 1$29.06View
  • 34mm Sheave Spacer (Symmetric Only)
    3W-03-09
    34mm Sheave Spacer (Symmetric Only)
    Qty 1$4.47View
  • Arm Pin Retaining Ring
    3W-06-01
    Arm Pin Retaining Ring
    Qty 1$1.17View
  • M6 x 40 Roll Pin
    3W-10-01
    M6 x 40 Roll Pin
    Qty 1$0.23View
  • 3
    3W-03IA
    Idler Overhead Weld
    Qty 1Not carried
  • Tee Fitting
    3W-06-15A
    Tee Fitting
    Qty 1$25.98View
  • Carriage Slide Block
    3W-02-11A
    Carriage Slide Block
    Qty 1$9.44View
  • Flexible Guide Tube
    3W-01-20
    Flexible Guide Tube
    Qty 1$15.98View
  • Cylinder Clamp Ring
    3W-02-19
    Cylinder Clamp Ring
    Qty 1$7.07View
  • M12 NUT
    X10-040
    M12 NUT
    Qty 1$0.71View
  • Short Sheave Pin (Asymmetric Only)
    3W-03-12
    Short Sheave Pin (Asymmetric Only)
    Qty 1$4.01View
  • Lock Release Cable (2Ft. Ext. Height)
    3W-06-31A
    Lock Release Cable (2Ft. Ext. Height)
    Qty 1$29.17View
  • Power Hose Assembly
    3W-06-06A
    Power Hose Assembly
    Qty 1$87.39View
  • M6 X 12mm Lg CAP SCREW
    Q4P09-007
    M6 X 12mm Lg CAP SCREW
    Qty 1$0.47View
  • Lock Spring (Cam)
    3W-01-06A
    Lock Spring (Cam)
    Qty 1$0.94View
  • Lock Clevis Pin
    3W-01-14
    Lock Clevis Pin
    Qty 1$4.47View
  • Overhead Mounting Bracket
    3W-03-07
    Overhead Mounting Bracket
    Qty 1$19.74View
  • M9 Snap Ring
    VS10-10-27
    M9 Snap Ring
    Qty 1$0.38View
  • Lock Release Cable Clamp
    3W-06-19
    Lock Release Cable Clamp
    Qty 1$0.75View
  • M10 Hex Nut
    HNM10
    M10 Hex Nut
    Qty 1$0.30View
  • Rubber Bumper Insert
    3W-06-03
    Rubber Bumper Insert
    Qty 1$8.02View
  • M12 x 20 Hex Bolt
    17314
    M12 x 20 Hex Bolt
    Qty 1$4.87View
  • Long Sheave Pin (Symmetric Only)
    3W-03-10
    Long Sheave Pin (Symmetric Only)
    Qty 1$5.41View
  • Lock Release Cam Pin
    3W-01-16
    Lock Release Cam Pin
    Qty 1$3.78View
  • Cylinder
    16138R
    Cylinder
    Qty 1$1,041.74View
  • Flat Washer 10mm
    X10-073
    Flat Washer 10mm
    Qty 1$0.54View
  • M6 x 14mm PHILLIPS PAN HEAD SCREW
    B2065-3
    M6 x 14mm PHILLIPS PAN HEAD SCREW
    Qty 1$0.66View
  • M6 x 10mm Set Screw
    3W-10-02
    M6 x 10mm Set Screw
    Qty 1$0.38View
  • 3
    3W-01-05P
    Power Col. Extension (Std. Height)
    Qty 1Not carried
  • M8 x 30 SOCKET HEAD CAP SCREW
    X10-088
    M8 x 30 SOCKET HEAD CAP SCREW
    Qty 1$1.64View
  • M6 x 20 Socket Head Cap Screw
    QRJ9-41
    M6 x 20 Socket Head Cap Screw
    Qty 1$0.24View
  • M10 SPLIT LOCKWASHER
    B31037
    M10 SPLIT LOCKWASHER
    Qty 1$0.54View
  • Hose Extension (Std. Height)
    3W-06-05A
    Hose Extension (Std. Height)
    Qty 1$42.51View
  • Lock Release Cam
    3W-01-19
    Lock Release Cam
    Qty 1$4.72View
  • Idler Hose Assembly
    3W-06-07A
    Idler Hose Assembly
    Qty 1$330.70View
  • M12 LOCK WASHER
    X10-039
    M12 LOCK WASHER
    Qty 1$1.18View
  • Power Lock Cover
    3W-01-11-01
    Power Lock Cover
    Qty 1$8.02View
  • Pull Ring
    3W-02-16
    Pull Ring
    Qty 1$0.47View
  • Lock Pulley
    3W-01-18
    Lock Pulley
    Qty 1$6.38View
  • FOOT PAD ASSEMBLY (items 72-77)
    B2270
    FOOT PAD ASSEMBLY (items 72-77)
    Qty 1$165.03View
  • 3
    3W-03PA
    Power Overhead Weld
    Qty 1Not carried
  • Front Arm Assy (w/o footpad & pin)
    3W-04-19A
    Front Arm Assy (w/o footpad & pin)
    Qty 1$396.84View
  • HAIRPIN COTTER PIN
    GJY12-3
    HAIRPIN COTTER PIN
    Qty 1$5.26View
  • SHUTOFF BAR
    A2067
    SHUTOFF BAR
    Qty 1$70.27View
  • Rear Arm Assy (w/o footpad & pin)
    3W-04-01A
    Rear Arm Assy (w/o footpad & pin)
    Qty 1$514.96View
  • 3
    3W-01-01I
    Idler Column Weld
    Qty 1Not carried
  • Sheave Retaining Bolt
    3W-01-04-05
    Sheave Retaining Bolt
    Qty 1$3.08View
  • Cable Sheave
    3W-01-04-03
    Cable Sheave
    Qty 1$21.25View
  • H
    HEXM1025
    M10 x 25 Hex Bolt
    Qty 1Not carried
  • LIMIT SWITCH PACKAGE (INCLUDES SWITCH w/ CORD, BOTH BRACKETS, & ITEMS 7-10)
    B2064-01
    LIMIT SWITCH PACKAGE (INCLUDES SWITCH w/ CORD, BOTH BRACKETS, & ITEMS 7-10)
    Qty 1$146.45View
  • Lock Paw
    3W-01-08
    Lock Paw
    Qty 1$12.23View
  • 20mm External Snap Ring
    X10-020
    20mm External Snap Ring
    Qty 1$0.47View
  • M10 x 20 Hex Bolt
    MR6-002
    M10 x 20 Hex Bolt
    Qty 1$0.47View
  • M6 SERRATED FLANGE HEX NUT
    B2065-4
    M6 SERRATED FLANGE HEX NUT
    Qty 1$1.15View
  • Cable Spacer (Asymmetric Only)
    3W-06-18
    Cable Spacer (Asymmetric Only)
    Qty 1$3.31View
  • Cable Trap Plate
    3W-03-18A
    Cable Trap Plate
    Qty 1$4.21View
  • Idler Lock Cover
    3W-01-11-02
    Idler Lock Cover
    Qty 1$9.44View
  • Inner Arm Restraint Gear
    3W-04-17
    Inner Arm Restraint Gear
    Qty 1$40.16View
  • Hose Extension Connector
    3W-06-04
    Hose Extension Connector
    Qty 1$5.41View
  • Hose Clamp
    3W-10-15A
    Hose Clamp
    Qty 1$4.95View
  • Synchronizer Cable (Std. Height)
    3W-06-08A
    Synchronizer Cable (Std. Height)
    Qty 1$40.16View
  • V
    VS10-10-25
    M8 x 12mm Lg. PHILLIPS PAN HEAD SCREW
    Qty 1Not carried
  • M8 Spring Lock Washer
    MR6-008
    M8 Spring Lock Washer
    Qty 1$0.21View
  • M8 x 14 Flat Head Allen Bolt, 10.9
    3W-10-10
    M8 x 14 Flat Head Allen Bolt, 10.9
    Qty 1$1.35View
  • M8 x 20mm Lg. HEX LOCKING FLG. HD. CAP SCREW
    Q4P09-006
    M8 x 20mm Lg. HEX LOCKING FLG. HD. CAP SCREW
    Qty 1$1.21View
  • M19 Snap Ring
    SR-0121
    M19 Snap Ring
    Qty 1$1.30View
  • Lock Block Sleeve Insert
    3W-01-23
    Lock Block Sleeve Insert
    Qty 1$0.24View
  • Arm Restraint Gear Shaft
    3W-02-14
    Arm Restraint Gear Shaft
    Qty 1$16.52View
  • STOP BLOCK
    3W-04-18
    STOP BLOCK
    Qty 1$1.87View
  • 3
    3W-01-01P
    Power Column Weld
    Qty 1Not carried
  • Synchronizer Cable (2Ft. Ext. Height)
    3W-06-28A
    Synchronizer Cable (2Ft. Ext. Height)
    Qty 1$172.78View
  • M20 x 1.5 Thk. Round Shim
    3W-10-07
    M20 x 1.5 Thk. Round Shim
    Qty 1$0.24View
  • Idler Col. Extension (2Ft. Ext. Height)
    3W-01-25I
    Idler Col. Extension (2Ft. Ext. Height)
    Qty 1$1,077.60View
  • Medium Sheave Pin (Asymmetric Only)
    3W-03-11
    Medium Sheave Pin (Asymmetric Only)
    Qty 1$4.47View
  • Lock Spring (Paw)
    3W-01-13A
    Lock Spring (Paw)
    Qty 1$3.78View
  • Washer 20mm
    X10-099
    Washer 20mm
    Qty 1$0.47View
  • Lock Release Lever
    3W-01-17
    Lock Release Lever
    Qty 1$2.58View
  • M12 Hex Jam Nut
    HJNM12
    M12 Hex Jam Nut
    Qty 1$0.18View
  • RUBBER INSERT
    A1104-H
    RUBBER INSERT
    Qty 1$28.98View
  • M10 Hex Jam Nut
    HJNM10
    M10 Hex Jam Nut
    Qty 1$0.21View
  • M8 x 20mm Lg. SOCKET HEAD CAP SCREW
    X10-032
    M8 x 20mm Lg. SOCKET HEAD CAP SCREW
    Qty 1$0.23View
  • Lock Release Cable (Std. Height)
    3W-06-11A
    Lock Release Cable (Std. Height)
    Qty 1$35.42View
  • Outer Arm Restraint Gear
    3W-02-13
    Outer Arm Restraint Gear
    Qty 1$21.25View
  • Hose Extension (2Ft. Ext. Height)
    3W-06-25A
    Hose Extension (2Ft. Ext. Height)
    Qty 1$80.31View
  • Knob
    3W-01-22
    Knob
    Qty 1$2.12View
  • M10 x 30 Hex Bolt
    HEXHM1030
    M10 x 30 Hex Bolt
    Qty 1$4.44View
  • Spring Washer 6mm
    X10-033
    Spring Washer 6mm
    Qty 1$0.23View
  • SHUTOFF BAR CUSHION
    31129
    SHUTOFF BAR CUSHION
    Qty 1$1.55View
  • M12 WASHER
    X10-038
    M12 WASHER
    Qty 1$1.18View
  • Arm Pin
    3W-02-12
    Arm Pin
    Qty 1$34.31View
  • Access Cover
    3W-06-16
    Access Cover
    Qty 1$2.58View
  • 3
    3W-01-05I
    Idler Col. Extension (Std. Height)
    Qty 1Not carried
  • POWER UNIT, 230v, SINGLE PHASE, 50/60Hz
    AB-9367-DLH
    POWER UNIT, 230v, SINGLE PHASE, 50/60Hz
    Qty 1$1,006.39View
  • Power Col. Extension (2Ft. Ext. Height)
    3W-01-25P
    Power Col. Extension (2Ft. Ext. Height)
    Qty 1$1,077.60View
