MR6

MR6

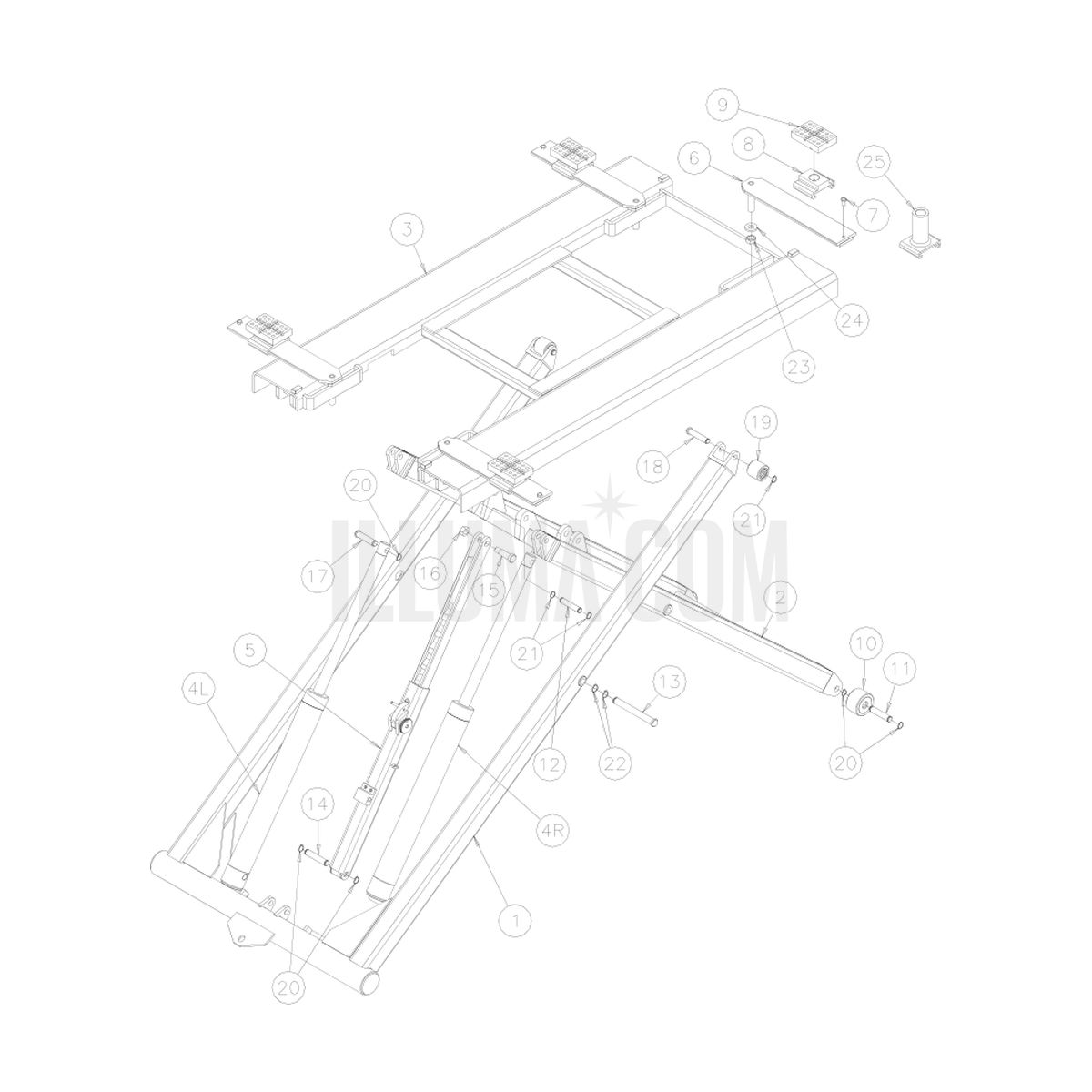

Illustrated Parts Lists

Click a diagram to see every part with clickable callouts — no PDFs.

TYJ3-00-01-2-1
Stand
Qty 1$59.02View
MR6-002
M10 x 20 Hex Bolt
Qty 1$0.47View
G
GTYJ3-07-02CH
Lock Sheath
Qty 1Not carried
G
GTYJ3-03-00
Scissor Inside
Qty 1Not carried
TYJ3-08
Safety Locking Pin (Bottom)
Qty 1$3.62View
TYJ3-12
Wheel Pin (Big)
Qty 1$2.35View
TYJ3-16
Connecting Pin
Qty 1$1.87View
G
GTYJ3-02-00
Platform
Qty 1Not carried
TYJ3-10
Safety Locking Pin (Top)
Qty 1$3.91View
HEXNM8
M8 Hex Nut
Qty 1$0.23View
SR-0114
Locking Nut, M18
Qty 1$3.54View
GTYJ3-04-00R
Cylinder Assy. (Right)
Qty 1$843.55View
MR6-009
Hex Bolt, M8x25
Qty 1$0.44View
GTYJ3-04-00L
Cylinder Assy. (Left)
Qty 1$843.55View
T
TYJ3-22
Split bolt, M8 x 1.25
Qty 1Not carried
T
TYJ3-09
Cylinder Pin
Qty 1Not carried
TYJ3-25
Hydraulic Hose Short
Qty 1$28.33View
TYJ3-19
M14x1.5-6g Male x 1/4 NPT
Qty 1$2.58View
MR6-003
Retaining Ring 18mm
Qty 1$0.50View
M
MR6-004
Retaining Ring 24mm
Qty 1Not carried
TYJ3-05-02
3" Extension Base
Qty 1$14.16View
MR6-007
M8 x 20mm Lg. HEX HD CAP SCREW
Qty 1$0.23View
MR6-011
3/8 NPTM x #6 JIC 37 deg Female Swivel
Qty 1$13.52View
MR6-006
Socket Head Bolt, M8 x 16
Qty 1$0.56View
TYJ3-07-06
Spring
Qty 1$0.47View
A1069
5/16"-18NC x 1 HEX FLANGE LOCKING HEAD CAP SCREW
Qty 1$0.39View
B40129
M20 HEX NUT
Qty 1$3.86View
T
TYJ3-07-04-00CH
Pulley Assy.
Qty 1Not carried
MR6-008
M8 Spring Lock Washer
Qty 1$0.21View
TYJ3-05-01
Foot Pad
Qty 1$37.79View
X10-020
20mm External Snap Ring
Qty 1$0.47View
TYJ3-20-00
Flow Restrictor
Qty 1$16.52View
TYJ3-05-03CH
Plate
Qty 1$54.33View
GTYJ3-07-00CH

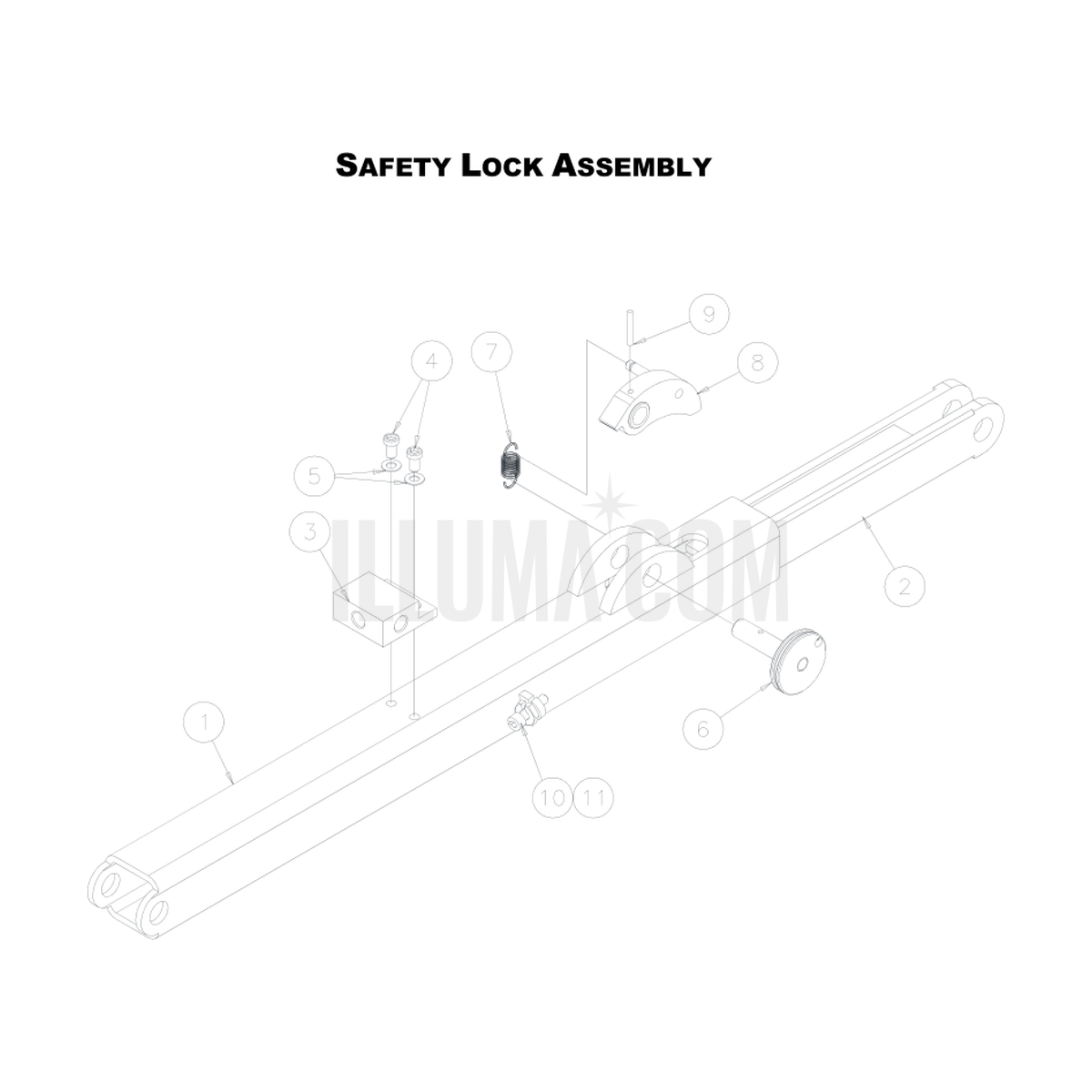

Safety Locking Assy.
Qty 1$219.68View
TYJ3-32
Lock Release Handle
Qty 1$16.52View
X10-038
M12 WASHER
Qty 1$1.18View
TYJ3-11-00
Wheel (Big)
Qty 1$25.98View
TYJ3-00-01-3
Wheel
Qty 1$14.16View
TYJ3-07-05
Base
Qty 1$16.52View
GTYJ3-31X
Lock Release Cable
Qty 1$18.89View
TYJ3-05-02G
6 7/8" Extension Base
Qty 1$47.23View
X10-081
Spring Pin 4 x 30
Qty 1$3.67View
4100237
5/16"-18NC HEX FLANGE LOCKING NUT
Qty 1$0.27View
TYJ3-17
Washer, M20
Qty 1$0.94View
T
TYJ3-23
Split nut, M8 x 1.25
Qty 1Not carried
G
GTYJ3-07-03CH
Lock Block
Qty 1Not carried
SR-0112
Washer, M8
Qty 1$0.23View
GTYJ3-07-01
Lock Pole
Qty 1$125.19View
TYJ3-26
Hydraulic Hose Long
Qty 1$99.19View
TYJ3-15
Wheel Pin (Small)
Qty 1$3.29View
MR6-012
O-Ring
Qty 1$0.38View
TYJ3-00-01-1
Handle
Qty 1$14.16View
TYJ3-21
M14x1.5-6g Male x 3/8 NPT
Qty 1$3.08View
G
GTYJ3-01-00
Scissor Outside
Qty 1Not carried
X10-040
M12 NUT
Qty 1$0.71View
16167
HYD ELBOW, 9/16 O-RING MALE TO #6 MALE FLARE
Qty 1$9.74View
TYJ3-13
Scissor Pin
Qty 1$8.95View
AB-1563-B
Electric/Hyd. Unit
Qty 1$1,962.45View
TYJ3-14-00
Wheel (Small)
Qty 1$26.44View
TYJ3-00-01-2
Base
Qty 1$28.33View
