LE12-3S

LE12-3S

Illustrated Parts Lists

Click a diagram to see every part with clickable callouts — no PDFs.

All parts for this model

  • L
    L6-02-02-01H
    COLUMN EXTENSION (2Ft. Ext. Height)
    Qty 1Not carried
  • Shutoff Bar Cushion
    JSJ5-03-03
    Shutoff Bar Cushion
    Qty 1$4.24View
  • Washer
    X10-055
    Washer
    Qty 1$1.64View
  • ARM RESTRAINT SPRING
    JSJ6-14
    ARM RESTRAINT SPRING
    Qty 1$6.87View
  • 9/16-18 UN x 9/16-18 UN x 5/8-18 UN TEE FITTING
    JSJ6-15
    9/16-18 UN x 9/16-18 UN x 5/8-18 UN TEE FITTING
    Qty 1$4.95View

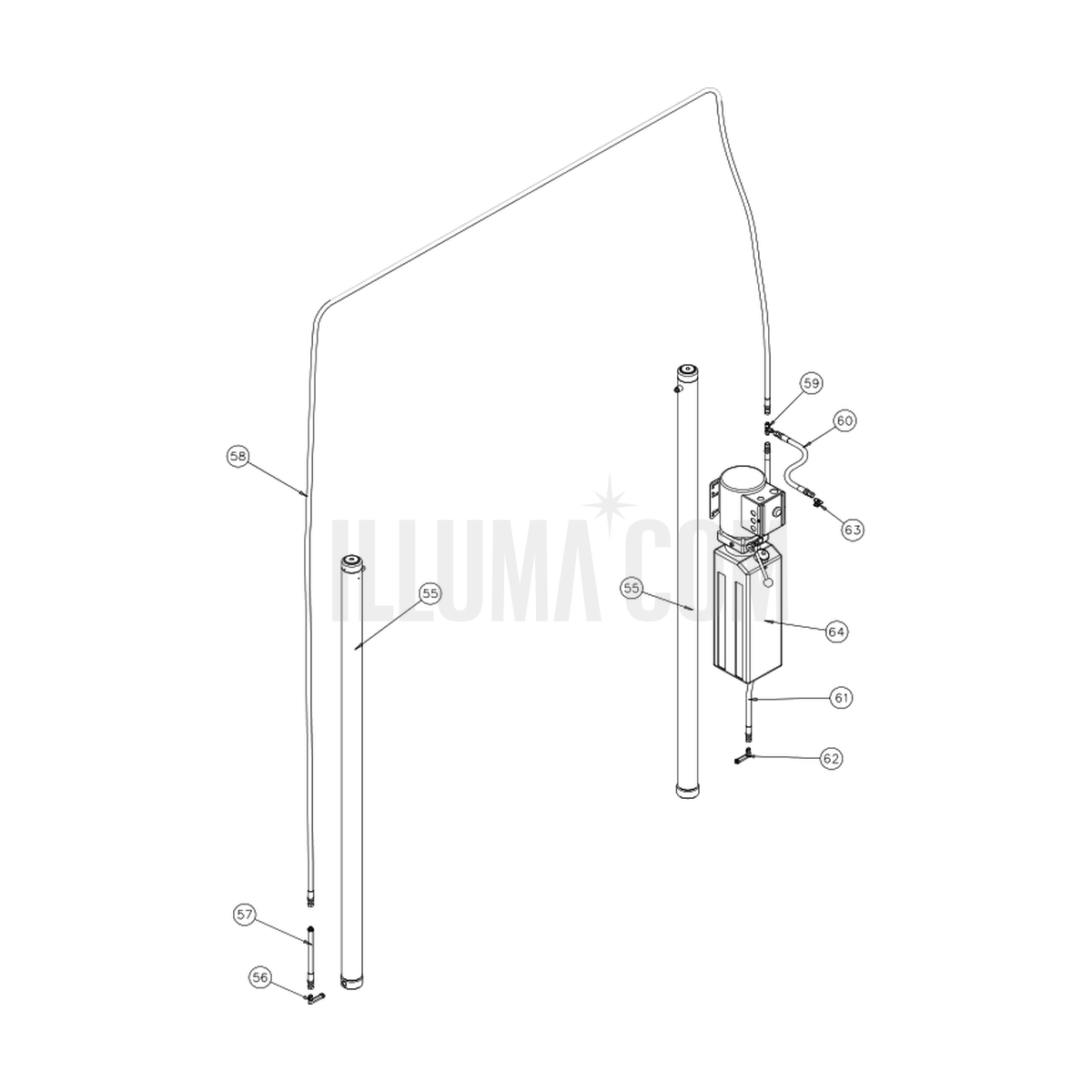

  • HYDRAULIC CYLINDER
    JSJ6-07-00
    HYDRAULIC CYLINDER
    Qty 1$1,143.30View
  • 3
    37119
    CLEVIS PIN KIT
    Qty 1Not carried
  • Spring Washer 6mm
    X10-033
    Spring Washer 6mm
    Qty 1$0.23View
  • M12 LOCK WASHER
    X10-039
    M12 LOCK WASHER
    Qty 1$1.18View
  • 3 x 45mm ROUND WIRE RETAINING RING
    B17257
    3 x 45mm ROUND WIRE RETAINING RING
    Qty 1$0.23View
  • 2
    2065-3
    M6 x 14mm PHILLIPS PAN HEAD SCREW
    Qty 1Not carried
  • 5/8-18 UN HOSE EXTENSION (66 1/2" LONG) (2Ft. Ext. Height)
    JSJ6-21H
    5/8-18 UN HOSE EXTENSION (66 1/2" LONG) (2Ft. Ext. Height)
    Qty 1$212.58View

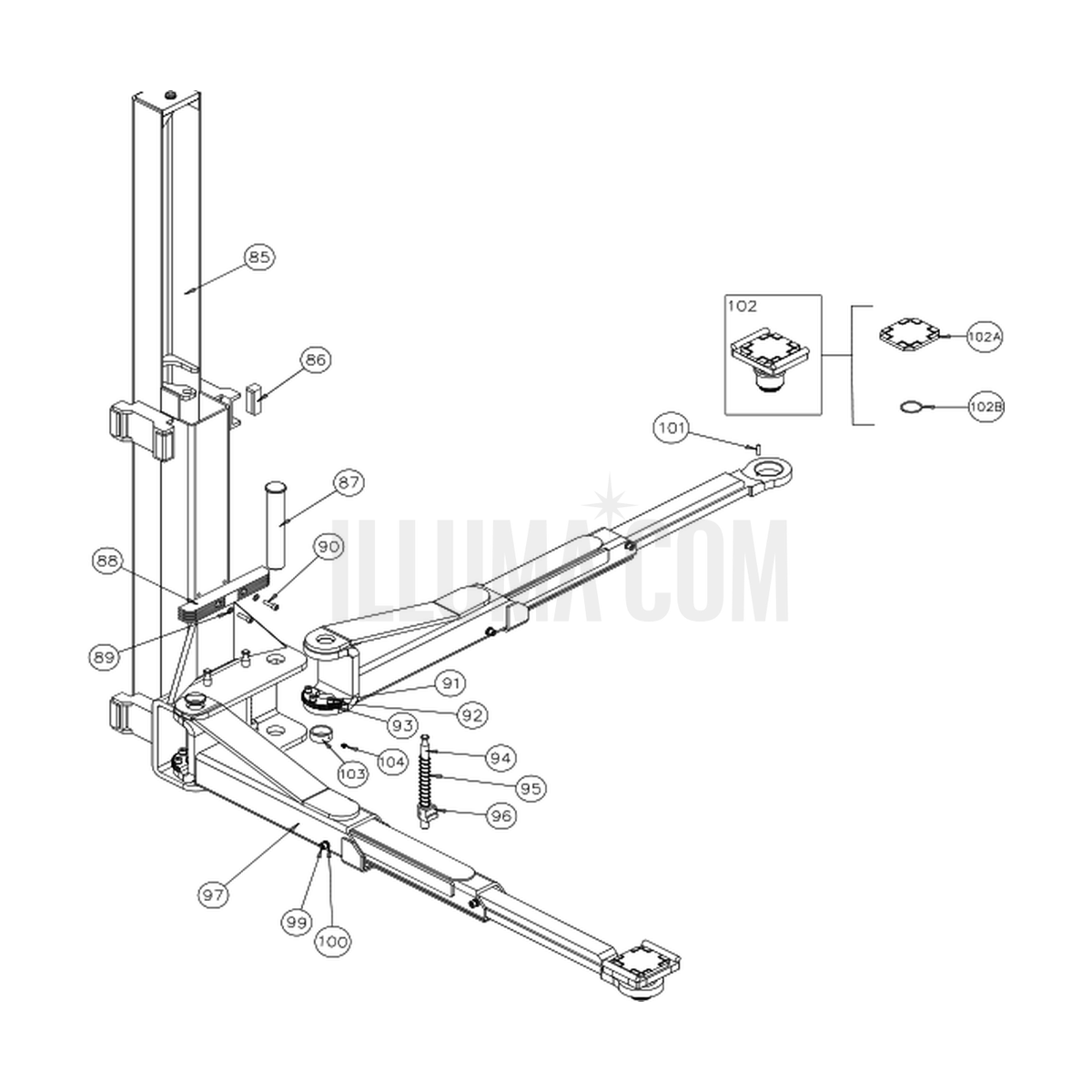

  • CARRIAGE
    JSJ6-08-00K
    CARRIAGE
    Qty 1$1,481.10View
  • M8 WASHER
    X10-087
    M8 WASHER
    Qty 1$0.24View
  • 16mm HOSE CLAMP
    1-03382A
    16mm HOSE CLAMP
    Qty 1$5.59View
  • Slide Block
    JSJ5-08-15
    Slide Block
    Qty 1$11.81View
  • 5/8-18 UN HOSE (411" LONG)
    JSJ6-18
    5/8-18 UN HOSE (411" LONG)
    Qty 1$649.60View
  • ROLL PIN, 6mm DIA x 30mm Lg
    B2211
    ROLL PIN, 6mm DIA x 30mm Lg
    Qty 1$0.75View
  • M8 x 30 SOCKET HEAD CAP SCREW
    X10-088
    M8 x 30 SOCKET HEAD CAP SCREW
    Qty 1$1.64View
  • Lock Release Handle Assy.
    JSJ5020400CH
    Lock Release Handle Assy.
    Qty 1$22.43View
  • E
    EAA0456V09A
    ARM ASSEMBLY
    Qty 1Not carried
  • Hose Guide Bracket
    JSJ4-02-02-02
    Hose Guide Bracket
    Qty 1$47.23View
  • LIMIT SWITCH PACKAGE (INCLUDES SWITCH w/ CORD, BOTH BRACKETS, & ITEMS 7-10)
    B2064-01
    LIMIT SWITCH PACKAGE (INCLUDES SWITCH w/ CORD, BOTH BRACKETS, & ITEMS 7-10)
    Qty 1$146.45View

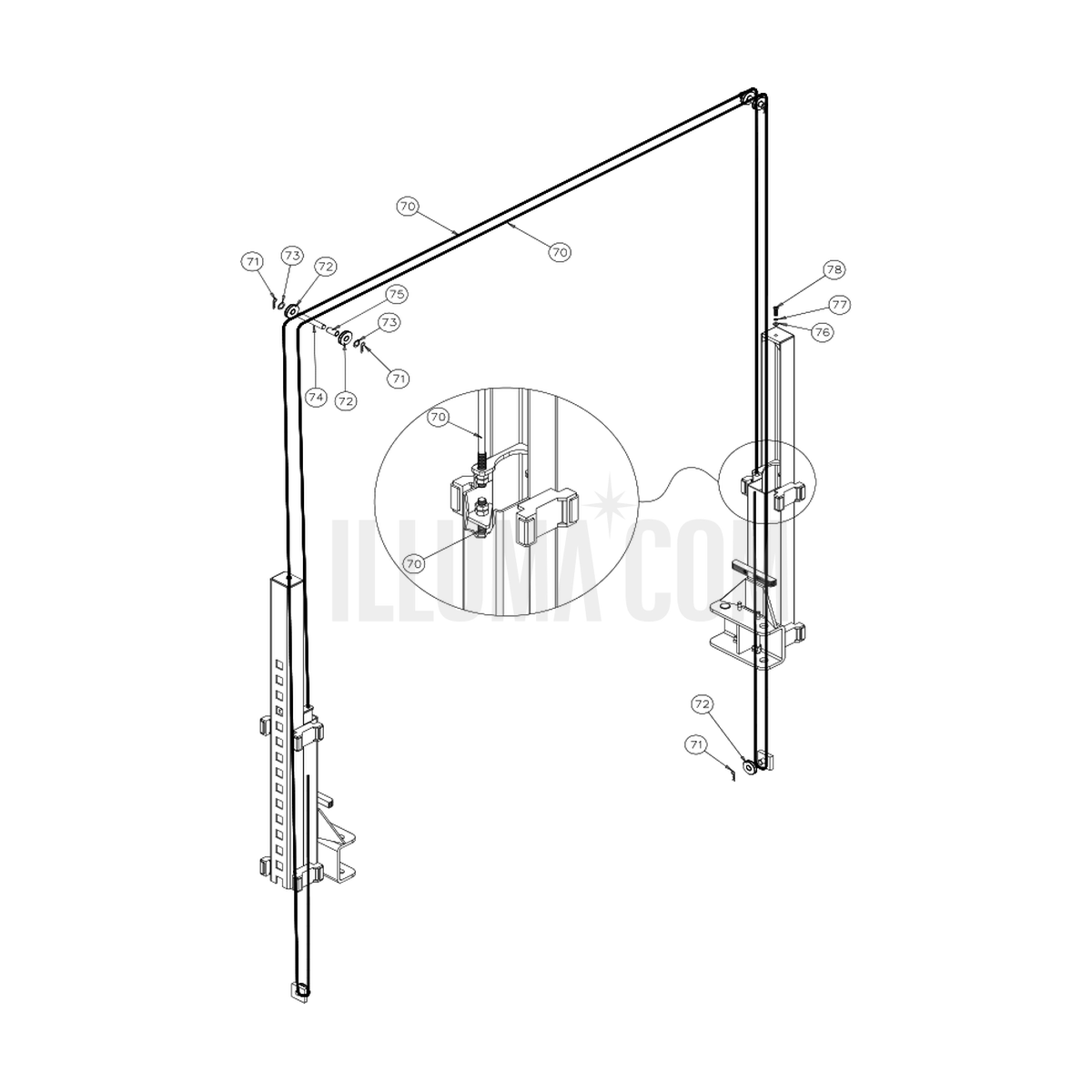

  • SYNCHRONIZER CABLE (2Ft. Ext. Height)
    JSJ6-04-00HK
    SYNCHRONIZER CABLE (2Ft. Ext. Height)
    Qty 1$158.89View
  • Hose Guide
    JSJ4-02-17
    Hose Guide
    Qty 1$1.87View
  • Power Column Hose
    JSJ4-16
    Power Column Hose
    Qty 1$106.29View
  • Screw M10 x 25
    X10-077
    Screw M10 x 25
    Qty 1$1.87View
  • Lock Release Cable (2Ft Ext Ht)
    L5-06-00CHH
    Lock Release Cable (2Ft Ext Ht)
    Qty 1$82.72View
  • 2
    2065-4
    M6 SERRATED FLANGE HEX NUT
    Qty 1Not carried
  • Clamp, 5mm Dia.
    1-05082A
    Clamp, 5mm Dia.
    Qty 1$3.31View
  • Cylinder Elbow, O-Ring
    JSJ6-19
    Cylinder Elbow, O-Ring
    Qty 1$18.89View
  • X
    X10-044
    O-RING x 9/16-18 UN 90 DEGREE ELBOW
    Qty 1Not carried
  • M10 Screw
    JSJ4-09-08
    M10 Screw
    Qty 1$2.50View
  • HAIRPIN COTTER PIN
    GJY12-3
    HAIRPIN COTTER PIN
    Qty 1$5.26View
  • M8 x 20mm Lg. SOCKET HEAD CAP SCREW
    X10-032
    M8 x 20mm Lg. SOCKET HEAD CAP SCREW
    Qty 1$0.23View
  • LOCK PAWL
    B1140
    LOCK PAWL
    Qty 1$21.25View
  • 1
    1-16288a
    SHOULDER BOLT
    Qty 1Not carried
  • SYNCHRONIZER CABLE (Std. Height)
    JSJ6-04-00K
    SYNCHRONIZER CABLE (Std. Height)
    Qty 1$96.84View
  • Lock Knob
    JSJ3-01-02-2-9
    Lock Knob
    Qty 1$2.58View

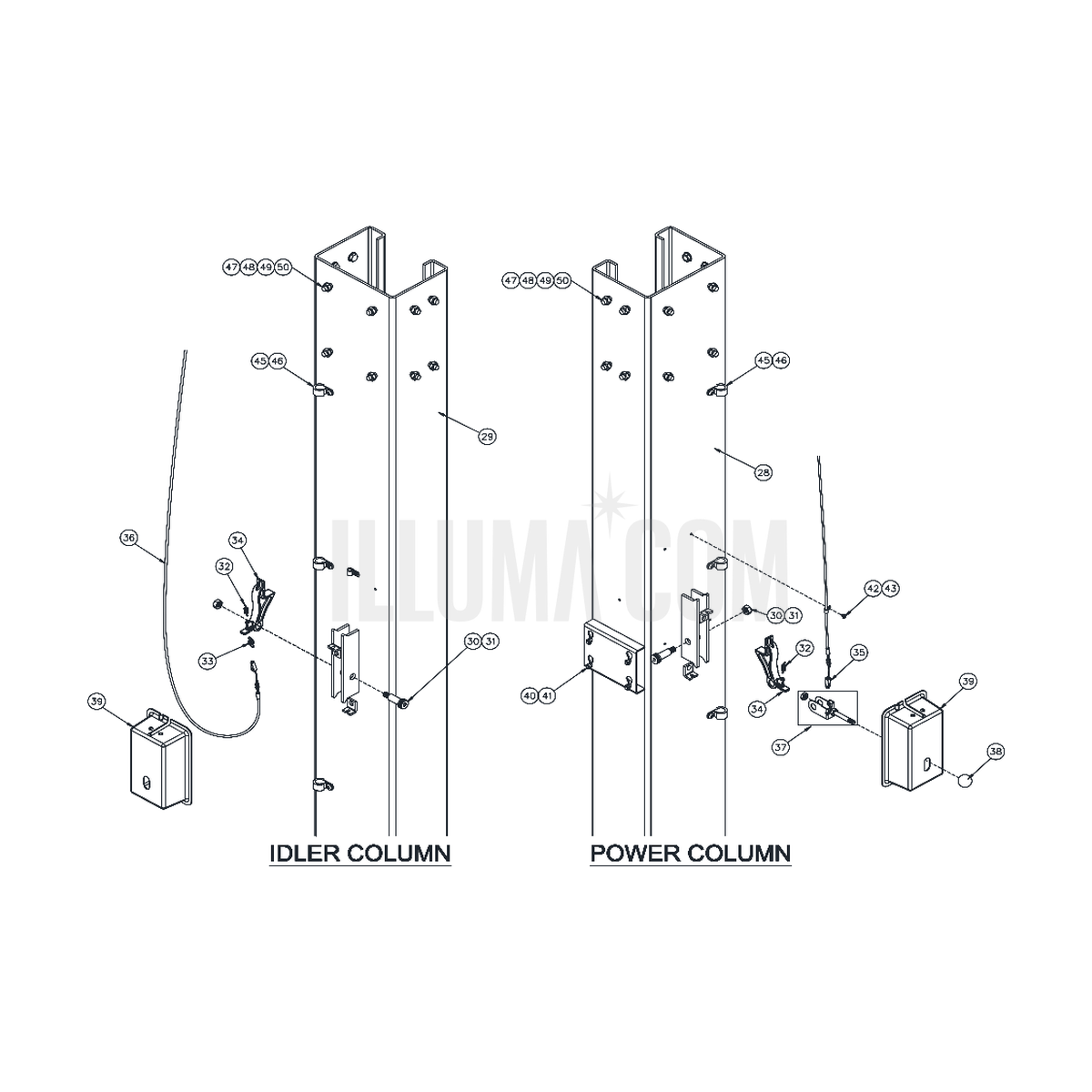

  • L
    L6-02-01-00
    POWER COLUMN WELD
    Qty 1Not carried
  • X
    X10-074
    Spring Washer 10mm
    Qty 1Not carried
  • LOCK RELEASE CABLE ASSEMBLY (2Ft. Ext. Height)
    L6-06-00CHH
    LOCK RELEASE CABLE ASSEMBLY (2Ft. Ext. Height)
    Qty 1$91.99View
  • Nut M6
    X10-034
    Nut M6
    Qty 1$0.23View
  • DOOR GUARD
    JSJ4-05-ch
    DOOR GUARD
    Qty 1$6.61View
  • M5 x 10 Screw
    X10-065
    M5 x 10 Screw
    Qty 1$0.47View

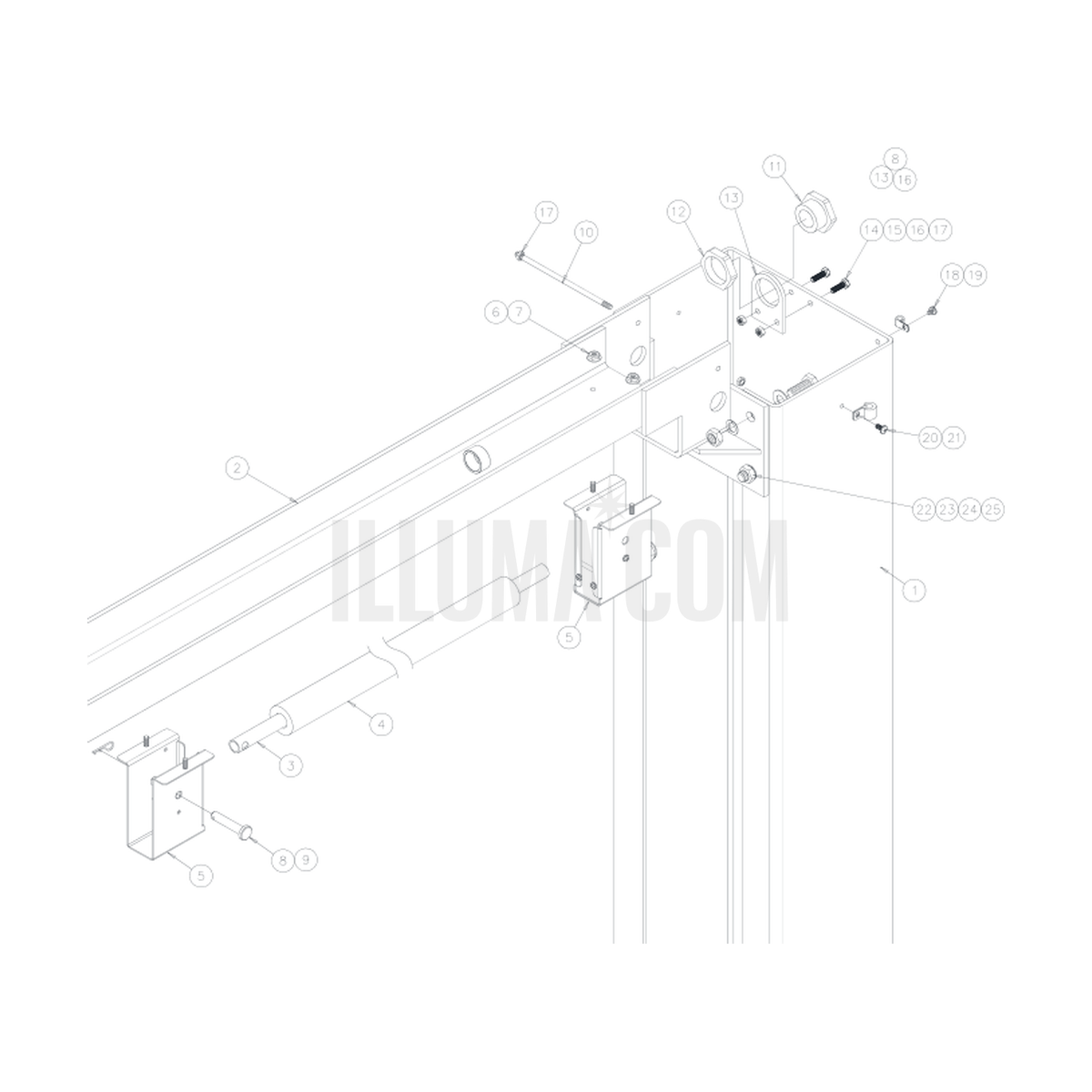

  • L
    L6-03-01-00K
    OVERHEAD WELD, BLACK
    Qty 1Not carried
  • 1
    1-15988A
    M5 x 10mm PAN HEAD SCREW
    Qty 1Not carried
  • Bolt M6 x 20
    X10-051
    Bolt M6 x 20
    Qty 1$0.23View
  • CABLE SHEAVE
    JSJ6-03-08
    CABLE SHEAVE
    Qty 1$25.04View
  • Flat Washer 10mm
    X10-073
    Flat Washer 10mm
    Qty 1$0.54View
  • POWER UNIT, 230v, SINGLE PHASE, 50/60Hz
    AB-9367-DLH
    POWER UNIT, 230v, SINGLE PHASE, 50/60Hz
    Qty 1$1,006.39View
  • 40.5 x 48 x 20 Lg. Collar
    JSJ5-22CH
    40.5 x 48 x 20 Lg. Collar
    Qty 1$2.35View
  • Hose Guide Nut
    JSJ4-02-18
    Hose Guide Nut
    Qty 1$0.94View
  • L
    L6-02-02-01
    COLUMN EXTENSION (Std. Height)
    Qty 1Not carried
  • M8 x 8 Set Screw Cup Point
    JSJ5-23CH
    M8 x 8 Set Screw Cup Point
    Qty 1$0.23View
  • LOCK SPRING (3/8" O.D.)
    A1131
    LOCK SPRING (3/8" O.D.)
    Qty 1$1.72View
  • CABLE SPRING (1/2" O.D.) - Idler side ONLY
    A1132
    CABLE SPRING (1/2" O.D.) - Idler side ONLY
    Qty 1$2.69View
  • Bolt M8 x 25
    X10-060
    Bolt M8 x 25
    Qty 1$1.64View
  • ARM PIN
    JSJ6-11
    ARM PIN
    Qty 1$30.70View
  • ARM RESTRAINT SHAFT
    JSJ6-13
    ARM RESTRAINT SHAFT
    Qty 1$18.09View
  • M12 LOCK NUT
    1-16388A
    M12 LOCK NUT
    Qty 1$0.77View
  • CABLE TRAPPING ROD
    JSJ5-03-07ch
    CABLE TRAPPING ROD
    Qty 1$1.17View
  • M12 WASHER
    X10-038
    M12 WASHER
    Qty 1$1.18View
  • RUBBER INSERT
    A1104-H
    RUBBER INSERT
    Qty 1$28.98View
  • 2
    2065-5
    CLEVIS PIN 10mm x 55 Lg.
    Qty 1Not carried
  • OUTER GEAR
    JSJ6-12
    OUTER GEAR
    Qty 1$34.28View
  • OVERHEAD SHUT OFF BAR
    JSJ6-03-02
    OVERHEAD SHUT OFF BAR
    Qty 1$87.29View
  • Lock Cover
    JSJ5-02-14CH
    Lock Cover
    Qty 1$23.56View
  • FOOT PAD ASSEMBLY
    B12162S-12
    FOOT PAD ASSEMBLY
    Qty 1$104.48View
  • L
    L6-02-01-00F
    IDLER COLUMN WELD
    Qty 1Not carried
  • Bolt M12 x 30
    X10-037
    Bolt M12 x 30
    Qty 1$1.87View
  • V
    VS10-10-25
    M8 x 12mm Lg. PHILLIPS PAN HEAD SCREW
    Qty 1Not carried
  • X
    X10-053
    M12 x 45mm BOLT
    Qty 1Not carried
  • SHEAVE SPACER
    JSJ6-03-05
    SHEAVE SPACER
    Qty 1$3.08View
  • X
    X10-048
    M8 NUT
    Qty 1Not carried
  • 5/8-18 UN 90 DEGREE ELBOW
    JSJ6-21
    5/8-18 UN 90 DEGREE ELBOW
    Qty 1$6.84View
  • 5/8-18 UN HOSE EXTENSION (18 1/2" LONG) (Std. Height)
    JSJ6-20
    5/8-18 UN HOSE EXTENSION (18 1/2" LONG) (Std. Height)
    Qty 1$35.42View
  • M12 NUT
    X10-040
    M12 NUT
    Qty 1$0.71View
  • HYD. HOSE ASSEMBLY (P/U – 22")
    JSJ5-17CH
    HYD. HOSE ASSEMBLY (P/U – 22")
    Qty 1$18.89View
  • CABLE SHEAVE PIN
    JSJ6-03-03
    CABLE SHEAVE PIN
    Qty 1$5.91View
  • INNER GEAR
    JSJ6-09-07
    INNER GEAR
    Qty 1$40.60View
  • 1
    1-06182A
    5mm HOSE CLAMP
    Qty 1Not carried
