EW1220 2-Post Inground EnviroLift
Illustrated Parts Lists

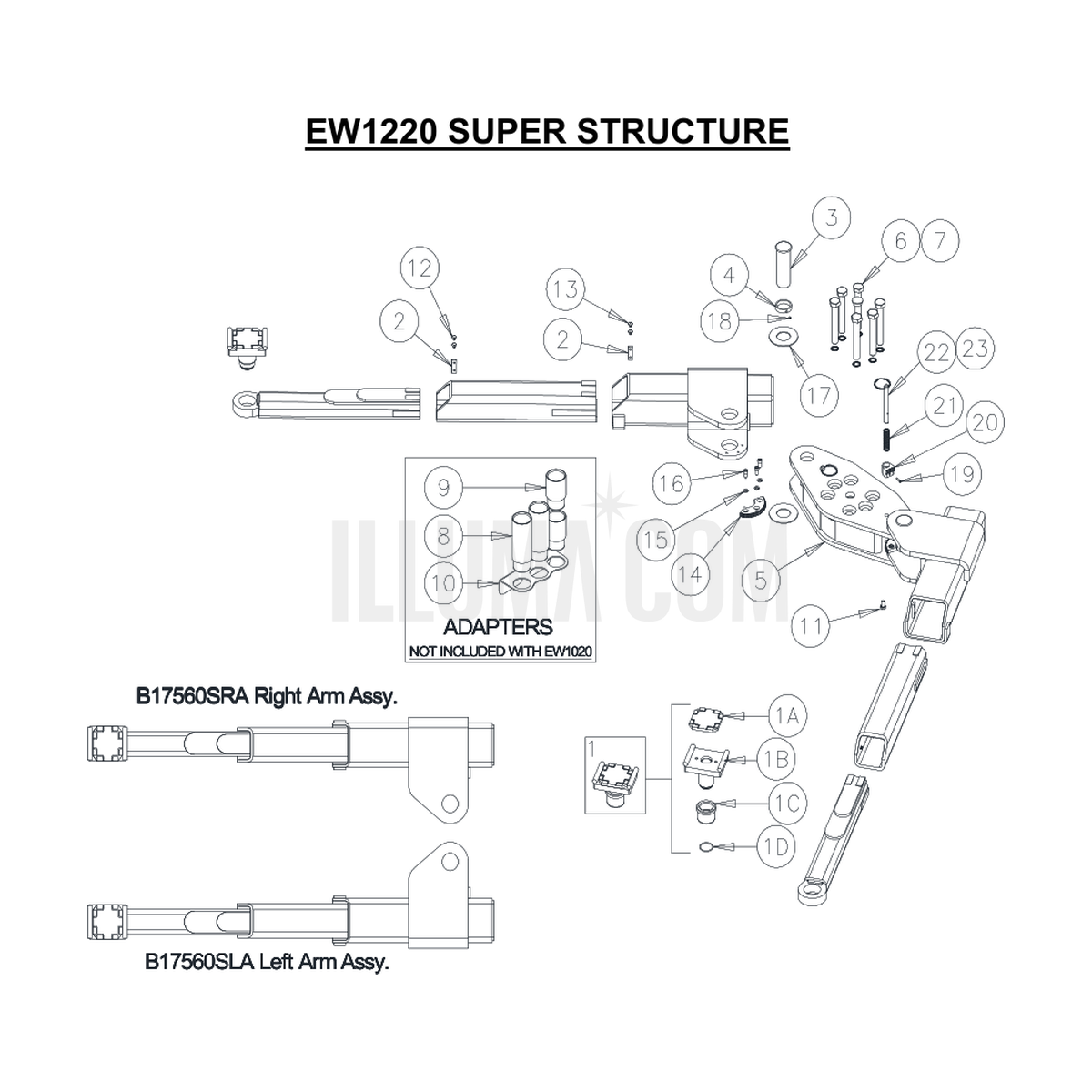

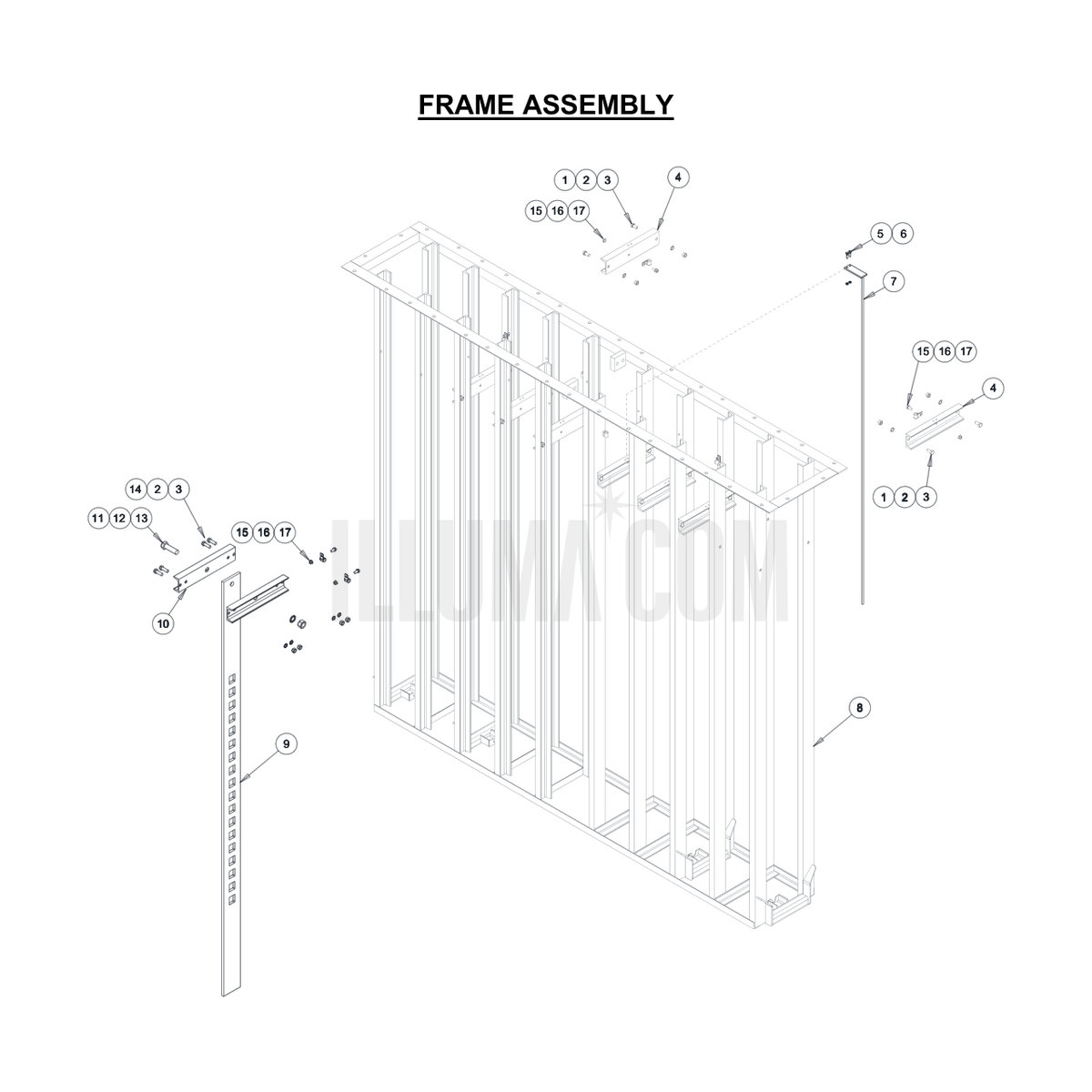

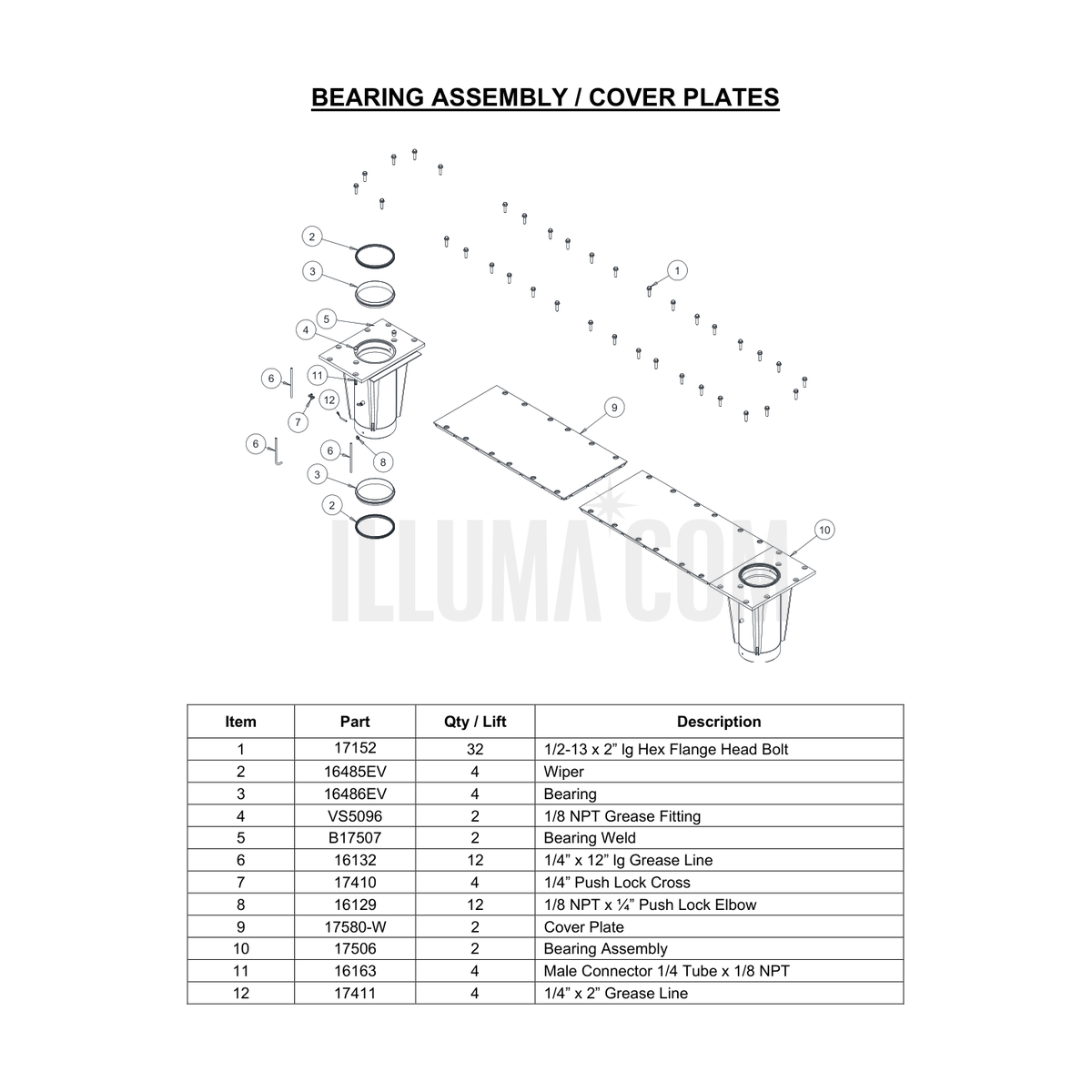

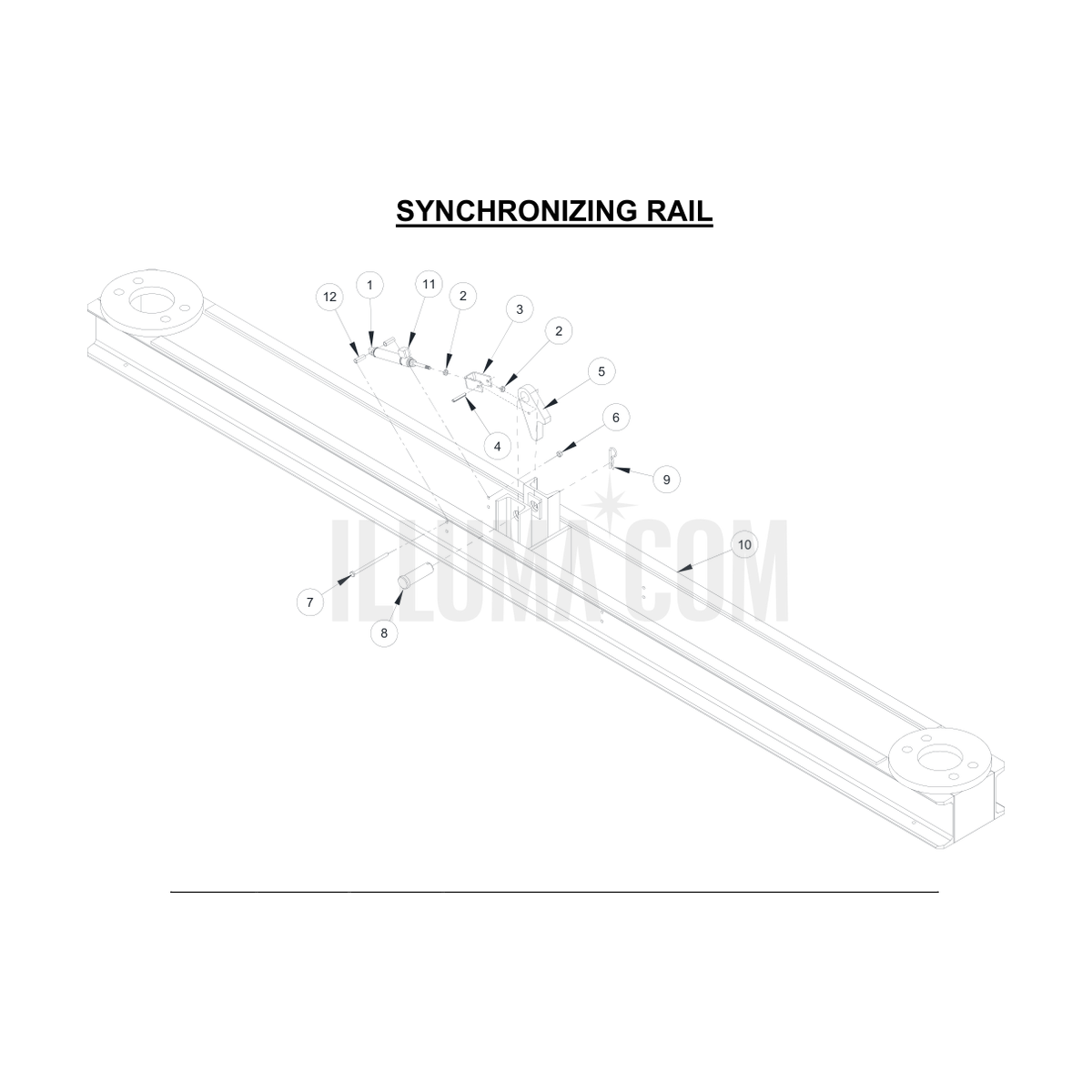

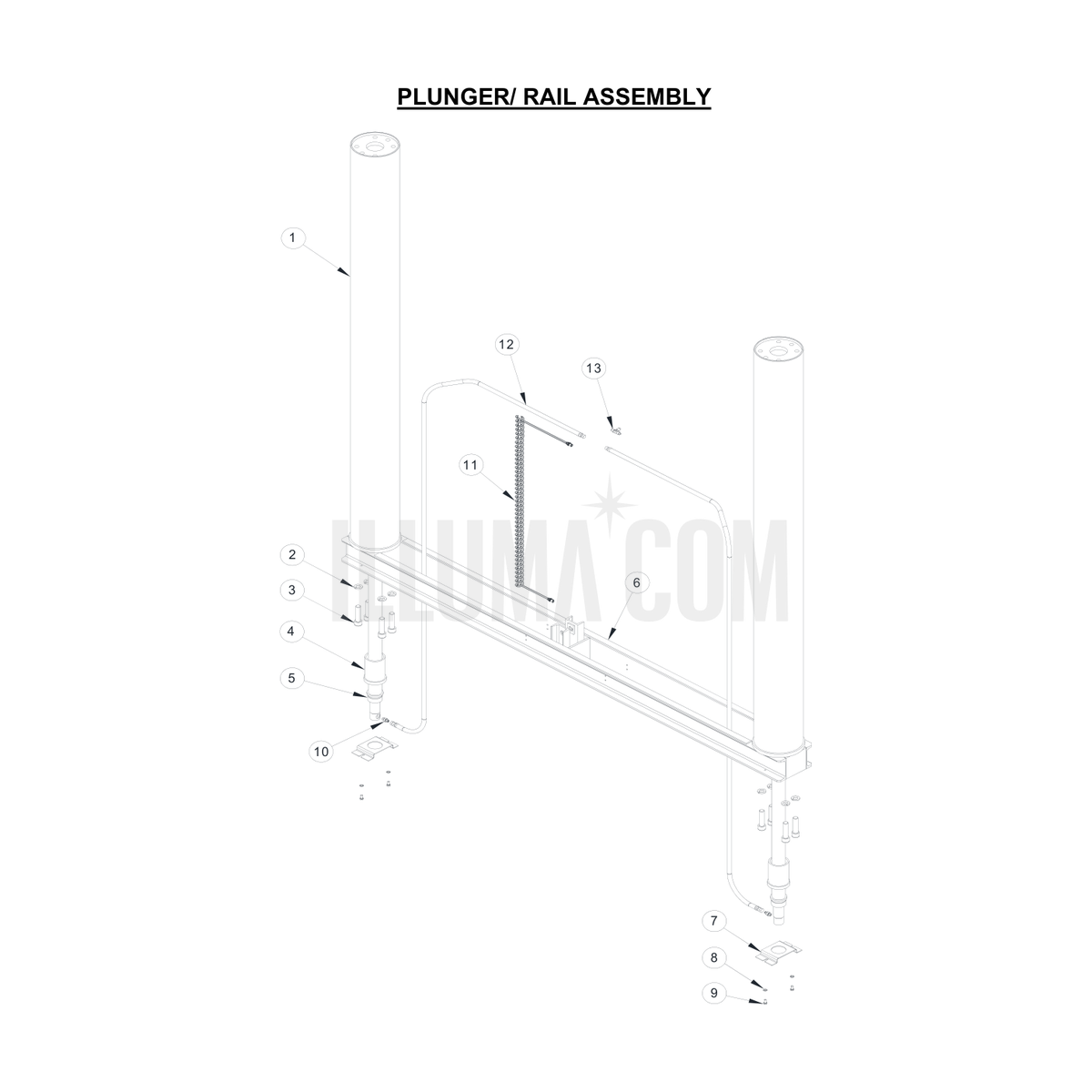

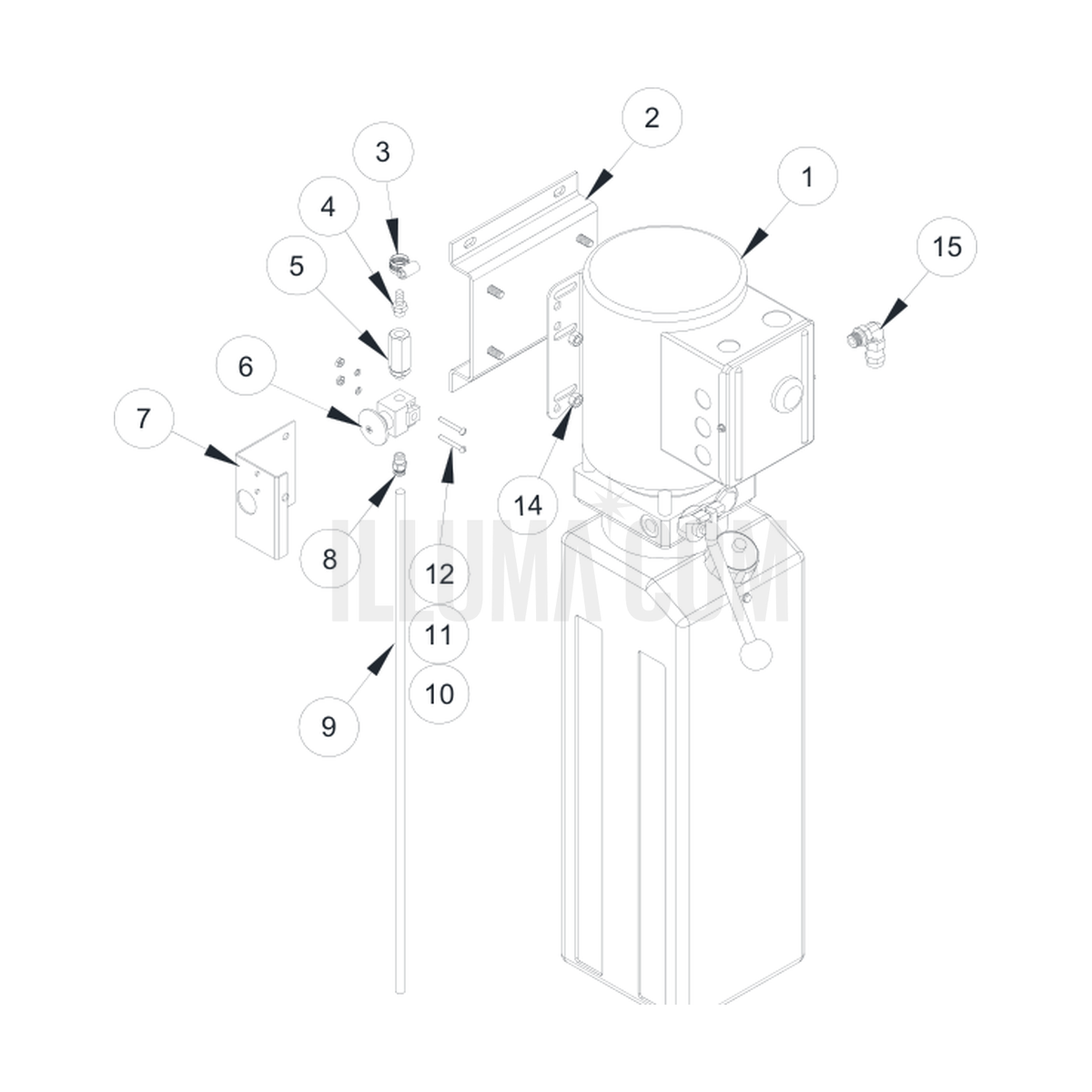

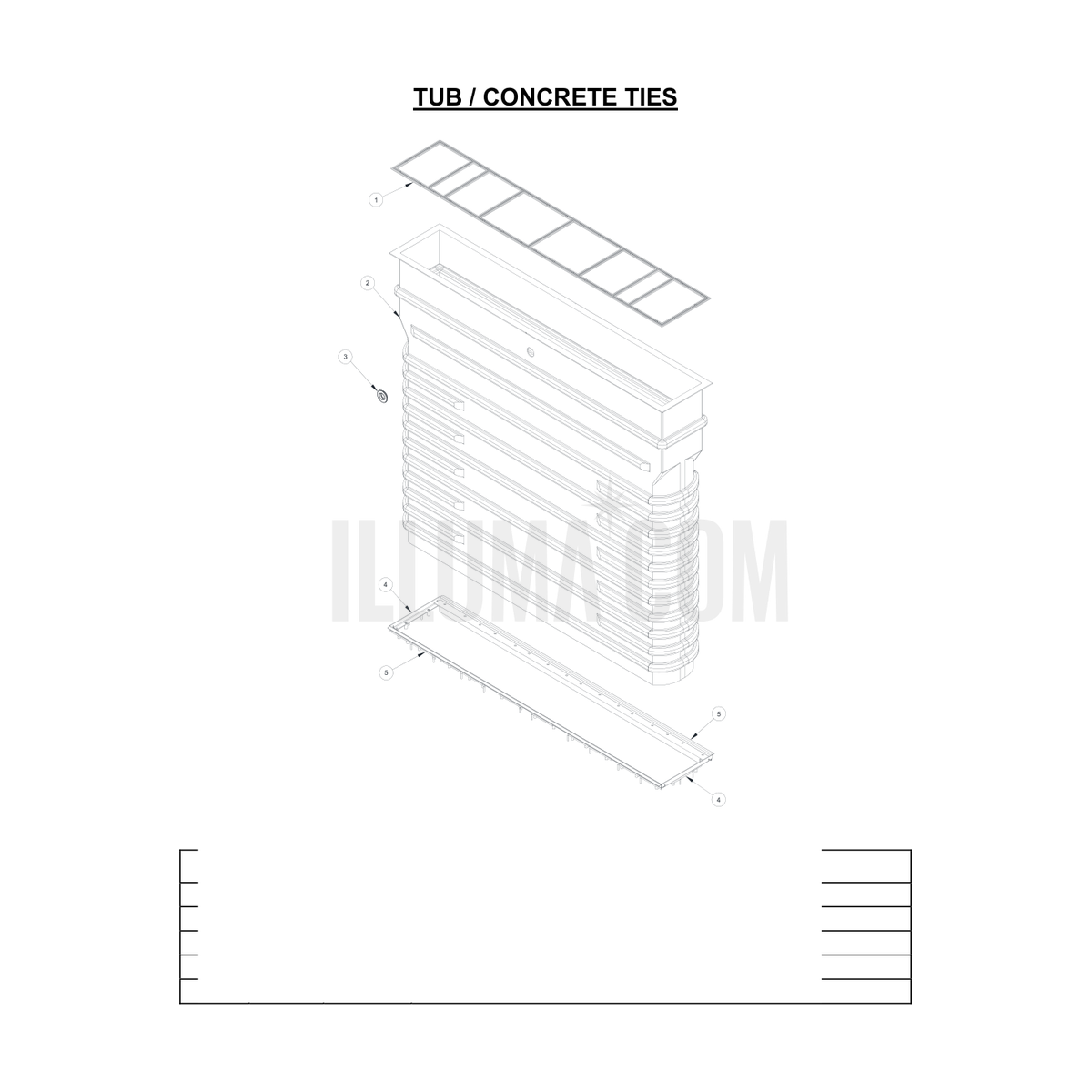

Click a diagram to see every part with clickable callouts — no PDFs.
All parts for this model
3W-10-10M8 x 14 Flat Head Allen Bolt, 10.9- 117414Air Hose Guide
- CCL164681/4-20 x 6 Hex Head Cap screw
- 117505Containment Tub (Not Serviceable after Installation)
- 40091IN-LINE AIR FILTER
- B172573 x 45mm ROUND WIRE RETAINING RING
- 39097R-QCHYD. RAM CYLINDER (72" STROKE) (CL12A-1-DPC-QC, CL12A-2-DPC-QC, or CL12A-3-DPC-QC)
- 1164701/2-13 x 1 ¾ Ladder Rail Bolt
- VVS50961/8 NPT Grease Fitting
- 116213Locking Pawl
- 116486EVBearing
- AD-9858-2POWER UNIT 3 PHASE
- AD-9367POWER UNIT 3 PHASE, 230/460VAC
- A1075PULL RING
- B2206-6STACK ADAPTER (6")
- CS1020-03-02M6 x 1mm x 6mm Lg. SELF LOCKING SET SCREW
- B12163SADAPTER PAD WELD
- AA1121Straight Thread Connector #6 JIC
- 117504CChrome Plunger
- 1161291/8 NPT x ¼" Push Lock Elbow
- XX10-022M10 Lock Washer
- 3360591/4-20 Nylon Locknut
- 117508Single Piece Rubber Gasket
- 1161433/8-16 x 3/4 Hex Head Capscrew
- 37016AIR VALVE
- TTJA12-03M8 x 16 Flathead Socket Cap Screw, Gr. 10.9
- 1161631/4 Push Lock Fitting
- 116485EVWiper
- 117321Concrete Tie Weld-Short (Not Serviceable after Installation)
- B17276-1THREADED INSERT
- 1171521/2-13 x 2" lg Hex Flange Head Bolt
- CL37015BUTTON VALVE BRACKET
- B2206-3STACK ADAPTER (3")
- A11543/8"-16 HEX FLANGE NUT
- 1150092" PVC Grommet (Not Serviceable after Installation)
- 117506Bearing Assembly
- XX10-021M10 x 20mm SHCS
- 401477/8-9 HEX NUT
- BB17507Bearing Weld
- 117595Outer Restraint Gear
- 116425Cylinder Sleeve
- BB17574Arm Pin Collar
- 37022#8-32 x 1 1/4" Lg. PAN HD. SCREW
- 16167HYD ELBOW, 9/16 O-RING MALE TO #6 MALE FLARE
- A1122-12HOSE CLAMP
- 1162151/4 x 1 ½ Roll Pin
- 1161661/4 Air Line, 25"
- 37023#8-32 HEX NUT
- 1164691/4" ID x 2 ¼ Spacer
- B12162S-12FOOT PAD ASSEMBLY
- 1174161 x 3 Clevis Pin
- 125683/8-16NC HEX FLANGE HEAD CAP SCREW EW
- 117570Synch. Rail Assembly
- 1161581/2" External Tooth Lock washer
- AB-11530POWER UNIT QC
- 440735Hairpin Cotter
- 39103HYD. TEE
- CL37024#8 LOCK WASHER
- 117598-67/8-9 x 6" lg Hex Head Cap Screw
- 117592UHMW Washer
- BB17587Arm Pin
- 115036Power Unit Mounting Bracket
- AB-9858POWER UNIT 1 PHASE
- 1174111/4" x 2" Grease Line
- 117597#8-32 x 3/4" SHCS
- 116413Lock Ladder
- 117590Arm Restraint Pin
- 1161321/4" x 12" lg Grease Line
- 1161423/8" External Tooth Lock washer
- 117579Hose Assembly (133" Lg.)
- B2209ADAPTER RACK
- 1161547/8" Split Lock Washer
- 117580-WCover Plate
- 117594Inner Arm Restraint Gear
- 1164757/8-9 x 3 1/2 Socket Head Cap Screw
- 337033#6 Worm Gear Clamp
- A21251/4"-20 x 3/4" LG. HEX FLANGE BOLT
- 1161537/8-9 x 3 Lock Ladder Bolt
- 116410Frame Support
- 116214Air Cylinder Clevis
- 161591/2 LOCKING NUT
- 116412Ladder Rail
- 41002375/16"-18NC HEX FLANGE LOCKING NUT
- AB-9367POWER UNIT 1Ph, 50/60Hz, 208-230V
- 117525Concrete Tie Weld-Long (Not Serviceable after Installation)
- 4401441/4-28 Hex Jam Nut
- CCL401423/4 x 1 ½ Reverse Single Acting Air Cylinder
- 400851/4-20NC HEX FLANGE NUT
- 37021HOSE BARB
- 117571Synchronizing Rail Weld
- AB-10396POWER UNIT 1ph, 60 Hz, 208-230V, QUICK CYCLE
- 1161651/8 Male NPT x ¼ Female NPT, Brass Street Elbow
- 1174101/4" Push Lock Cross
- 11754112K Bolster (Machined)
- 117599Spring
- 117577Cylinder Capture Plate
- 1161571/2-13 x 1 Frame Support Bolt
- 3311885/16-18 x 3/4 Hex Cap Screw
- 440239Coiled Air Line
- CS1020-04STOP BLOCK
- 117515Frame Weld (Not Serviceable after Installation)
- A1104-HRUBBER INSERT
