EVXP9

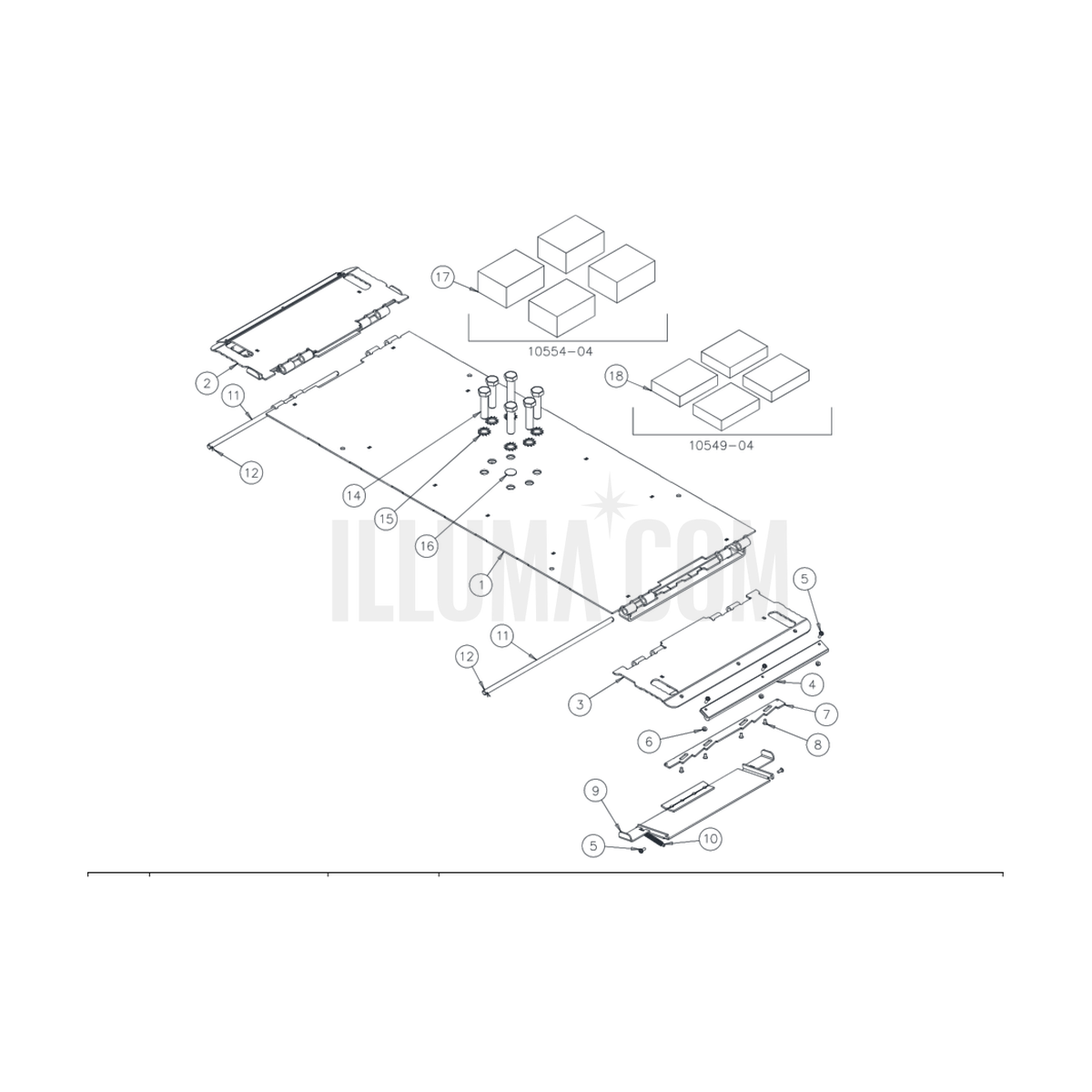

EVXP9 Inground Pad Adapter (for EV1020)

Illustrated Parts Lists

Click a diagram to see every part with clickable callouts — no PDFs.

All parts for this model

  • RAMP ASSEMBLY (INCLUDES ITEMS 13-20)
    10363-30
    RAMP ASSEMBLY (INCLUDES ITEMS 13-20)
    Qty 1$822.42View
  • VERSAHANGER WELD
    10341-06A
    VERSAHANGER WELD
    Qty 1$159.39View
  • 1 1/2" RUBBER BLOCK
    63101-01
    1 1/2" RUBBER BLOCK
    Qty 1$48.31View
  • 1/2 x 1 1/4 SHOULDER BOLT, MACHINED
    10341-23M
    1/2 x 1 1/4 SHOULDER BOLT, MACHINED
    Qty 1$23.83View
  • RAMP LATCH WELD
    10363-35
    RAMP LATCH WELD
    Qty 1$197.17View
  • 3/8-16NC STEEL LOCKNUT
    10341-24
    3/8-16NC STEEL LOCKNUT
    Qty 1$0.30View
  • CAPACITY LABEL, 9000 LBS
    RJAB-07
    CAPACITY LABEL, 9000 LBS
    Qty 1$5.30View
  • 1/4-20NC x 3/4" Lg. PAN HEAD SCREW
    31062
    1/4-20NC x 3/4" Lg. PAN HEAD SCREW
    Qty 1$0.58View
  • WHEEL PROTECTOR HOSE
    10341-27
    WHEEL PROTECTOR HOSE
    Qty 1$5.30View
  • 3" RUBBER BLOCK SET (4 pcs.)
    10554-04
    3" RUBBER BLOCK SET (4 pcs.)
    Qty 1$408.02View
  • RAMP WELD
    10363-31
    RAMP WELD
    Qty 1$444.61View
  • 1
    16473
    7/8-9 x 3-1/2" Hex Head Cap Screw
    Qty 1Not carried
  • 1
    16160
    Finishing Plug
    Qty 1Not carried
  • RAMP SLIDE
    40168
    RAMP SLIDE
    Qty 1$50.25View
  • 3/8 FLAT WASHER
    31036
    3/8 FLAT WASHER
    Qty 1$0.18View
  • COTTER PIN
    40126
    COTTER PIN
    Qty 1$0.21View
  • 1/4-20NC HEX FLANGE NUT
    40085
    1/4-20NC HEX FLANGE NUT
    Qty 1$0.46View
  • 3" RUBBER BLOCK
    10554-01
    3" RUBBER BLOCK
    Qty 1$102.45View
  • E
    EVXP9-HW-A
    Hardware Box
    Qty 1Not carried
  • BELLEVILLE DISC SPRING WASHER, SS
    10341-29
    BELLEVILLE DISC SPRING WASHER, SS
    Qty 1$4.29View
  • 1
    10363-10-EV-R2
    PAD ADAPTER WELD, EVXP9
    Qty 1Not carried

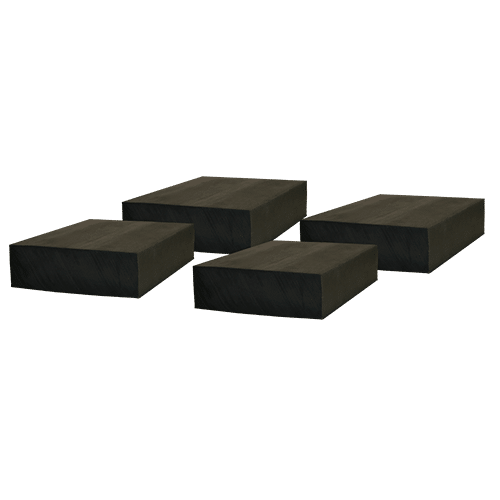

  • 1 1/2" RUBBER BLOCK SET (4 pcs.)
    10549-04
    1 1/2" RUBBER BLOCK SET (4 pcs.)
    Qty 1$216.49View
  • 1
    16154
    7/8" Split Lock Washer
    Qty 1Not carried
  • RAMP HINGE PIN
    10362-40
    RAMP HINGE PIN
    Qty 1$85.05View
  • 1/4-20NC x 1/2 FLAT SOCKET HEAD CAP SCREW
    10363-12
    1/4-20NC x 1/2 FLAT SOCKET HEAD CAP SCREW
    Qty 1$1.15View
  • VERSAHANGER BEARING
    10341-14
    VERSAHANGER BEARING
    Qty 1$8.93View
  • 4
    40139
    EXTENSION SPRING, 1/2 x 3 1/4
    Qty 1Not carried
  • RAMP LATCH STOP, SAW TOOTH
    10363-34
    RAMP LATCH STOP, SAW TOOTH
    Qty 1$35.72View
