EV1220

EV1220 2-Post Inground EnviroLift

Illustrated Parts Lists

Click a diagram to see every part with clickable callouts — no PDFs.

All parts for this model

  • 1/4"-20 x 3/4" LG. HEX FLANGE BOLT
    A2125
    1/4"-20 x 3/4" LG. HEX FLANGE BOLT
    Qty 1$0.64View
  • 3/8"-16 HEX FLANGE NUT
    A1154
    3/8"-16 HEX FLANGE NUT
    Qty 1$0.30View
  • 1
    16213
    Locking Pawl
    Qty 1Not carried
  • 1
    16486EV
    Bearing
    Qty 1Not carried
  • POWER UNIT QC
    AB-11530

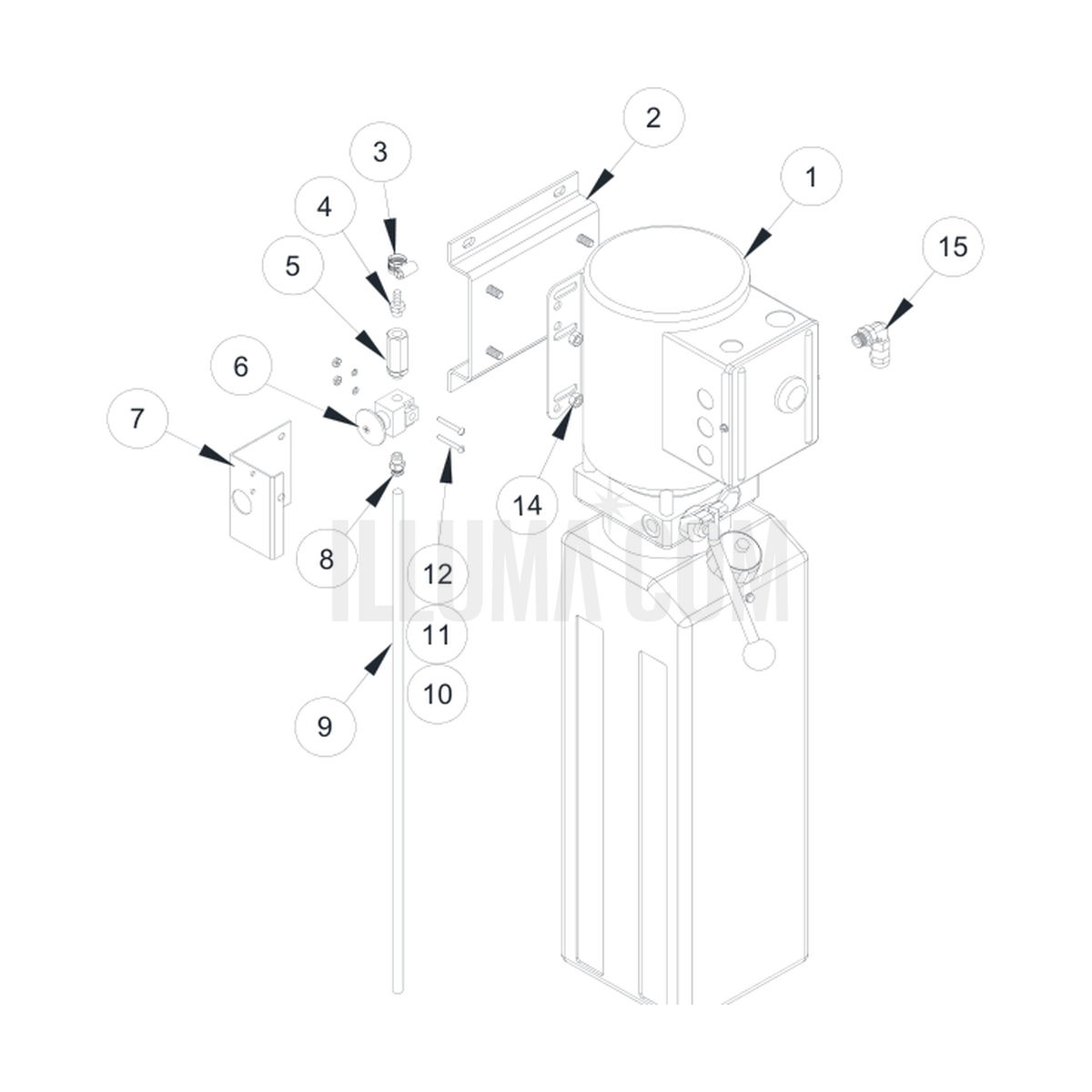

    POWER UNIT QC
    Qty 1$2,108.50View
  • 1
    15036
    Power Unit Mounting Bracket
    Qty 1Not carried
  • M8 x 14 Flat Head Allen Bolt, 10.9
    3W-10-10
    M8 x 14 Flat Head Allen Bolt, 10.9
    Qty 1$1.35View
  • 1
    17321
    Concrete Tie Weld-Short (Not Serviceable after Installation)
    Qty 1Not carried
  • 1
    17504C

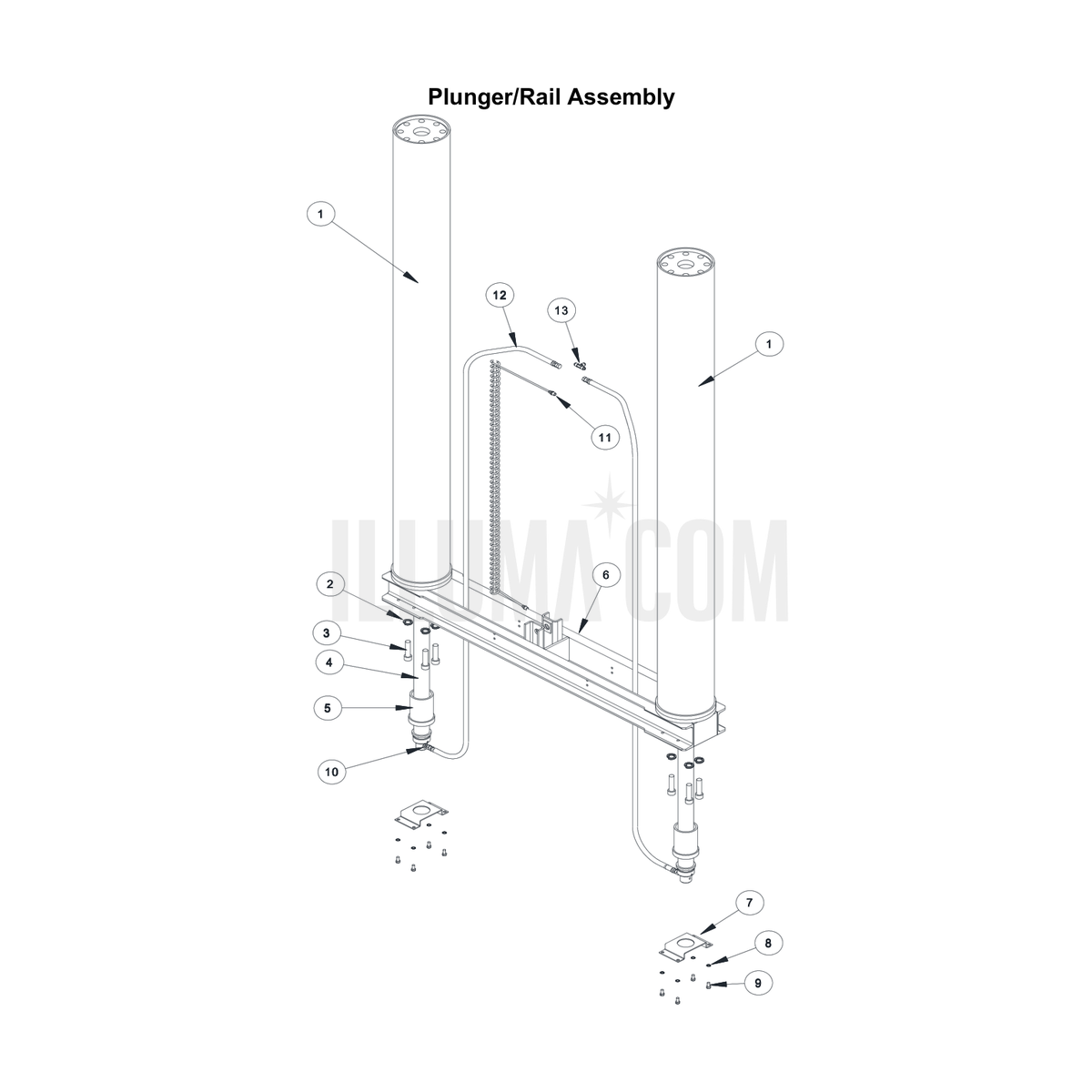

    Chrome Plunger
    Qty 1Not carried
  • 1
    16165
    1/8 Male NPT x ¼ Female NPT, Brass Street Elbow
    Qty 1Not carried
  • 1
    17506

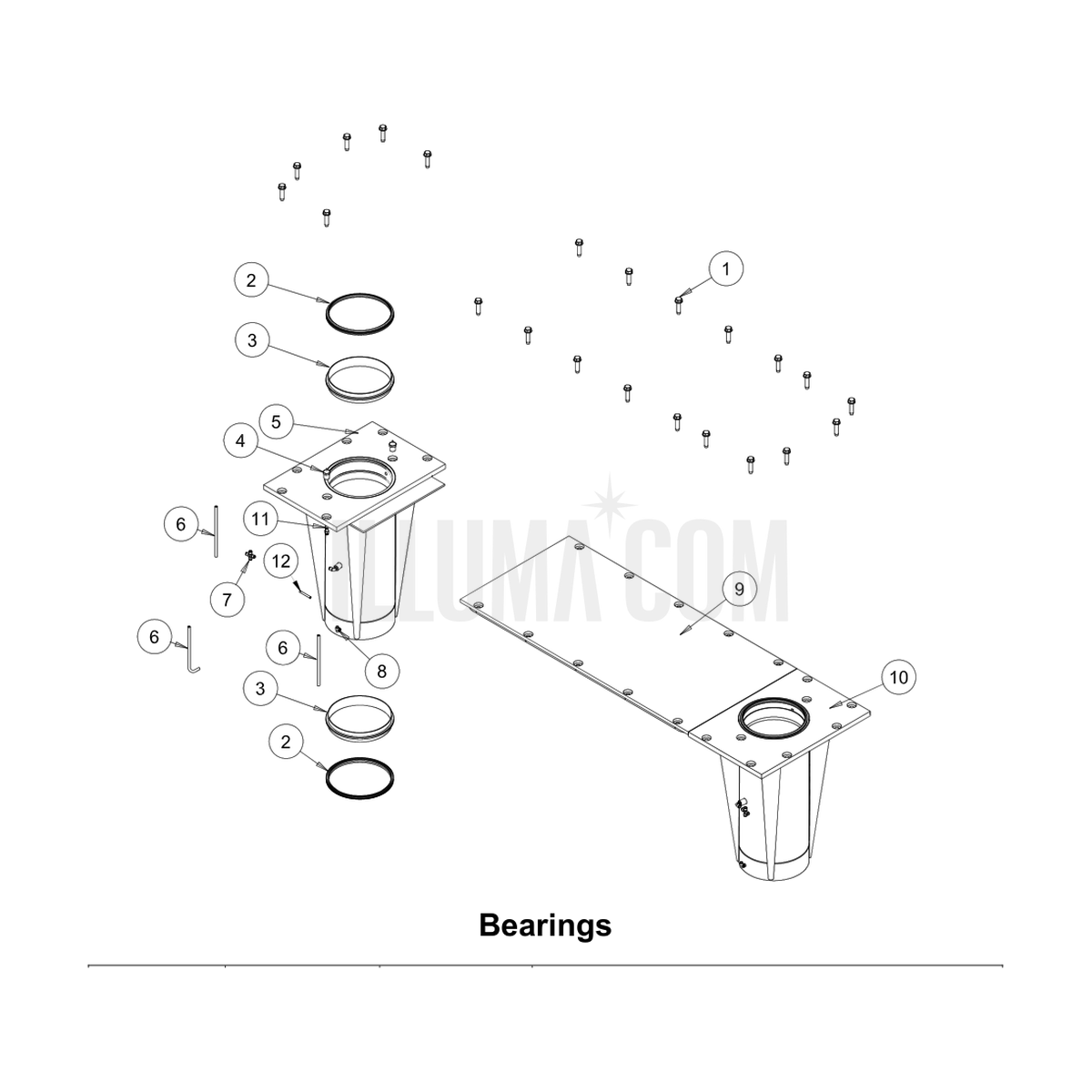

    Bearing Assembly
    Qty 1Not carried
  • T
    TJA12-02-00

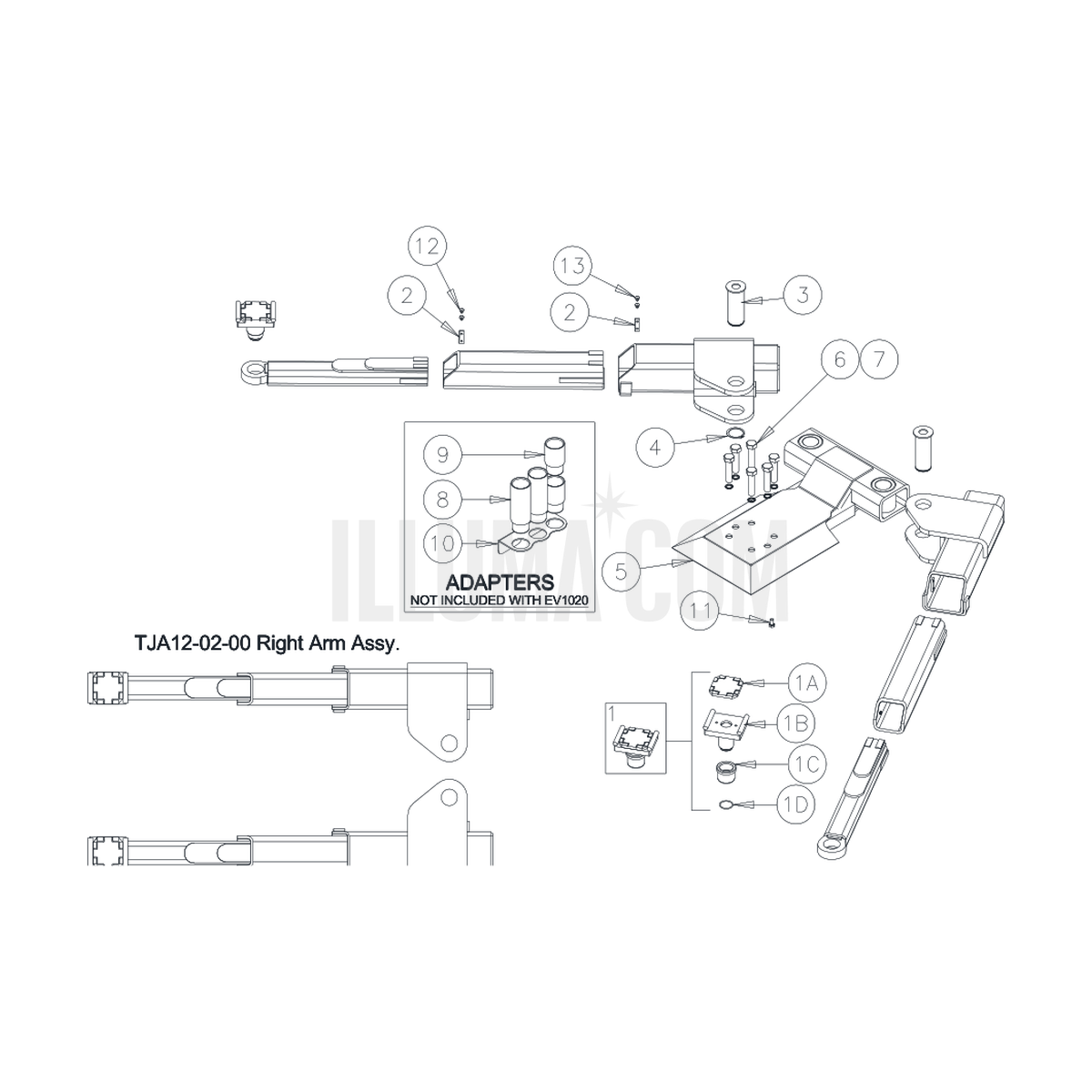

    Right Arm Assy. (includes Arm Pin and Footpad)
    Qty 1Not carried
  • 1
    16473
    7/8-9 x 3-1/2" Hex Head Cap Screw
    Qty 1Not carried
  • 1
    16485EV
    Wiper
    Qty 1Not carried
  • 3
    37033
    #6 Worm Gear Clamp
    Qty 1Not carried
  • IN-LINE AIR FILTER
    40091
    IN-LINE AIR FILTER
    Qty 1$40.58View
  • 1
    16158
    1/2" External Tooth Lock washer
    Qty 1Not carried
  • 1
    15009
    2" PVC Grommet (Not Serviceable after Installation)
    Qty 1Not carried
  • HYD ELBOW, 9/16 O-RING MALE TO #6 MALE FLARE
    16167
    HYD ELBOW, 9/16 O-RING MALE TO #6 MALE FLARE
    Qty 1$9.74View
  • STOP BLOCK
    CS1020-04
    STOP BLOCK
    Qty 1$1.17View
  • 1
    16475
    7/8-9 x 3 1/2 Socket Head Cap Screw
    Qty 1Not carried
  • AIR VALVE
    37016
    AIR VALVE
    Qty 1$102.45View
  • 3 x 45mm ROUND WIRE RETAINING RING
    B17257
    3 x 45mm ROUND WIRE RETAINING RING
    Qty 1$0.23View
  • 1
    16428
    Cylinder Capture Plate (EV1020/EV1220)
    Qty 1Not carried
  • M12 x 20 Hex Bolt
    17314
    M12 x 20 Hex Bolt
    Qty 1$4.87View
  • T
    TJA12-03
    M8 x 16 Flathead Socket Cap Screw, Gr. 10.9
    Qty 1Not carried
  • 1
    16142
    3/8" External Tooth Lock washer
    Qty 1Not carried
  • 1
    16154
    7/8" Split Lock Washer
    Qty 1Not carried
  • 1
    16129
    1/8 NPT x ¼" Push Lock Elbow
    Qty 1Not carried
  • 4
    40144
    1/4-28 Hex Jam Nut
    Qty 1Not carried
  • FOOT PAD ASSEMBLY
    B12162S-12
    FOOT PAD ASSEMBLY
    Qty 1$104.48View
  • 1
    17416
    1 x 3 Clevis Pin
    Qty 1Not carried
  • 3
    31188
    5/16-18 x 3/4 Hex Cap Screw
    Qty 1Not carried
  • POWER UNIT 3 PHASE, 230/460VAC
    AD-9367
    POWER UNIT 3 PHASE, 230/460VAC
    Qty 1$1,659.23View
  • STACK ADAPTER (3")
    B2206-3
    STACK ADAPTER (3")
    Qty 1$58.76View
  • STACK ADAPTER (6")
    B2206-6
    STACK ADAPTER (6")
    Qty 1$90.94View
  • 1
    17320
    Concrete Tie Weld-Long (Not Serviceable after Installation)
    Qty 1Not carried
  • T
    TJA12-01-00
    Left Arm Assy. (includes Arm Pin and Footpad)
    Qty 1Not carried
  • B
    B16489
    58mm External Snap Ring
    Qty 1Not carried
  • 1
    16166
    1/4 Air Line, 25"
    Qty 1Not carried
  • 1
    17200
    Single Piece Rubber Gasket
    Qty 1Not carried
  • B
    B16414

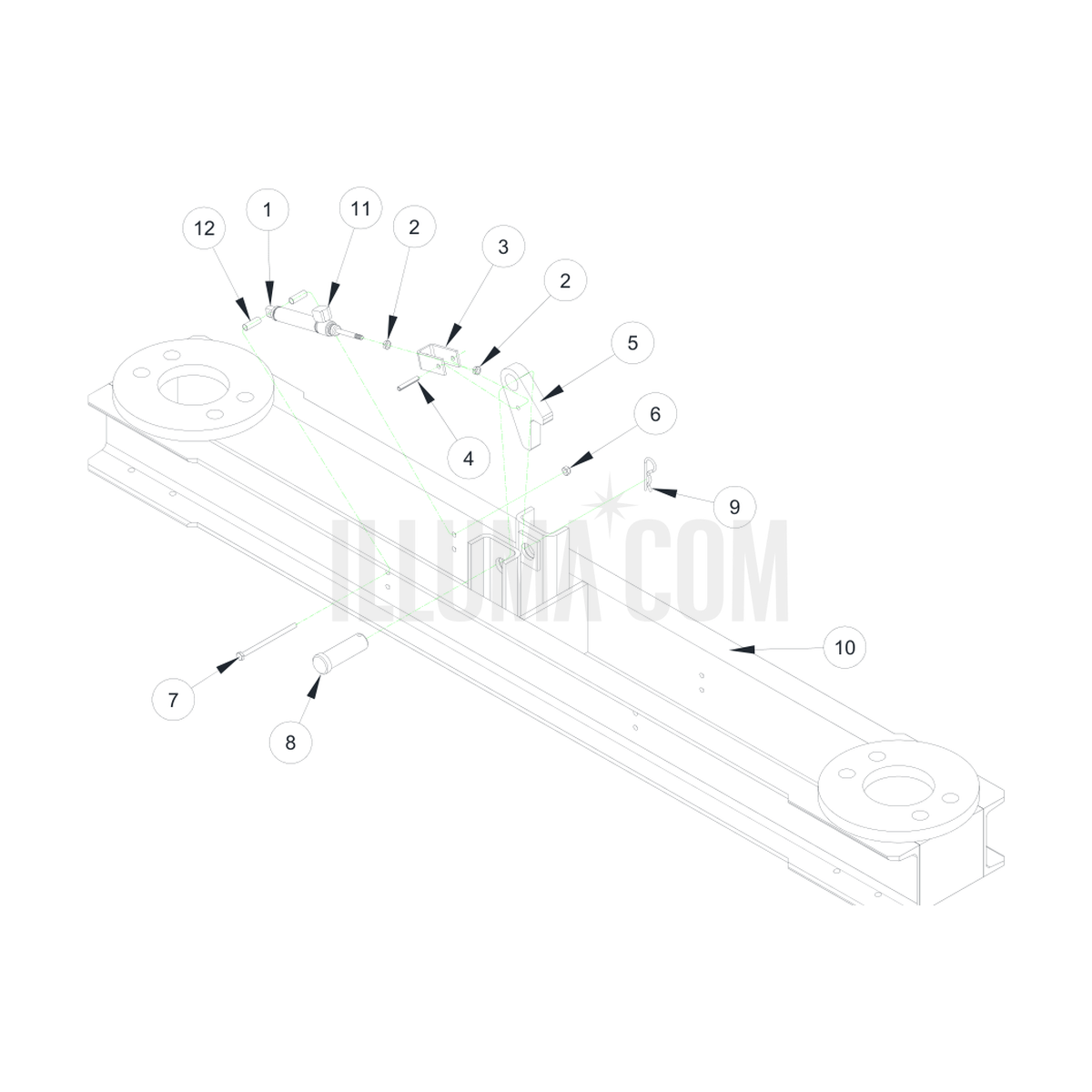

    Synchronizing Rail Weld
    Qty 1Not carried
  • 1/4-20NC HEX FLANGE NUT
    40085
    1/4-20NC HEX FLANGE NUT
    Qty 1$0.46View
  • #8 LOCK WASHER
    CL37024
    #8 LOCK WASHER
    Qty 1$0.18View
  • 1
    16214
    Air Cylinder Clevis
    Qty 1Not carried
  • POWER UNIT 3 PHASE
    AD-9858-2
    POWER UNIT 3 PHASE
    Qty 1$2,359.59View
  • 1
    16132
    1/4" x 12" lg Grease Line
    Qty 1Not carried
  • 1
    17414
    Air Hose Guide
    Qty 1Not carried
  • V
    VS5096
    1/8 NPT Grease Fitting
    Qty 1Not carried
  • POWER UNIT 1 PHASE
    AB-9858
    POWER UNIT 1 PHASE
    Qty 1$1,327.05View
  • 3
    37015
    Button Valve Bracket
    Qty 1Not carried
  • POWER UNIT 1ph, 60 Hz, 208-230V, QUICK CYCLE
    AB-10396
    POWER UNIT 1ph, 60 Hz, 208-230V, QUICK CYCLE
    Qty 1$2,836.18View
  • 1
    16483
    Synch. Rail Assembly
    Qty 1Not carried
  • 1
    17517

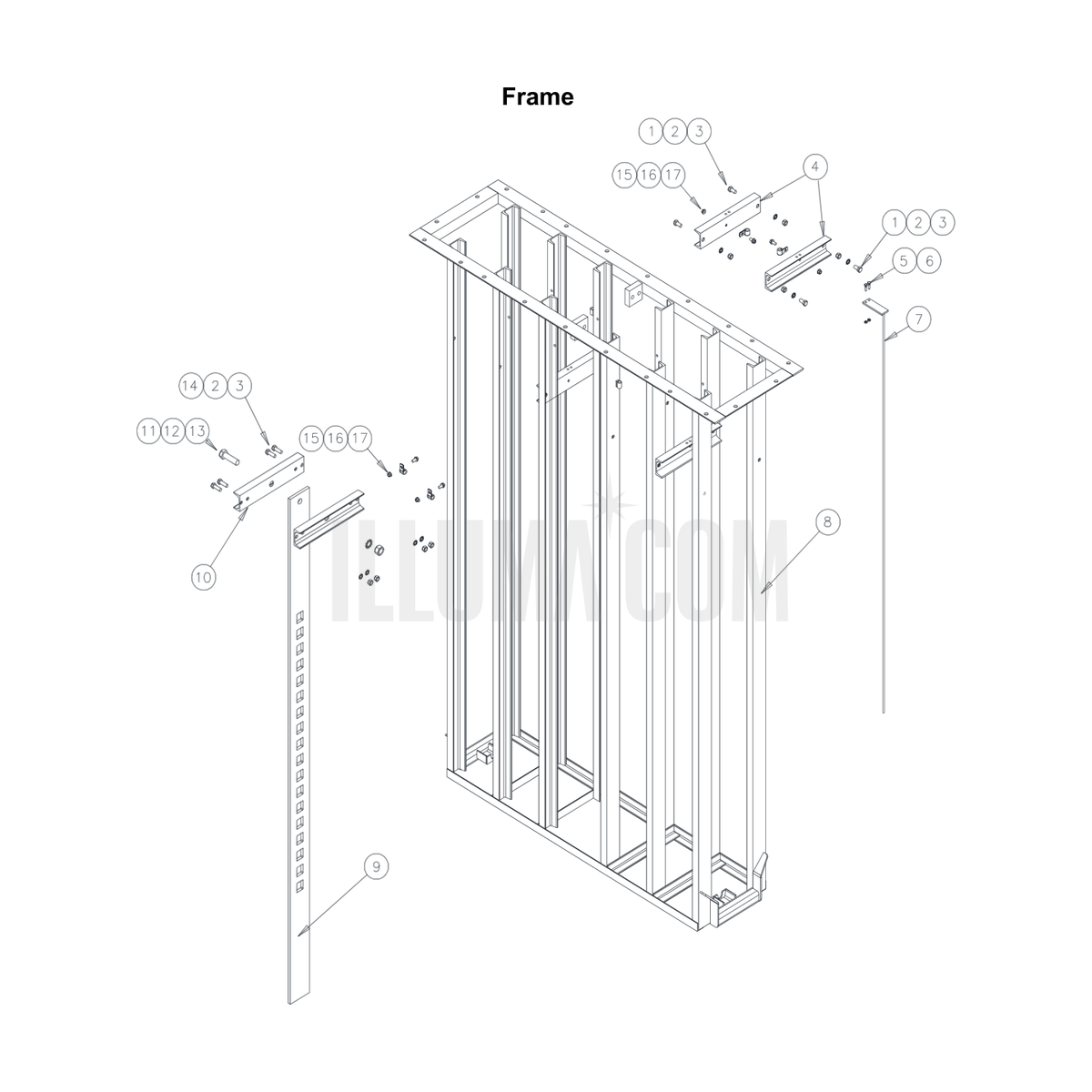

    Frame Weld (Not Serviceable after Installation)
    Qty 1Not carried
  • ADAPTER PAD WELD
    B12163S
    ADAPTER PAD WELD
    Qty 1$65.70View
  • B
    B12067-1
    Threaded Insert
    Qty 1Not carried
  • HOSE CLAMP
    A1122-12
    HOSE CLAMP
    Qty 1$1.64View
  • 7/8-9 HEX NUT
    40147
    7/8-9 HEX NUT
    Qty 1$1.55View
  • B
    B17507
    Bearing Weld
    Qty 1Not carried
  • 4
    40239
    Coiled Air Line
    Qty 1Not carried
  • #8-32 HEX NUT
    37023
    #8-32 HEX NUT
    Qty 1$0.18View
  • 1/2 LOCKING NUT
    16159
    1/2 LOCKING NUT
    Qty 1$0.21View
  • 1
    16153
    7/8-9 x 3 Lock Ladder Bolt
    Qty 1Not carried
  • 3
    36059
    1/4-20 Nylon Locknut
    Qty 1Not carried
  • 1
    16425
    Cylinder Sleeve
    Qty 1Not carried
  • C
    CL40142
    3/4 x 1 ½ Reverse Single Acting Air Cylinder
    Qty 1Not carried
  • 1
    16413
    Lock Ladder
    Qty 1Not carried
  • HOSE BARB
    37021
    HOSE BARB
    Qty 1$6.08View
  • C
    CL17406
    Hose Assembly (114" Lg.)
    Qty 1Not carried
  • A
    A1121
    Straight Thread Connector #6 JIC
    Qty 1Not carried
  • 1
    17152
    1/2-13 x 2" lg Hex Flange Head Bolt
    Qty 1Not carried
  • C
    CL17380

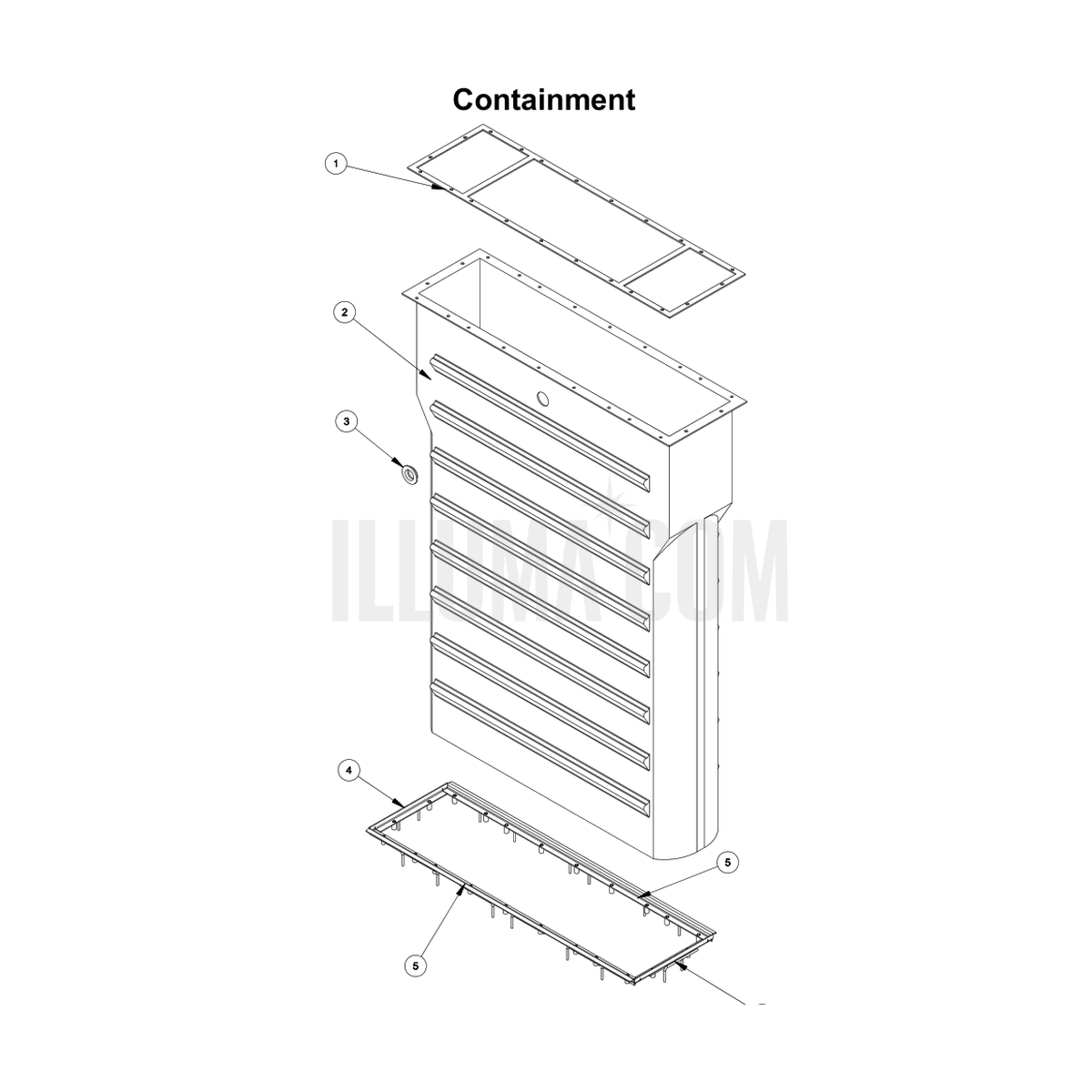

    Containment Tub (Not Serviceable after Installation)
    Qty 1Not carried
  • 1
    16143
    3/8-16 x 3/4 Hex Head Capscrew
    Qty 1Not carried
  • 3/8-16NC HEX FLANGE HEAD CAP SCREW EW
    12568
    3/8-16NC HEX FLANGE HEAD CAP SCREW EW
    Qty 1$0.75View
  • ADAPTER RACK
    B2209
    ADAPTER RACK
    Qty 1$71.39View
  • HYD. TEE
    39103
    HYD. TEE
    Qty 1$7.33View
  • 1
    16470
    1/2-13 x 1 ¾ Ladder Rail Bolt
    Qty 1Not carried
  • RUBBER INSERT
    A1104-H
    RUBBER INSERT
    Qty 1$28.98View
  • 1
    16410
    Frame Support
    Qty 1Not carried
  • B
    B16464
    57.15mm Dia. Arm Pin
    Qty 1Not carried
  • 5/16"-18NC HEX FLANGE LOCKING NUT
    4100237
    5/16"-18NC HEX FLANGE LOCKING NUT
    Qty 1$0.27View
  • POWER UNIT 1Ph, 50/60Hz, 208-230V
    AB-9367
    POWER UNIT 1Ph, 50/60Hz, 208-230V
    Qty 1$1,153.04View
  • 1
    16215
    1/4 x 1 ½ Roll Pin
    Qty 1Not carried
  • 1
    17411
    1/4" x 2" Grease Line
    Qty 1Not carried
  • C
    CL16468
    1/4-20 x 6 Hex Head Cap screw
    Qty 1Not carried
  • 1
    17410
    1/4" Push Lock Cross
    Qty 1Not carried
  • 1
    16469
    1/4" ID x 2 ¼ Spacer
    Qty 1Not carried
  • 1
    16157
    1/2-13 x 1 Frame Support Bolt
    Qty 1Not carried
  • 4
    40735
    Hairpin Cotter
    Qty 1Not carried
  • 1
    16163
    1/4 Push Lock Fitting
    Qty 1Not carried
  • #8-32 x 1 1/4" Lg. PAN HD. SCREW
    37022
    #8-32 x 1 1/4" Lg. PAN HD. SCREW
    Qty 1$0.38View
  • B
    B16448
    12K Bolster (Machined)
    Qty 1Not carried
  • 1
    16429
    Cover Plate
    Qty 1Not carried
  • HYD. RAM CYLINDER (72" STROKE) (CL12A-1-DPC-QC, CL12A-2-DPC-QC, or CL12A-3-DPC-QC)
    39097R-QC
    HYD. RAM CYLINDER (72" STROKE) (CL12A-1-DPC-QC, CL12A-2-DPC-QC, or CL12A-3-DPC-QC)
    Qty 1$1,134.52View
  • 1
    16412
    Ladder Rail
    Qty 1Not carried
