EV1020
EV1020 2-Post Inground EnviroLift

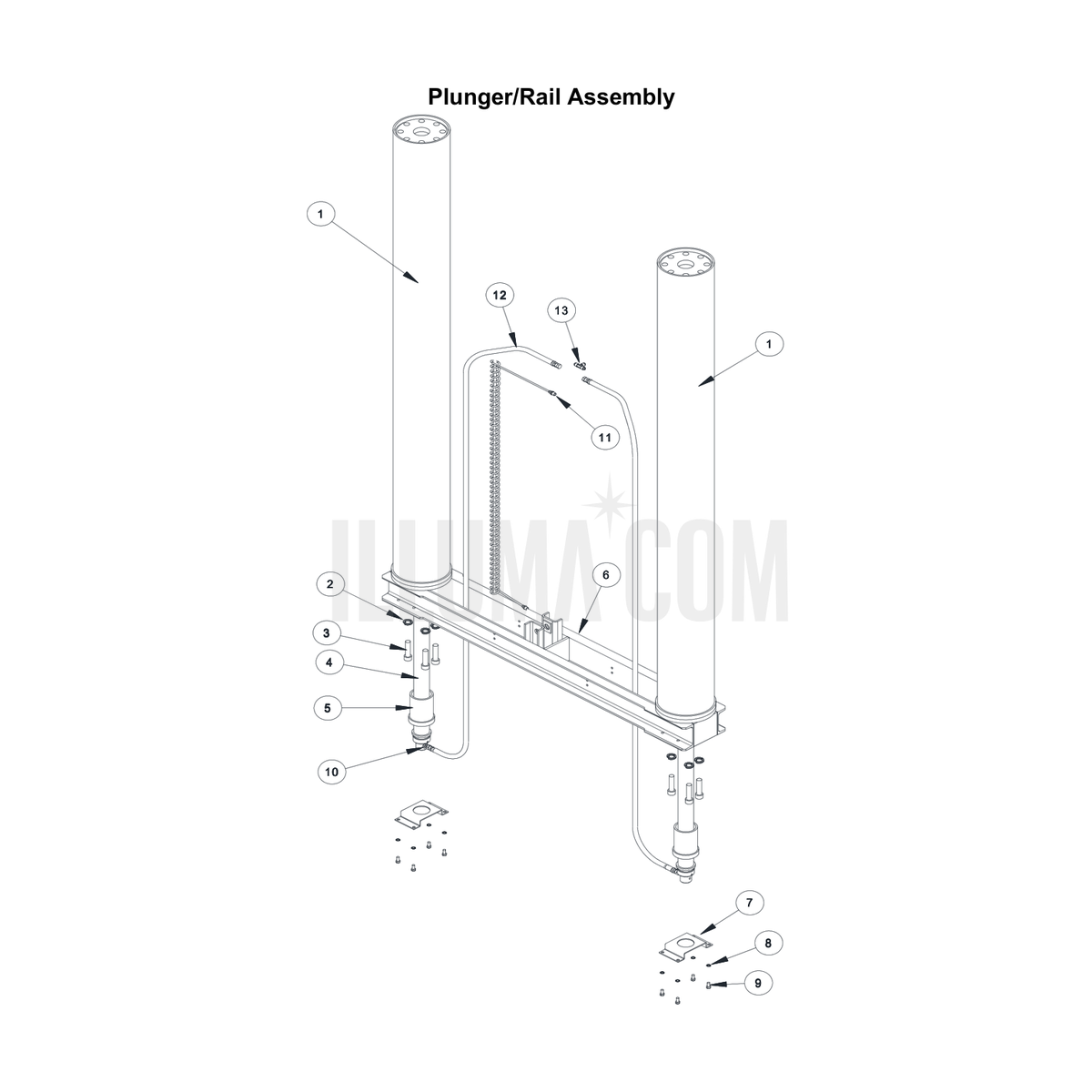

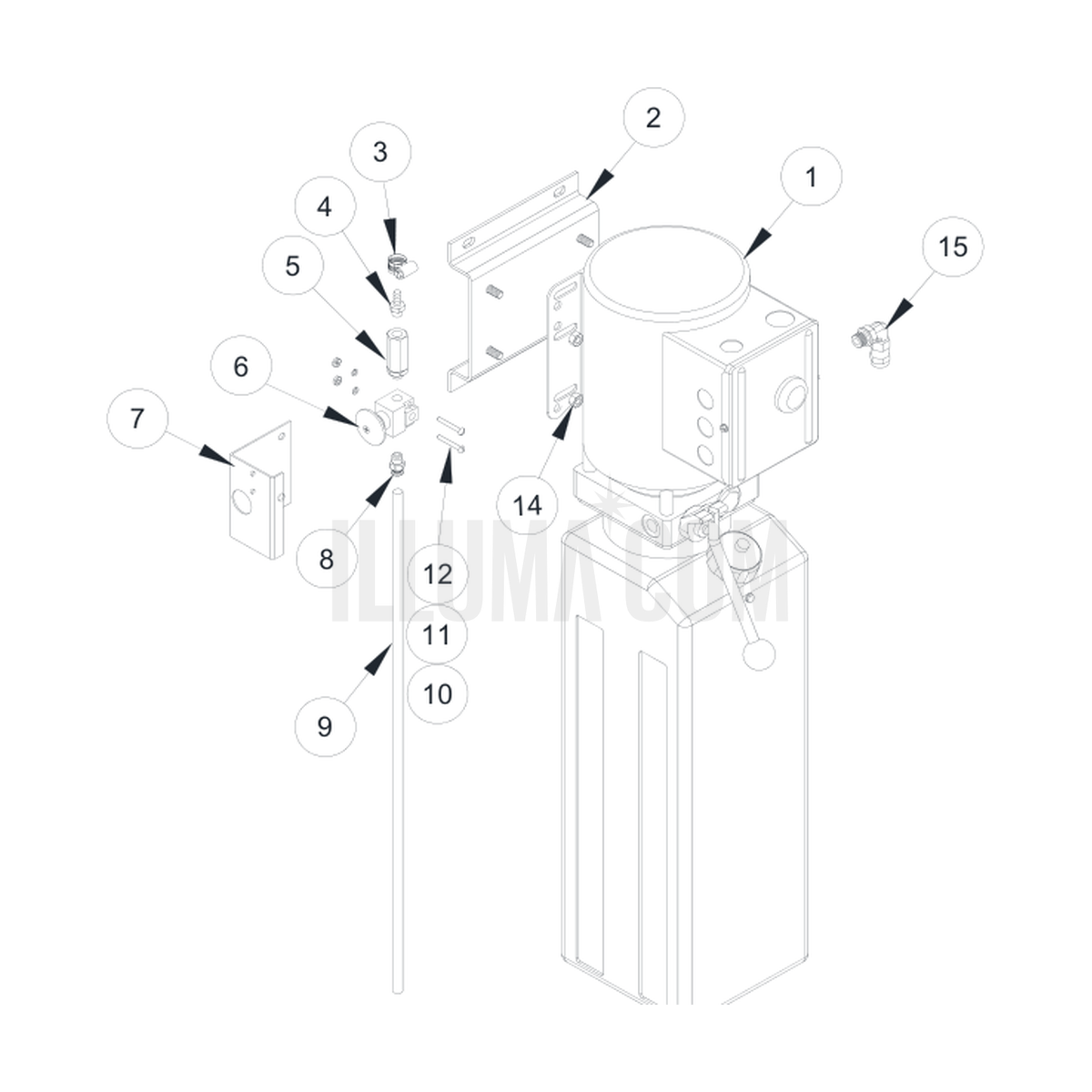

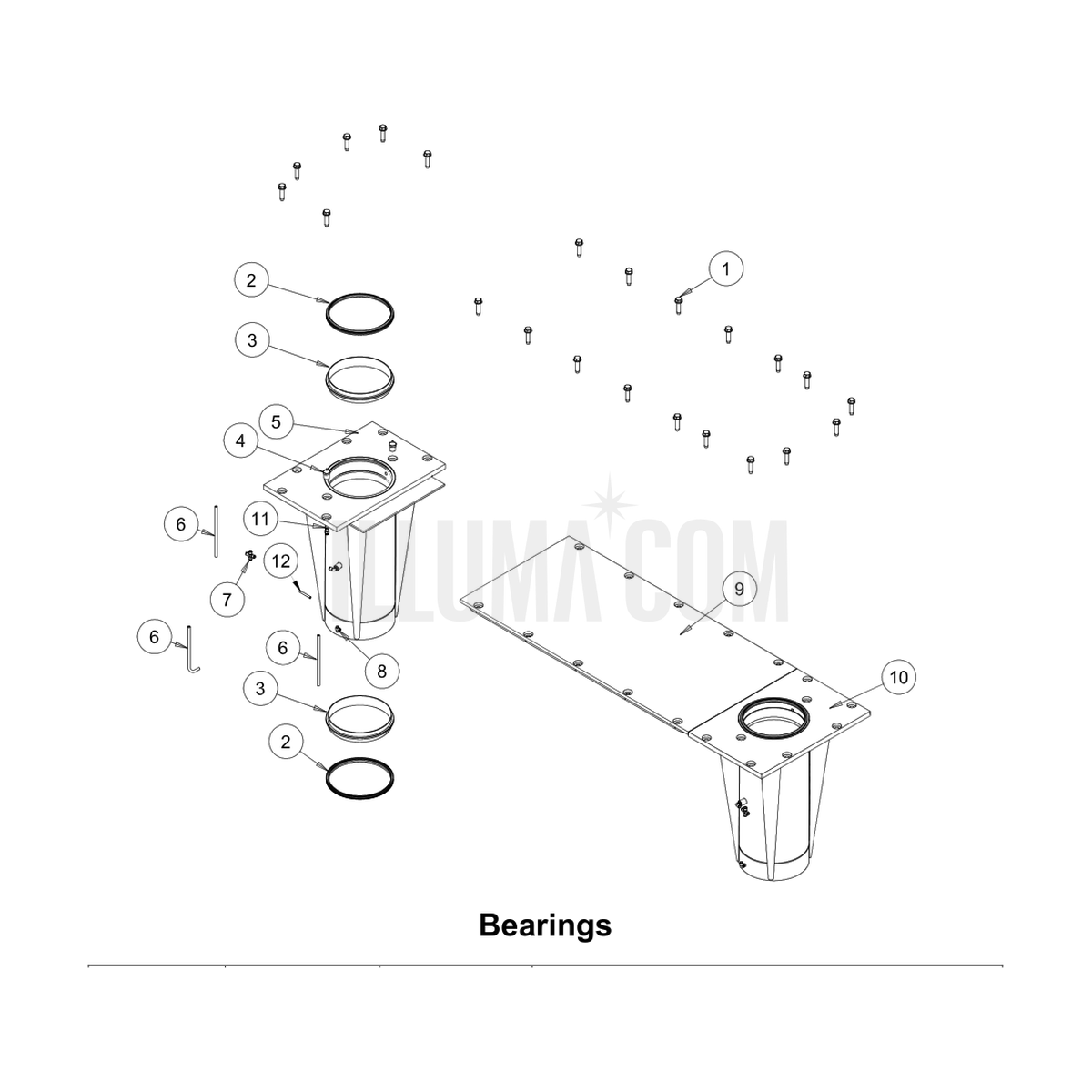

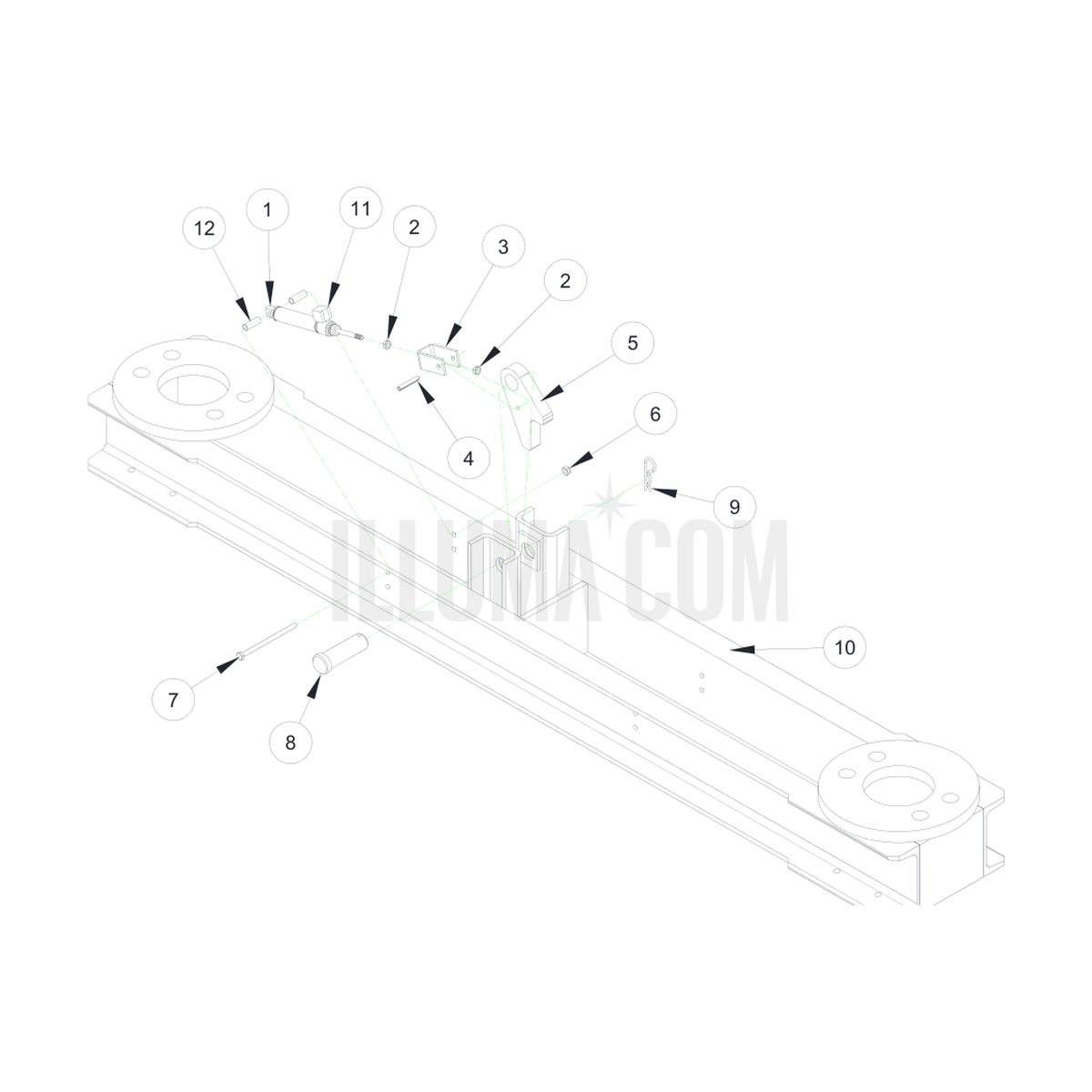

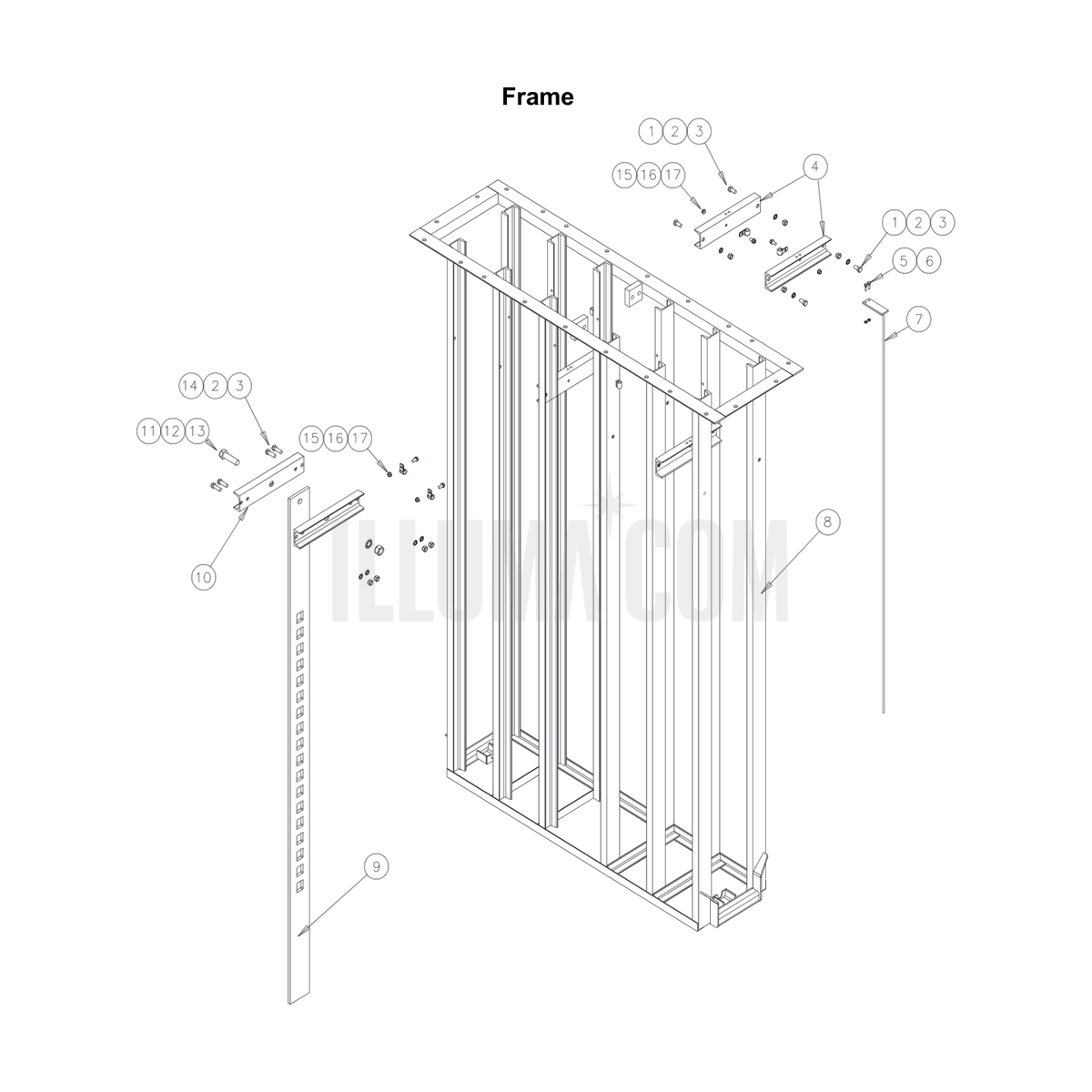

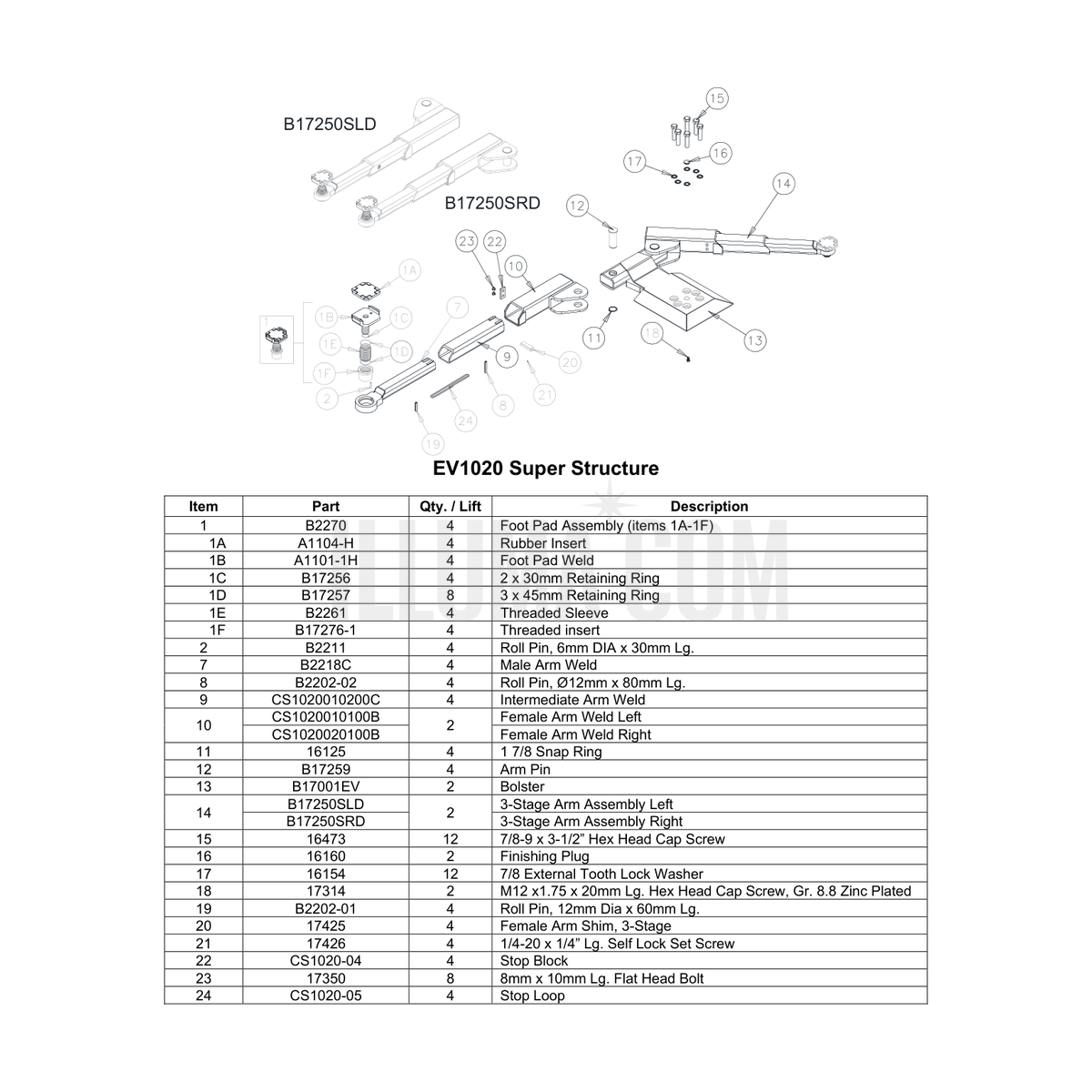

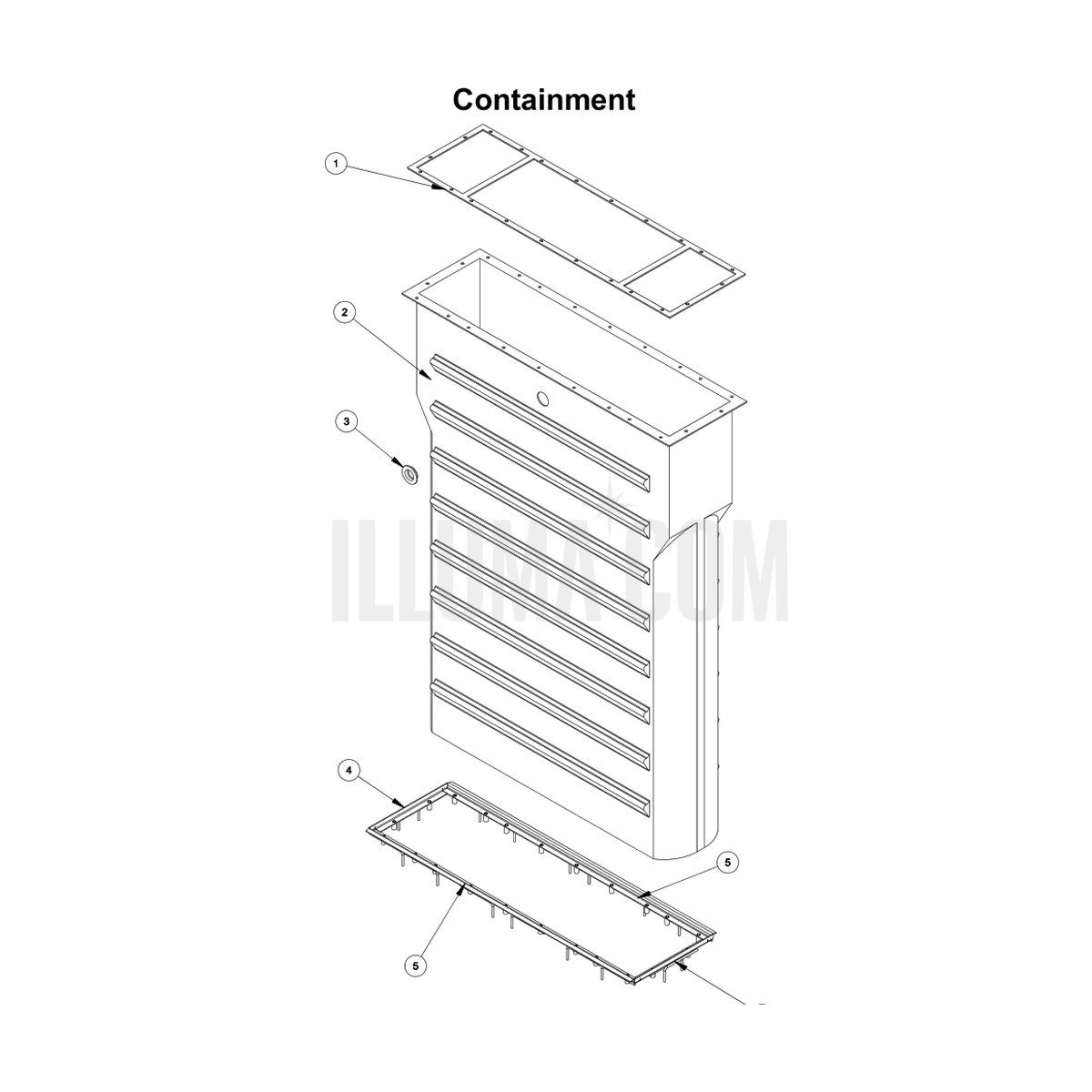

Illustrated Parts Lists
Click a diagram to see every part with clickable callouts — no PDFs.
All parts for this model
- 1161321/4" x 12" lg Grease Line
17314M12 x 20 Hex Bolt- CS1020-04STOP BLOCK
- B2202-01ROLL PIN, 12mm DIA x 60mm Lg
- 4401441/4-28 Hex Jam Nut
- 37021HOSE BARB
- AB-9858POWER UNIT 1 PHASE
- AB-10396POWER UNIT 1ph, 60 Hz, 208-230V, QUICK CYCLE
- B2270FOOT PAD ASSEMBLY (items 72-77)
- 400851/4-20NC HEX FLANGE NUT
- 37023#8-32 HEX NUT
- 117320Concrete Tie Weld-Long (Not Serviceable after Installation)
- CCL401423/4 x 1 ½ Reverse Single Acting Air Cylinder
- B172573 x 45mm ROUND WIRE RETAINING RING
- 1161291/8 NPT x ¼" Push Lock Elbow
- AB-11530POWER UNIT QC
- 1174261/4-20 x 1/4" Lg. Self-Lock Set Screw
- 116213Locking Pawl
- 1161631/4 Push Lock Fitting
- 1161423/8" External Tooth Lock washer
- 37022#8-32 x 1 1/4" Lg. PAN HD. SCREW
- 1150092" PVC Grommet (Not Serviceable after Installation)
- 1161581/2" External Tooth Lock washer
- AB-9367POWER UNIT 1Ph, 50/60Hz, 208-230V
- A21251/4"-20 x 3/4" LG. HEX FLANGE BOLT
- 117504CChrome Plunger
- 401477/8-9 HEX NUT
- BB17259Arm Pin
- B2261THREADED SLEEVE
- CCS1020010100BFemale Arm Weld Left
- BB17001EVBolster
- 116485EVWiper
- 37016AIR VALVE
- 1161537/8-9 x 3 Lock Ladder Bolt
- A1122-12HOSE CLAMP
- 116410Frame Support
- B17276-1THREADED INSERT
- 1162151/4 x 1 ½ Roll Pin
- CS1020-05STOP LOOP
- 125683/8-16NC HEX FLANGE HEAD CAP SCREW EW
- 440735Hairpin Cotter
- A1101-1HFOOT PAD WELD
- CCL17380Containment Tub (Not Serviceable after Installation)
- BB16414Synchronizing Rail Weld
- 116160Finishing Plug
- B2211ROLL PIN, 6mm DIA x 30mm Lg
- 16167HYD ELBOW, 9/16 O-RING MALE TO #6 MALE FLARE
- BB2218CMale Arm Weld
- CCL164681/4-20 x 6 Hex Head Cap screw
- 117414Air Hose Guide
- 1174101/4" Push Lock Cross
- CCS1020020100BFemale Arm Weld Right
- 117506Bearing Assembly
- 116428Cylinder Capture Plate (EV1020/EV1220)
- 3360591/4-20 Nylon Locknut
- 1164757/8-9 x 3 1/2 Socket Head Cap Screw
- 115036Power Unit Mounting Bracket
- 1171521/2-13 x 2" lg Hex Flange Head Bolt
- 1164691/4" ID x 2 ¼ Spacer
- CCS1020010200CIntermediate Arm Weld
- 440239Coiled Air Line
- 116486EVBearing
- 117517Frame Weld (Not Serviceable after Installation)
- 1164737/8-9 x 3-1/2" Hex Head Cap Screw
- 116425Cylinder Sleeve
- 116483Synch. Rail Assembly
- 3311885/16-18 x 3/4 Hex Cap Screw
- VVS50961/8 NPT Grease Fitting
- 1161547/8" Split Lock Washer
- 1174161 x 3 Clevis Pin
- AA1121Straight Thread Connector #6 JIC
- CL37024#8 LOCK WASHER
- BB17250SLD3-Stage Arm Assembly Left
- 39097R-QCHYD. RAM CYLINDER (72" STROKE) (CL12A-1-DPC-QC, CL12A-2-DPC-QC, or CL12A-3-DPC-QC)
- AD-9367POWER UNIT 3 PHASE, 230/460VAC
- 116214Air Cylinder Clevis
- A11543/8"-16 HEX FLANGE NUT
- 1161651/8 Male NPT x ¼ Female NPT, Brass Street Elbow
- B2202-02ROLL PIN, 12mm DIA x 80mm Lg
- CCL17406Hose Assembly (114" Lg.)
- BB17507Bearing Weld
- A1104-HRUBBER INSERT
- AD-9858-2POWER UNIT 3 PHASE
- 1161571/2-13 x 1 Frame Support Bolt
- 116413Lock Ladder
- 117321Concrete Tie Weld-Short (Not Serviceable after Installation)
- 41002375/16"-18NC HEX FLANGE LOCKING NUT
- 17350M8 x 10mm Lg. FLAT HEAD BOLT
- 1161661/4 Air Line, 25"
- B172562 x 30mm ROUND WIRE RETAINING RING
- 161591/2 LOCKING NUT
- 1174111/4" x 2" Grease Line
- 1161433/8-16 x 3/4 Hex Head Capscrew
- 337015Button Valve Bracket
- 117200Single Piece Rubber Gasket
- 1164701/2-13 x 1 ¾ Ladder Rail Bolt
- 40091IN-LINE AIR FILTER
- 337033#6 Worm Gear Clamp
- 1161251 7/8 Snap Ring
- BB17250SRD3-Stage Arm Assembly Right
- 116412Ladder Rail
- 116429Cover Plate
- 39103HYD. TEE
- 117425Female Arm Shim, 3-Stage
