E15

E15

Illustrated Parts Lists

Click a diagram to see every part with clickable callouts — no PDFs.

All parts for this model

  • Lock Cover
    JSJ5-02-14CH
    Lock Cover
    Qty 1$23.56View
  • ARM RESTRAINT SPRING
    JSJ6-14
    ARM RESTRAINT SPRING
    Qty 1$6.87View
  • 9/16-18 UN POWER UNIT HOSE
    E15-17
    9/16-18 UN POWER UNIT HOSE
    Qty 1$35.42View
  • LOCK PIN RETAINER (1/2-13NC HEX LOCK NUT)
    37013
    LOCK PIN RETAINER (1/2-13NC HEX LOCK NUT)
    Qty 1$0.38View
  • CARRIAGE
    E15-08-01-00
    CARRIAGE
    Qty 1$1,197.29View
  • LOWER SHEAVE PIN
    E15-01-09
    LOWER SHEAVE PIN
    Qty 1$11.64View

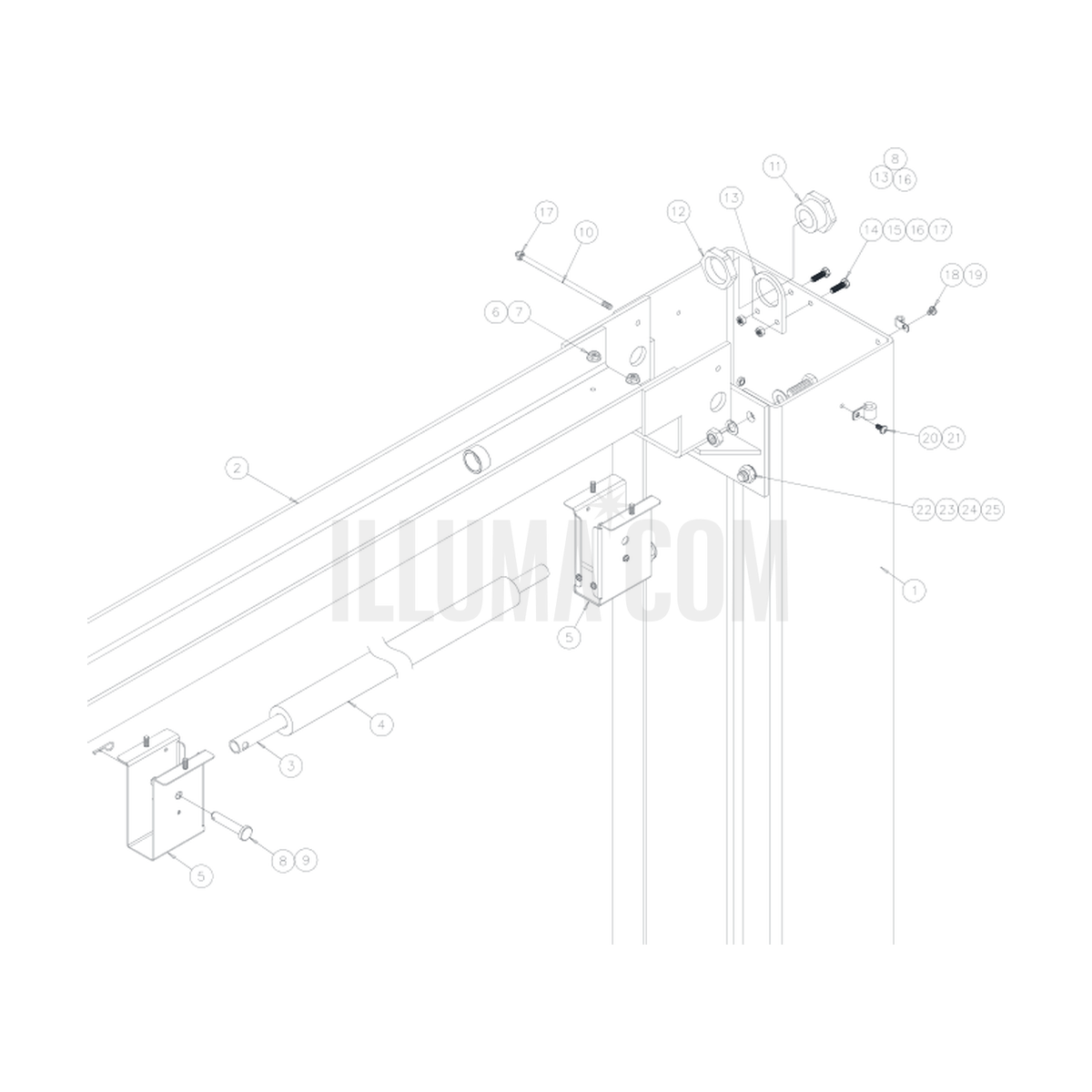

  • E
    E15-03-01-00
    OVERHEAD WELD
    Qty 1Not carried
  • CABLE SHEAVE PIN
    E15-03-03
    CABLE SHEAVE PIN
    Qty 1$27.22View
  • M6 SERRATED FLANGE HEX NUT
    B2065-4
    M6 SERRATED FLANGE HEX NUT
    Qty 1$1.15View
  • M8 x 20mm Lg. SOCKET HEAD CAP SCREW
    X10-032
    M8 x 20mm Lg. SOCKET HEAD CAP SCREW
    Qty 1$0.23View
  • M12 WASHER
    X10-038
    M12 WASHER
    Qty 1$1.18View
  • OUTER GEAR
    JSJ6-12
    OUTER GEAR
    Qty 1$34.28View

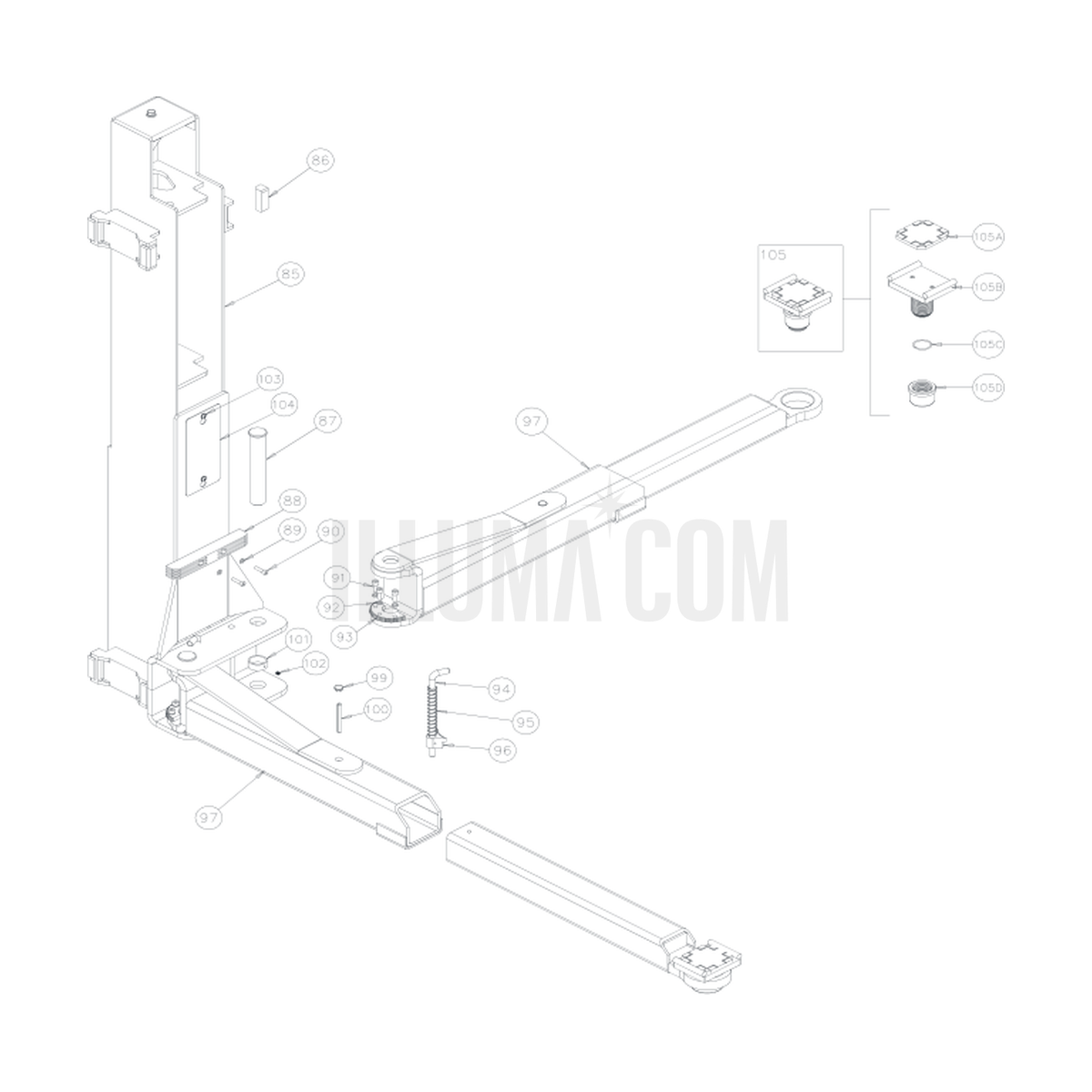

  • ARM ASSEMBLY
    E15-09-00
    ARM ASSEMBLY
    Qty 1$720.46View
  • 35mm ID x 48mm OD WASHER
    E15-03-06
    35mm ID x 48mm OD WASHER
    Qty 1$2.19View
  • Bolt M8 x 25
    X10-060
    Bolt M8 x 25
    Qty 1$1.64View

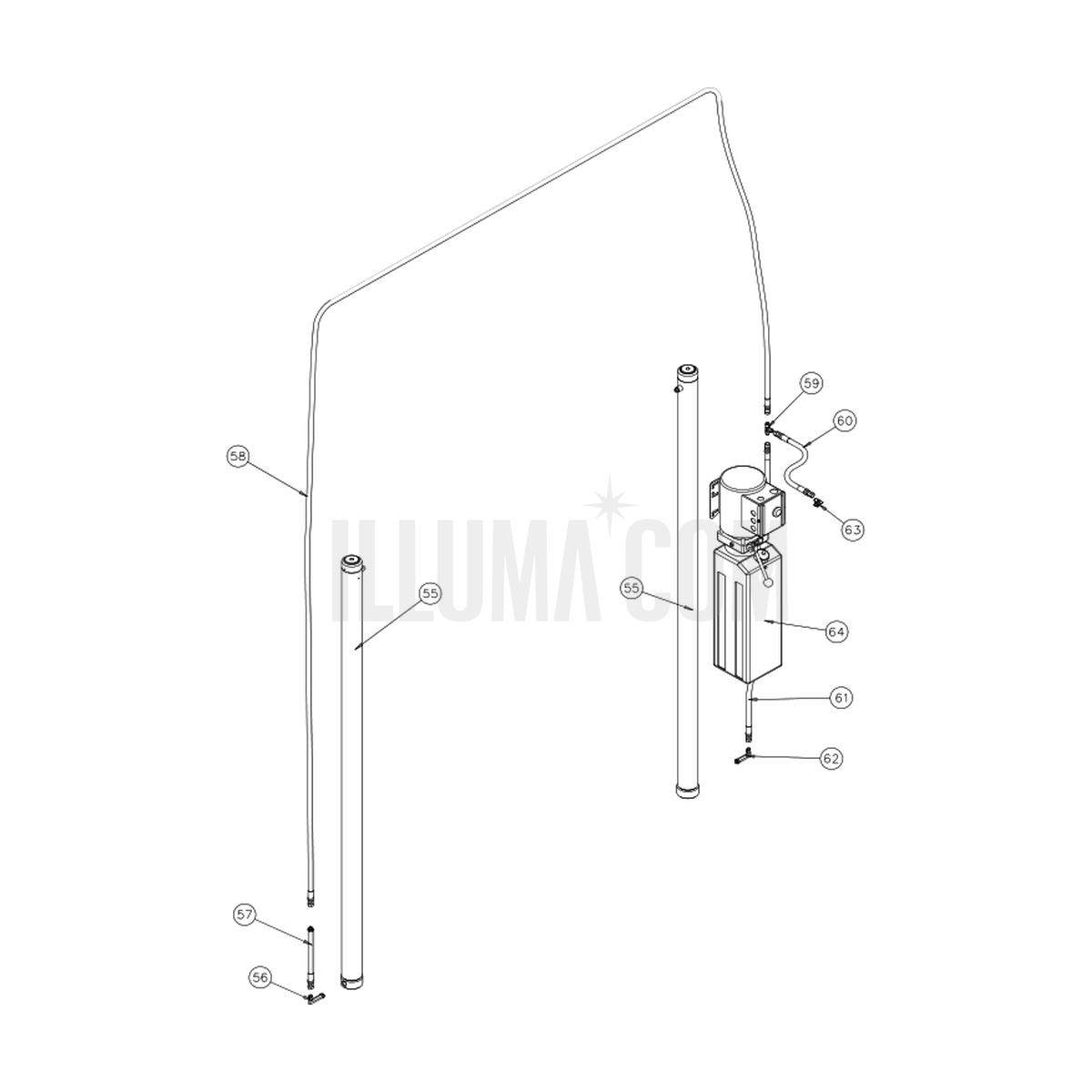

  • HYDRAULIC CYLINDER
    E15-07-00
    HYDRAULIC CYLINDER
    Qty 1$1,344.11View
  • Power Column Hose
    JSJ4-16
    Power Column Hose
    Qty 1$106.29View
  • HAIRPIN COTTER PIN
    E15-03-09
    HAIRPIN COTTER PIN
    Qty 1$2.19View
  • Lock Knob
    JSJ3-01-02-2-9
    Lock Knob
    Qty 1$2.58View
  • M8 x 8 Set Screw Cup Point
    JSJ5-23CH
    M8 x 8 Set Screw Cup Point
    Qty 1$0.23View
  • B
    B12067
    ADAPTER BASE
    Qty 1Not carried
  • Nut M6
    X10-034
    Nut M6
    Qty 1$0.23View
  • Bolt M6 x 20
    X10-051
    Bolt M6 x 20
    Qty 1$0.23View
  • 40.5 x 48 x 20 Lg. Collar
    JSJ5-22CH
    40.5 x 48 x 20 Lg. Collar
    Qty 1$2.35View
  • 5/8-18 UN 90 DEGREE ELBOW
    JSJ6-21
    5/8-18 UN 90 DEGREE ELBOW
    Qty 1$6.84View
  • 3 x 45mm ROUND WIRE RETAINING RING
    B17257
    3 x 45mm ROUND WIRE RETAINING RING
    Qty 1$0.23View
  • 9/16-18 UN x 9/16-18 UN x 5/8-18 UN TEE FITTING
    JSJ6-15
    9/16-18 UN x 9/16-18 UN x 5/8-18 UN TEE FITTING
    Qty 1$4.95View
  • X
    X10-048
    M8 NUT
    Qty 1Not carried
  • ARM PIN
    JSJ6-11
    ARM PIN
    Qty 1$30.70View
  • J
    JSJ4-05-CH
    DOOR GUARD
    Qty 1Not carried
  • J
    JSJ5-02-08CH
    LOCK SPRING, 1/2" O.D.
    Qty 1Not carried
  • X
    X10-074
    Spring Washer 10mm
    Qty 1Not carried

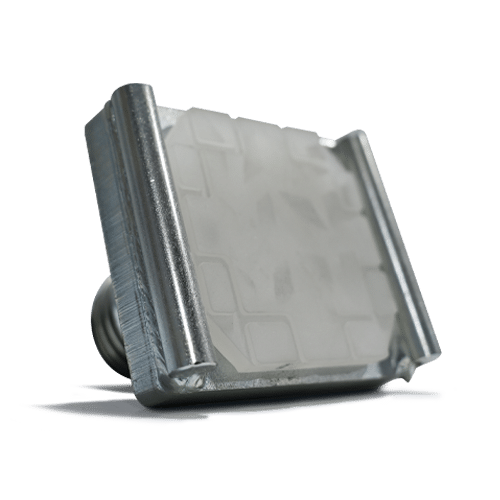

  • FOOT PAD ASSEMBLY
    B12162S
    FOOT PAD ASSEMBLY
    Qty 1$125.19View
  • X
    X10-053
    M12 x 45mm BOLT
    Qty 1Not carried
  • HOSE GUIDE BRACKET
    E15-01-10
    HOSE GUIDE BRACKET
    Qty 1$2.19View
  • Cylinder Elbow, O-Ring
    JSJ6-19
    Cylinder Elbow, O-Ring
    Qty 1$18.89View

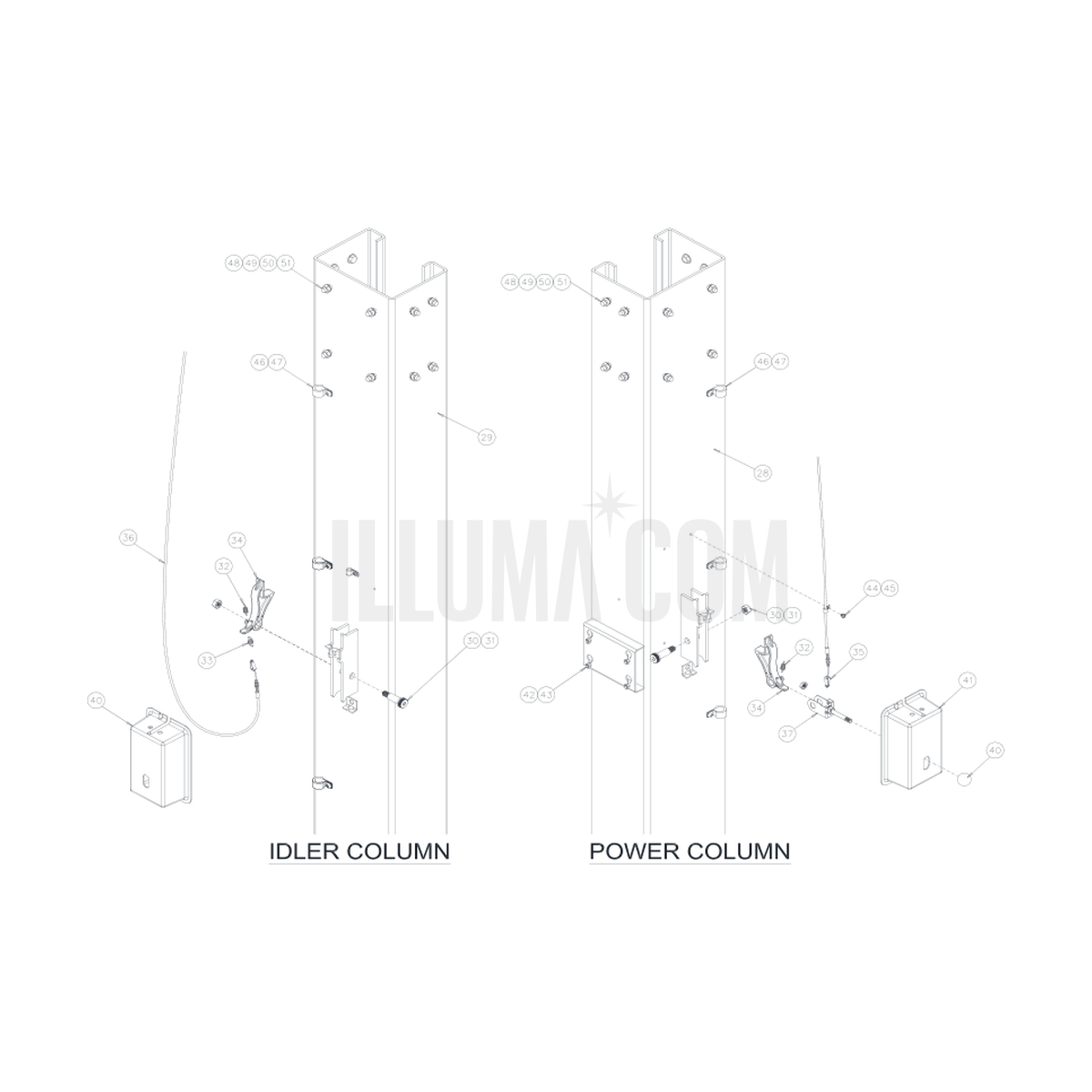

  • E
    E15-01-01-00
    POWER COLUMN WELD
    Qty 1Not carried
  • 5/16-18x3/8 Lg Phillip Pan Hd. Screw
    10335
    5/16-18x3/8 Lg Phillip Pan Hd. Screw
    Qty 1$0.61View
  • CABLE SHEAVE
    E15-03-08-00
    CABLE SHEAVE
    Qty 1$28.33View
  • CABLE TRAPPING ROD
    E15-03-07
    CABLE TRAPPING ROD
    Qty 1$3.73View
  • Spring Washer 6mm
    X10-033
    Spring Washer 6mm
    Qty 1$0.23View
  • ADAPTER PAD WELD
    B12163S
    ADAPTER PAD WELD
    Qty 1$65.70View
  • M8 x 30 SOCKET HEAD CAP SCREW
    X10-088
    M8 x 30 SOCKET HEAD CAP SCREW
    Qty 1$1.64View
  • Screw M10 x 25
    X10-077
    Screw M10 x 25
    Qty 1$1.87View
  • CARRIAGE COVER
    E15-08-02
    CARRIAGE COVER
    Qty 1$10.37View
  • ARM RESTRAINT SHAFT
    E15-13
    ARM RESTRAINT SHAFT
    Qty 1$6.38View

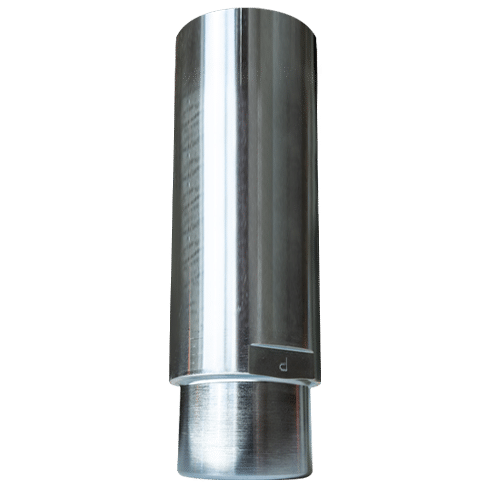

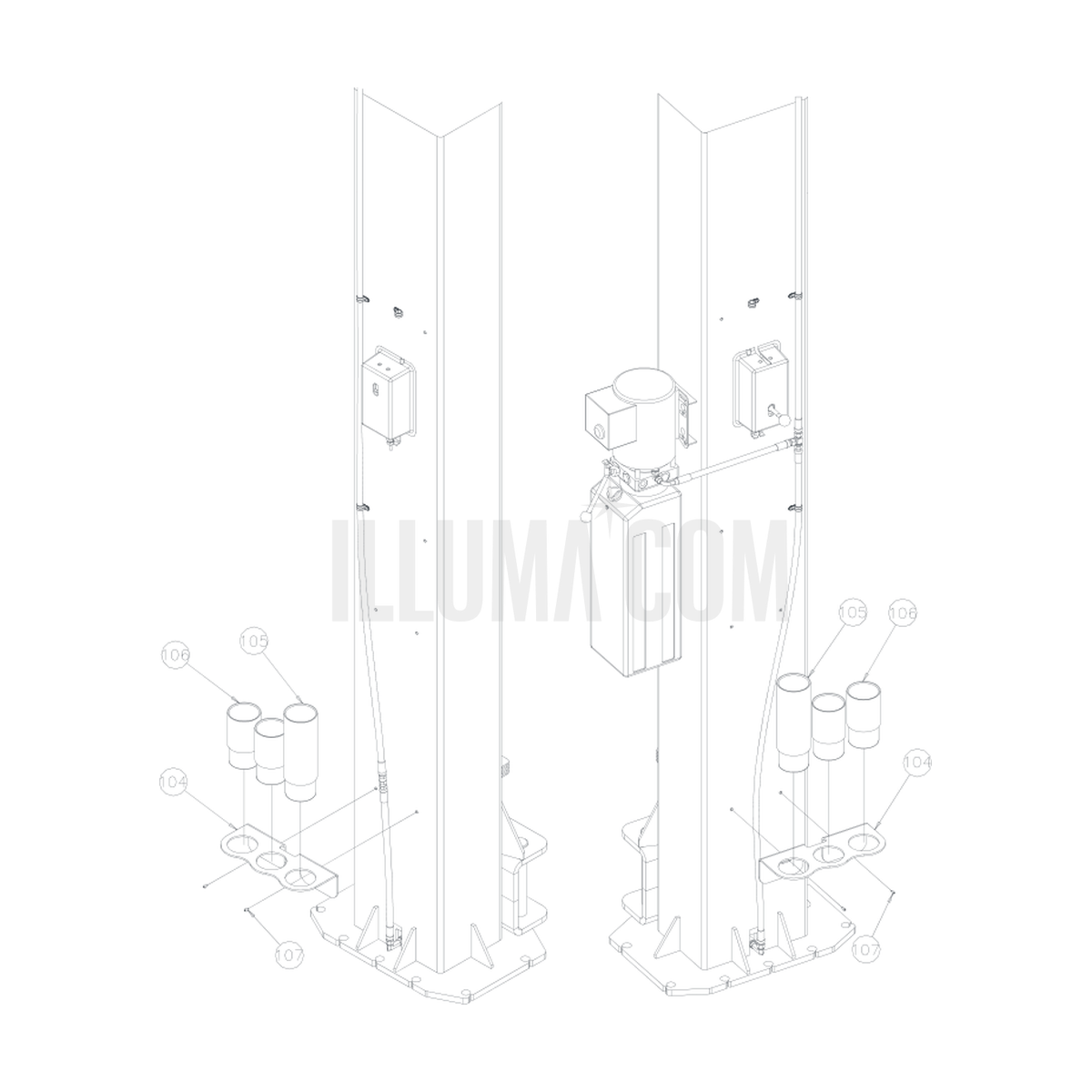

  • STACK ADAPTER (8")
    B12068
    STACK ADAPTER (8")
    Qty 1$77.94View
  • ADAPTER RACK
    12091
    ADAPTER RACK
    Qty 1$94.72View
  • M12 LOCK WASHER
    X10-039
    M12 LOCK WASHER
    Qty 1$1.18View
  • J
    JSJ5-02-07CH
    LOCK SPRING, 3/8" O.D.
    Qty 1Not carried
  • HAIRPIN COTTER PIN
    GJY12-3
    HAIRPIN COTTER PIN
    Qty 1$5.26View
  • M5 x 10 Screw
    X10-065
    M5 x 10 Screw
    Qty 1$0.47View
  • SHEAVE SPACER
    E15-03-05
    SHEAVE SPACER
    Qty 1$8.72View
  • M12 NUT
    X10-040
    M12 NUT
    Qty 1$0.71View
  • M10 x 100 LG SPRING PIN
    GB879.1-2000
    M10 x 100 LG SPRING PIN
    Qty 1$1.87View
  • 18 mm DIA. PLASTIC PLUG
    111529
    18 mm DIA. PLASTIC PLUG
    Qty 1$1.40View
  • CLEVIS PIN 10mm x 55 Lg.
    B2065-5
    CLEVIS PIN 10mm x 55 Lg.
    Qty 1$38.64View
  • O-Ring Elbow
    JSJ5-19
    O-Ring Elbow
    Qty 1$10.44View
  • 16mm HOSE CLAMP
    1-03382A
    16mm HOSE CLAMP
    Qty 1$5.59View
  • SHUTOFF BAR
    A2067
    SHUTOFF BAR
    Qty 1$70.27View
  • RUBBER INSERT
    A1104-H
    RUBBER INSERT
    Qty 1$28.98View
  • 3
    37119
    CLEVIS PIN KIT
    Qty 1Not carried
  • LOCK RELEASE CABLE ASSEMBLY
    E15-06-00
    LOCK RELEASE CABLE ASSEMBLY
    Qty 1$51.96View
  • M8 WASHER
    X10-087
    M8 WASHER
    Qty 1$0.24View
  • LOCK PAWL
    E15-01-08
    LOCK PAWL
    Qty 1$14.16View
  • LIMIT SWITCH PACKAGE (INCLUDES SWITCH w/ CORD, BOTH BRACKETS, & ITEMS 7-10)
    B2064-01
    LIMIT SWITCH PACKAGE (INCLUDES SWITCH w/ CORD, BOTH BRACKETS, & ITEMS 7-10)
    Qty 1$146.45View
  • LOCK PIN (5/8 x 1 1/2" Lg. SHOULDER BOLT)
    30020
    LOCK PIN (5/8 x 1 1/2" Lg. SHOULDER BOLT)
    Qty 1$9.08View
  • 5/8-18 UN HOSE
    E15-18
    5/8-18 UN HOSE
    Qty 1$269.28View
  • 5/8-18 UN HOSE EXTENSION (2' Ext. Height)
    E15-20
    5/8-18 UN HOSE EXTENSION (2' Ext. Height)
    Qty 1$62.63View
  • Hose Guide
    JSJ4-02-17
    Hose Guide
    Qty 1$1.87View
  • E
    E15-01-02-01
    COLUMN EXTENSION
    Qty 1Not carried
  • E
    E15-02-01-00
    IDLER COLUMN WELD
    Qty 1Not carried

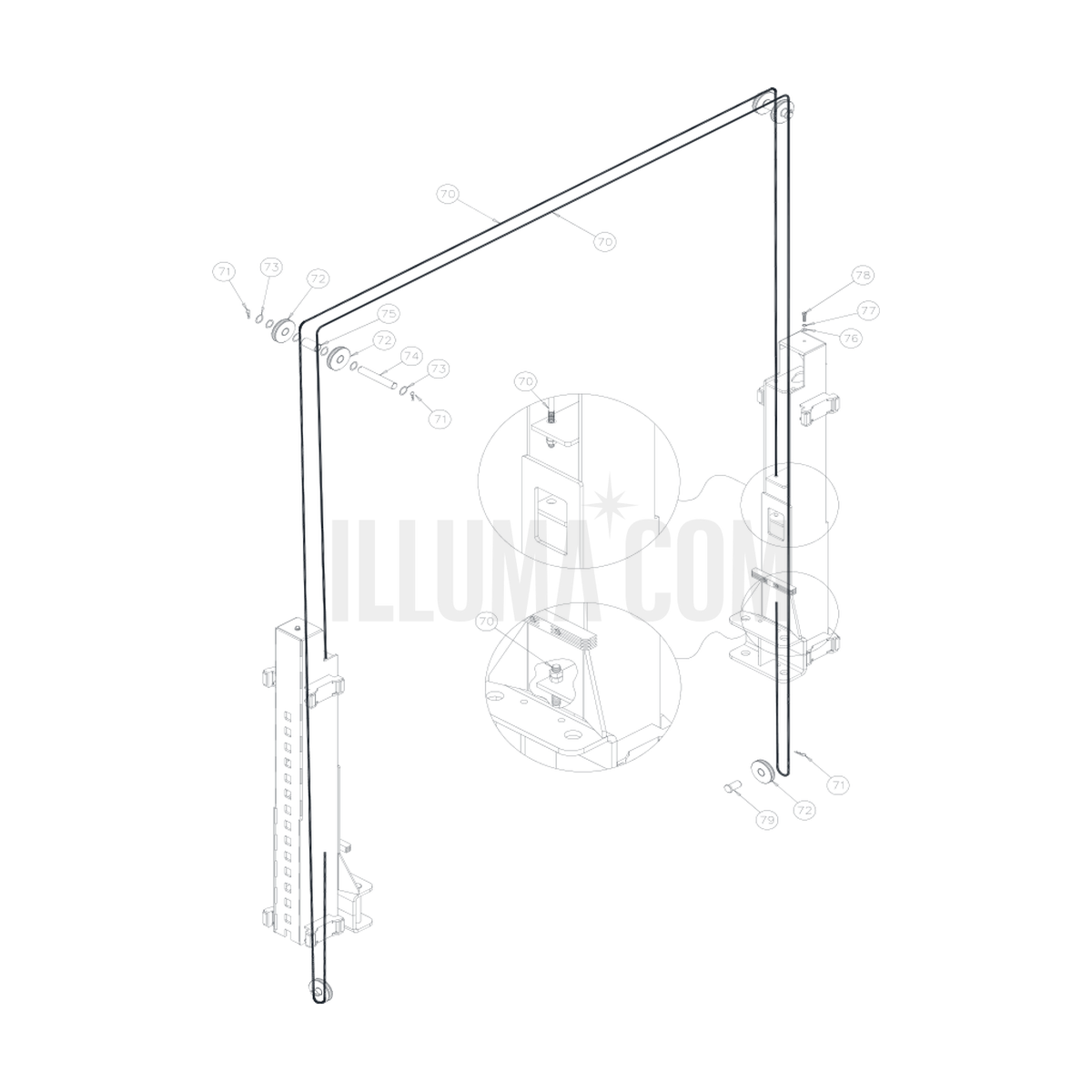

  • SYNCHRONIZER CABLE
    E15-04-00
    SYNCHRONIZER CABLE
    Qty 1$99.19View
  • Bolt M12 x 30
    X10-037
    Bolt M12 x 30
    Qty 1$1.87View

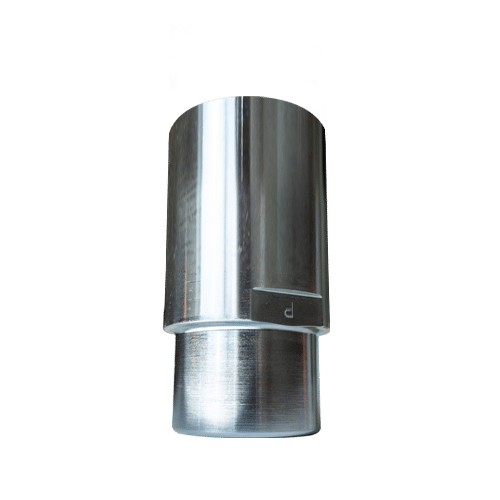

  • STACK ADAPTER (4")
    B12069
    STACK ADAPTER (4")
    Qty 1$40.16View
  • Clamp, 5mm Dia.
    1-05082A
    Clamp, 5mm Dia.
    Qty 1$3.31View
  • Hose Guide Nut
    JSJ4-02-18
    Hose Guide Nut
    Qty 1$0.94View
  • J
    JSJ5-02-04-00CH
    LOCK ASSEMBLY (LOCK RELEASE CLEVIS, HANDLE STUD, M10 LOCK NUTS)
    Qty 1Not carried
  • Slide Block
    JSJ5-08-15
    Slide Block
    Qty 1$11.81View
  • M6 x 14mm PHILLIPS PAN HEAD SCREW
    B2065-3
    M6 x 14mm PHILLIPS PAN HEAD SCREW
    Qty 1$0.66View
  • POWER UNIT, 230v, SINGLE PHASE, 50/60Hz
    AB-9367-DLH
    POWER UNIT, 230v, SINGLE PHASE, 50/60Hz
    Qty 1$1,006.39View
  • INNER GEAR
    JSJ6-09-07
    INNER GEAR
    Qty 1$40.60View
  • SHUTOFF BAR CUSHION
    31129
    SHUTOFF BAR CUSHION
    Qty 1$1.55View
  • M8 x 10 Screw
    VS10-10-25
    M8 x 10 Screw
    Qty 1$4.29View
