CLXP9-PAD-ADAPTER

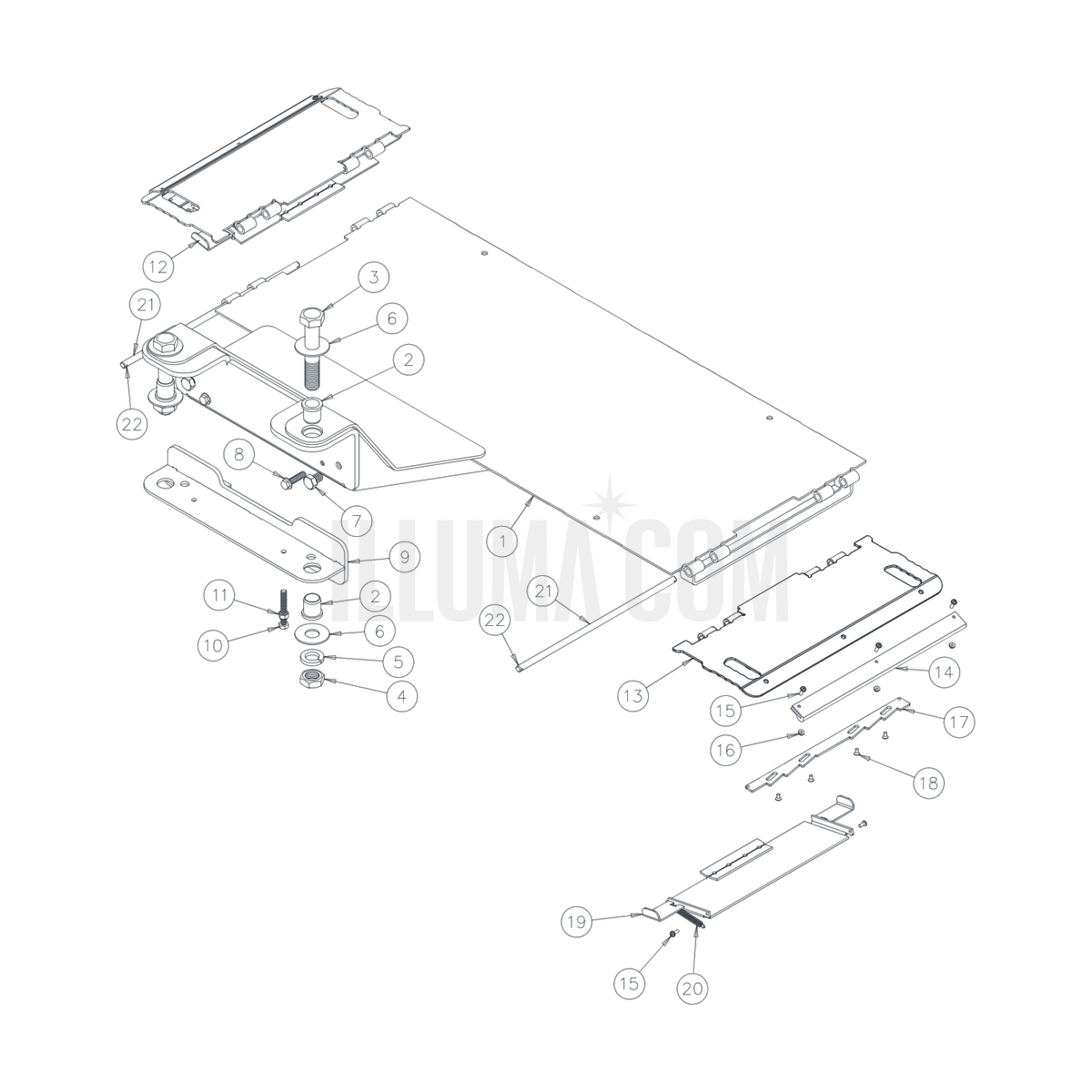

CLXP9 2-Post Pad Adapter Kit

Illustrated Parts Lists

Click a diagram to see every part with clickable callouts — no PDFs.

All parts for this model

  • 3/8-16NC STEEL LOCKNUT
    10341-24
    3/8-16NC STEEL LOCKNUT
    Qty 1$0.30View
  • 1 1/4-7 JAM NUT
    10362-17
    1 1/4-7 JAM NUT
    Qty 1$5.19View
  • VERSAHANGER BEARING
    10341-14
    VERSAHANGER BEARING
    Qty 1$8.93View
  • 3" RUBBER BLOCK SET (4 pcs.)
    10554-04
    3" RUBBER BLOCK SET (4 pcs.)
    Qty 1$408.02View
  • 1
    16116
    1/2 x 2 PITCH LOCKING BOLT
    Qty 1Not carried
  • RAMP LATCH STOP, SAW TOOTH
    10363-34
    RAMP LATCH STOP, SAW TOOTH
    Qty 1$35.72View
  • WHEEL PROTECTOR HOSE
    10341-27
    WHEEL PROTECTOR HOSE
    Qty 1$5.30View
  • 4
    40139
    EXTENSION SPRING, 1/2 x 3 1/4
    Qty 1Not carried
  • 1/2 HEIGHT LEVELING BOLT
    Z31010
    1/2 HEIGHT LEVELING BOLT
    Qty 1$2.52View
  • 5/16"-18NC x 1 HEX FLANGE LOCKING HEAD CAP SCREW
    A1069
    5/16"-18NC x 1 HEX FLANGE LOCKING HEAD CAP SCREW
    Qty 1$0.39View
  • 1
    10032
    1 1/4 FLAT WASHER
    Qty 1Not carried
  • CAPACITY LABEL, 9000 LBS
    RJAB-07
    CAPACITY LABEL, 9000 LBS
    Qty 1$5.30View
  • 3" RUBBER BLOCK
    10554-01
    3" RUBBER BLOCK
    Qty 1$102.45View
  • RAMP WELD
    10363-31
    RAMP WELD
    Qty 1$444.61View
  • 1 1/4-7 x 7" Lg. HEX HD CAP SCREW
    10362-16
    1 1/4-7 x 7" Lg. HEX HD CAP SCREW
    Qty 1$35.42View
  • 1/4-20NC x 3/4" Lg. PAN HEAD SCREW
    31062
    1/4-20NC x 3/4" Lg. PAN HEAD SCREW
    Qty 1$0.58View
  • PLATFORM WELD, 2-POST, RIGHT
    10363-10-2PR
    PLATFORM WELD, 2-POST, RIGHT
    Qty 1$3,709.18View
  • 3/8 FLAT WASHER
    31036
    3/8 FLAT WASHER
    Qty 1$0.18View
  • BELLEVILLE DISC SPRING WASHER, SS
    10341-29
    BELLEVILLE DISC SPRING WASHER, SS
    Qty 1$4.29View
  • CHANNEL WELD, LEFT
    10362-80-FL
    CHANNEL WELD, LEFT
    Qty 1$445.46View
  • 1/2 x 1 1/4 SHOULDER BOLT, MACHINED
    10341-23M
    1/2 x 1 1/4 SHOULDER BOLT, MACHINED
    Qty 1$23.83View
  • RAMP HINGE PIN
    10362-40
    RAMP HINGE PIN
    Qty 1$85.05View
  • 3/4 PITCH LEVELING BOLT
    40433
    3/4 PITCH LEVELING BOLT
    Qty 1$3.39View
  • BLOCK STORAGE RACK
    10362-70
    BLOCK STORAGE RACK
    Qty 1$269.47View
  • RAMP ASSEMBLY (INCLUDES ITEMS 13-20)
    10363-30
    RAMP ASSEMBLY (INCLUDES ITEMS 13-20)
    Qty 1$822.42View
  • 1 1/2" RUBBER BLOCK SET (4 pcs.)
    10549-04
    1 1/2" RUBBER BLOCK SET (4 pcs.)
    Qty 1$216.49View
  • RAMP SLIDE
    40168
    RAMP SLIDE
    Qty 1$50.25View
  • COTTER PIN
    40126
    COTTER PIN
    Qty 1$0.21View
  • 1/4-20NC x 1/2 FLAT SOCKET HEAD CAP SCREW
    10363-12
    1/4-20NC x 1/2 FLAT SOCKET HEAD CAP SCREW
    Qty 1$1.15View
  • RAMP LATCH WELD
    10363-35
    RAMP LATCH WELD
    Qty 1$197.17View
  • 1 1/2" RUBBER BLOCK
    63101-01
    1 1/2" RUBBER BLOCK
    Qty 1$48.31View
  • 1 1/4 LOCK WASHER
    10362-18
    1 1/4 LOCK WASHER
    Qty 1$7.45View

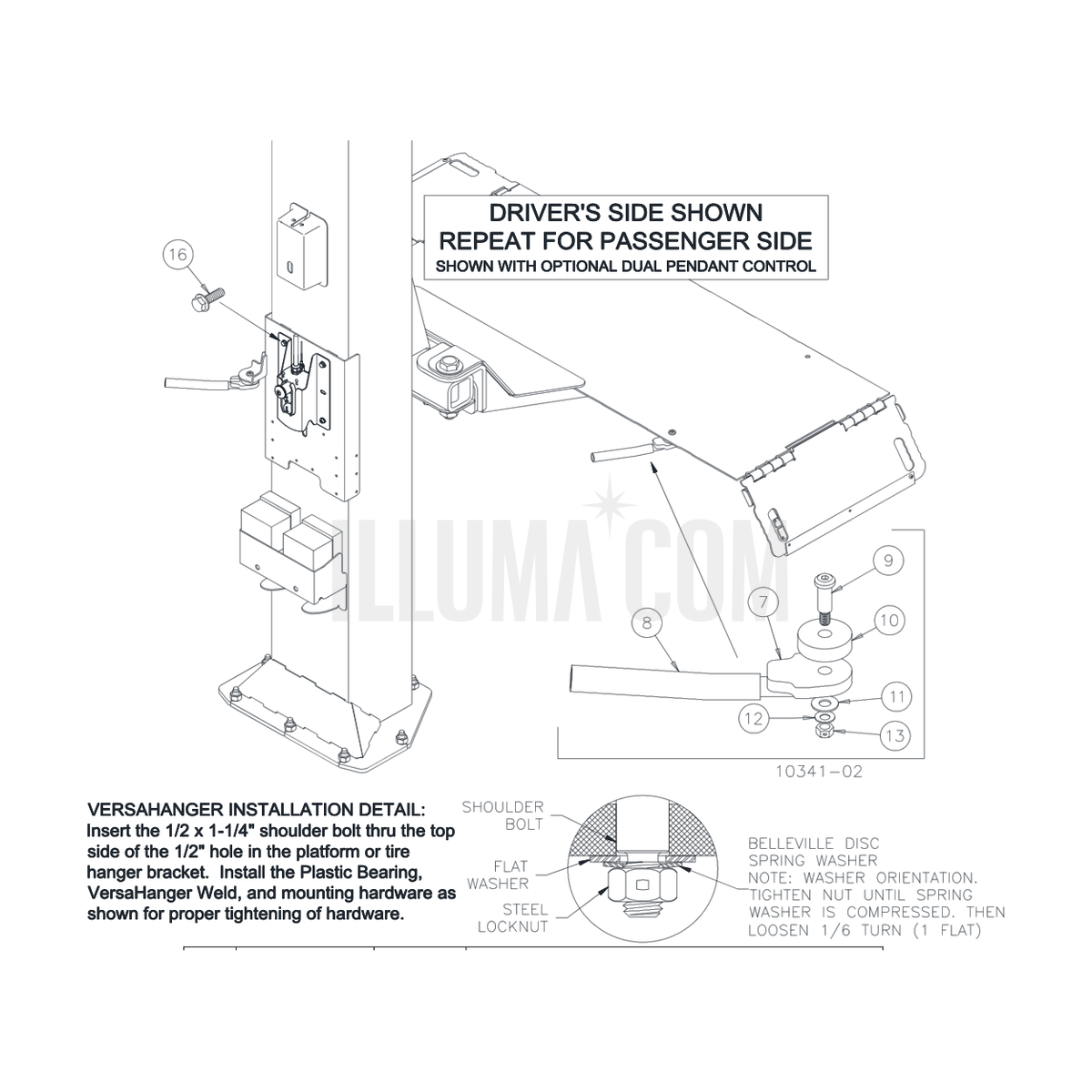

  • VERSAHANGER WELD
    10341-06A
    VERSAHANGER WELD
    Qty 1$159.39View
  • 1/4-20NC HEX FLANGE NUT
    40085
    1/4-20NC HEX FLANGE NUT
    Qty 1$0.46View
  • LOWER CLEVIS WELD
    10362-50
    LOWER CLEVIS WELD
    Qty 1$426.76View
  • CHANNEL WELD, RIGHT
    10362-80-FR
    CHANNEL WELD, RIGHT
    Qty 1$445.46View
  • 1/2 LOCKING NUT
    16159
    1/2 LOCKING NUT
    Qty 1$0.21View
  • 5/16-18x3/8 Lg Phillip Pan Hd. Screw
    10335
    5/16-18x3/8 Lg Phillip Pan Hd. Screw
    Qty 1$0.61View
  • PLATFORM WELD, 2-POST, LEFT (SHOWN ABOVE)
    10363-10-2PL
    PLATFORM WELD, 2-POST, LEFT (SHOWN ABOVE)
    Qty 1$3,230.22View
  • CLEVIS BUSHING
    10362-15
    CLEVIS BUSHING
    Qty 1$33.61View
