CL4P9

CL4P9

Illustrated Parts Lists

Click a diagram to see every part with clickable callouts — no PDFs.

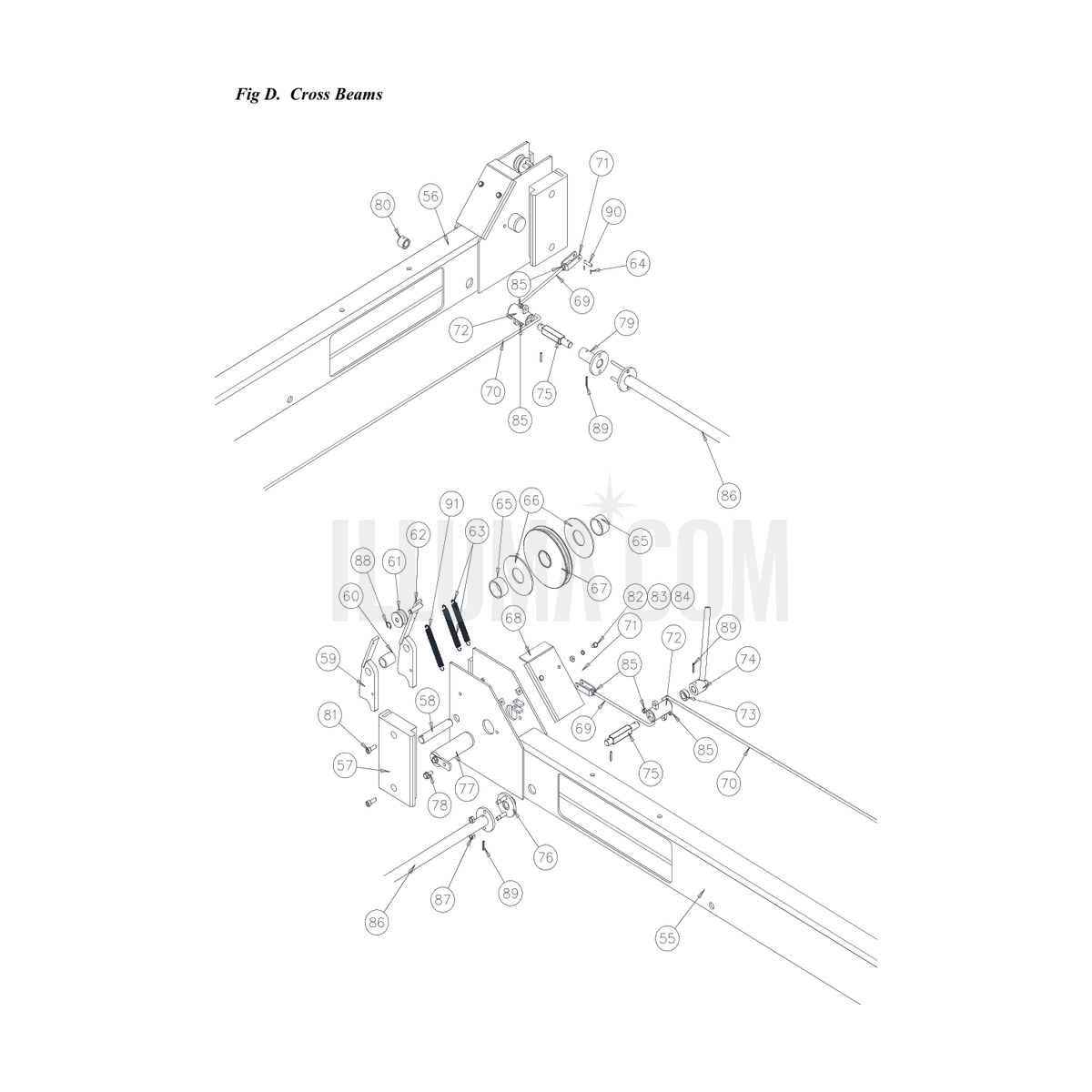

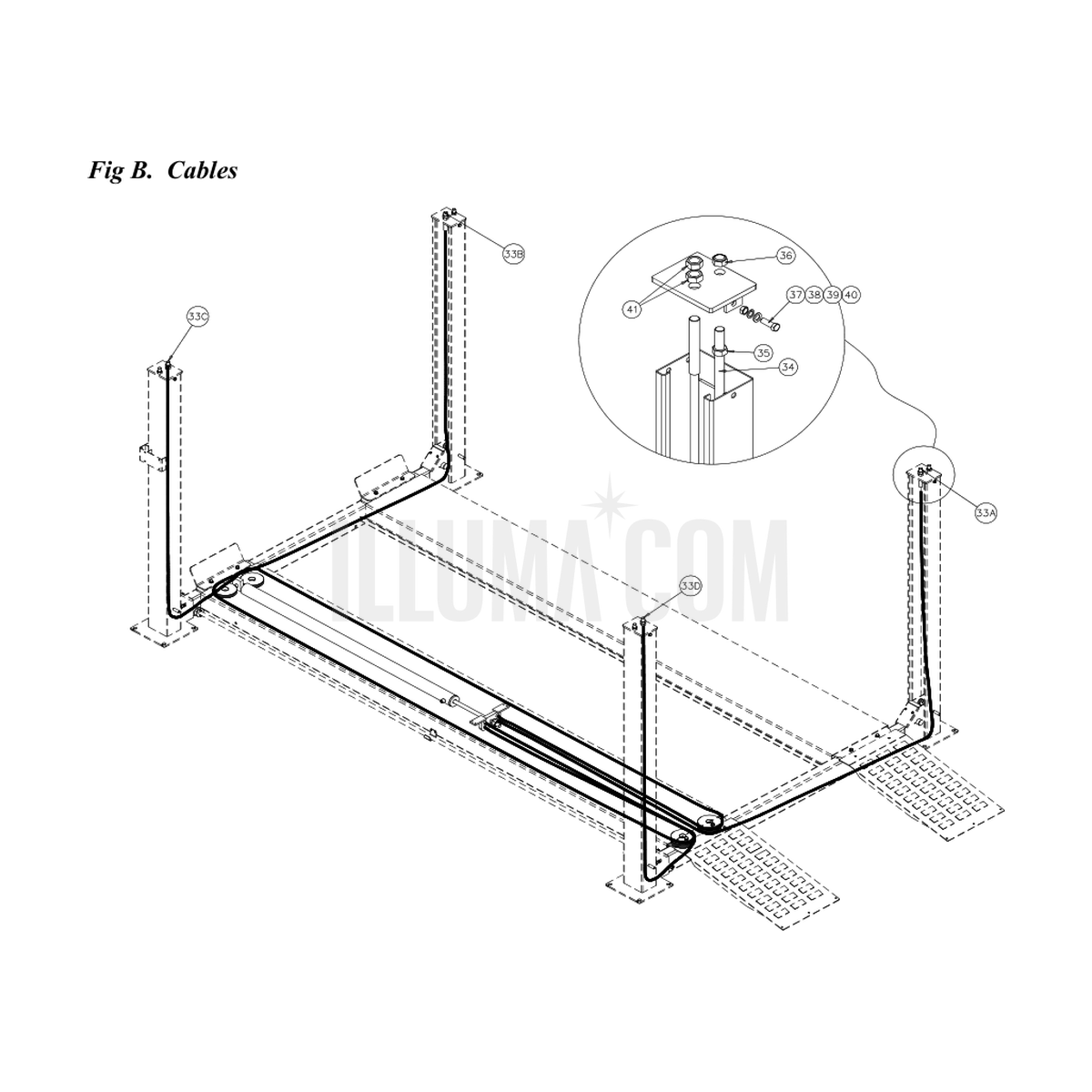

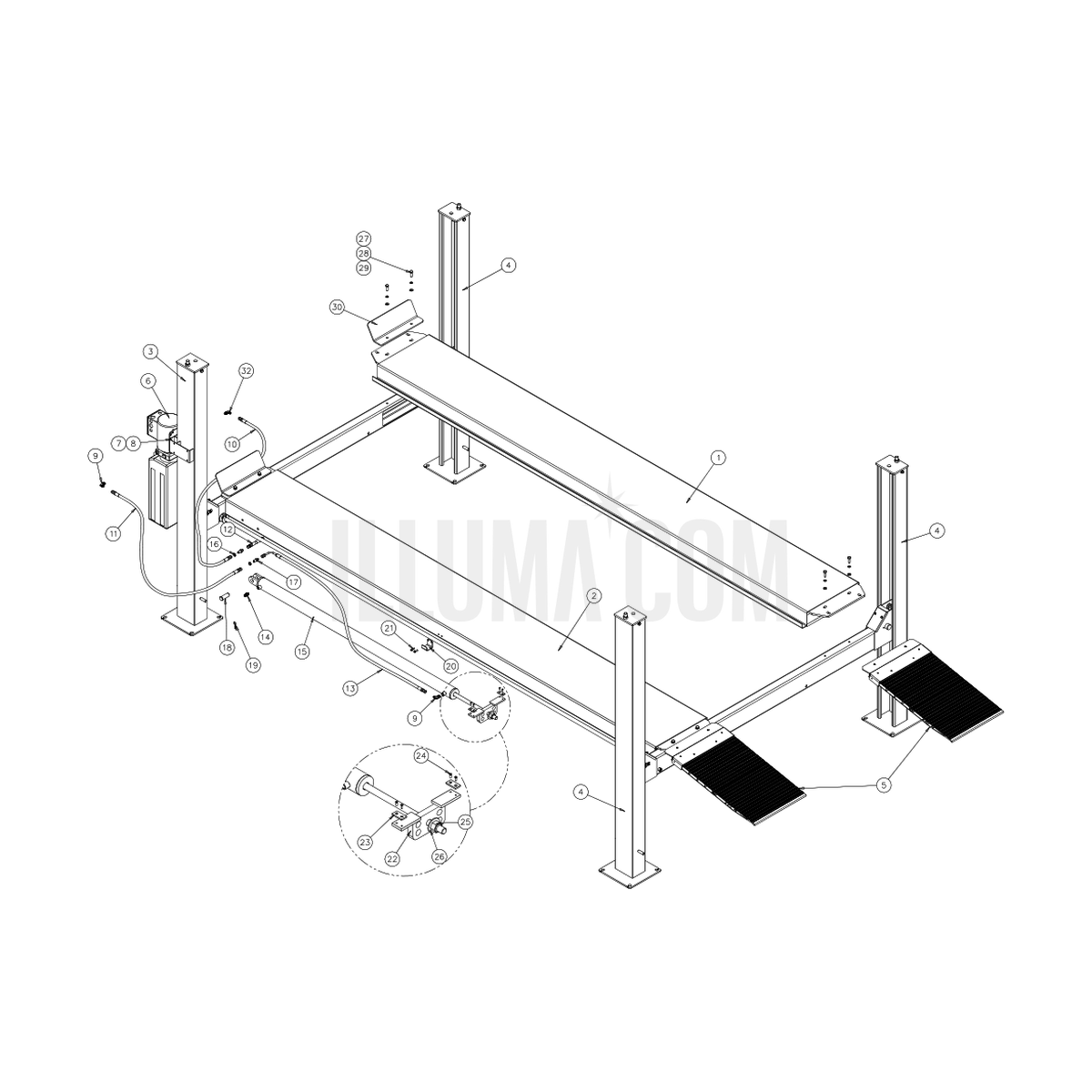

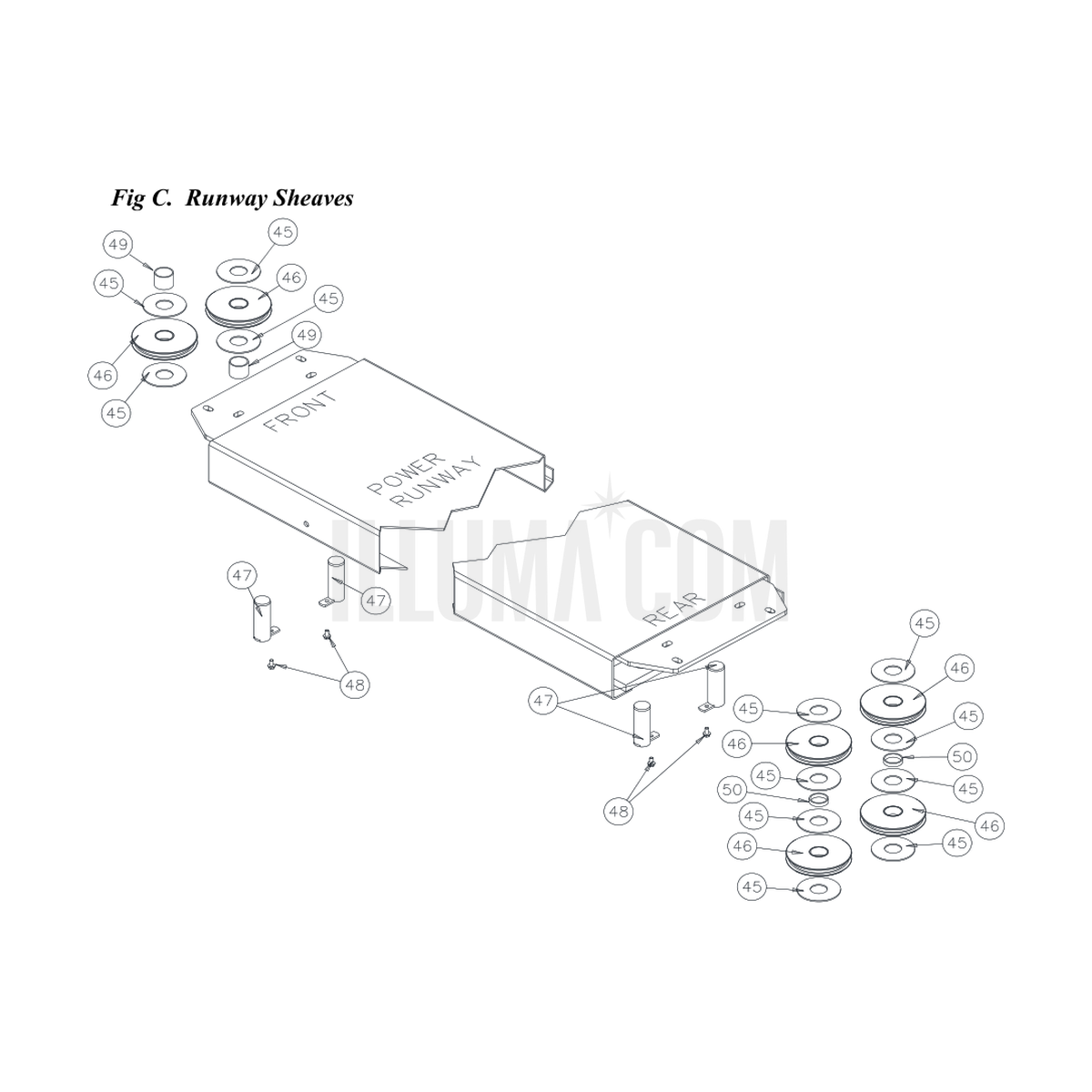

All parts for this model

  • CLEVIS PIN
    B40123
    CLEVIS PIN
    Qty 1$0.24View
  • T
    TCS4B-04-01-00
    FRONT CROSSBEAM WELD
    Qty 1Not carried
  • HYDRAULIC CYLINDER ASSEMBLY
    TCS4-03-00
    HYDRAULIC CYLINDER ASSEMBLY
    Qty 1$659.06View
  • M14 BULKHEAD FITTING
    JSZ5-5-10-05
    M14 BULKHEAD FITTING
    Qty 1$7.78View
  • M6 X 12mm Lg CAP SCREW
    Q4P09-007
    M6 X 12mm Lg CAP SCREW
    Qty 1$0.47View
  • REMOVABLE WHEEL STOP
    TCS4-12-00
    REMOVABLE WHEEL STOP
    Qty 1$40.16View
  • FLANGE COUPLING - FEMALE
    TCS4-05-10-00
    FLANGE COUPLING - FEMALE
    Qty 1$8.17View
  • PRIMARY LOCK PAWL
    TCS4-04-11-00
    PRIMARY LOCK PAWL
    Qty 1$9.44View
  • SHEAVE PIN (CROSS BEAM)
    B40116
    SHEAVE PIN (CROSS BEAM)
    Qty 1$34.48View
  • M8 x 20mm Lg. SOCKET HEAD CAP SCREW
    X10-032
    M8 x 20mm Lg. SOCKET HEAD CAP SCREW
    Qty 1$0.23View
  • LOCK SPACER
    TCS4-04-05
    LOCK SPACER
    Qty 1$0.71View
  • MECHANICAL LOCK ROD - SHORT
    TCS4-04-08
    MECHANICAL LOCK ROD - SHORT
    Qty 1$2.12View
  • RUNWAY SHEAVE SPACER - SHORT
    TCS4-07-02
    RUNWAY SHEAVE SPACER - SHORT
    Qty 1$3.08View
  • J
    JSZ5-5-02-05
    ROLLER
    Qty 1Not carried
  • PASSENGER SIDE FRONT CABLE (Cable #4), 397 1/4"
    TCS4B-11-04
    PASSENGER SIDE FRONT CABLE (Cable #4), 397 1/4"
    Qty 1$281.04View
  • POWER COLUMN ASSY (-xx = COLOR CODE)
    TCS4-01-00-02
    POWER COLUMN ASSY (-xx = COLOR CODE)
    Qty 1$507.84View
  • MECHANICAL LOCK ROD - LONG
    TCS4B-04-09
    MECHANICAL LOCK ROD - LONG
    Qty 1$7.78View
  • 3/8-18 NPT x M14x1.5 90 DEGREE HYD. FITTING
    JSJ3-10-05
    3/8-18 NPT x M14x1.5 90 DEGREE HYD. FITTING
    Qty 1$10.86View
  • M12 x 35mm Lg. HEX FLG. HD. CAP SCREW
    VS10-40-17
    M12 x 35mm Lg. HEX FLG. HD. CAP SCREW
    Qty 1$1.40View
  • MECHANICAL LOCK BAR HOLDER
    TCS4-07-06
    MECHANICAL LOCK BAR HOLDER
    Qty 1$0.92View
  • POWER UNIT, 230v, SINGLE PHASE, 50/60Hz
    AB-9367-DLH
    POWER UNIT, 230v, SINGLE PHASE, 50/60Hz
    Qty 1$1,006.39View
  • DRIVER SIDE REAR CABLE (Cable #1), 136 3/4"
    TCS4B-11-01
    DRIVER SIDE REAR CABLE (Cable #1), 136 3/4"
    Qty 1$123.66View
  • DRIVER SIDE FRONT CABLE (Cable #3), 339 1/2"
    TCS4B-11-03
    DRIVER SIDE FRONT CABLE (Cable #3), 339 1/2"
    Qty 1$252.39View
  • RUNWAY SHEAVE SPACER - TALL
    TCS4-07-03
    RUNWAY SHEAVE SPACER - TALL
    Qty 1$2.81View
  • DRIVER SIDE REAR CABLE (Cable #1), 129 1/4"
    TCS4A-11-01
    DRIVER SIDE REAR CABLE (Cable #1), 129 1/4"
    Qty 1$126.04View
  • Q
    Q4P09-002
    M24 NYLON LOCK NUT
    Qty 1Not carried
  • CABLE PULL BAR SLIDE BLOCKS
    JSZ5-5-03-03-03
    CABLE PULL BAR SLIDE BLOCKS
    Qty 1$3.62View
  • IDLER RUNWAY WELD
    TCS4-08-01-00A
    IDLER RUNWAY WELD
    Qty 1$845.29View
  • LOCK PIVOT PIN
    B40127
    LOCK PIVOT PIN
    Qty 1$3.08View
  • POWER RUNWAY WELD
    TCS4-07-01-00A
    POWER RUNWAY WELD
    Qty 1$979.59View
  • POWER UNIT, 115v, SINGLE PHASE, 50/60Hz
    AB-7816-1-DLH
    POWER UNIT, 115v, SINGLE PHASE, 50/60Hz
    Qty 1$1,209.36View
  • M12 LOCK WASHER
    X10-039
    M12 LOCK WASHER
    Qty 1$1.18View
  • HOSE - HYDRAULIC CYLINDER
    JSZ5-5-10-03
    HOSE - HYDRAULIC CYLINDER
    Qty 1$80.31View
  • MECHANICAL LOCK ROD - LONG
    TCS4-04-09
    MECHANICAL LOCK ROD - LONG
    Qty 1$16.52View

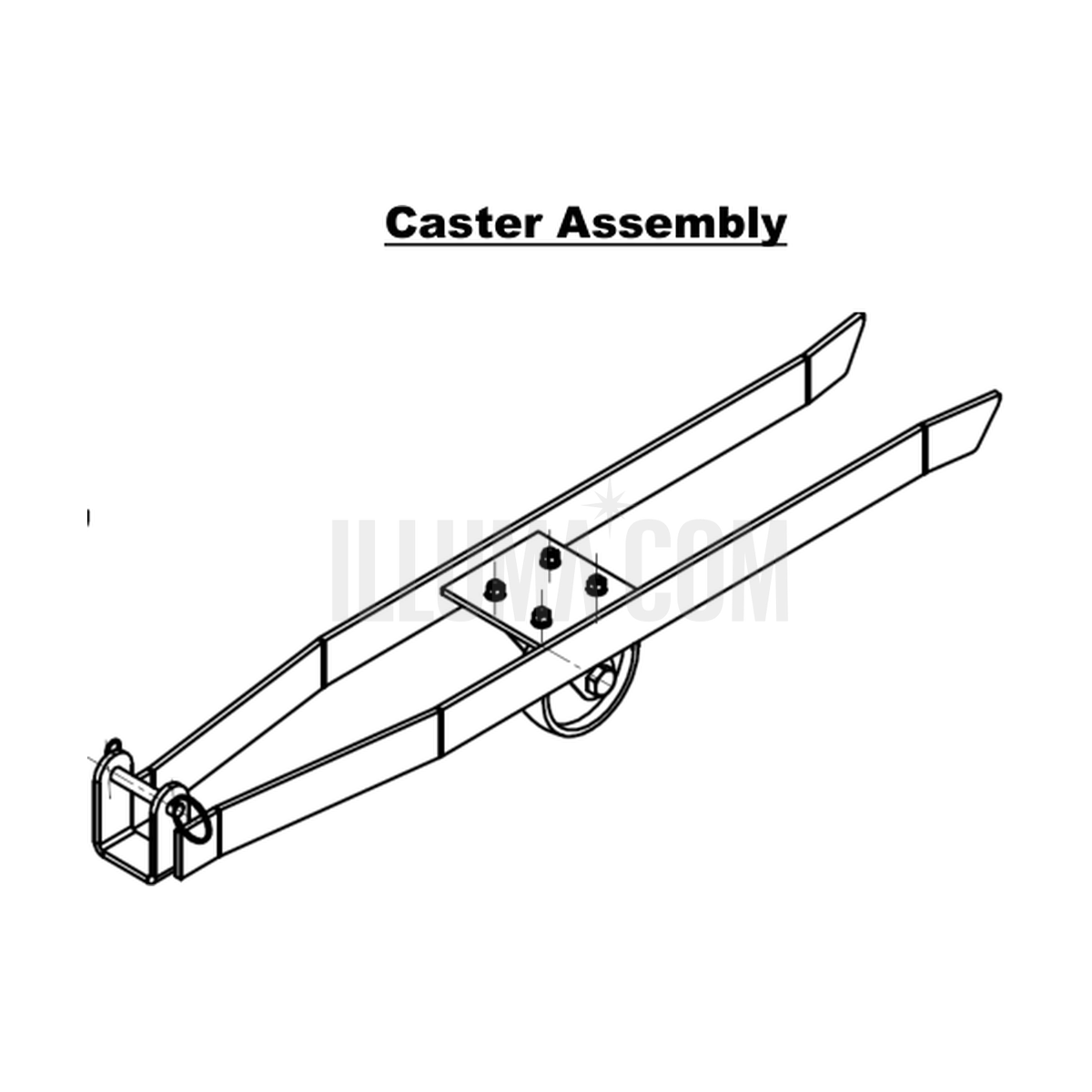

  • T
    TCS4-06-01-00A
    Caster Weldment
    Qty 1Not carried
  • LOCK ROD CLEVIS
    TCS4-04-06
    LOCK ROD CLEVIS
    Qty 1$2.23View
  • SHEAVE SPACER BUSHING
    40438-X
    SHEAVE SPACER BUSHING
    Qty 1$9.65View
  • M24 WASHER
    Q4P09-003
    M24 WASHER
    Qty 1$1.64View
  • HAIR PIN COTTER PIN
    40124
    HAIR PIN COTTER PIN
    Qty 1$0.27View
  • Caster Wheel
    TCS4-06-03
    Caster Wheel
    Qty 1$66.13View
  • DRIVER SIDE FRONT CABLE (Cable #3), 332"
    TCS4A-11-03
    DRIVER SIDE FRONT CABLE (Cable #3), 332"
    Qty 1$469.67View
  • IDLER COLUMN ASSY (-xx = COLOR CODE)
    TCS4-02-00-02
    IDLER COLUMN ASSY (-xx = COLOR CODE)
    Qty 1$314.15View
  • M20 LOCK NUT
    Q4P09-004
    M20 LOCK NUT
    Qty 1$14.16View
  • G
    GB889-86
    M10 Nylon NUT
    Qty 1Not carried
  • FLANGE COUPLING - MALE
    TCS4-04-10-00
    FLANGE COUPLING - MALE
    Qty 1$6.38View
  • T
    TCS4-09-00D
    ENTRANCE RAMPS (use p/n Q4P09SR for one pr of std ramps / p/n Q4P09ER for pr Long ramps)
    Qty 1Not carried
  • RETAINER SLEEVE
    TCS4-05-11
    RETAINER SLEEVE
    Qty 1$1.91View
  • MECHANICAL LOCK ROD - SHORT
    TCS4B-04-08
    MECHANICAL LOCK ROD - SHORT
    Qty 1$2.81View
  • NUT, M6
    B40467
    NUT, M6
    Qty 1$0.24View
  • Ø10mm SNAP RING
    Q4P09-008
    Ø10mm SNAP RING
    Qty 1$0.23View
  • 1/8 x 1 1/2" Lg. COTTER PIN
    B40126
    1/8 x 1 1/2" Lg. COTTER PIN
    Qty 1$0.23View
  • SLACK LATCH EXTENSION SPRING
    JSZ5-5-02-09
    SLACK LATCH EXTENSION SPRING
    Qty 1$1.64View
  • IDLER COLUMN ASSY (-xx = COLOR CODE)
    TCS4A-02-00-02
    IDLER COLUMN ASSY (-xx = COLOR CODE)
    Qty 1$231.49View
  • PASSENGER SIDE REAR CABLE (Cable #2), 187"
    TCS4A-11-02
    PASSENGER SIDE REAR CABLE (Cable #2), 187"
    Qty 1$145.45View
  • M22x2.5 NUT
    Q4P09-010
    M22x2.5 NUT
    Qty 1$23.61View
  • X
    X10-33
    M6 LOCK WASHER
    Qty 1Not carried
  • M8 x 16mm Lg. HEX LOCKING FLG. HD. CAP SCREW
    B31188
    M8 x 16mm Lg. HEX LOCKING FLG. HD. CAP SCREW
    Qty 1$0.47View
  • V
    VS10-10-25
    M8 x 12mm Lg. PHILLIPS PAN HEAD SCREW
    Qty 1Not carried
  • HOSE - RETURN (91")
    TCS4-15
    HOSE - RETURN (91")
    Qty 1$111.01View
  • 1/8" THICK BEARING
    40053
    1/8" THICK BEARING
    Qty 1$6.56View
  • SHEAVE PIN ASSEMBLY (RUNWAY)
    TCS4-07-04-00
    SHEAVE PIN ASSEMBLY (RUNWAY)
    Qty 1$25.98View
  • SPACER BUSHING
    B40132
    SPACER BUSHING
    Qty 1$1.41View
  • M12 WASHER
    X10-038
    M12 WASHER
    Qty 1$1.18View
  • Screw M10 x 25
    X10-077
    Screw M10 x 25
    Qty 1$1.87View
  • MECHANICAL LOCK COUPLER
    TCS4-04-07-00A
    MECHANICAL LOCK COUPLER
    Qty 1$16.52View
  • SHEAVE GUARD
    TCS4-04-14
    SHEAVE GUARD
    Qty 1$6.38View
  • HOSE - SHORT RETURN
    TCS4-07-08
    HOSE - SHORT RETURN
    Qty 1$16.52View
  • SLIDE BLOCK
    TCS4-04-02
    SLIDE BLOCK
    Qty 1$77.94View
  • Ø4mm x 24mm Lg. ROLL PIN
    Q4P09-009
    Ø4mm x 24mm Lg. ROLL PIN
    Qty 1$0.23View
  • SHEAVE ASSEMBLY
    TCS4-04-03-00
    SHEAVE ASSEMBLY
    Qty 1$51.96View
  • DRIVER SIDE FRONT CABLE (Cable #3), 295 5/8"
    TCS4-11-03
    DRIVER SIDE FRONT CABLE (Cable #3), 295 5/8"
    Qty 1$278.48View
  • M20 NUT
    MR6-005
    M20 NUT
    Qty 1$11.79View
  • 9/16 O-RING x M14x1.5 90 DEGREE HYD. FITTING
    TCS4-13
    9/16 O-RING x M14x1.5 90 DEGREE HYD. FITTING
    Qty 1$4.24View
  • STRAIGHT HYD. FITTING
    TCS4-07-07
    STRAIGHT HYD. FITTING
    Qty 1$6.89View
  • Q
    Q4P09-001
    M6 x 20mm Lg. COUNTER SUNK SCREWS
    Qty 1Not carried
  • MECHANICAL LOCK BAR
    TCS4A-10-00
    MECHANICAL LOCK BAR
    Qty 1$170.07View
  • Flat Washer 10mm
    X10-073
    Flat Washer 10mm
    Qty 1$0.54View
  • LOCK LADDER
    TCS4-01-03-00
    LOCK LADDER
    Qty 1$111.01View
  • T
    TCS4-05-01-00A
    REAR CROSSBEAM WELD
    Qty 1Not carried
  • HAIRPIN COTTER PIN
    GJY12-3
    HAIRPIN COTTER PIN
    Qty 1$5.26View
  • PASSENGER SIDE REAR CABLE (Cable #2), 194 1/2"
    TCS4B-11-02
    PASSENGER SIDE REAR CABLE (Cable #2), 194 1/2"
    Qty 1$164.56View
  • PASSENGER SIDE FRONT CABLE (Cable #4), 389 3/4"
    TCS4A-11-04
    PASSENGER SIDE FRONT CABLE (Cable #4), 389 3/4"
    Qty 1$319.47View
  • HOSE - SUPPLY (67")
    JSZ5-5-10-04
    HOSE - SUPPLY (67")
    Qty 1$111.01View
  • PASSENGER SIDE FRONT CABLE (Cable #4), 353 5/8"
    TCS4-11-04
    PASSENGER SIDE FRONT CABLE (Cable #4), 353 5/8"
    Qty 1$226.91View
  • M14x1.5 BULKHEAD NUT
    JSZ5-5-10-06
    M14x1.5 BULKHEAD NUT
    Qty 1$2.58View
  • DRIVER SIDE REAR CABLE (Cable #1), 117 1/8"
    TCS4-11-01
    DRIVER SIDE REAR CABLE (Cable #1), 117 1/8"
    Qty 1$161.01View
  • POWER RUNWAY WELD
    TCS4A-07-01-00
    POWER RUNWAY WELD
    Qty 1$1,111.62View
  • CLEVIS PIN
    B40082
    CLEVIS PIN
    Qty 1$2.49View
  • MECHANICAL LOCK HANDLE
    TCS4-04-04-00A
    MECHANICAL LOCK HANDLE
    Qty 1$18.40View
  • LOCK LADDER
    TCS4A-01-03-00
    LOCK LADDER
    Qty 1$155.90View
  • M8 x 20mm Lg. HEX HD CAP SCREW
    MR6-007
    M8 x 20mm Lg. HEX HD CAP SCREW
    Qty 1$0.23View
  • POWER COLUMN ASSY (-xx = COLOR CODE)
    TCS4A-01-00-02
    POWER COLUMN ASSY (-xx = COLOR CODE)
    Qty 1$368.49View
  • M8 x 20mm Lg. HEX LOCKING FLG. HD. CAP SCREW
    Q4P09-006
    M8 x 20mm Lg. HEX LOCKING FLG. HD. CAP SCREW
    Qty 1$1.21View
  • SLACK CABLE LATCH
    B40134
    SLACK CABLE LATCH
    Qty 1$7.78View
  • PRIMARY LOCK EXTENSION SPRING
    TCS4-04-13
    PRIMARY LOCK EXTENSION SPRING
    Qty 1$6.61View
  • WHEEL STOP
    40266
    WHEEL STOP
    Qty 1$96.64View
  • LOCK COUPLER PIVOT PIN
    TCS4-04-12
    LOCK COUPLER PIVOT PIN
    Qty 1$3.31View
  • IDLER RUNWAY WELD
    TCS4A-08-01-00
    IDLER RUNWAY WELD
    Qty 1$1,970.80View
  • HYDRAULIC CYLINDER ASSEMBLY
    TCS4A-03-00
    HYDRAULIC CYLINDER ASSEMBLY
    Qty 1$753.55View
  • M12 x 35mm Lg. HEX FLG. HD. CAP SCREW
    B40083
    M12 x 35mm Lg. HEX FLG. HD. CAP SCREW
    Qty 1$2.02View
  • Pivot Pin
    TCS4-06-02
    Pivot Pin
    Qty 1$12.74View
  • PULL RING
    A1075
    PULL RING
    Qty 1$5.65View
  • T
    TCS4B-05-01-00
    REAR CROSSBEAM WELD
    Qty 1Not carried
  • CABLE PULL BAR
    TCS4-07-05-00
    CABLE PULL BAR
    Qty 1$22.36View
  • MECHANICAL LOCK BAR
    TCS4-10-00
    MECHANICAL LOCK BAR
    Qty 1$125.19View
  • X
    X10-048
    M8 NUT
    Qty 1Not carried
  • FRONT CROSSBEAM WELD
    TCS4-04-01-00A
    FRONT CROSSBEAM WELD
    Qty 1$309.53View
  • Nut, M10
    X10-019
    Nut, M10
    Qty 1$3.43View
  • PASSENGER SIDE REAR CABLE (Cable #2), 174 7/8"
    TCS4-11-02
    PASSENGER SIDE REAR CABLE (Cable #2), 174 7/8"
    Qty 1$194.23View
  • M12 NUT
    X10-040
    M12 NUT
    Qty 1$0.71View
