CL4P7

CL4P7 4-Post Lift

Illustrated Parts Lists

Click a diagram to see every part with clickable callouts — no PDFs.

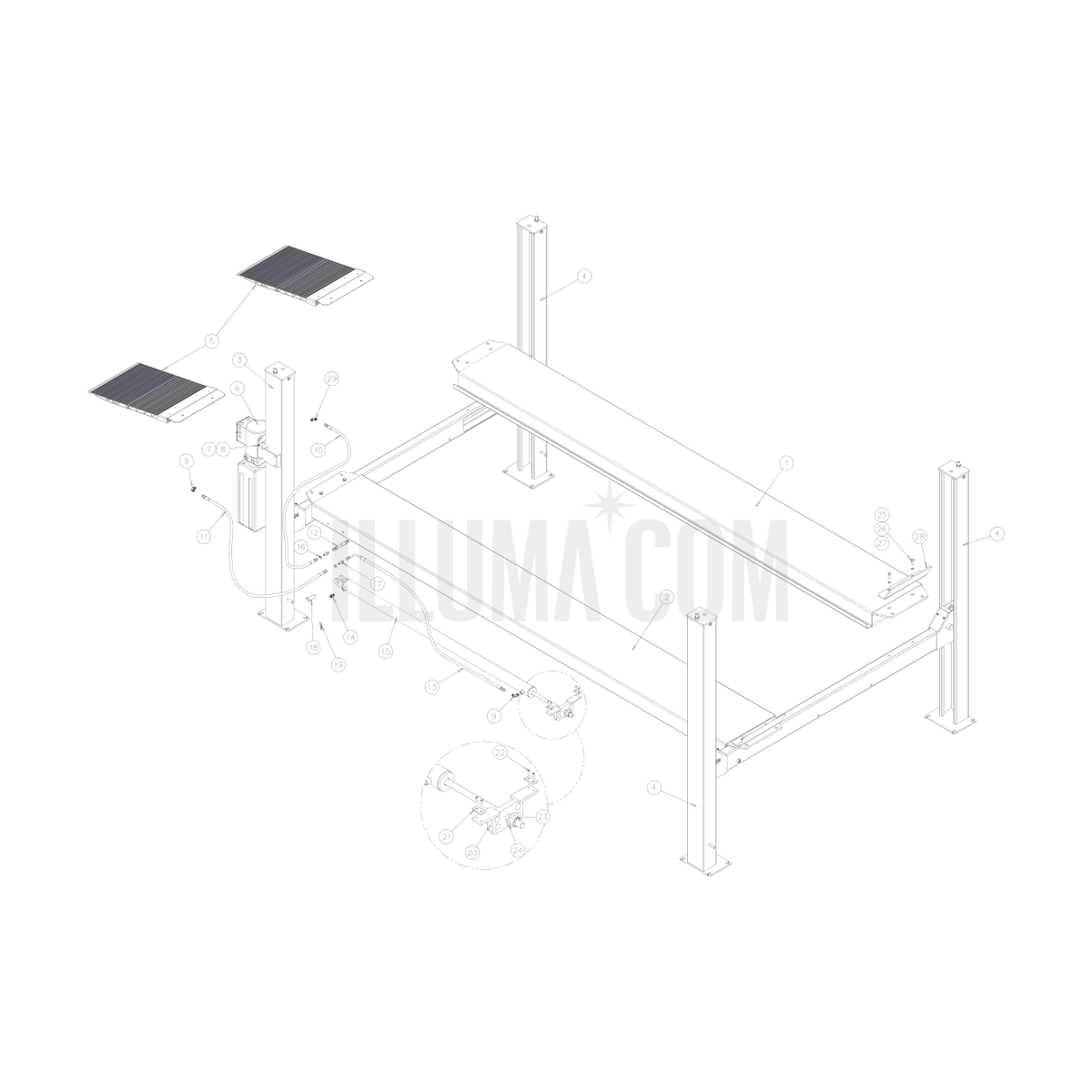

All parts for this model

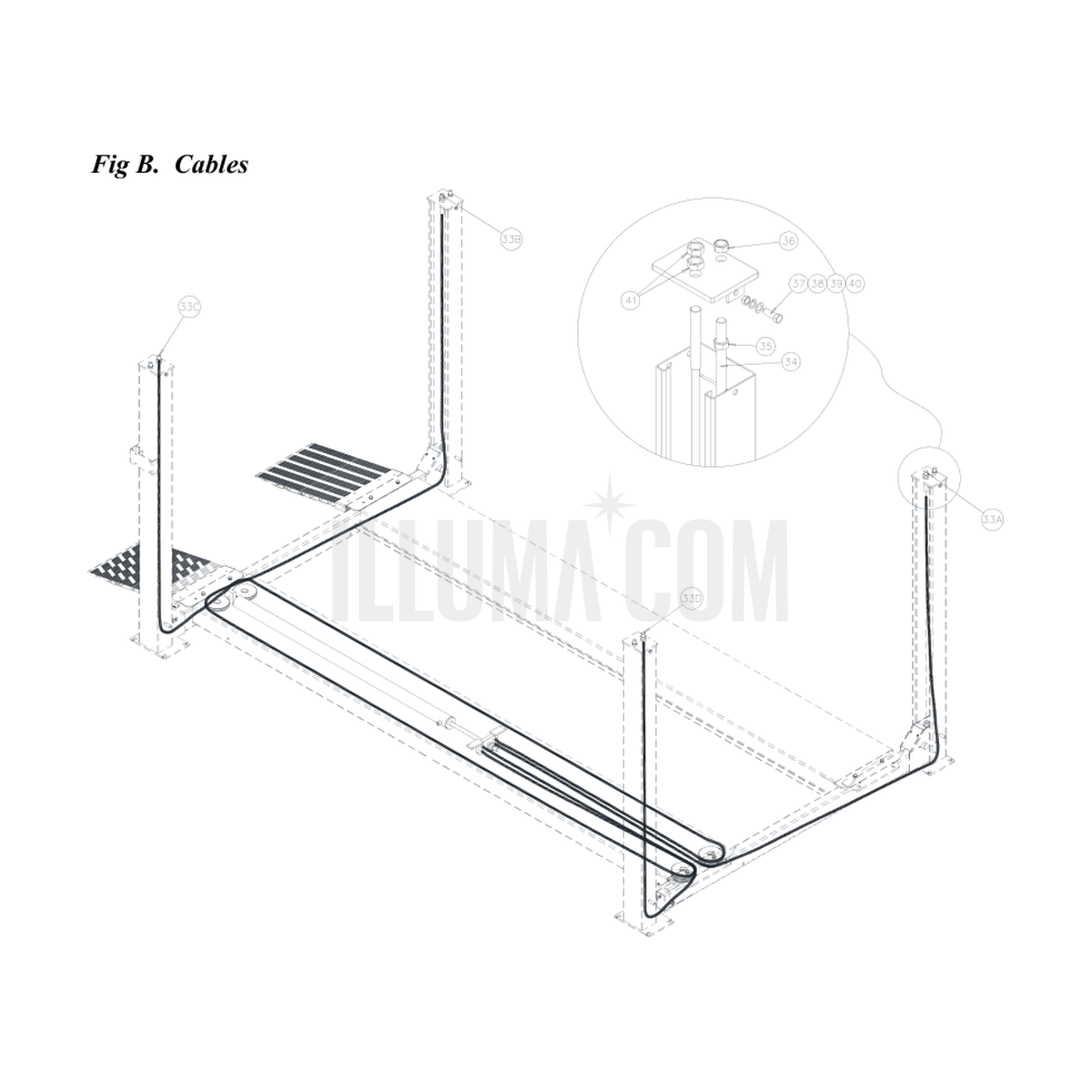

  • PASSENGER SIDE FRONT CABLE (Cable #1), 103-1/8"
    TCS3-5-11-01
    PASSENGER SIDE FRONT CABLE (Cable #1), 103-1/8"
    Qty 1$89.54View
  • WHEEL STOP
    40266
    WHEEL STOP
    Qty 1$96.64View
  • Q
    Q4P09-001
    M6 x 20mm Lg. COUNTER SUNK SCREWS
    Qty 1Not carried
  • HOSE - HYDRAULIC CYLINDER
    JSZ5-5-10-03
    HOSE - HYDRAULIC CYLINDER
    Qty 1$80.31View
  • 9/16 O-RING x M14x1.5 90 DEGREE HYD. FITTING
    TCS4-13
    9/16 O-RING x M14x1.5 90 DEGREE HYD. FITTING
    Qty 1$4.24View
  • M14x1.5 BULKHEAD NUT
    JSZ5-5-10-06
    M14x1.5 BULKHEAD NUT
    Qty 1$2.58View
  • HYDRAULIC CYLINDER ASSEMBLY
    TCS3-5-03-00
    HYDRAULIC CYLINDER ASSEMBLY
    Qty 1$1,991.34View

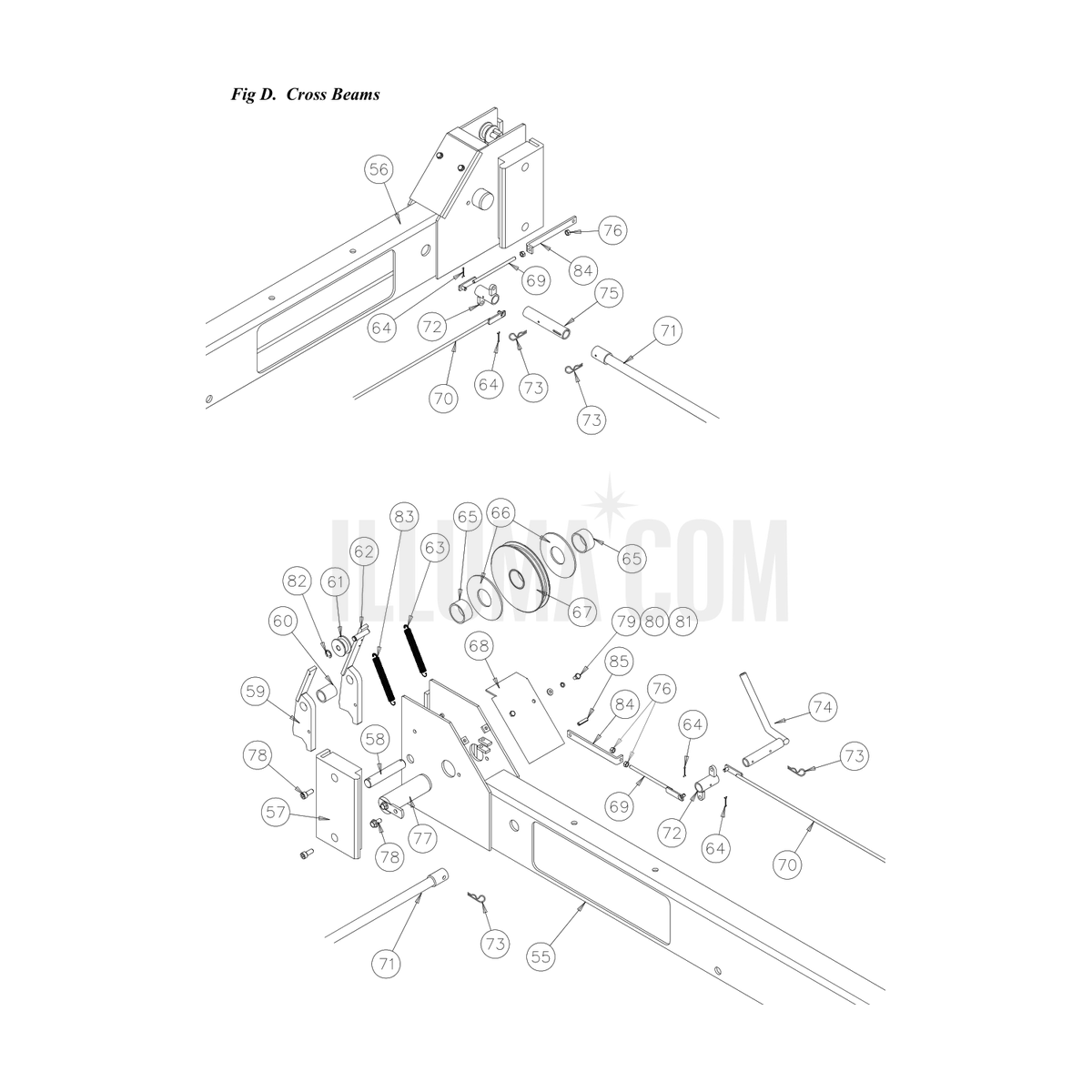

  • CROSSBEAM WELD WITHOUT HANDLE
    TCS3-5-05-01-00
    CROSSBEAM WELD WITHOUT HANDLE
    Qty 1$316.47View
  • MECHANICAL LOCK ROD - LONG
    TCS3-5-04-09-00
    MECHANICAL LOCK ROD - LONG
    Qty 1$16.52View
  • M12 NUT
    X10-040
    M12 NUT
    Qty 1$0.71View
  • SHEAVE PIN ASSEMBLY (CROSSBEAM)
    TCS3-5-04-07-00
    SHEAVE PIN ASSEMBLY (CROSSBEAM)
    Qty 1$16.75View
  • SHEAVE SPACER BUSHING
    TCS3-5-04-16
    SHEAVE SPACER BUSHING
    Qty 1$1.20View
  • PRIMARY LOCK EXTENSION SPRING
    TCS4-04-13
    PRIMARY LOCK EXTENSION SPRING
    Qty 1$6.61View
  • REMOVABLE WHEEL STOP
    TCS4-12-00
    REMOVABLE WHEEL STOP
    Qty 1$40.16View
  • T
    TCS3-5-04-12
    SPACER BUSHING
    Qty 1Not carried
  • M12 x 35mm Lg. HEX FLG. HD. CAP SCREW
    B40083
    M12 x 35mm Lg. HEX FLG. HD. CAP SCREW
    Qty 1$2.02View
  • SLIDE BLOCK
    TCS3-5-04-02
    SLIDE BLOCK
    Qty 1$50.98View

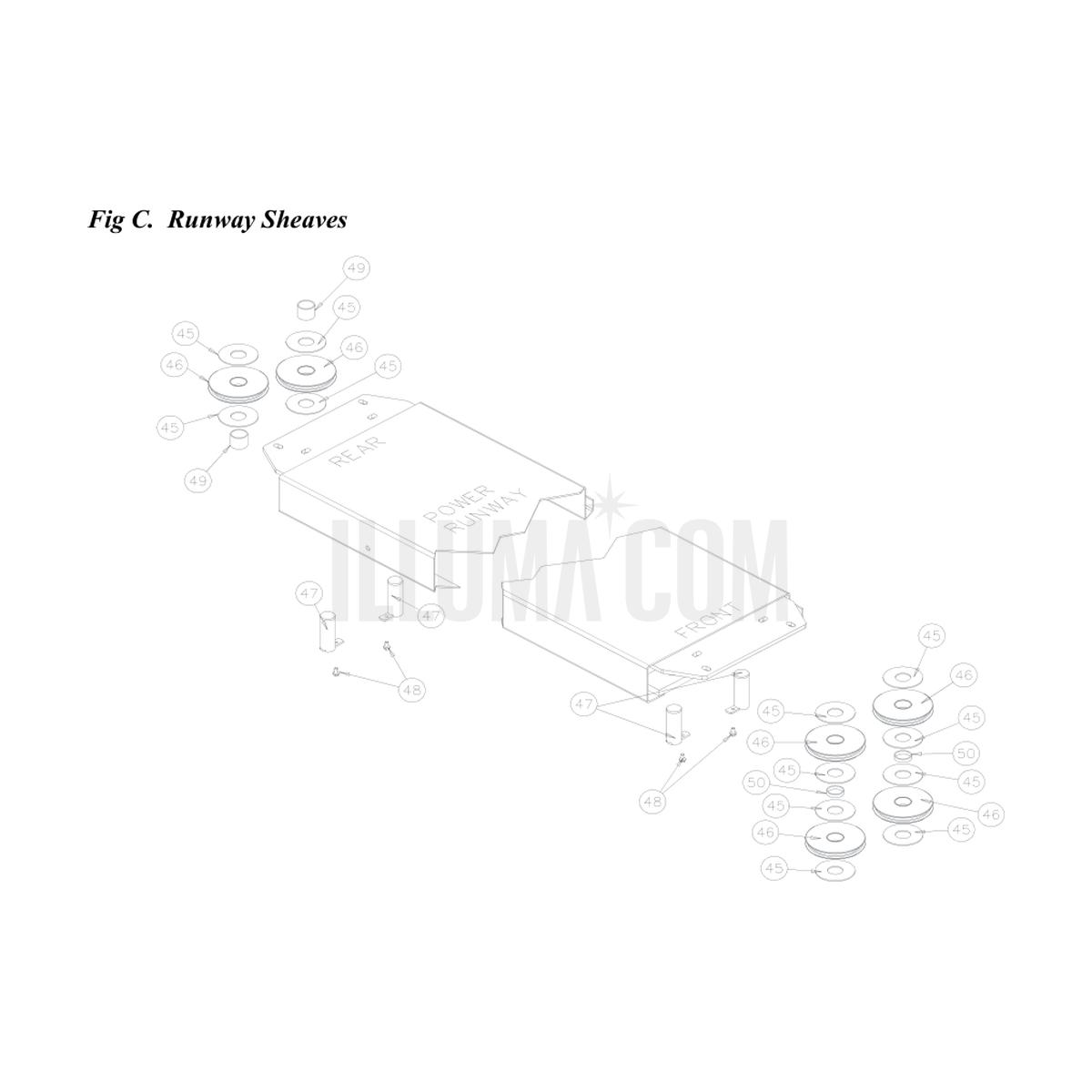

  • RUNWAY SHEAVE SPACER - SHORT
    TCS3-5-07-02
    RUNWAY SHEAVE SPACER - SHORT
    Qty 1$1.87View
  • J
    JSZ5-5-02-05
    ROLLER
    Qty 1Not carried
  • RUNWAY SHEAVE SPACER – TALL
    TCS3-5-07-03
    RUNWAY SHEAVE SPACER – TALL
    Qty 1$3.08View
  • STRAIGHT HYD. FITTING
    TCS4-07-07
    STRAIGHT HYD. FITTING
    Qty 1$6.89View
  • HOSE - RETURN (91")
    TCS4-15
    HOSE - RETURN (91")
    Qty 1$111.01View
  • M12 LOCK WASHER
    X10-039
    M12 LOCK WASHER
    Qty 1$1.18View
  • CROSSBEAM WELD WITH HANDLE
    TCS3-5-04-01-00
    CROSSBEAM WELD WITH HANDLE
    Qty 1$339.34View
  • 1/8 x 1 1/2" Lg. COTTER PIN
    B40126
    1/8 x 1 1/2" Lg. COTTER PIN
    Qty 1$0.23View
  • LOCK ROD BAR
    TCS3-5-10-00A
    LOCK ROD BAR
    Qty 1$42.51View
  • POWER RUNWAY WELD
    TCS3.5-07-01-00
    POWER RUNWAY WELD
    Qty 1$1,682.44View
  • SLACK LATCH EXTENSION SPRING
    JSZ5-5-02-09
    SLACK LATCH EXTENSION SPRING
    Qty 1$1.64View
  • MECHANICAL LOCK RELEASE HANDLE
    TCS3-5040400A
    MECHANICAL LOCK RELEASE HANDLE
    Qty 1$12.37View
  • MECHANICAL LOCK COUPLER
    TCS3-5-04-10-00
    MECHANICAL LOCK COUPLER
    Qty 1$4.47View
  • SHEAVE PIN ASSEMBLY (RUNWAY)
    TCS3-5-07-04-00
    SHEAVE PIN ASSEMBLY (RUNWAY)
    Qty 1$16.52View
  • LOCK PIVOT PIN
    TCS3-5-04-15
    LOCK PIVOT PIN
    Qty 1$3.08View
  • M20 NUT
    MR6-005
    M20 NUT
    Qty 1$11.79View
  • DRIVER SIDE FRONT CABLE (Cable #2), 161-3/4"
    TCS3-5-11-02
    DRIVER SIDE FRONT CABLE (Cable #2), 161-3/4"
    Qty 1$97.47View
  • ENTRANCE RAMPS
    TCS4-09-00B
    ENTRANCE RAMPS
    Qty 1$526.75View
  • M6 X 12mm Lg CAP SCREW
    Q4P09-007
    M6 X 12mm Lg CAP SCREW
    Qty 1$0.47View
  • ROLL PIN, Ø6mm X 24mm Lg.
    CLTCS3-5-21
    ROLL PIN, Ø6mm X 24mm Lg.
    Qty 1$0.89View
  • IDLER COLUMN ASSEMBLY (Column, Lock Ladder, Top Cap)
    TCS3-5-02-00-02
    IDLER COLUMN ASSEMBLY (Column, Lock Ladder, Top Cap)
    Qty 1$382.66View
  • CLEVIS PIN
    B40082
    CLEVIS PIN
    Qty 1$2.49View
  • 3/8-18 NPT x M14x1.5 90 DEGREE HYD. FITTING
    JSJ3-10-05
    3/8-18 NPT x M14x1.5 90 DEGREE HYD. FITTING
    Qty 1$10.86View
  • MECHANICAL LOCK ROD - SHORT
    TCS3-5-04-08-00
    MECHANICAL LOCK ROD - SHORT
    Qty 1$2.35View
  • DRIVER SIDE REAR CABLE (Cable #4), 324-5/8"
    TCS3-5-11-04
    DRIVER SIDE REAR CABLE (Cable #4), 324-5/8"
    Qty 1$149.55View
  • HOSE - SHORT RETURN
    TCS4-07-08
    HOSE - SHORT RETURN
    Qty 1$16.52View
  • M24 WASHER
    Q4P09-003
    M24 WASHER
    Qty 1$1.64View
  • 1/8" THICK BEARING
    TCS3-5-04-06
    1/8" THICK BEARING
    Qty 1$3.08View
  • Q
    Q4P09-002
    M24 NYLON LOCK NUT
    Qty 1Not carried
  • HOSE - SUPPLY (67")
    JSZ5-5-10-04
    HOSE - SUPPLY (67")
    Qty 1$111.01View
  • POWER UNIT, 115v, SINGLE PHASE, 50/60Hz
    AB-7816-1-DLH
    POWER UNIT, 115v, SINGLE PHASE, 50/60Hz
    Qty 1$1,209.36View
  • COTTER PIN, Ø2mm X 10mm Lg.
    TCS3.5-20
    COTTER PIN, Ø2mm X 10mm Lg.
    Qty 1$0.23View
  • CABLE PULL BAR
    TCS4-07-05-00
    CABLE PULL BAR
    Qty 1$22.36View
  • Ø10mm SNAP RING
    Q4P09-008
    Ø10mm SNAP RING
    Qty 1$0.23View
  • SLACK CABLE LATCH
    B40134
    SLACK CABLE LATCH
    Qty 1$7.78View
  • X
    X10-048
    M8 NUT
    Qty 1Not carried
  • NUT, M6
    B40467
    NUT, M6
    Qty 1$0.24View
  • SHEAVE GUARD
    TCS3-5-04-14
    SHEAVE GUARD
    Qty 1$3.27View
  • T
    TCS3-5-01-03-00
    LOCK LADDER
    Qty 1Not carried
  • PRIMARY LOCK PAWL
    TCS3-5-04-11-00
    PRIMARY LOCK PAWL
    Qty 1$6.81View
  • LOCK PAWL CONNECTION
    TCS3-5-04-05
    LOCK PAWL CONNECTION
    Qty 1$7.78View
  • POWER UNIT, 230v, SINGLE PHASE, 50/60Hz
    AB-9367-DLH
    POWER UNIT, 230v, SINGLE PHASE, 50/60Hz
    Qty 1$1,006.39View
  • CABLE PULL BAR SLIDE BLOCKS
    JSZ5-5-03-03-03
    CABLE PULL BAR SLIDE BLOCKS
    Qty 1$3.62View
  • M20 LOCK NUT
    Q4P09-004
    M20 LOCK NUT
    Qty 1$14.16View
  • M8 x 16mm Lg. HEX LOCKING FLG. HD. CAP SCREW
    B31188
    M8 x 16mm Lg. HEX LOCKING FLG. HD. CAP SCREW
    Qty 1$0.47View
  • PASSENGER SIDE REAR CABLE (Cable #3), 266-3/8"
    TCS3-5-11-03
    PASSENGER SIDE REAR CABLE (Cable #3), 266-3/8"
    Qty 1$142.38View
  • M12 x 35mm Lg. HEX FLG. HD. CAP SCREW
    VS10-40-17
    M12 x 35mm Lg. HEX FLG. HD. CAP SCREW
    Qty 1$1.40View
  • M8 x 20mm Lg. SOCKET HEAD CAP SCREW
    X10-032
    M8 x 20mm Lg. SOCKET HEAD CAP SCREW
    Qty 1$0.23View
  • LOCK COUPLER PIVOT PIN
    TCS3-5-05-04
    LOCK COUPLER PIVOT PIN
    Qty 1$5.38View
  • HAIRPIN COTTER PIN
    GJY12-3
    HAIRPIN COTTER PIN
    Qty 1$5.26View
  • SHEAVE ASSEMBLY
    TCS3-5-04-03-00
    SHEAVE ASSEMBLY
    Qty 1$37.79View
  • IDLER RUNWAY WELD
    TCS3.5-08-01-00
    IDLER RUNWAY WELD
    Qty 1$970.35View
  • M12 WASHER
    X10-038
    M12 WASHER
    Qty 1$1.18View
  • POWER COLUMN ASSEMBLY (Column, Lock Ladder, Top Cap)
    TCS3-5-01-00-02
    POWER COLUMN ASSEMBLY (Column, Lock Ladder, Top Cap)
    Qty 1$288.17View
  • M14 BULKHEAD FITTING
    JSZ5-5-10-05
    M14 BULKHEAD FITTING
    Qty 1$7.78View
  • M8 x 20mm Lg. HEX HD CAP SCREW
    MR6-007
    M8 x 20mm Lg. HEX HD CAP SCREW
    Qty 1$0.23View
  • M8 x 20mm Lg. HEX LOCKING FLG. HD. CAP SCREW
    Q4P09-006
    M8 x 20mm Lg. HEX LOCKING FLG. HD. CAP SCREW
    Qty 1$1.21View
