CL16

CL16

Illustrated Parts Lists

Click a diagram to see every part with clickable callouts — no PDFs.

All parts for this model

  • AIR VALVE
    37016
    AIR VALVE
    Qty 1$102.45View
  • CLEVIS PIN 10mm x 55 Lg.
    B2065-5
    CLEVIS PIN 10mm x 55 Lg.
    Qty 1$38.64View
  • HOSE SUPPORT BRACKET
    12750
    HOSE SUPPORT BRACKET
    Qty 1$38.54View
  • POWER UNIT - SINGLE PHASE
    AB-81795
    POWER UNIT - SINGLE PHASE
    Qty 1$2,100.58View
  • M8 x 30 SOCKET HEAD CAP SCREW
    X10-088
    M8 x 30 SOCKET HEAD CAP SCREW
    Qty 1$1.64View
  • SLIDE BLOCK
    12021
    SLIDE BLOCK
    Qty 1$32.86View
  • 3
    37119
    CLEVIS PIN KIT
    Qty 1Not carried
  • HYD. CYLINDER (69" STROKE)
    15075
    HYD. CYLINDER (69" STROKE)
    Qty 1$1,613.40View
  • 1/4-20NC HEX FLANGE NUT
    40085
    1/4-20NC HEX FLANGE NUT
    Qty 1$0.46View
  • 5/16"-18NC HEX FLANGE LOCKING NUT
    4100237
    5/16"-18NC HEX FLANGE LOCKING NUT
    Qty 1$0.27View
  • HAIRPIN COTTER PIN
    GJY12-3
    HAIRPIN COTTER PIN
    Qty 1$5.26View
  • OPTIONAL POWER UNIT - THREE PHASE
    AD-81795
    OPTIONAL POWER UNIT - THREE PHASE
    Qty 1$2,066.54View
  • M6 x 14mm PHILLIPS PAN HEAD SCREW
    B2065-3
    M6 x 14mm PHILLIPS PAN HEAD SCREW
    Qty 1$0.66View
  • 3
    37024
    #8-32 HEX NUT
    Qty 1Not carried
  • 3/8"-16NC x 3" Lg. HEX HEAD CAP SCREW
    A2159
    3/8"-16NC x 3" Lg. HEX HEAD CAP SCREW
    Qty 1$0.97View
  • M6 SERRATED FLANGE HEX NUT
    B2065-4
    M6 SERRATED FLANGE HEX NUT
    Qty 1$1.15View
  • 1/8" UNION TEE PUSH-LOCK
    37032
    1/8" UNION TEE PUSH-LOCK
    Qty 1$9.78View
  • LIMIT SWITCH PACKAGE (INCLUDES SWITCH w/ CORD, BOTH BRACKETS, & ITEMS 7-10)
    B2064-01
    LIMIT SWITCH PACKAGE (INCLUDES SWITCH w/ CORD, BOTH BRACKETS, & ITEMS 7-10)
    Qty 1$146.45View
  • HOSE CLAMP
    A1122-12
    HOSE CLAMP
    Qty 1$1.64View
  • #8-32 x 1 1/4" Lg. PAN HD. SCREW
    37022
    #8-32 x 1 1/4" Lg. PAN HD. SCREW
    Qty 1$0.38View
  • HOSE BARB
    37021
    HOSE BARB
    Qty 1$6.08View
  • 5/16-18x3/8 Lg Phillip Pan Hd. Screw
    10335
    5/16-18x3/8 Lg Phillip Pan Hd. Screw
    Qty 1$0.61View

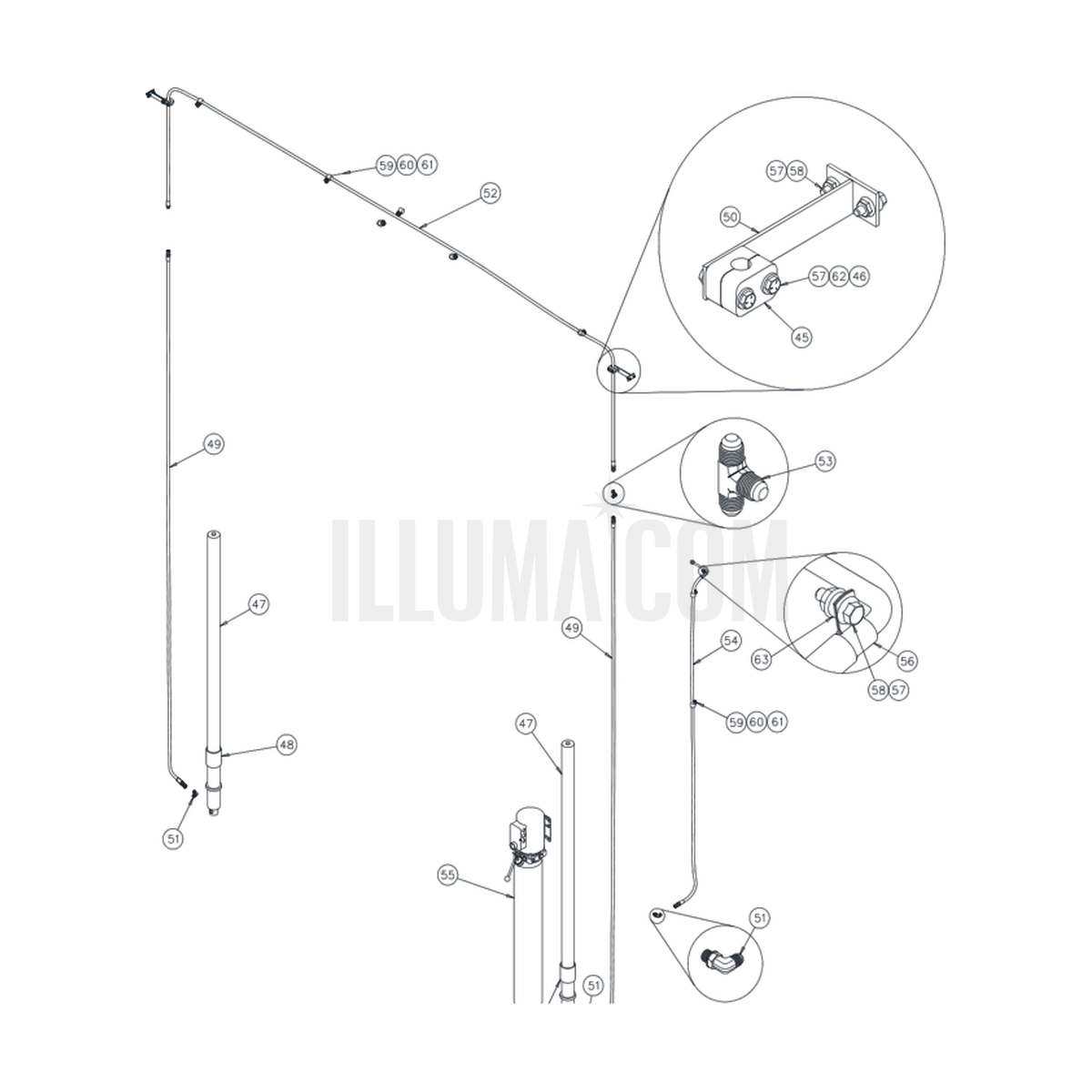

  • COLUMN HOSE ASSEMBLY
    12307
    COLUMN HOSE ASSEMBLY
    Qty 1$123.02View
  • ROD END CLEVIS
    37120
    ROD END CLEVIS
    Qty 1$31.11View
  • 1/4-20 x 1-3/4 BOLT
    40070
    1/4-20 x 1-3/4 BOLT
    Qty 1$0.74View
  • 1/2-13NC HEX. FLG. NUT
    12331
    1/2-13NC HEX. FLG. NUT
    Qty 1$1.07View
  • 45mm RETAINING RING
    B1084
    45mm RETAINING RING
    Qty 1$7.93View
  • COMPRESSION SPRING
    31109
    COMPRESSION SPRING
    Qty 1$0.75View
  • STACK ADAPTER (3")
    B2206-3
    STACK ADAPTER (3")
    Qty 1$58.76View
  • 1 3/8" RETAINING RING
    CL31021
    1 3/8" RETAINING RING
    Qty 1$0.56View
  • EXTENSION SPRING
    12088
    EXTENSION SPRING
    Qty 1$4.44View
  • STACK ADAPTER (6")
    B2206-6
    STACK ADAPTER (6")
    Qty 1$90.94View
  • ARM ASSEMBLY, 3-STAGE
    12200
    ARM ASSEMBLY, 3-STAGE
    Qty 1$3,751.44View
  • POWER UNIT HOSE ASSEMBLY
    12308
    POWER UNIT HOSE ASSEMBLY
    Qty 1$154.04View
  • 1/8" THICK BEARING
    40053
    1/8" THICK BEARING
    Qty 1$6.56View
  • SHUTOFF BAR
    A2067
    SHUTOFF BAR
    Qty 1$70.27View
  • SLEEVE WELD
    12096
    SLEEVE WELD
    Qty 1$100.52View
  • HYD ELBOW, 9/16 O-RING MALE TO #6 MALE FLARE
    16167
    HYD ELBOW, 9/16 O-RING MALE TO #6 MALE FLARE
    Qty 1$9.74View
  • #8-32 HEX NUT
    37023
    #8-32 HEX NUT
    Qty 1$0.18View

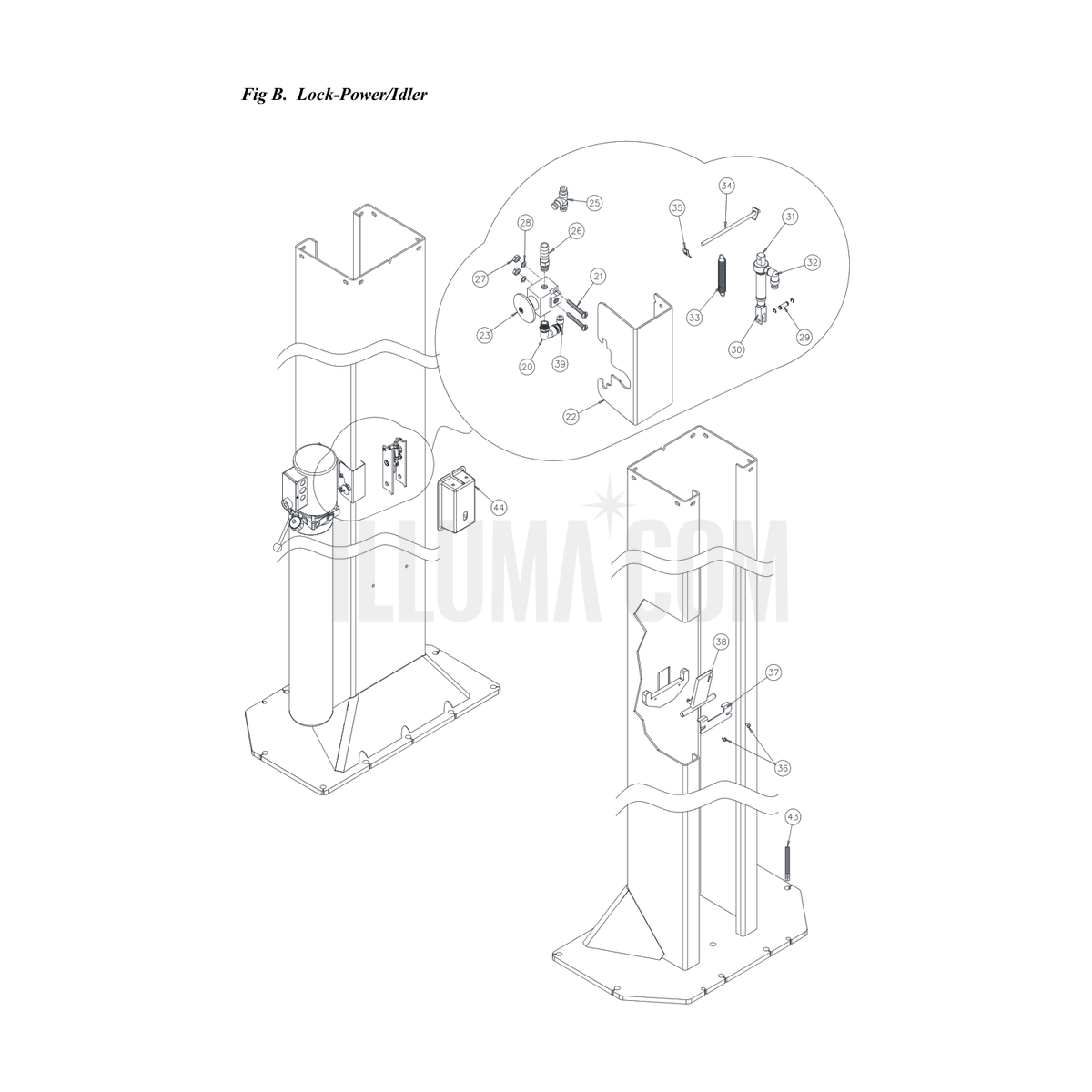

  • LOCK WELD
    12033
    LOCK WELD
    Qty 1$123.81View
  • IDLER COLUMN WELD
    12321-I
    IDLER COLUMN WELD
    Qty 1$5,234.66View
  • ARM PIN
    12046
    ARM PIN
    Qty 1$94.31View
  • 1
    12205
    5/16"-24NF x 1/2" Lg. SET SCREW
    Qty 1Not carried
  • SHUTOFF BAR CUSHION
    31129
    SHUTOFF BAR CUSHION
    Qty 1$1.55View
  • 3/8"-16 x 3/4" LG. HEX FLANGE BOLT
    A1153
    3/8"-16 x 3/4" LG. HEX FLANGE BOLT
    Qty 1$0.71View
  • OVERHEAD
    12301
    OVERHEAD
    Qty 1$755.21View
  • 3
    37041
    SWIVEL ELBOW, 1/8" PUSH-LOCK
    Qty 1Not carried
  • LINE CLAMP
    31025
    LINE CLAMP
    Qty 1$0.56View
  • 1/4 WASHER
    31115
    1/4 WASHER
    Qty 1$0.18View
  • 3
    37031
    5/32 SPEED NUT
    Qty 1Not carried
  • 3/8"-16NC SELF TAPPING SCREW x 3/4" Lg.
    31305
    3/8"-16NC SELF TAPPING SCREW x 3/4" Lg.
    Qty 1$1.55View

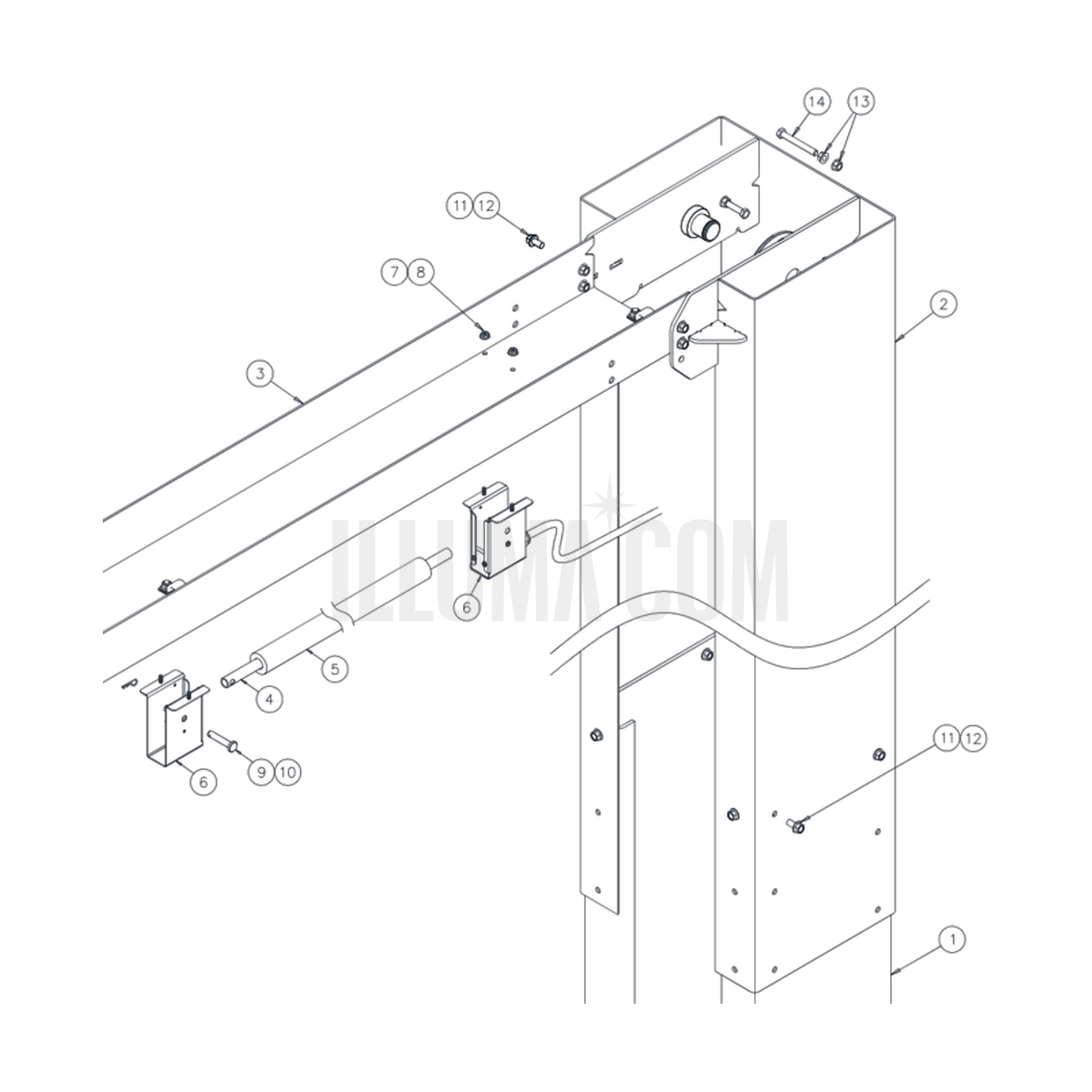

  • COLUMN EXTENSION WELD (2ft.)
    12312-2
    COLUMN EXTENSION WELD (2ft.)
    Qty 1$1,215.40View
  • SHEAVE SPACER 3/8"
    40774-S
    SHEAVE SPACER 3/8"
    Qty 1$7.04View
  • 5/16-18NC x 1/2" Lg. LOCK HEX FLG. HD. CAP SCREW
    4100342
    5/16-18NC x 1/2" Lg. LOCK HEX FLG. HD. CAP SCREW
    Qty 1$0.47View
  • 5/16"-18NC x 1 HEX FLANGE LOCKING HEAD CAP SCREW
    A1069
    5/16"-18NC x 1 HEX FLANGE LOCKING HEAD CAP SCREW
    Qty 1$0.39View
  • RUBBER INSERT
    A1104-H
    RUBBER INSERT
    Qty 1$28.98View
  • ELBOW 1/8" NPTM x 1/8" PUSH-LOCK
    37019
    ELBOW 1/8" NPTM x 1/8" PUSH-LOCK
    Qty 1$13.83View
  • INSERT
    31108
    INSERT
    Qty 1$23.80View
  • 3
    31014
    1/2" FLAT WASHER (SHIM AS NEEDED)
    Qty 1Not carried

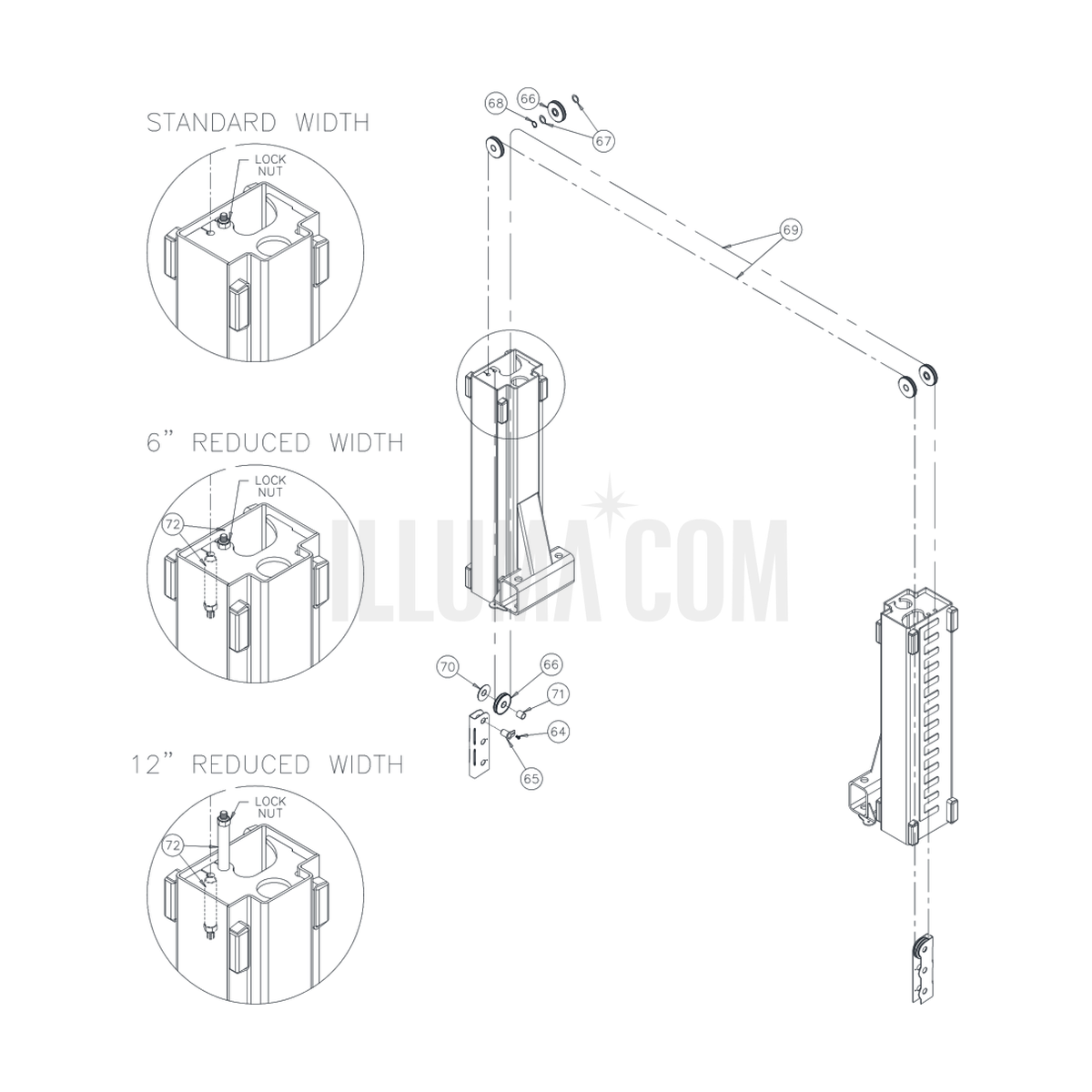

  • SYNC. CABLE PACK (16'-6" O.A. Ht.)
    12302-2
    SYNC. CABLE PACK (16'-6" O.A. Ht.)
    Qty 1$398.35View
  • SHEAVE PIN
    12326
    SHEAVE PIN
    Qty 1$78.45View
  • OVERHEAD HOSE ASSEMBLY
    12309
    OVERHEAD HOSE ASSEMBLY
    Qty 1$169.38View
  • 3
    31112
    1/2"-13NC x 1 1/2" Lg. SOCKET HEAD CAP SCREW
    Qty 1Not carried
  • SNAP ON LOCK COVER
    37072
    SNAP ON LOCK COVER
    Qty 1$11.60View
  • ADAPTER RACK
    B2209
    ADAPTER RACK
    Qty 1$71.39View
  • CYLINDER SPACER
    12111
    CYLINDER SPACER
    Qty 1$60.91View
  • ARM SHIM
    12219
    ARM SHIM
    Qty 1$51.70View
  • SHEAVE ASSEMBLY
    CL31019
    SHEAVE ASSEMBLY
    Qty 1$113.38View
  • SYNC. CABLE PACK (14'-6" O.A. Ht.)
    12302-0
    SYNC. CABLE PACK (14'-6" O.A. Ht.)
    Qty 1$372.96View
  • COLUMN EXTENSION WELD (STD Height.)
    12312-0
    COLUMN EXTENSION WELD (STD Height.)
    Qty 1$1,012.36View
  • 6" TAKE-UP TUBES [STD HEIGHT: 0, -6: 2, -12: 4]
    12341
    6" TAKE-UP TUBES [STD HEIGHT: 0, -6: 2, -12: 4]
    Qty 1$25.34View
  • M35 WASHER
    CL31020
    M35 WASHER
    Qty 1$2.30View
  • 1/2-13NC HEX. FLG. HD. C.S x 1" Lg.
    12330
    1/2-13NC HEX. FLG. HD. C.S x 1" Lg.
    Qty 1$2.81View
  • 3
    37042
    CYLINDER PIVOT ROD
    Qty 1Not carried
  • POWER COLUMN WELD
    12321-P
    POWER COLUMN WELD
    Qty 1$5,311.95View
  • LINK WELD
    12060
    LINK WELD
    Qty 1$46.39View
  • 3
    37026
    AIR CYLINDER
    Qty 1Not carried
  • 1/4"-20 x 3/4" LG. HEX FLANGE BOLT
    A2125
    1/4"-20 x 3/4" LG. HEX FLANGE BOLT
    Qty 1$0.64View
  • ROLL PIN, 6mm DIA x 30mm Lg
    B2211
    ROLL PIN, 6mm DIA x 30mm Lg
    Qty 1$0.75View
  • LOCK RETAINER
    12037
    LOCK RETAINER
    Qty 1$15.46View
  • 1
    12245
    AIR VALVE COVER
    Qty 1Not carried

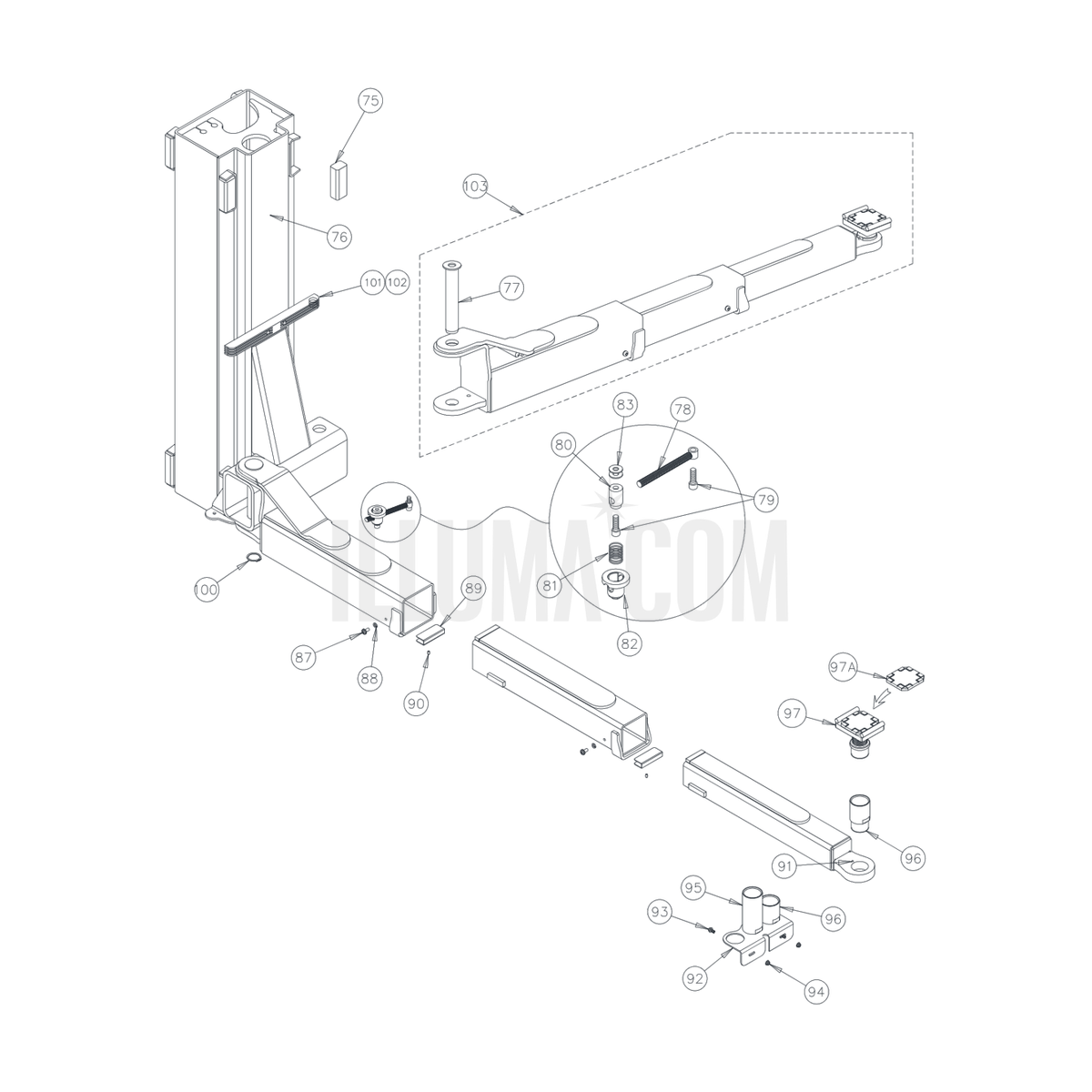

  • CARRIAGE WELD
    B12007-18
    CARRIAGE WELD
    Qty 1$2,166.16View
  • ANCHOR BOLT, 3/4 x 5 1/2"
    31058
    ANCHOR BOLT, 3/4 x 5 1/2"
    Qty 1$10.86View
  • Ø1/8" NYLON AIR LINE x 35' Lg.
    12105
    Ø1/8" NYLON AIR LINE x 35' Lg.
    Qty 1$78.49View
  • HOSE BLOCK CLAMP
    12332
    HOSE BLOCK CLAMP
    Qty 1$9.49View
  • 3/8"-16 HEX FLANGE NUT
    A1154
    3/8"-16 HEX FLANGE NUT
    Qty 1$0.30View
  • DOOR GUARD
    B2026-3
    DOOR GUARD
    Qty 1$21.23View
  • HYD. TEE
    39103
    HYD. TEE
    Qty 1$7.33View
  • 3/8" SPLIT LOCK WASHER
    31037
    3/8" SPLIT LOCK WASHER
    Qty 1$0.23View
  • FOOT PAD ASSEMBLY
    B12162S-12
    FOOT PAD ASSEMBLY
    Qty 1$104.48View
  • NYLON SPACER 1/4x1/4
    12748
    NYLON SPACER 1/4x1/4
    Qty 1$0.95View
