CL12ADPC

CL12A-DPC 2-Post Lift

Illustrated Parts Lists

Click a diagram to see every part with clickable callouts — no PDFs.

All parts for this model

  • 1/8" THICK BEARING
    40053
    1/8" THICK BEARING
    Qty 1$6.56View
  • 3/8"-16NC x 3" Lg. HEX HEAD CAP SCREW
    A2159
    3/8"-16NC x 3" Lg. HEX HEAD CAP SCREW
    Qty 1$0.97View
  • 38mm EXTERNAL RETAINING RING
    B1083
    38mm EXTERNAL RETAINING RING
    Qty 1$1.87View
  • SHEAVE SPACER 3/8"
    40774-S
    SHEAVE SPACER 3/8"
    Qty 1$7.04View
  • COTTER PIN
    40126
    COTTER PIN
    Qty 1$0.21View
  • LOCK RELEASE CABLE ASSEMBLY (CL12A-2)
    12804-2
    LOCK RELEASE CABLE ASSEMBLY (CL12A-2)
    Qty 1$121.31View
  • LOCK SPRING (3/8" O.D.)
    A1131
    LOCK SPRING (3/8" O.D.)
    Qty 1$1.72View
  • HOSE GUIDE BRACKET (PIPE)
    12825
    HOSE GUIDE BRACKET (PIPE)
    Qty 1$57.65View
  • QUICK CYCLE DPC POWER UNIT, 1ph, 60Hz, 208-240V
    AB-11531
    QUICK CYCLE DPC POWER UNIT, 1ph, 60Hz, 208-240V
    Qty 1$3,206.66View
  • 3/8"-16 HEX JAM NUT
    A1143
    3/8"-16 HEX JAM NUT
    Qty 1$0.33View
  • B
    B12802
    INTERMEDIATE ARM WELD
    Qty 1Not carried
  • ARM SHIM
    B12805
    ARM SHIM
    Qty 1$3.42View
  • 5/16"-18NC x 1 HEX FLANGE LOCKING HEAD CAP SCREW
    A1069
    5/16"-18NC x 1 HEX FLANGE LOCKING HEAD CAP SCREW
    Qty 1$0.39View
  • SLIDE BLOCK
    31023
    SLIDE BLOCK
    Qty 1$24.88View
  • 1 3/8" RETAINING RING
    CL31021
    1 3/8" RETAINING RING
    Qty 1$0.56View
  • 3/8" O.D. LONG EXTENSION SPRING
    12715
    3/8" O.D. LONG EXTENSION SPRING
    Qty 1$6.08View
  • M6 x 14mm PHILLIPS PAN HEAD SCREW
    B2065-3
    M6 x 14mm PHILLIPS PAN HEAD SCREW
    Qty 1$0.66View
  • 1 FT. HOSE EXTENSION (CL12A-1, LENGTH 12")
    12539-012
    1 FT. HOSE EXTENSION (CL12A-1, LENGTH 12")
    Qty 1$48.31View
  • 5/16 SPLIT LOCK WASHER
    31331
    5/16 SPLIT LOCK WASHER
    Qty 1$0.18View
  • HYD. RAM CYLINDER (72" STROKE) (CL12A-1-DPC-QC, CL12A-2-DPC-QC, or CL12A-3-DPC-QC)
    39097R-QC
    HYD. RAM CYLINDER (72" STROKE) (CL12A-1-DPC-QC, CL12A-2-DPC-QC, or CL12A-3-DPC-QC)
    Qty 1$1,134.52View
  • 3/8" x 3 1/4" LONG CLEVIS PIN
    12654
    3/8" x 3 1/4" LONG CLEVIS PIN
    Qty 1$2.78View
  • LINE CLAMP
    31025
    LINE CLAMP
    Qty 1$0.56View
  • HYD ELBOW, 9/16 O-RING MALE TO #6 MALE FLARE
    16167
    HYD ELBOW, 9/16 O-RING MALE TO #6 MALE FLARE
    Qty 1$9.74View
  • 3
    31118
    ZIP TIE 3 1/2" Lg. (FOR LOCK RELEASE CABLE)
    Qty 1Not carried
  • SHEAVE PIN
    12326
    SHEAVE PIN
    Qty 1$78.45View
  • COLUMN EXTENSION WELD FOR CL12A-0
    12821-164
    COLUMN EXTENSION WELD FOR CL12A-0
    Qty 1$895.30View
  • LOCK CABLE MOUNTING TAB (BLACK)
    A1130-02
    LOCK CABLE MOUNTING TAB (BLACK)
    Qty 1$15.46View
  • 3
    37031
    5/32 SPEED NUT
    Qty 1Not carried
  • B
    B12801
    FEMALE ARM WELD
    Qty 1Not carried
  • JUNCTION BOX ASSEMBLY (INCLUDING OVERHEAD LIMIT SWITCH)
    A1208
    JUNCTION BOX ASSEMBLY (INCLUDING OVERHEAD LIMIT SWITCH)
    Qty 1$651.44View
  • ARM RESTRAINT SHAFT ASSEMBLY (includes items 89 thru 94)
    A1077TC-12
    ARM RESTRAINT SHAFT ASSEMBLY (includes items 89 thru 94)
    Qty 1$76.27View
  • PULL RING
    A1075
    PULL RING
    Qty 1$5.65View
  • NYLON SPACER
    12658
    NYLON SPACER
    Qty 1$2.52View
  • 3/8"-16 HEX FLANGE NUT
    A1154
    3/8"-16 HEX FLANGE NUT
    Qty 1$0.30View
  • M8 WASHER
    X10-087
    M8 WASHER
    Qty 1$0.24View
  • M8 x 30 SOCKET HEAD CAP SCREW
    X10-088
    M8 x 30 SOCKET HEAD CAP SCREW
    Qty 1$1.64View
  • 3/8-16NC HEX FLANGE HEAD CAP SCREW EW
    12568
    3/8-16NC HEX FLANGE HEAD CAP SCREW EW
    Qty 1$0.75View
  • 5/16-18x3/8 Lg Phillip Pan Hd. Screw
    10335
    5/16-18x3/8 Lg Phillip Pan Hd. Screw
    Qty 1$0.61View
  • ADAPTER PAD WELD
    B12163S
    ADAPTER PAD WELD
    Qty 1$65.70View
  • COLUMN HOSE (STD. HEIGHT, LENGTH 151")
    12791-0
    COLUMN HOSE (STD. HEIGHT, LENGTH 151")
    Qty 1$110.18View
  • 1
    12583
    ARM RESTRAINT SHAFT
    Qty 1Not carried
  • M6x6 BUTTON HEAD CAP SCREW
    B12807
    M6x6 BUTTON HEAD CAP SCREW
    Qty 1$1.12View
  • ADAPTER RACK
    B2209
    ADAPTER RACK
    Qty 1$71.39View
  • BALL HANDLE - Power side ONLY
    36096
    BALL HANDLE - Power side ONLY
    Qty 1$5.79View
  • M10x25mm HEX FLANGE HEAD BOLT
    B1068
    M10x25mm HEX FLANGE HEAD BOLT
    Qty 1$1.87View
  • SHEAVE ASSEMBLY
    CL12760
    SHEAVE ASSEMBLY
    Qty 1$18.14View
  • COLUMN EXTENSION WELD FOR CL12A-1
    12821-176
    COLUMN EXTENSION WELD FOR CL12A-1
    Qty 1$974.41View
  • 2 FT. HOSE EXTENSION (CL12A-2, LENGTH 24")
    12539-024
    2 FT. HOSE EXTENSION (CL12A-2, LENGTH 24")
    Qty 1$57.73View
  • 1
    12073
    5/16"-18 x 5/8" Lg. THREAD CUTTING PAN HEAD SCREW
    Qty 1Not carried
  • HAIRPIN COTTER PIN
    GJY12-3
    HAIRPIN COTTER PIN
    Qty 1$5.26View

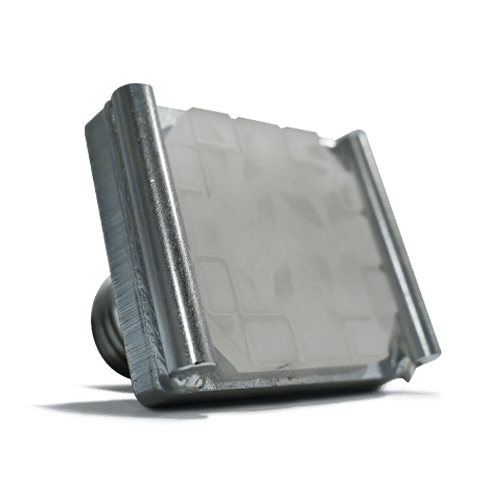

  • FOOT PAD ASSEMBLY
    B12162S-12
    FOOT PAD ASSEMBLY
    Qty 1$104.48View
  • POWER COLUMN WELD
    12810-P
    POWER COLUMN WELD
    Qty 1$2,586.90View
  • COMPRESSION SPRING
    31109
    COMPRESSION SPRING
    Qty 1$0.75View
  • ROLL PIN, 6mm DIA x 30mm Lg
    B2211
    ROLL PIN, 6mm DIA x 30mm Lg
    Qty 1$0.75View
  • LOCK RELEASE CABLE ASSEMBLY (CL12A-0)
    12804-0
    LOCK RELEASE CABLE ASSEMBLY (CL12A-0)
    Qty 1$121.31View
  • INNER GEAR (ARM RESTRAINT)
    A1070TC
    INNER GEAR (ARM RESTRAINT)
    Qty 1$61.41View
  • ARM PIN WELD
    B12544
    ARM PIN WELD
    Qty 1$30.70View
  • 5/16-18NC x 1/2" Lg. LOCK HEX FLG. HD. CAP SCREW
    4100342
    5/16-18NC x 1/2" Lg. LOCK HEX FLG. HD. CAP SCREW
    Qty 1$0.47View
  • CABLE CLAMP, 1/2" I.D.
    A1122-9
    CABLE CLAMP, 1/2" I.D.
    Qty 1$2.30View
  • SHUTOFF BAR
    A2067
    SHUTOFF BAR
    Qty 1$70.27View
  • SYNC. CABLE PACK (CL12A-0) (Set of 2)
    12803-0
    SYNC. CABLE PACK (CL12A-0) (Set of 2)
    Qty 1$546.22View
  • LANYARD STRAP ASSEMBLY (INCLUDING 3/8 PIN AND E-CLIP)
    A1206-10-20
    LANYARD STRAP ASSEMBLY (INCLUDING 3/8 PIN AND E-CLIP)
    Qty 1$33.97View
  • 1" EXT. RETAINING RING
    36014
    1" EXT. RETAINING RING
    Qty 1$0.38View
  • HOSE SUPPORT BRACKET
    12750
    HOSE SUPPORT BRACKET
    Qty 1$38.54View
  • OUTER GEAR
    A1072TC
    OUTER GEAR
    Qty 1$16.52View
  • 3 x 45mm ROUND WIRE RETAINING RING
    B17257
    3 x 45mm ROUND WIRE RETAINING RING
    Qty 1$0.23View
  • 5/16 SAE FLAT WASHER
    6-0295
    5/16 SAE FLAT WASHER
    Qty 1$0.36View
  • M35 WASHER
    CL31020
    M35 WASHER
    Qty 1$2.30View
  • THREADED INSERT
    B17276-1
    THREADED INSERT
    Qty 1$18.89View
  • CLEVIS PIN 10mm x 55 Lg.
    B2065-5
    CLEVIS PIN 10mm x 55 Lg.
    Qty 1$38.64View
  • ZIP TIE 8" Lg. (FOR PENDANT CORDS, DPC ONLY)
    40346
    ZIP TIE 8" Lg. (FOR PENDANT CORDS, DPC ONLY)
    Qty 1$0.21View
  • SYNC. CABLE PACK (CL12A-2) (Set of 2)
    12803-2
    SYNC. CABLE PACK (CL12A-2) (Set of 2)
    Qty 1$546.22View
  • SHUTOFF BAR CUSHION
    31129
    SHUTOFF BAR CUSHION
    Qty 1$1.55View
  • RUBBER DOOR GUARD
    B2026-2
    RUBBER DOOR GUARD
    Qty 1$18.89View
  • COLUMN EXTENSION WELD FOR CL12A-LC
    12821-143
    COLUMN EXTENSION WELD FOR CL12A-LC
    Qty 1$761.90View
  • CARRIAGE WELD
    B12621
    CARRIAGE WELD
    Qty 1$1,440.93View
  • LOCK RELEASE CABLE ASSEMBLY (CL12A-1)
    12804-1
    LOCK RELEASE CABLE ASSEMBLY (CL12A-1)
    Qty 1$121.31View
  • LOCK WELD
    12616
    LOCK WELD
    Qty 1$115.98View
  • STOP BLOCK
    3W-04-18
    STOP BLOCK
    Qty 1$1.87View
  • POWER UNIT HOSE (STD.HEIGHT, LENGTH 88")
    12793-0
    POWER UNIT HOSE (STD.HEIGHT, LENGTH 88")
    Qty 1$159.89View
  • RUBBER INSERT
    A1104-H
    RUBBER INSERT
    Qty 1$28.98View
  • STACK ADAPTER (6")
    B2206-6
    STACK ADAPTER (6")
    Qty 1$90.94View
  • 38mm ID, 51mm OD WASHER
    B2203S-01D
    38mm ID, 51mm OD WASHER
    Qty 1$2.12View
  • B
    B12803
    MALE ARM WELD
    Qty 1Not carried
  • 3-STAGE ARM ASSEMBLY (includes Items 78 thru 87)
    B12800B
    3-STAGE ARM ASSEMBLY (includes Items 78 thru 87)
    Qty 1$1,306.31View
  • OVERHEAD
    12815
    OVERHEAD
    Qty 1$360.69View
  • LOCK RETAINER
    12518
    LOCK RETAINER
    Qty 1$28.98View

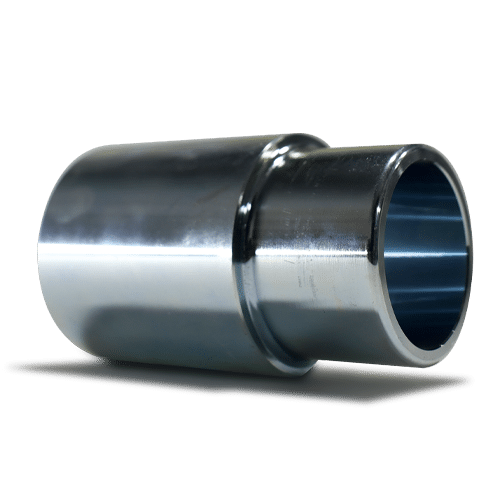

  • STACK ADAPTER (3")
    B2206-3
    STACK ADAPTER (3")
    Qty 1$58.76View
  • 1/4"-20 x 3/4" LG. HEX FLANGE BOLT
    A2125
    1/4"-20 x 3/4" LG. HEX FLANGE BOLT
    Qty 1$0.64View
  • 3
    37119
    CLEVIS PIN KIT
    Qty 1Not carried
  • STUD HANDLE
    A1134
    STUD HANDLE
    Qty 1$4.26View
  • SYNC. CABLE PACK (CL12A-LC) (Set of 2)
    12803-LC
    SYNC. CABLE PACK (CL12A-LC) (Set of 2)
    Qty 1$607.54View
  • 1/4-20NC HEX FLANGE NUT
    40085
    1/4-20NC HEX FLANGE NUT
    Qty 1$0.46View
  • 3
    37042
    CYLINDER PIVOT ROD
    Qty 1Not carried
  • DPC POWER UNIT, 1ph, 60Hz, 208-230V
    AB-10227-2
    DPC POWER UNIT, 1ph, 60Hz, 208-230V
    Qty 1$2,423.20View
  • CYLINDER (68" STROKE RAM), QUICK CYCLE
    16138R-QC
    CYLINDER (68" STROKE RAM), QUICK CYCLE
    Qty 1$1,719.77View
  • COLUMN EXTENSION WELD FOR CL12A-2
    12821-188
    COLUMN EXTENSION WELD FOR CL12A-2
    Qty 1$1,051.37View
  • LIMIT SWITCH PACKAGE (INCLUDES SWITCH w/ CORD, BOTH BRACKETS, & ITEMS 7-10)
    B2064-01
    LIMIT SWITCH PACKAGE (INCLUDES SWITCH w/ CORD, BOTH BRACKETS, & ITEMS 7-10)
    Qty 1$146.45View
  • LOCK RELEASE CABLE ASSEMBLY (CL12A-LC)
    12804-LC
    LOCK RELEASE CABLE ASSEMBLY (CL12A-LC)
    Qty 1$121.31View
  • HOSE CLAMP
    A1122-12
    HOSE CLAMP
    Qty 1$1.64View
  • NYLON SPACER 1/4x1/4
    12748
    NYLON SPACER 1/4x1/4
    Qty 1$0.95View
  • SYNC. CABLE PACK (CL12A-1) (Set of 2)
    12803-1
    SYNC. CABLE PACK (CL12A-1) (Set of 2)
    Qty 1$546.22View
  • D-RING CONNECTOR LINK
    12716
    D-RING CONNECTOR LINK
    Qty 1$1.01View
  • CABLE SPRING (1/2" O.D.) - Idler side ONLY
    A1132
    CABLE SPRING (1/2" O.D.) - Idler side ONLY
    Qty 1$2.69View
  • LOCK RELEASE CLEVIS
    A1142-12
    LOCK RELEASE CLEVIS
    Qty 1$11.60View
  • OVERHEAD HOSE (STD. HEIGHT, LENGTH 187")
    12816
    OVERHEAD HOSE (STD. HEIGHT, LENGTH 187")
    Qty 1$184.27View
  • SNAP ON LOCK COVER
    37072
    SNAP ON LOCK COVER
    Qty 1$11.60View
  • 5/16"-18NC HEX FLANGE LOCKING NUT
    4100237
    5/16"-18NC HEX FLANGE LOCKING NUT
    Qty 1$0.27View
  • 3/8"-16 x 3/4" LG. HEX FLANGE BOLT
    A1153
    3/8"-16 x 3/4" LG. HEX FLANGE BOLT
    Qty 1$0.71View
  • POWER UNIT HOSE (LOW CEILING HEIGHT, LENGTH 73")
    12793-LC
    POWER UNIT HOSE (LOW CEILING HEIGHT, LENGTH 73")
    Qty 1$159.00View
  • HYD. TEE
    39103
    HYD. TEE
    Qty 1$7.33View
  • COLUMN HOSE (LOW CEILING HEIGHT, LENGTH 130")
    12791-LC
    COLUMN HOSE (LOW CEILING HEIGHT, LENGTH 130")
    Qty 1$100.52View
  • M8 x 10mm Lg. FLAT HEAD BOLT
    17350
    M8 x 10mm Lg. FLAT HEAD BOLT
    Qty 1$2.88View
  • M6 SERRATED FLANGE HEX NUT
    B2065-4
    M6 SERRATED FLANGE HEX NUT
    Qty 1$1.15View
  • IDLER COLUMN WELD
    12810-I
    IDLER COLUMN WELD
    Qty 1$2,527.64View
  • REPLACEMENT PENDANT ASSEMBLY
    A1206-10-IX
    REPLACEMENT PENDANT ASSEMBLY
    Qty 1$806.98View
