CL10ADPC

CL10ADPC

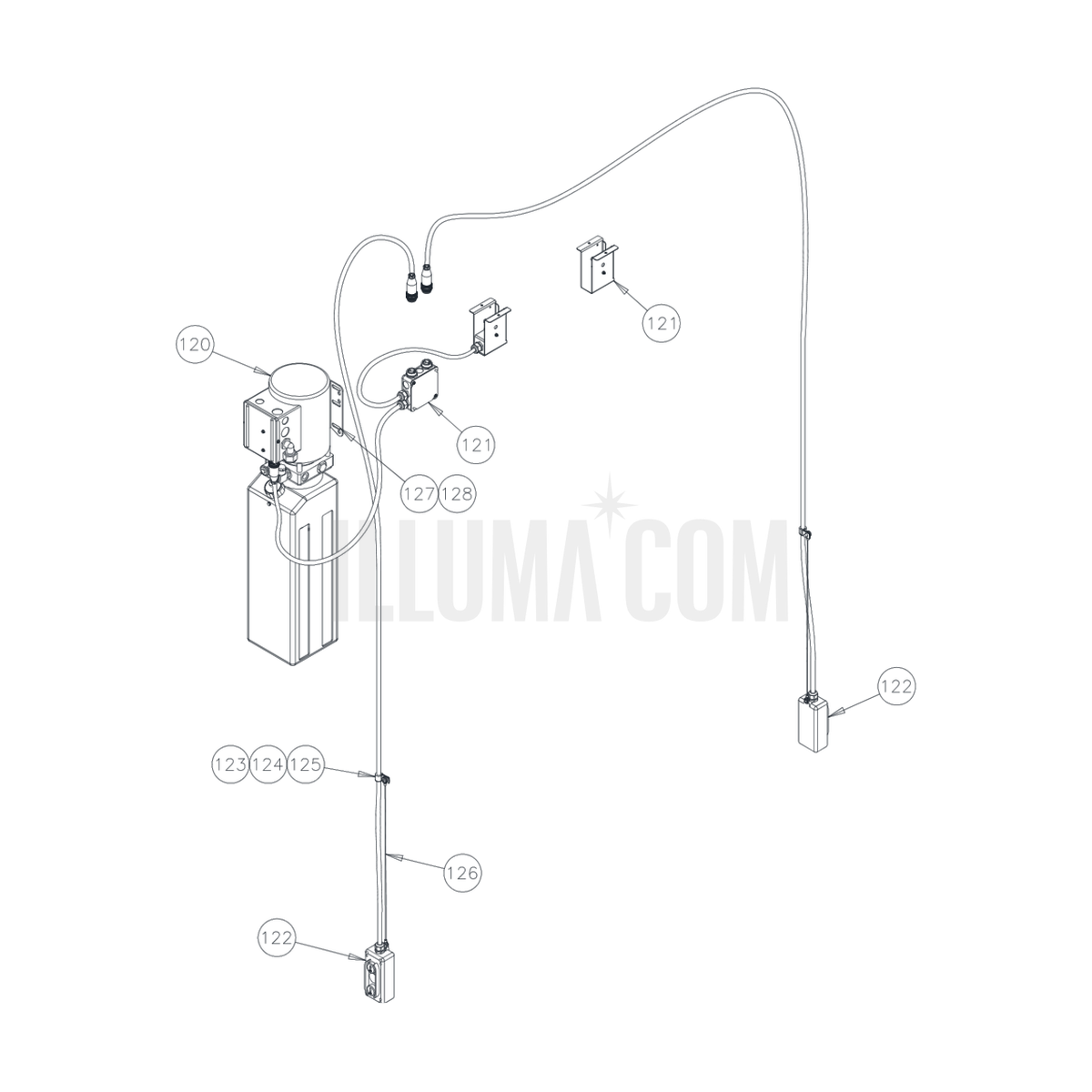

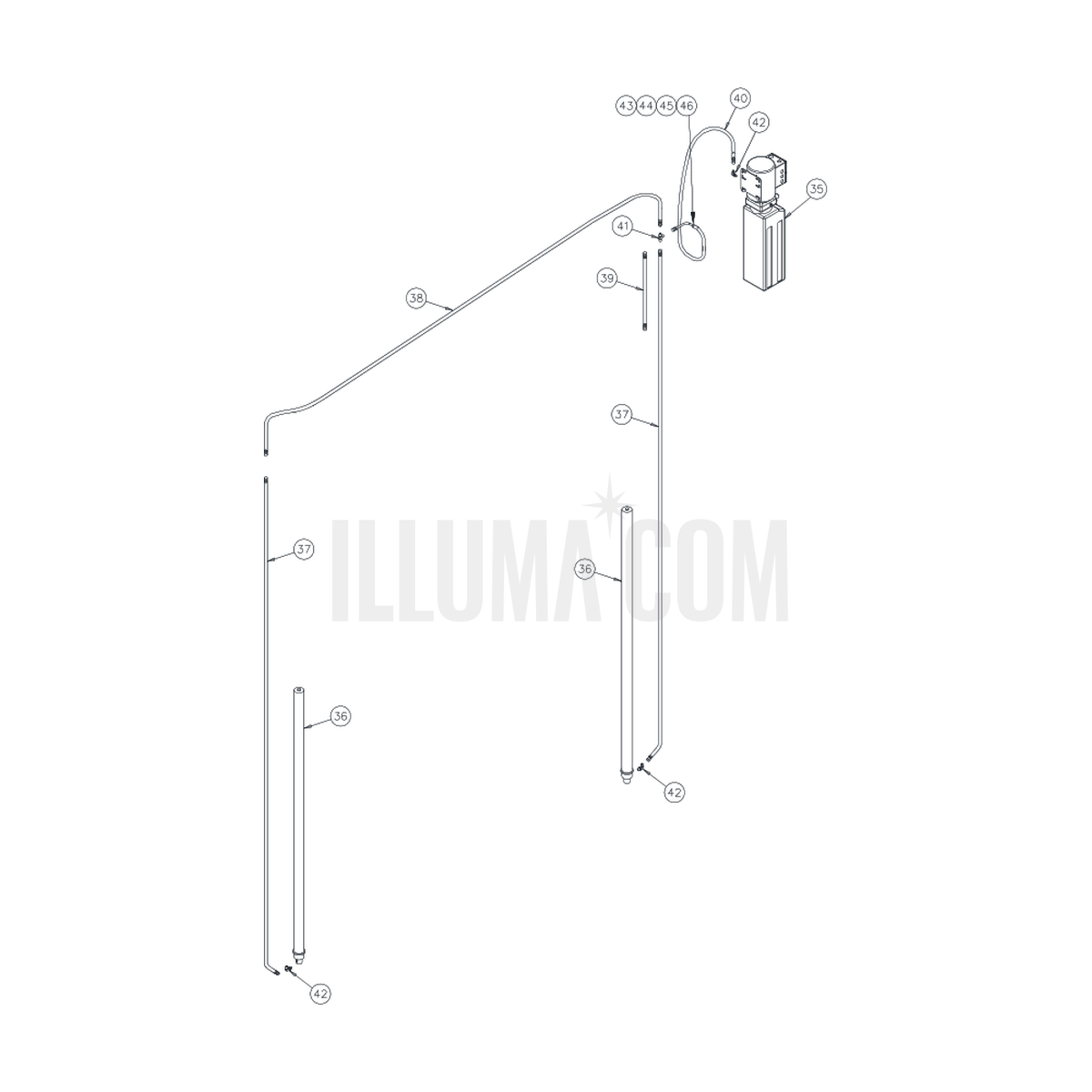

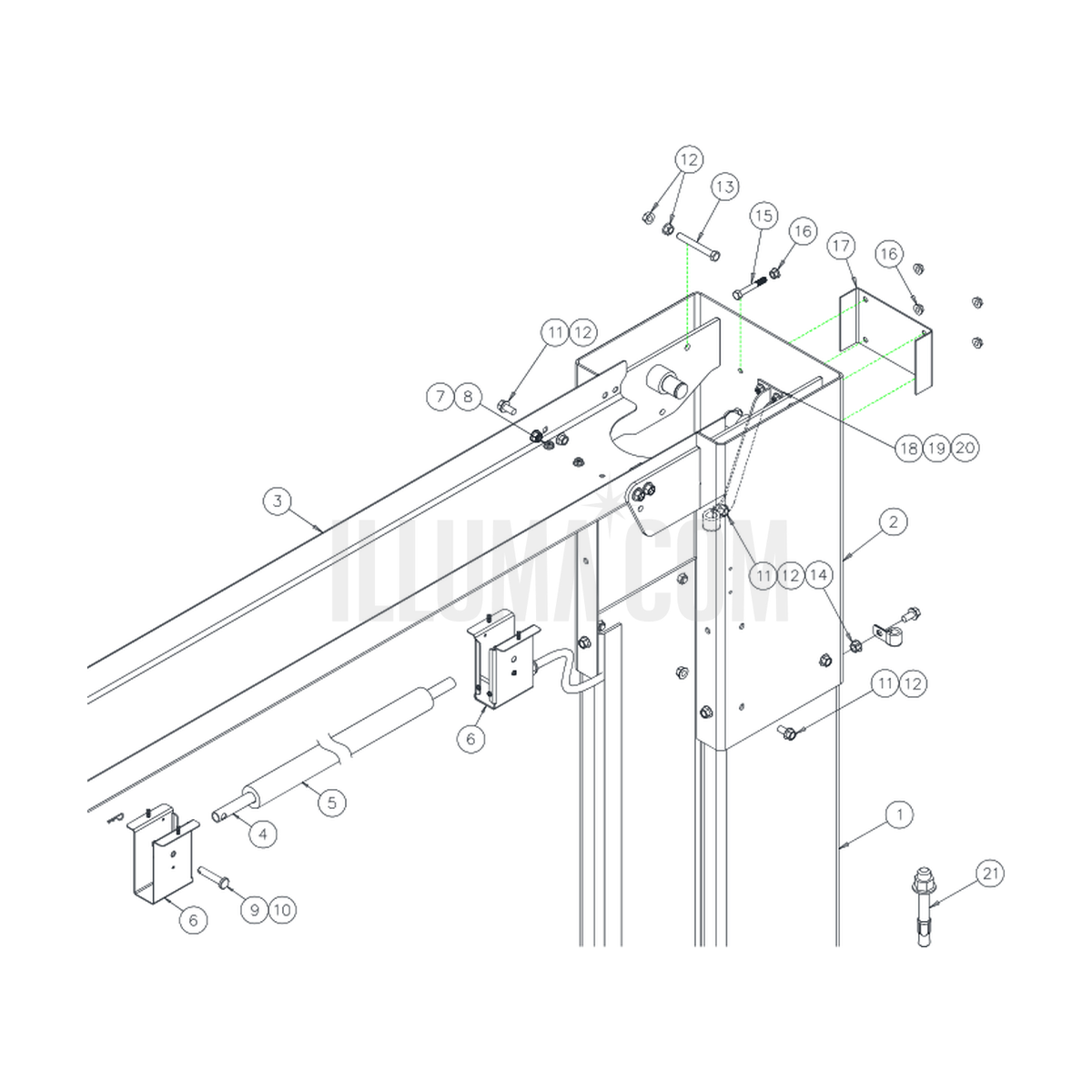

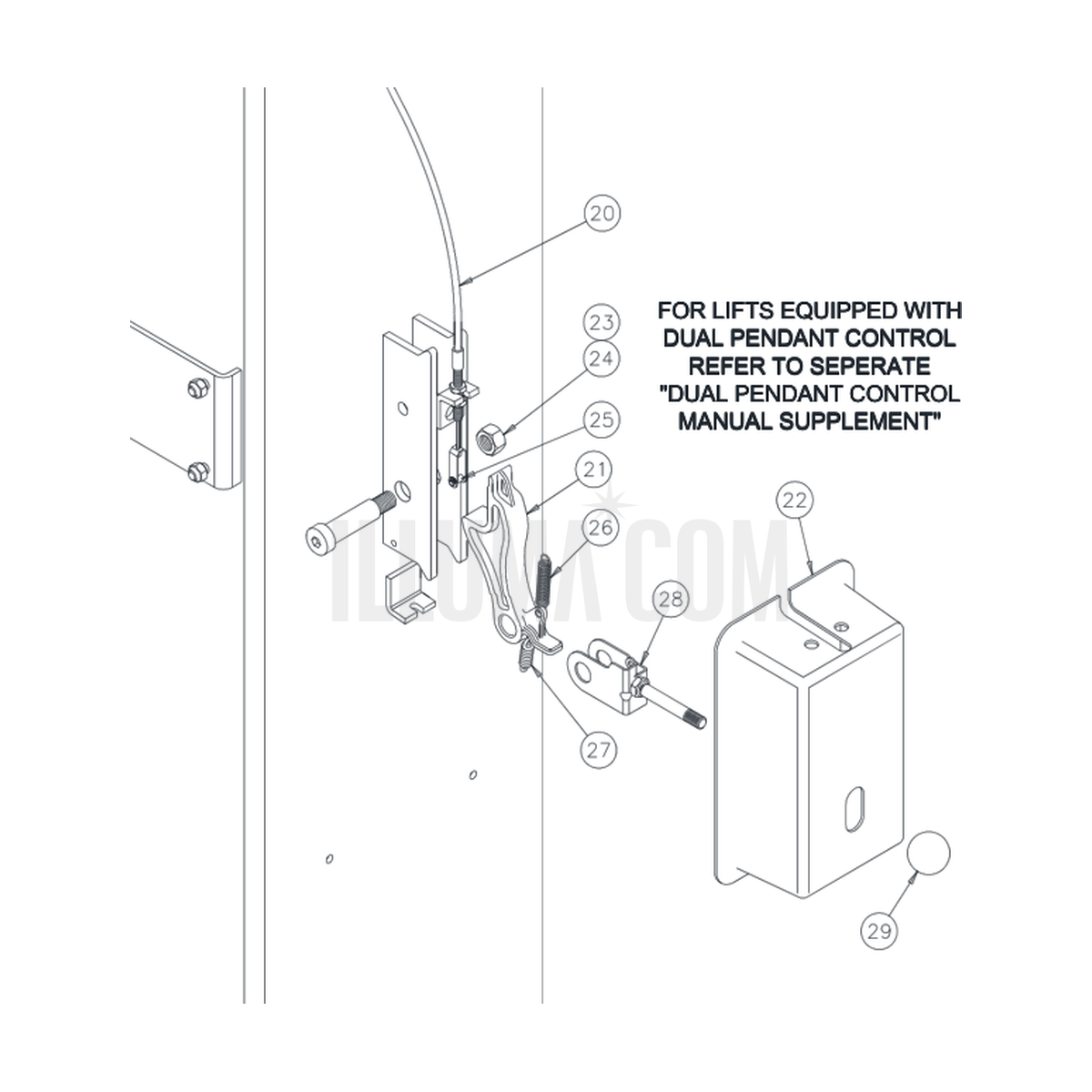

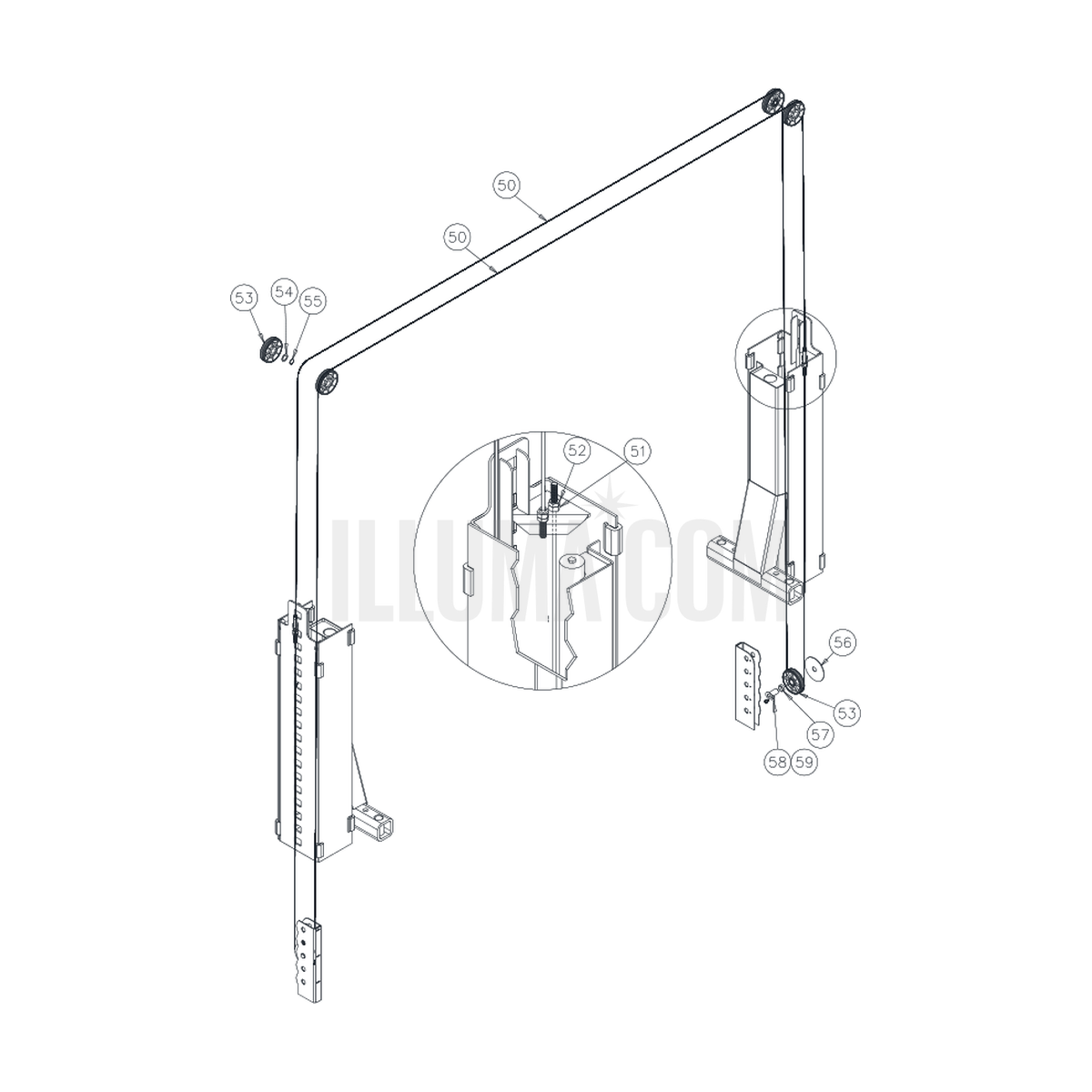

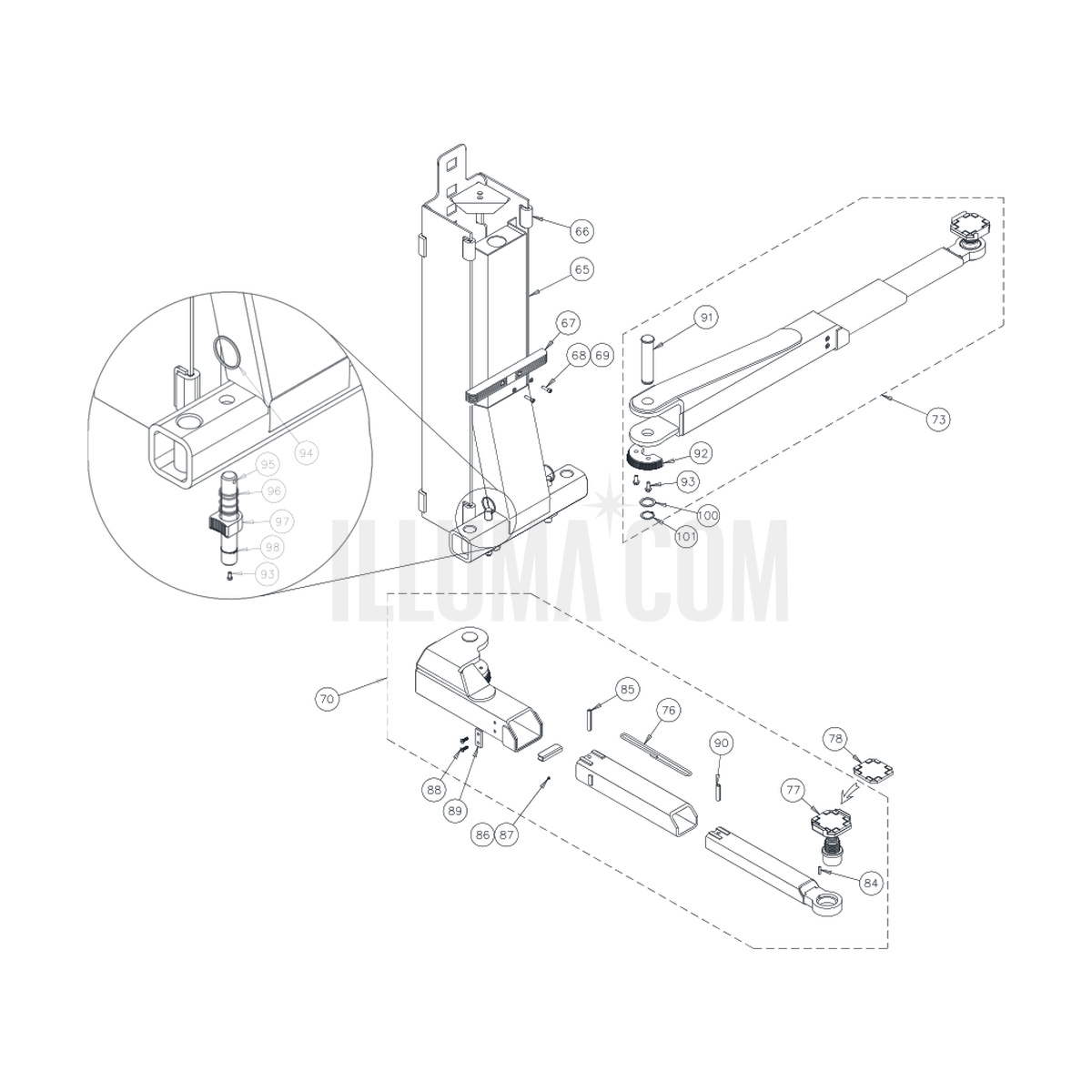

Illustrated Parts Lists

Click a diagram to see every part with clickable callouts — no PDFs.

All parts for this model

  • LOCK RELEASE CABLE ASSEMBLY - CL10A
    A2423-0
    LOCK RELEASE CABLE ASSEMBLY - CL10A
    Qty 1$144.88View
  • LOWER SHEAVE PIN
    A2411
    LOWER SHEAVE PIN
    Qty 1$105.32View
  • FRONT ARM ASSEMBLY (POWER)
    B2203S-PD
    FRONT ARM ASSEMBLY (POWER)
    Qty 1$982.69View
  • ARM PIN WELD
    B1078
    ARM PIN WELD
    Qty 1$28.33View
  • LOCK RELEASE CABLE ASSEMBLY - CL10A-3
    A2423-3
    LOCK RELEASE CABLE ASSEMBLY - CL10A-3
    Qty 1$73.29View
  • SYNCHRONIZER CABLE - CL10A-3
    A2421-3
    SYNCHRONIZER CABLE - CL10A-3
    Qty 1$324.07View
  • REAR ARM ASSY
    B2204SD
    REAR ARM ASSY
    Qty 1$1,481.10View
  • 3/8"-16 x 3/4" LG. HEX FLANGE BOLT
    A1153
    3/8"-16 x 3/4" LG. HEX FLANGE BOLT
    Qty 1$0.71View
  • 3 FT. HOSE EXTENSION (CL10A-3, LENGTH 36")
    39101-036
    3 FT. HOSE EXTENSION (CL10A-3, LENGTH 36")
    Qty 1$57.99View
  • 1/4"-20 x 3/4" LG. HEX FLANGE BOLT
    A2125
    1/4"-20 x 3/4" LG. HEX FLANGE BOLT
    Qty 1$0.64View
  • SHAFT
    A1073C
    SHAFT
    Qty 1$16.52View
  • 5/16"-18NC HEX FLANGE LOCKING NUT
    4100237
    5/16"-18NC HEX FLANGE LOCKING NUT
    Qty 1$0.27View
  • M10x25mm HEX FLANGE HEAD BOLT
    B1068
    M10x25mm HEX FLANGE HEAD BOLT
    Qty 1$1.87View
  • ROLL PIN, 6mm DIA x 30mm Lg
    B2211
    ROLL PIN, 6mm DIA x 30mm Lg
    Qty 1$0.75View
  • SMALL LOWER SPACER
    A2416
    SMALL LOWER SPACER
    Qty 1$24.47View
  • NYLON SPACER 1/4x1/4
    12748
    NYLON SPACER 1/4x1/4
    Qty 1$0.95View
  • M8 x 30 SOCKET HEAD CAP SCREW
    X10-088
    M8 x 30 SOCKET HEAD CAP SCREW
    Qty 1$1.64View
  • BALL HANDLE - Power side ONLY
    36096
    BALL HANDLE - Power side ONLY
    Qty 1$5.79View
  • LINE CLAMP
    31025
    LINE CLAMP
    Qty 1$0.56View
  • ROLL PIN, 12mm DIA x 60mm Lg
    B2202-01
    ROLL PIN, 12mm DIA x 60mm Lg
    Qty 1$6.13View
  • A
    A2418-2
    COLUMN EXTENSION WELD - CL10A-2
    Qty 1Not carried
  • LOCK PIN RETAINER (1/2-13NC HEX LOCK NUT)
    37013
    LOCK PIN RETAINER (1/2-13NC HEX LOCK NUT)
    Qty 1$0.38View
  • A
    A2418-0
    COLUMN EXTENSION WELD - CL10A
    Qty 1Not carried
  • FOOT PAD ASSEMBLY (items 72-77)
    B2270
    FOOT PAD ASSEMBLY (items 72-77)
    Qty 1$165.03View
  • 4
    41000342
    5/16-18 HEX FLANGE NUT X 1/2" Lg.
    Qty 1Not carried
  • OUTER GEAR
    A1072TC
    OUTER GEAR
    Qty 1$16.52View
  • SHEAVE ASSEMBLY (5" DIA. X 5/16" GROOVE)
    36025
    SHEAVE ASSEMBLY (5" DIA. X 5/16" GROOVE)
    Qty 1$19.86View
  • STOP BLOCK
    CS1020-04
    STOP BLOCK
    Qty 1$1.17View
  • CLEVIS PIN 10mm x 55 Lg.
    B2065-5
    CLEVIS PIN 10mm x 55 Lg.
    Qty 1$38.64View
  • POWER UNIT HOSE (STD LENGTH 73 1/2")
    A2127-PU
    POWER UNIT HOSE (STD LENGTH 73 1/2")
    Qty 1$144.45View
  • SLIDE BLOCK
    31023
    SLIDE BLOCK
    Qty 1$24.88View
  • RUBBER INSERT
    A1104-H
    RUBBER INSERT
    Qty 1$28.98View
  • HAIRPIN COTTER PIN
    GJY12-3
    HAIRPIN COTTER PIN
    Qty 1$5.26View
  • LANYARD STRAP ASSEMBLY (INCLUDING 3/8 PIN AND E-CLIP)
    A1206-10-20
    LANYARD STRAP ASSEMBLY (INCLUDING 3/8 PIN AND E-CLIP)
    Qty 1$33.97View
  • CABLE CLAMP, 1/2" I.D.
    A1122-9
    CABLE CLAMP, 1/2" I.D.
    Qty 1$2.30View
  • INNER GEAR (ARM RESTRAINT)
    A1070TC
    INNER GEAR (ARM RESTRAINT)
    Qty 1$61.41View
  • A
    A2418-3
    COLUMN EXTENSION WELD - CL10A-3
    Qty 1Not carried
  • JUNCTION BOX ASSEMBLY (INCLUDING OVERHEAD LIMIT SWITCH)
    A1208
    JUNCTION BOX ASSEMBLY (INCLUDING OVERHEAD LIMIT SWITCH)
    Qty 1$651.44View
  • STANDARD DPC POWER UNIT, 1ph, 60Hz, 208-240V
    A1207-19
    STANDARD DPC POWER UNIT, 1ph, 60Hz, 208-240V
    Qty 1$2,144.91View
  • 5/16"-18NC x 1 HEX FLANGE LOCKING HEAD CAP SCREW
    A1069
    5/16"-18NC x 1 HEX FLANGE LOCKING HEAD CAP SCREW
    Qty 1$0.39View
  • LOCK COVER
    A1133
    LOCK COVER
    Qty 1$7.33View
  • ROLL PIN, 12mm DIA x 80mm Lg
    B2202-02
    ROLL PIN, 12mm DIA x 80mm Lg
    Qty 1$6.13View
  • HOSE CLAMP
    A1122-12
    HOSE CLAMP
    Qty 1$1.64View
  • FRONT ARM ASSEMBLY (IDLER)
    B2203S-ID
    FRONT ARM ASSEMBLY (IDLER)
    Qty 1$956.70View
  • 38mm ID, 51mm OD WASHER
    B2203S-01D
    38mm ID, 51mm OD WASHER
    Qty 1$2.12View
  • RUBBER DOOR GUARD
    B2026-2
    RUBBER DOOR GUARD
    Qty 1$18.89View
  • LARGE LOWER SPACER
    A2415
    LARGE LOWER SPACER
    Qty 1$9.54View
  • 38mm EXTERNAL RETAINING RING
    B1083
    38mm EXTERNAL RETAINING RING
    Qty 1$1.87View
  • 1/4-20NC HEX FLANGE NUT
    40085
    1/4-20NC HEX FLANGE NUT
    Qty 1$0.46View
  • FEMALE ARM SHIM
    CS1020-03-01
    FEMALE ARM SHIM
    Qty 1$4.95View
  • M8 x 10mm Lg. FLAT HEAD BOLT
    17350
    M8 x 10mm Lg. FLAT HEAD BOLT
    Qty 1$2.88View
  • SHUTOFF BAR CUSHION
    31129
    SHUTOFF BAR CUSHION
    Qty 1$1.55View
  • IDLER COLUMN WELD
    A2406-I
    IDLER COLUMN WELD
    Qty 1$2,467.40View
  • OVERHEAD HOSE (STD. LENGTH 217")
    A2420
    OVERHEAD HOSE (STD. LENGTH 217")
    Qty 1$249.18View
  • CYLINDER (68" STROKE RAM), QUICK CYCLE
    16138R-QC
    CYLINDER (68" STROKE RAM), QUICK CYCLE
    Qty 1$1,719.77View
  • 5/8-11NC HEX JAM NUT
    A2117
    5/8-11NC HEX JAM NUT
    Qty 1$0.94View
  • 3
    37119
    CLEVIS PIN KIT
    Qty 1Not carried
  • HOSE SUPPORT TAB
    A2082
    HOSE SUPPORT TAB
    Qty 1$36.55View
  • 3/8"-16 HEX FLANGE NUT
    A1154
    3/8"-16 HEX FLANGE NUT
    Qty 1$0.30View
  • REPLACEMENT PENDANT ASSEMBLY
    A1206-10-IX
    REPLACEMENT PENDANT ASSEMBLY
    Qty 1$806.98View
  • LIMIT SWITCH PACKAGE (INCLUDES SWITCH w/ CORD, BOTH BRACKETS, & ITEMS 7-10)
    B2064-01
    LIMIT SWITCH PACKAGE (INCLUDES SWITCH w/ CORD, BOTH BRACKETS, & ITEMS 7-10)
    Qty 1$146.45View
  • 5/16 SPLIT LOCK WASHER
    31331
    5/16 SPLIT LOCK WASHER
    Qty 1$0.18View
  • DPC POWER UNIT BRACKET
    A2077
    DPC POWER UNIT BRACKET
    Qty 1$10.64View
  • M8 WASHER
    X10-087
    M8 WASHER
    Qty 1$0.24View
  • 1" EXT. RETAINING RING
    36014
    1" EXT. RETAINING RING
    Qty 1$0.38View
  • SYNCHRONIZER CABLE - CL10A
    A2421-0
    SYNCHRONIZER CABLE - CL10A
    Qty 1$287.79View
  • 1" I.D. SPACER WASHER
    36013
    1" I.D. SPACER WASHER
    Qty 1$0.75View
  • STOP LOOP
    CS1020-05
    STOP LOOP
    Qty 1$5.18View
  • POWER HOSE (STD. LENGTH 126")
    A2127-57P
    POWER HOSE (STD. LENGTH 126")
    Qty 1$112.12View
  • LOCK PAWL
    B1140
    LOCK PAWL
    Qty 1$21.25View
  • ARM RESTRAINT SHAFT ASSEMBLY (items 93-98)
    A1077TC
    ARM RESTRAINT SHAFT ASSEMBLY (items 93-98)
    Qty 1$66.16View
  • CARRIAGE WELD (57" LADDER)
    B2026-57
    CARRIAGE WELD (57" LADDER)
    Qty 1$1,658.50View
  • 2 FT. HOSE EXTENSION (CL10A-2, LENGTH 24")
    39101-024
    2 FT. HOSE EXTENSION (CL10A-2, LENGTH 24")
    Qty 1$56.06View
  • HYD. TEE
    39103
    HYD. TEE
    Qty 1$7.33View
  • 5/16-18x3/8 Lg Phillip Pan Hd. Screw
    10335
    5/16-18x3/8 Lg Phillip Pan Hd. Screw
    Qty 1$0.61View
  • LOCK RELEASE CABLE ASSEMBLY - CL10A-2
    A2423-2
    LOCK RELEASE CABLE ASSEMBLY - CL10A-2
    Qty 1$185.13View
  • SHUTOFF BAR
    A2067
    SHUTOFF BAR
    Qty 1$70.27View
  • LOCK SPRING (3/8" O.D.)
    A1131
    LOCK SPRING (3/8" O.D.)
    Qty 1$1.72View
  • COMPRESSION SPRING
    31109
    COMPRESSION SPRING
    Qty 1$0.75View
  • LOCK PIN (5/8 x 1 1/2" Lg. SHOULDER BOLT)
    30020
    LOCK PIN (5/8 x 1 1/2" Lg. SHOULDER BOLT)
    Qty 1$9.08View
  • 5/8-11NC HEX NUT
    A2116
    5/8-11NC HEX NUT
    Qty 1$3.29View
  • OVERHEAD CHANNEL
    A2060
    OVERHEAD CHANNEL
    Qty 1$361.48View
  • CABLE SPRING (1/2" O.D.) - Idler side ONLY
    A1132
    CABLE SPRING (1/2" O.D.) - Idler side ONLY
    Qty 1$2.69View
  • M6 SERRATED FLANGE HEX NUT
    B2065-4
    M6 SERRATED FLANGE HEX NUT
    Qty 1$1.15View
  • 5/16-18 NUT
    31189
    5/16-18 NUT
    Qty 1$0.58View
  • PULL RING
    A1075
    PULL RING
    Qty 1$5.65View
  • M6 x 14mm PHILLIPS PAN HEAD SCREW
    B2065-3
    M6 x 14mm PHILLIPS PAN HEAD SCREW
    Qty 1$0.66View
  • QUICK CYCLE DPC POWER UNIT, 1ph, 60Hz, 208-240V
    AB-10397
    QUICK CYCLE DPC POWER UNIT, 1ph, 60Hz, 208-240V
    Qty 1$3,267.22View
  • LOCK RELEASE CLEVIS ASSEMBLY - Power side ONLY
    A1141
    LOCK RELEASE CLEVIS ASSEMBLY - Power side ONLY
    Qty 1$34.68View
  • SYNCHRONIZER CABLE - CL10A-2
    A2421-2
    SYNCHRONIZER CABLE - CL10A-2
    Qty 1$312.12View
  • HYD ELBOW, 9/16 O-RING MALE TO #6 MALE FLARE
    16167
    HYD ELBOW, 9/16 O-RING MALE TO #6 MALE FLARE
    Qty 1$9.74View
  • ANCHOR BOLT, 3/4 x 5 1/2"
    31058
    ANCHOR BOLT, 3/4 x 5 1/2"
    Qty 1$10.86View
  • M6 x 1mm x 6mm Lg. SELF LOCKING SET SCREW
    CS1020-03-02
    M6 x 1mm x 6mm Lg. SELF LOCKING SET SCREW
    Qty 1$0.30View
  • 5/16-18 x 2 1/4" HEX BOLT PARTIALLY THREADED
    31190
    5/16-18 x 2 1/4" HEX BOLT PARTIALLY THREADED
    Qty 1$1.58View
  • 3/8"-16NC x 3" Lg. HEX HEAD CAP SCREW
    A2159
    3/8"-16NC x 3" Lg. HEX HEAD CAP SCREW
    Qty 1$0.97View
