4P14-FX

Illustrated Parts Lists

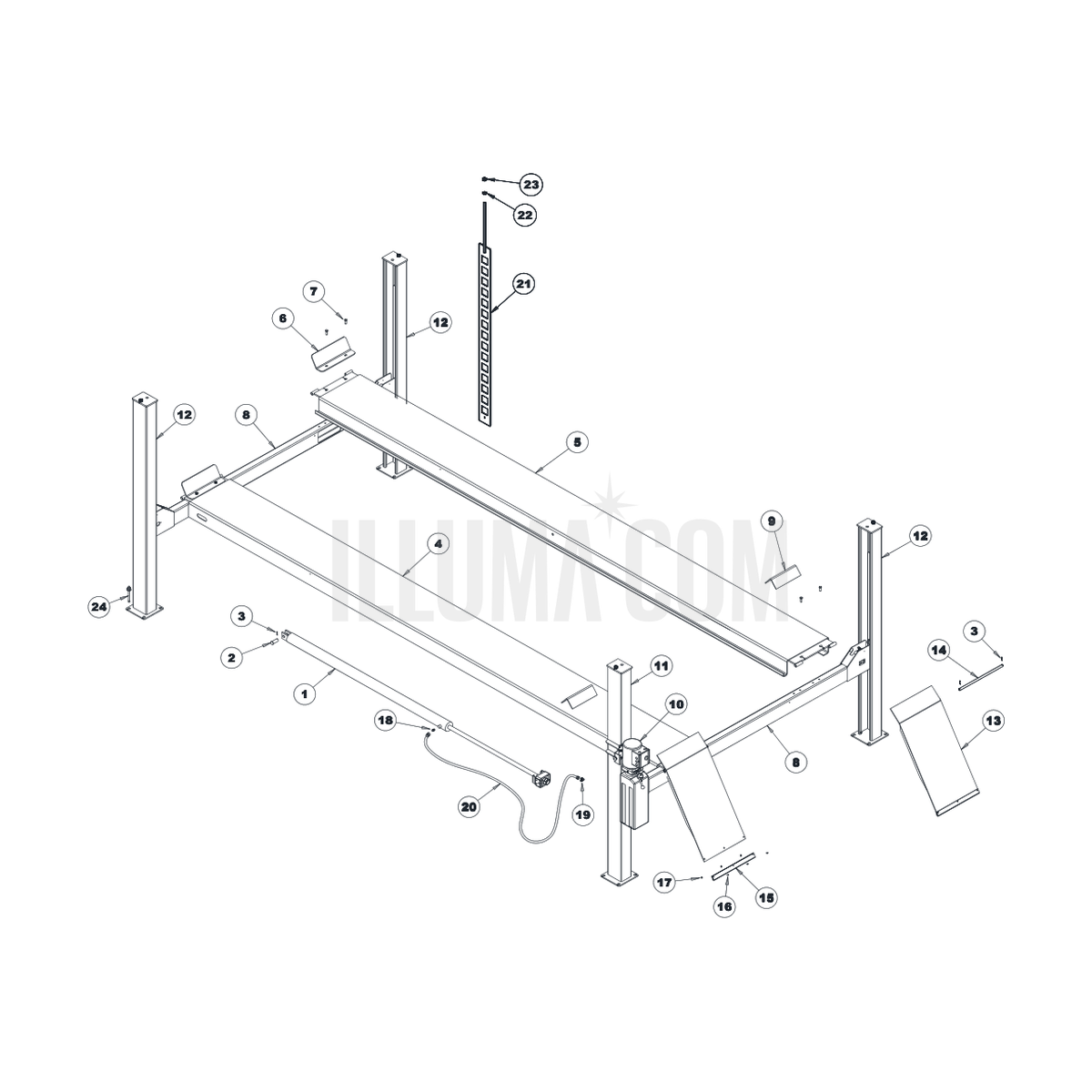

Click a diagram to see every part with clickable callouts — no PDFs.

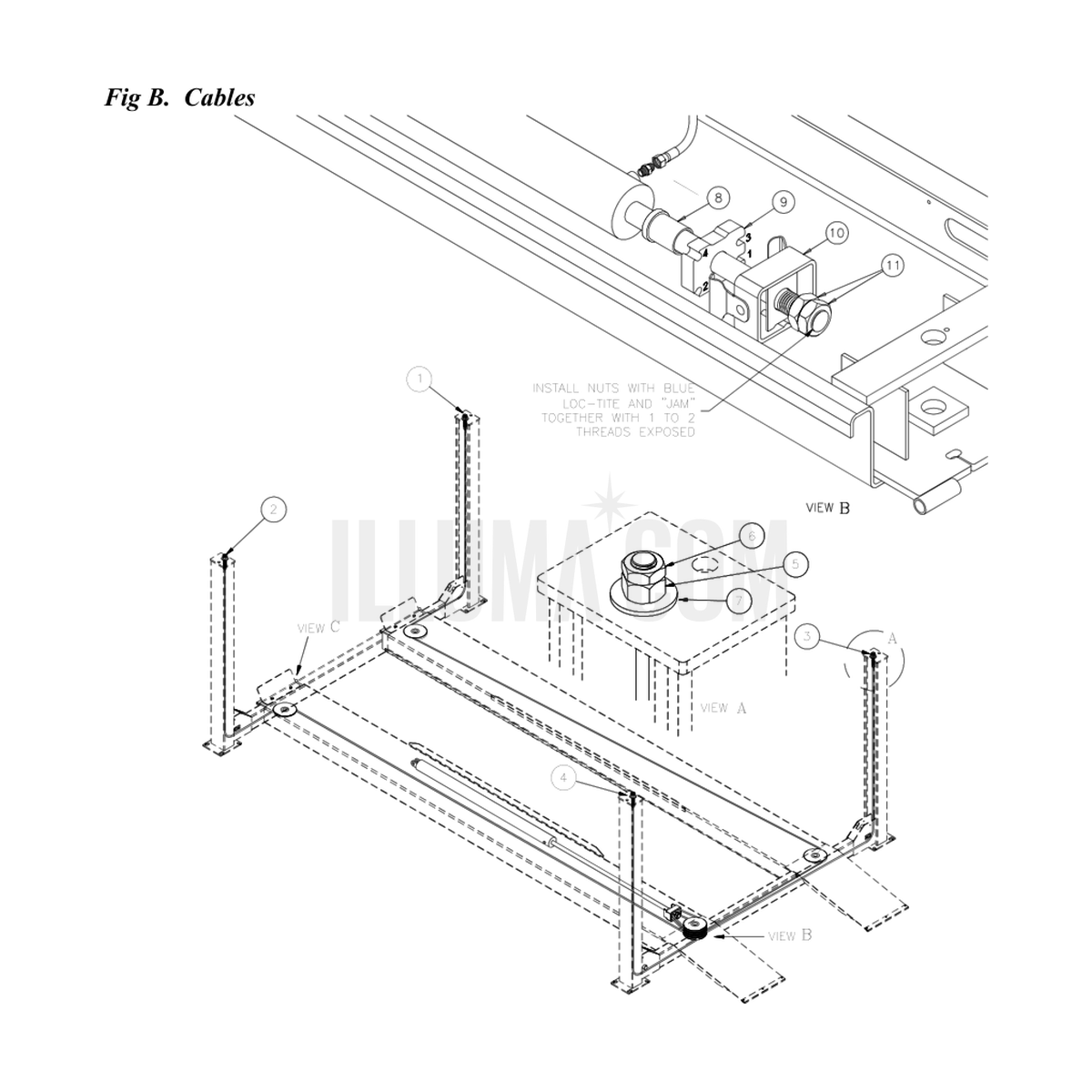

JZQ7-09-04
LEFT REAR CABLE #4
Qty 1$127.55View
B31188
M8 x 16mm Lg. HEX LOCKING FLG. HD. CAP SCREW
Qty 1$0.47View
B40137
RETAINING RING
Qty 1$0.23View
B
B40135
ROLLER
Qty 1Not carried
B40129
M20 HEX NUT
Qty 1$3.86View
B40116
SHEAVE PIN (CROSS BEAM)
Qty 1$34.48View
JZQ7A-08-01-00
FLAT DECK IDLER RUNWAY (4P14X)
Qty 1$1,929.14View
JZQ7-09-03
RIGHT REAR CABLE #3
Qty 1$155.91View
JZQ7A-09-02
LEFT FRONT CABLE #2 (4P14X)
Qty 1$242.05View
B40139
EXTENSION SPRING
Qty 1$0.94View
B37032
4mm UNION TEE
Qty 1$9.77View
AD-9367
POWER UNIT 3 PHASE, 230/460VAC
Qty 1$1,659.23View
B40144
M6 HEX JAM NUT
Qty 1$0.23View
JZQ7-08-01-00
FLAT DECK IDLER RUNWAY (4P14E)
Qty 1$1,813.34View
B40445
4mm STRAIGHT UNION
Qty 1$7.20View
B44011
HYDRAULIC CYLINDER
Qty 1$1,386.61View
B44015
M27 JAM NUT
Qty 1$2.12View
B37019
1/8" NPTM x 4mm PUSH-LOCK 90 DEGREE ELBOW
Qty 1$16.66View
B40131
PRIMARY LOCK PAWL
Qty 1$4.72View
40085
1/4-20NC HEX FLANGE NUT
Qty 1$0.46View
B
B40165
RAMP HINGE PIN
Qty 1Not carried
31058
ANCHOR BOLT, 3/4 x 5 1/2"
Qty 1$10.86View
JZQ7A-07-01-00
FLAT DECK POWER RUNWAY (4P14X)
Qty 1$1,498.38View

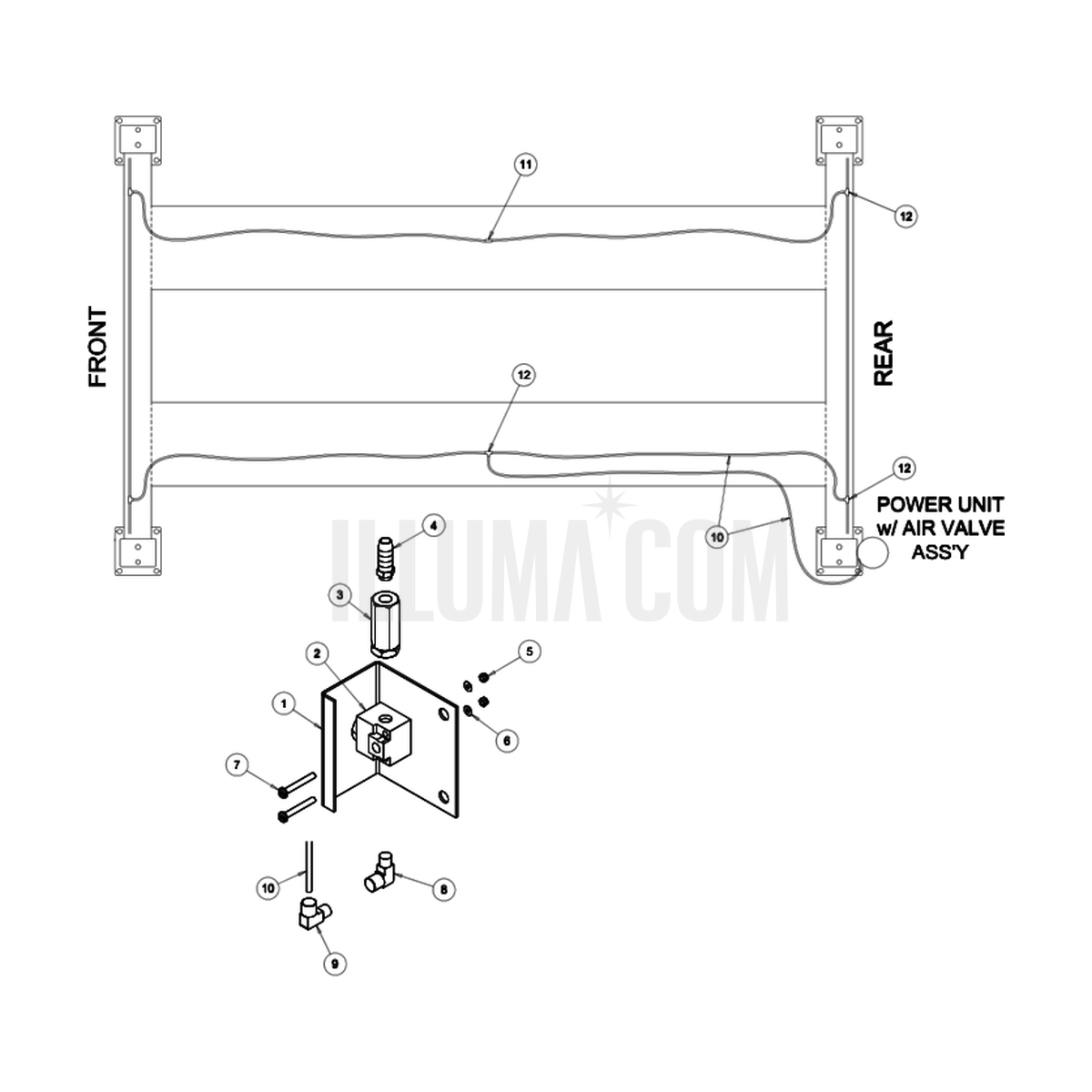

CL37015
BUTTON VALVE BRACKET
Qty 1$13.52View
40124
HAIR PIN COTTER PIN
Qty 1$0.27View
B
B40449-I
IDLER COLUMN ASSEMBLY
Qty 1Not carried
40148
7/8-9 HEX JAM NUT
Qty 1$1.47View
B40123
CLEVIS PIN
Qty 1$0.24View
37016
AIR VALVE
Qty 1$102.45View
B40126
1/8 x 1 1/2" Lg. COTTER PIN
Qty 1$0.23View
B
B40449-P
POWER COLUMN ASSEMBLY
Qty 1Not carried
B40130
M20 HEX JAM NUT
Qty 1$1.64View
37022
#8-32 x 1 1/4" Lg. PAN HD. SCREW
Qty 1$0.38View
B
B00901
4mm DIA. PLASTIC AIR LINE (60 ft.)
Qty 1Not carried
JZQ7-07-01-00
FLAT DECK POWER RUNWAY (4P14E)
Qty 1$1,821.76View
B40467
NUT, M6
Qty 1$0.24View
40265
WHEEL CHOCK
Qty 1$98.04View
B40083
M12 x 35mm Lg. HEX FLG. HD. CAP SCREW
Qty 1$2.02View

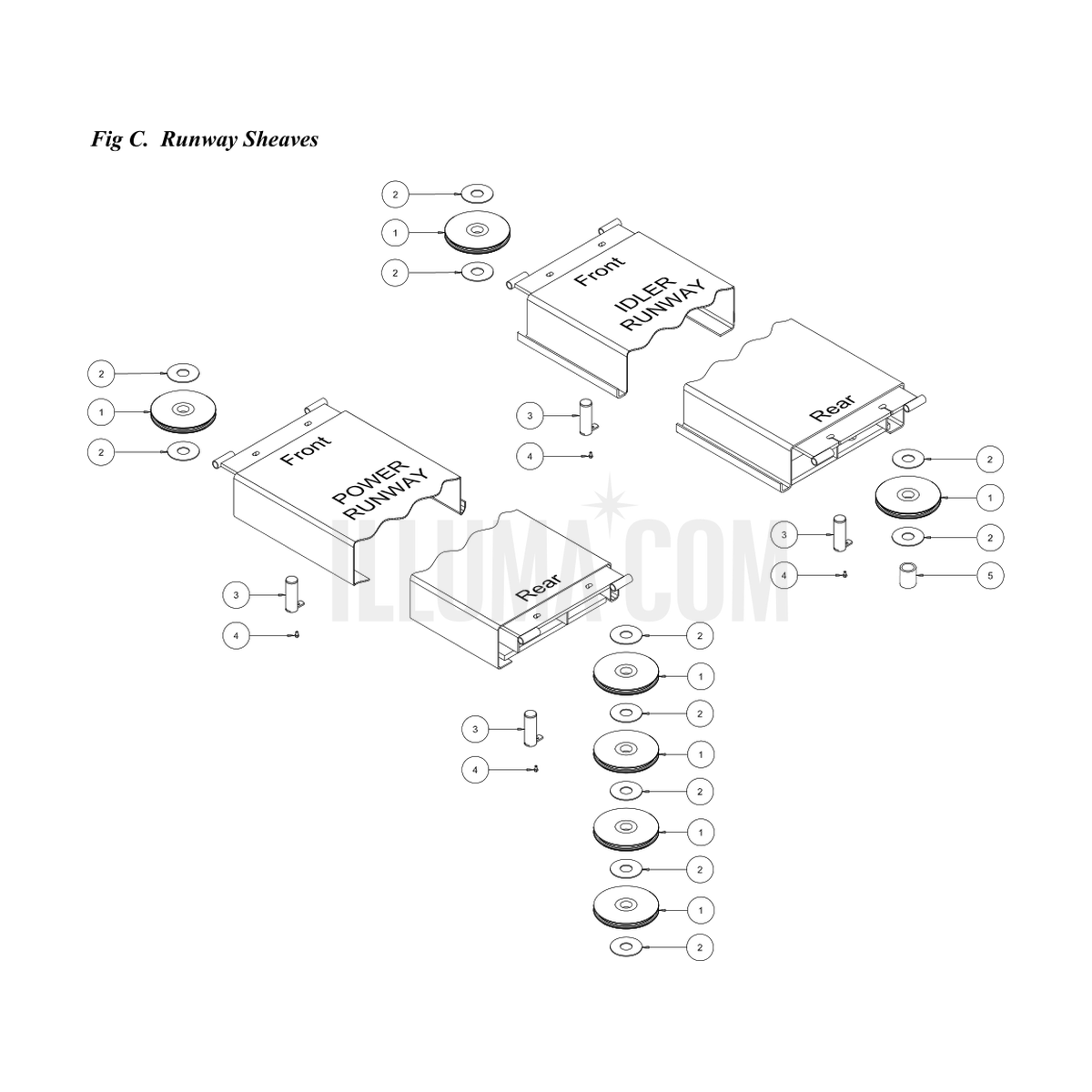

B40650
SHEAVE
Qty 1$238.58View
B40474
CABLE RETAINER WELD
Qty 1$11.10View
B40128
19mm WASHER
Qty 1$0.23View
B
B40266
WHEEL STOP
Qty 1Not carried
JZQ7-04-02
SHEAVE GUARD
Qty 1$2.81View
40392-01-00
CYLINDER ROD SPACER, STEPPED, 2 3/8"
Qty 1$8.02View
B40473
CABLE PULL BAR
Qty 1$18.89View
B40452
LADDER WELD
Qty 1$371.58View
40091
IN-LINE AIR FILTER
Qty 1$40.58View
40120
1/4-20NC x 1/2" Lg. SELF TAPPING SCREW
Qty 1$0.27View
CL40149
7/8 FLAT WASHER
Qty 1$0.56View
JZQ7-09-01
RIGHT FRONT CABLE #1 (4P14E)
Qty 1$235.62View
40438-X
SHEAVE SPACER BUSHING
Qty 1$9.65View
B40134
SLACK CABLE LATCH
Qty 1$7.78View
40118
SLIDE BLOCK
Qty 1$46.39View
CL37024
#8 LOCK WASHER
Qty 1$0.18View
A2128
45 DEGREE ADAPTER ELBOW - MALE #6 O-RING x MALE #6 JIC 37 deg
Qty 1$11.60View
B40127
LOCK PIVOT PIN
Qty 1$3.08View

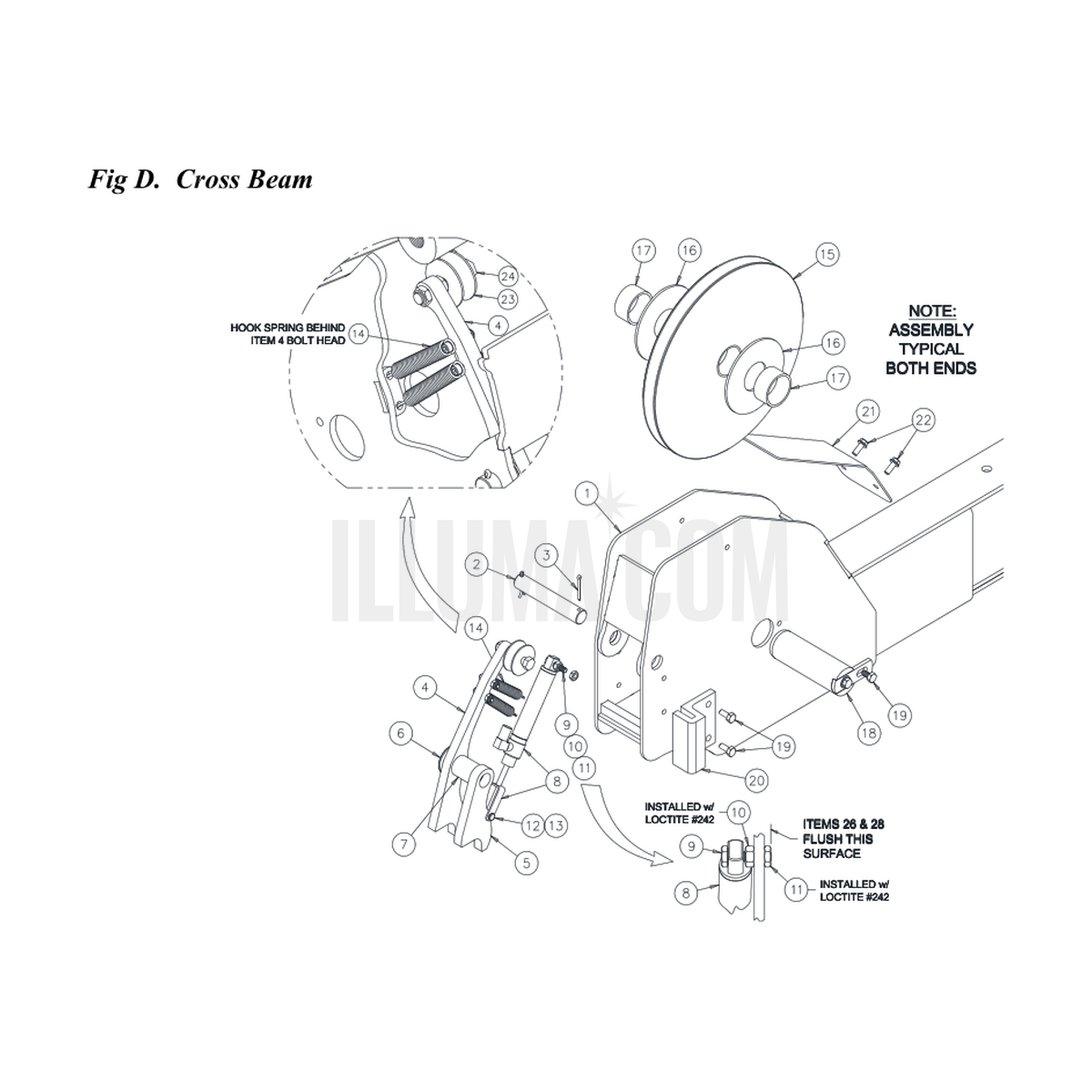

JZQ7-04-01-00
CROSSBEAM WELD
Qty 1$875.40View
B40132
SPACER BUSHING
Qty 1$1.41View
JZQ7-09-02
LEFT FRONT CABLE #2 (4P14E)
Qty 1$243.81View
40147
7/8-9 HEX NUT
Qty 1$1.55View
JZQ7A-09-01
RIGHT FRONT CABLE #1 (4P14X)
Qty 1$320.93View
B40141
AIR CYLINDER ASSEMBLY
Qty 1$113.37View
31062
1/4-20NC x 3/4" Lg. PAN HEAD SCREW
Qty 1$0.58View
37020
1/8" NPT STREET ELBOW
Qty 1$8.83View
40168
RAMP SLIDE
Qty 1$50.25View
B
B40349
HYDRAULIC HOSE - FEMALE #6 J.I.C. BOTH ENDS
Qty 1Not carried
B40466
M6 x 28mm Lg HEX HEAD BOLT
Qty 1$0.23View
37023
#8-32 HEX NUT
Qty 1$0.18View
B40161
ENTRANCE RAMP
Qty 1$354.31View
B40055
SHEAVE PIN (RUNWAY)
Qty 1$50.94View
JZQ7-04-00
CROSS BEAM ASSEMBLY
Qty 1$1,129.12View
B40082
CLEVIS PIN
Qty 1$2.49View
40053
1/8" THICK BEARING
Qty 1$6.56View
37021
HOSE BARB
Qty 1$6.08View
AB-9367-DLH
POWER UNIT, 230v, SINGLE PHASE, 50/60Hz
Qty 1$1,006.39View
16167
HYD ELBOW, 9/16 O-RING MALE TO #6 MALE FLARE
Qty 1$9.74View
B40438-R
RUNWAY SHEAVE SPACER, 2 1/8"
Qty 1$47.31View
