Illustrated Parts Lists

Click a diagram to see every part with clickable callouts — no PDFs.

All parts for this model

  • 5/32 ID Push-On Union Tee
    SPE-25
    5/32 ID Push-On Union Tee
    Qty 1$28.98View
  • 9
    91102A040
    1 1/4 LOCK WASHER
    Qty 1Not carried
  • A
    ALIF-440-061
    MS CROSS RAIL PIN
    Qty 1Not carried
  • 1
    1U571
    3/8NPT Breather Plug
    Qty 1Not carried
  • 5
    5406-08P
    1/2MNPT PLUG
    Qty 1Not carried
  • 2
    2406-12-08
    3/4FJIC x 1/2MNPT Straight Adapter
    Qty 1Not carried
  • Bottom Panel Cover
    ALIF-440-112-XX
    Bottom Panel Cover
    Qty 1$5,696.28View
  • 1 1/16 CLEVIS
    6498K43
    1 1/16 CLEVIS
    Qty 1$34.79View

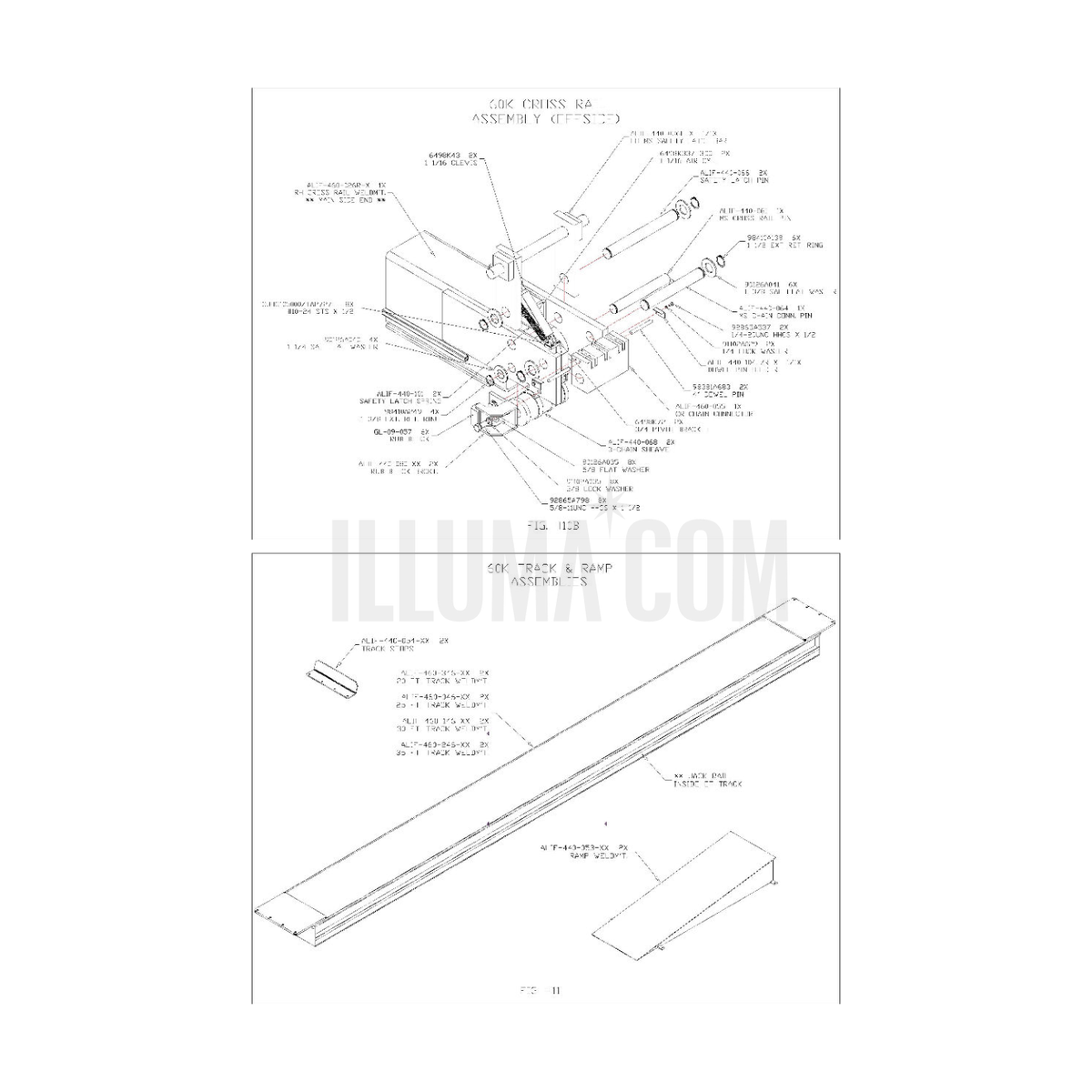

  • 25 FT. TRACK WELDM'T.
    ALIF-460-046-XX
    25 FT. TRACK WELDM'T.
    Qty 1$30,787.25View
  • 5
    5406-04P
    1/4NPT Plug
    Qty 1Not carried
  • 6
    6410-10-06
    5/8MORB x 3/8FORB Straight Reducer
    Qty 1Not carried

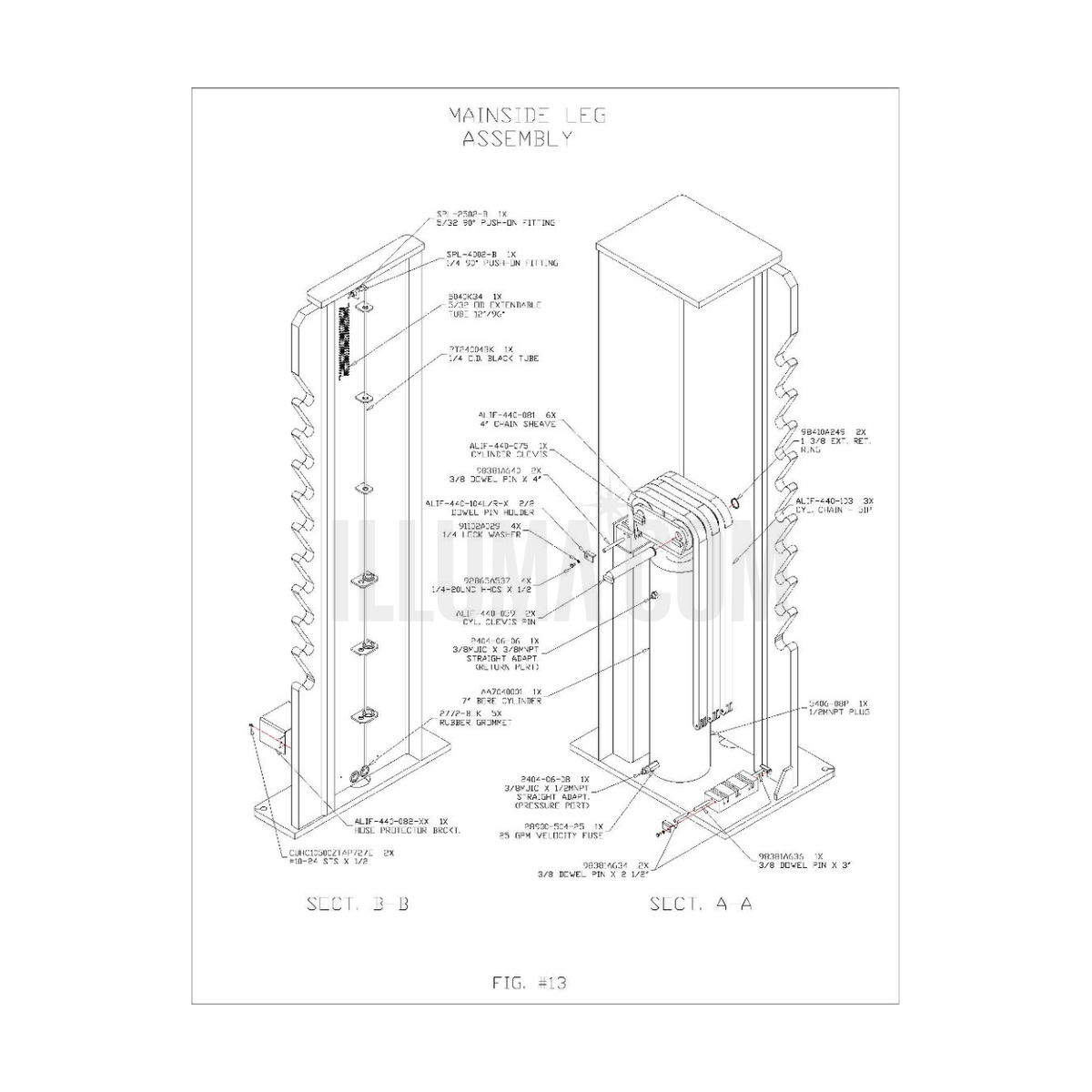

  • A
    ALIF-460-015R-X
    RH Main Side Leg Weldm't.
    Qty 1Not carried
  • 9
    98381A636
    3/8 DOWEL PIN X 3"
    Qty 1Not carried
  • G
    GL-09-112
    1/4" Steel Shims
    Qty 1Not carried
  • A
    ALIF-440-066
    SAFETY LATCH PIN
    Qty 1Not carried
  • 9
    91578A502
    3/4-10UNC x 7 Wedge Anchor w/nut & washer
    Qty 1Not carried
  • A
    ALIF-460-103
    Cylinder Chain
    Qty 1Not carried
  • 2
    2404-08-12
    1/2MJIC x 3/4MNPT Straight Adapter
    Qty 1Not carried
  • 4
    4272731
    Hydraulic Pressure Gage
    Qty 1Not carried
  • C
    CUHC10500ZTAP727E
    #10-24 STS x 1/2
    Qty 1Not carried
  • 9
    91102A007
    #6 Lock Washer
    Qty 1Not carried
  • 5
    5485K22
    1/4NPT Brass Nipple
    Qty 1Not carried
  • S
    SPB-4002-B
    1/4 ID x 1/4MNPT Push-On Branch Tee
    Qty 1Not carried
  • 9
    91247A847
    3/4-10UNC x 3 Lg. HHCS Grd. 5
    Qty 1Not carried
  • 3/8-16UNC SHCS x 7/8
    91251A623
    3/8-16UNC SHCS x 7/8
    Qty 1$3.90View
  • 9
    92865A537
    1/4-20UNC HHCS x 1/2
    Qty 1Not carried
  • A
    ALIF-460-081
    4 3/4" Chain Sheave
    Qty 1Not carried
  • 1 3/8 EXT. RET. RING
    98410A249
    1 3/8 EXT. RET. RING
    Qty 1$2.37View
  • 2
    2405-06-04
    3/8MJIC x 1/4FNPT Straight Adapter
    Qty 1Not carried
  • 20 FT. TRACK WELDM'T.
    ALIF-460-346-XX
    20 FT. TRACK WELDM'T.
    Qty 1$27,519.33View
  • A
    ALIF-440-037L/R-X
    OS Safety Latch Bar
    Qty 1Not carried
  • 9
    98381A634
    3/8 DOWEL PIN X 2 1/2"
    Qty 1Not carried
  • 9
    95615A160
    5/16-18UNC NYLON HEX NUT
    Qty 1Not carried
  • 30' Hose Protector Ext. Weldm't.
    ALIF-440-096-XX
    30' Hose Protector Ext. Weldm't.
    Qty 1$465.96View
  • A
    ALIF-440-098-XX
    25' Hose Protector Weldm't.
    Qty 1Not carried
  • W
    WAJ25
    25K Air Roller Jack
    Qty 1Not carried
  • A
    ALIF-440-036L/R-X
    MS Safety Latch Bar
    Qty 1Not carried
  • A
    ALIF-460-246-XX
    35 FT. TRACK WELDM'T.
    Qty 1Not carried
  • 9
    91578A304
    1/2-13UNC x 4 1/2 Wedge Anchor w/nut & washer
    Qty 1Not carried
  • 4
    47865K21
    1/4NPT Brass Ball Valve
    Qty 1Not carried
  • P
    PT24004BK
    1/4 O.D. BLACK TUBE
    Qty 1Not carried
  • 3-CHAIN SHEAVE
    ALIF-440-068
    3-CHAIN SHEAVE
    Qty 1$2,493.96View
  • 9
    91102A011
    #10 Lock Washer
    Qty 1Not carried
  • CROSS RAIL CHAINS
    ALIF-440-102
    CROSS RAIL CHAINS
    Qty 1$2,932.90View
  • 1 1/16 AIR CYL.
    6498K337-3.00
    1 1/16 AIR CYL.
    Qty 1$487.90View
  • 9
    91309A624
    3/8-16UNC HHCS x 1 Lg.
    Qty 1Not carried
  • RUB BLOCK BRCKT.
    ALIF-440-079-XX
    RUB BLOCK BRCKT.
    Qty 1$835.92View
  • 9
    90480A011
    #10-24 Mach. Screw Nut
    Qty 1Not carried
  • RUB BLOCK BRCKT.
    ALIF-440-080-XX
    RUB BLOCK BRCKT.
    Qty 1$884.77View
  • 3/4 Flat Washer
    90126A036
    3/4 Flat Washer
    Qty 1$1.53View
  • 5/16 LOCK WASHER
    91102A030
    5/16 LOCK WASHER
    Qty 1$0.18View
  • A
    ALIF-440-398-XX
    20' Hose Protector Weldm't.
    Qty 1Not carried
  • TOP PANEL COVER
    ALIF-440-106-XX
    TOP PANEL COVER
    Qty 1$490.90View
  • SAFETY LATCH SPRING
    ALIF-440-100
    SAFETY LATCH SPRING
    Qty 1$69.59View
  • 3/8 ID x 1/4MNPT Push-On Straight
    SPC-6002
    3/8 ID x 1/4MNPT Push-On Straight
    Qty 1$17.02View
  • 9
    90126A040
    1 1/4 SAE FLAT WASHER
    Qty 1Not carried
  • A
    ALIF-460-015L-X
    LH Main Side Leg Weldm't.
    Qty 1Not carried
  • 9
    90126A035
    5/8 FLAT WASHER
    Qty 1Not carried

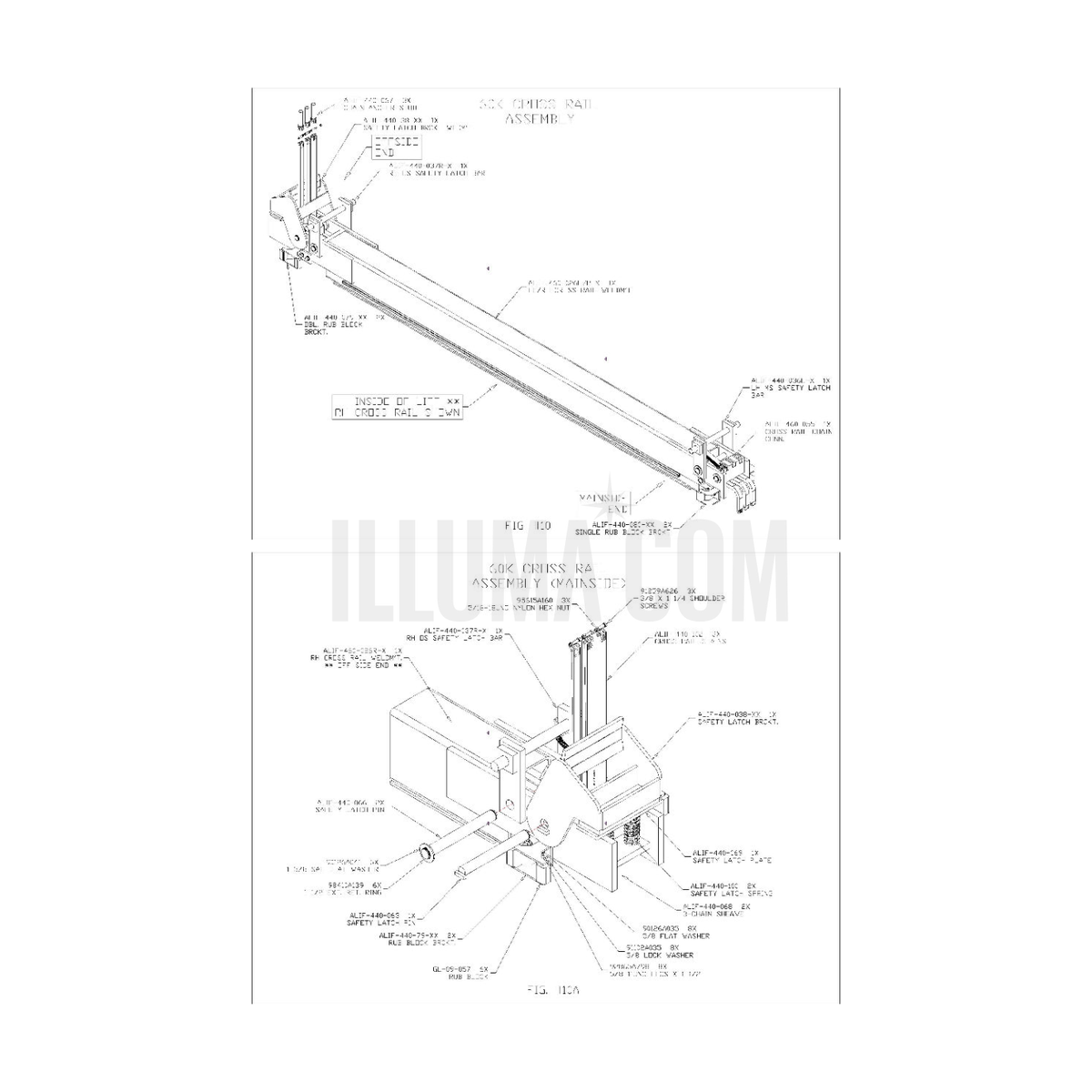

  • A
    ALIF-460-026L-XX
    LH Cross Rail Weldm't.
    Qty 1Not carried
  • SAFETY LATCH SPRING
    ALIF-440-101
    SAFETY LATCH SPRING
    Qty 1$69.79View
  • P
    P23
    50/50 Flow Divider
    Qty 1Not carried
  • A
    A0-120-T3-J-S
    Tandem Center Spool Valve
    Qty 1Not carried
  • 5/32 OD EXTENDABLE TUBE 12"/96"
    5040K34
    5/32 OD EXTENDABLE TUBE 12"/96"
    Qty 1$50.25View
  • A
    ALIF-440-071
    SAFETY ROD
    Qty 1Not carried
  • 9
    90126A041
    1 3/8 SAE FLAT WASHER
    Qty 1Not carried
  • A
    ALIF-460-146-XX
    30 FT. TRACK WELDM'T.
    Qty 1Not carried
  • A
    ALIF-440-063
    SAFETY LATCH PIN
    Qty 1Not carried
  • 5/8-11UNC HHCS x 1 1/2
    92865A798
    5/8-11UNC HHCS x 1 1/2
    Qty 1$4.28View
  • 9
    91578A202
    3/8-16UNC x 3 1/2 Wedge Anchor w/nut & washer
    Qty 1Not carried

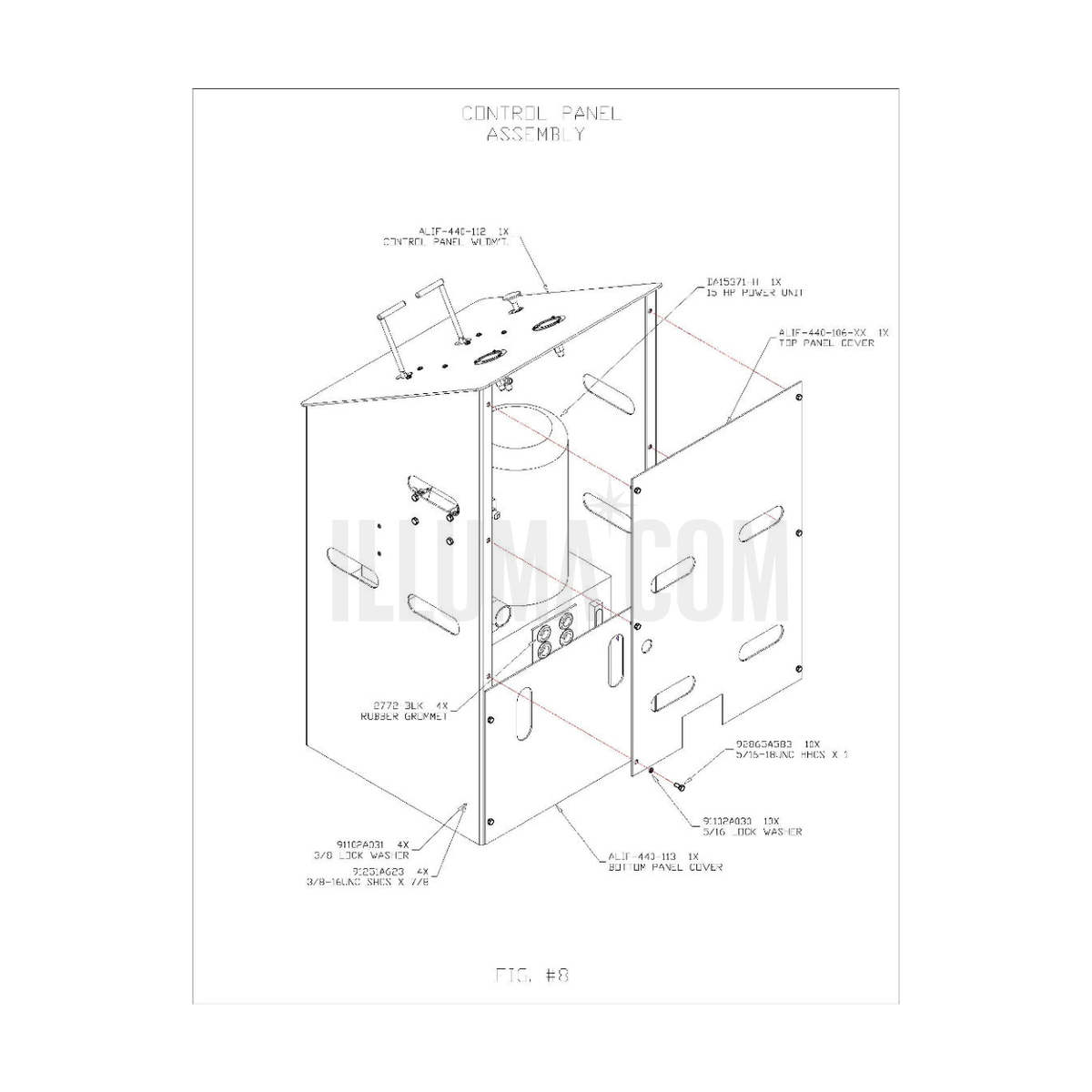

  • Control Panel
    ALIF-440-113-XX
    Control Panel
    Qty 1$1,371.69View
  • A
    ALIF-440-038-XX
    SAFETY LATCH BRACKET
    Qty 1Not carried
  • A
    ALIF-440-059
    CYL. CLEVIS PIN
    Qty 1Not carried
  • W
    WAJ20
    20K Air Roller Jack
    Qty 1Not carried
  • TRACK STOPS
    ALIF-440-054-XX
    TRACK STOPS
    Qty 1$857.35View
  • 5/32 O.D. Black Tube
    PT23003BK
    5/32 O.D. Black Tube
    Qty 1$7.87View
  • A
    ALIF-440-104L/R-X
    DOWEL PIN HOLDER
    Qty 1Not carried
  • 9
    90126A030
    5/16 SAE Flat Washer
    Qty 1Not carried
  • 9
    90272A247
    #10-24UNC x 1 Pan Head Phillip Screw
    Qty 1Not carried
  • 6
    6803-08-08-12
    1/2MJIC x 1/2MJIC x 3/4MORB Tee
    Qty 1Not carried
  • 1 1/2 EXT. RET. RING
    98410A139
    1 1/2 EXT. RET. RING
    Qty 1$6.65View
  • 2
    2772-BLK
    RUBBER GROMMET
    Qty 1Not carried
  • 3/4 PIVOT BRACKET
    6498K72
    3/4 PIVOT BRACKET
    Qty 1$36.11View
  • OS CHAIN CONNECTOR
    ALIF-440-067
    OS CHAIN CONNECTOR
    Qty 1$887.34View
  • 6
    6804-06-08-06
    3/8MJIC x 1/2MORB x 3/8MJIC Run Tee
    Qty 1Not carried
  • S
    SPL-2502-B
    5/32 90° PUSH-ON FITTING
    Qty 1Not carried
  • 2
    2404-08-08
    1/2MJIC x 1/2MNPT Straight Adapter
    Qty 1Not carried
  • A
    ALIF-440-082-XX
    HOSE PROTECTOR BRCKT.
    Qty 1Not carried
  • D
    DA15371-H
    15 HP POWER UNIT
    Qty 1Not carried
  • 9
    95462A559
    1 1/4-7UNC HEX NUT
    Qty 1Not carried
  • 3/8 x 1 1/4 SHOULDER SCREWS
    91259A626
    3/8 x 1 1/4 SHOULDER SCREWS
    Qty 1$7.13View
  • RUB BLOCK
    GL-09-057
    RUB BLOCK
    Qty 1$30.41View
  • A
    ALIF-460-055
    CR CHAIN CONNECTOR
    Qty 1Not carried
  • 2
    2404-06-06
    3/8MJIC X 3/8MNPT STRAIGHT ADAPT. (RETURN PORT)
    Qty 1Not carried
  • 6
    6804-06-06-06
    3/8MJIC x 3/8MORB x 3/8MJIC Run Tee
    Qty 1Not carried
  • 9
    90272A148
    #6-32 x 1/2 Pan Head Phillip Screw
    Qty 1Not carried
  • A
    ALIF-460-026R-XX
    RH Cross Rail Weldm't.
    Qty 1Not carried
  • 8" Dia. Bore Cylinder
    AA8040001
    8" Dia. Bore Cylinder
    Qty 1$36,870.00View
  • 3/4-10UNC Hex Nut
    90473A237
    3/4-10UNC Hex Nut
    Qty 1$7.13View
  • 5/32 ID x 1/8MNPT Push-On 90 Deg. Conn.
    SPL-2501-B
    5/32 ID x 1/8MNPT Push-On 90 Deg. Conn.
    Qty 1$21.70View
  • 1 1/8-12UNF JAM NUT
    94846A558
    1 1/8-12UNF JAM NUT
    Qty 1$13.52View
  • S
    SPL-4002-B
    1/4 90° PUSH-ON FITTING
    Qty 1Not carried
  • 9
    91102A035
    5/8 LOCK WASHER
    Qty 1Not carried
  • A
    ALIF-440-053-XX
    RAMP WELDM'T.
    Qty 1Not carried
  • A
    ALIF-440-064
    MS CHAIN CONN. PIN
    Qty 1Not carried
  • SAFETY LATCH PLATE
    ALIF-440-069
    SAFETY LATCH PLATE
    Qty 1$1,087.09View
  • A
    ALIF-440-075-XX
    Cylinder Clevis
    Qty 1Not carried
  • 9
    90480A007
    #6-32 Mach. Screw Nut
    Qty 1Not carried
  • 9
    90272A546
    1/4-20UNC x 1 1/2 Pan Head Phillip Screw
    Qty 1Not carried

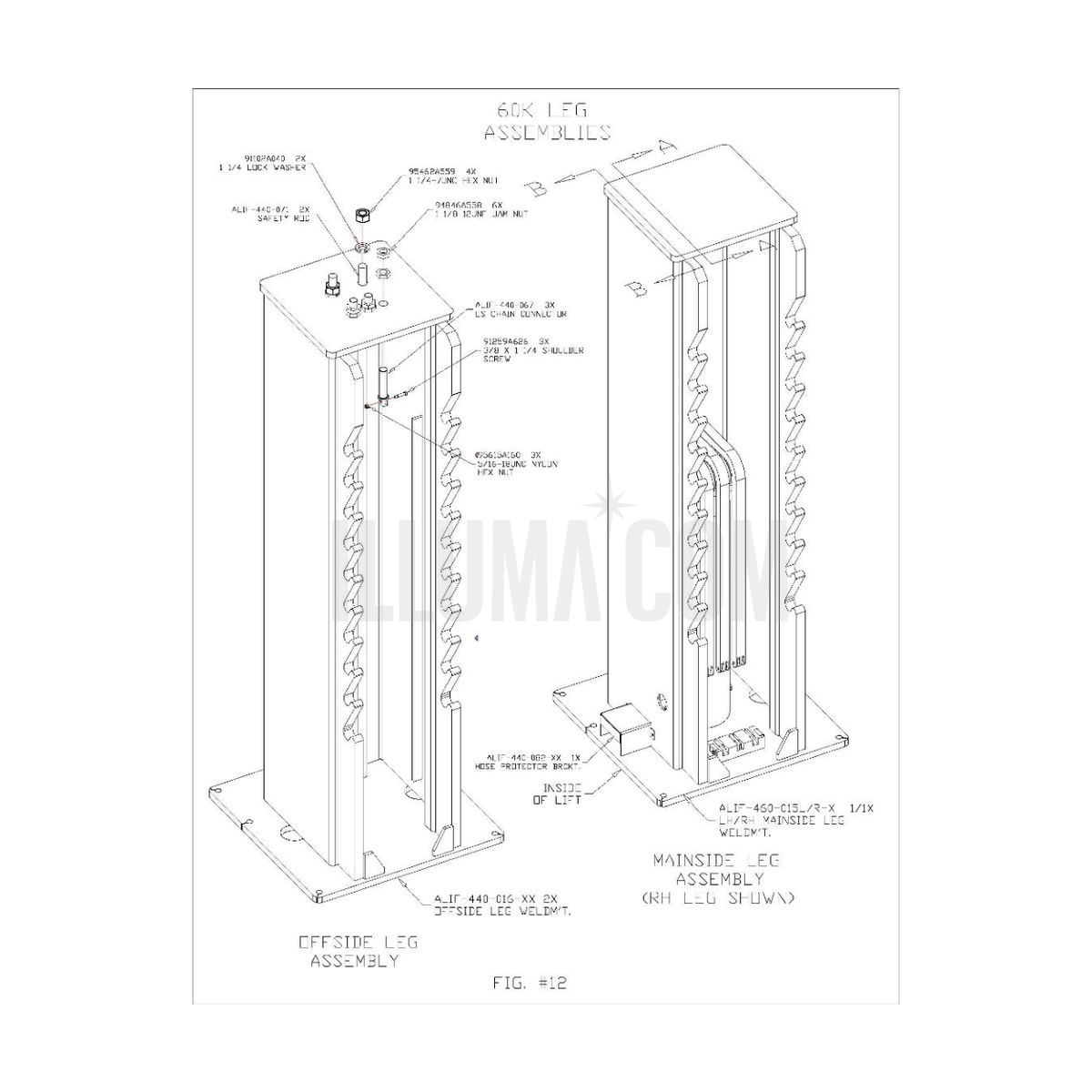

  • A
    ALIF-440-016-XX
    OFFSIDE LEG WELDM'T.
    Qty 1Not carried
  • 2
    2404-06-08
    3/8MJIC X 1/2MNPT STRAIGHT ADAPT. (PRESSURE PORT)
    Qty 1Not carried
  • G
    GL-09-056
    1/16" Steel Shims
    Qty 1Not carried
  • A
    ALIF-440-097-XX
    30' & 35' Hose Protector Weldm't.
    Qty 1Not carried
  • 2
    28900-504-25
    25 GPM VELOCITY FUSE
    Qty 1Not carried
  • 3/4 Lock Washer
    91102A036
    3/4 Lock Washer
    Qty 1$2.30View
  • 9
    92865A581
    5/16-18UNC HHCS x 3/4 Lg.
    Qty 1Not carried
  • A
    ALIF-440-119
    #10MORB x #6FORB w/0.188 Orifice
    Qty 1Not carried
  • K
    K02
    Pneumatic Control Valve
    Qty 1Not carried
  • 9
    91102A029
    1/4 LOCK WASHER
    Qty 1Not carried
  • 3/8 LOCK WASHER
    91102A031
    3/8 LOCK WASHER
    Qty 1$0.97View
  • 6
    6801-08-12
    1/2MJIC x 3/4MORB 90 Deg. Adapter
    Qty 1Not carried
  • F/L/R Air System
    60115K39
    F/L/R Air System
    Qty 1$1,030.77View
  • P
    PT24006BK
    3/8 O.D. Black Tube
    Qty 1Not carried
  • 9
    98381A683
    4" DOWEL PIN
    Qty 1Not carried
