Illustrated Parts Lists

Click a diagram to see every part with clickable callouts — no PDFs.

All parts for this model

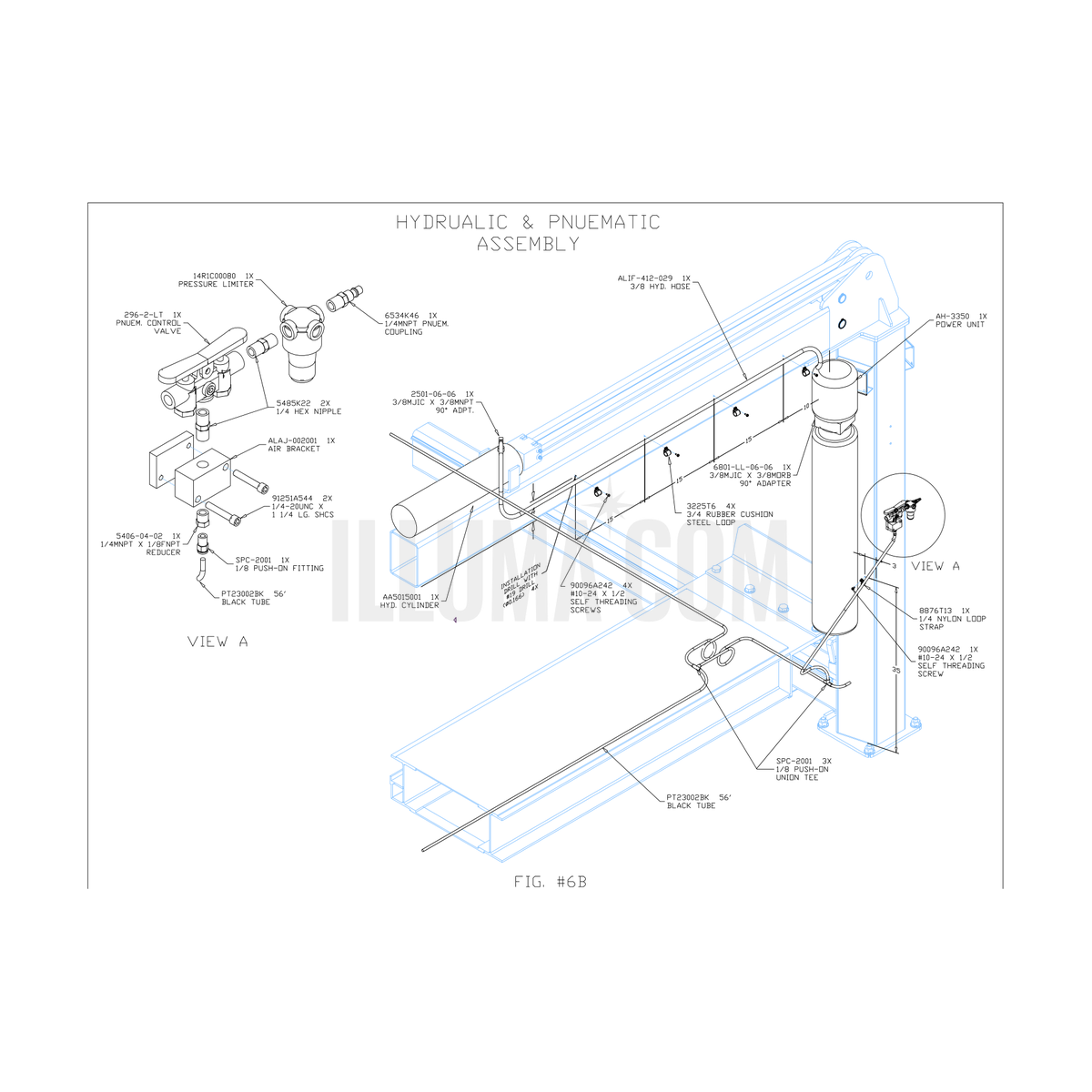

  • 3
    325T6
    3/4 Rubber Cushion Steel Loop
    Qty 1Not carried
  • 9
    91578A501
    3/4-10UNC x 5 1/2 Wedge Anchor w/Nut & Washers (per leg)
    Qty 1Not carried
  • 3/8 MJIC x 3/8 MORB 90 Deg. Adapter
    6801-LL-06-06
    3/8 MJIC x 3/8 MORB 90 Deg. Adapter
    Qty 1$41.56View

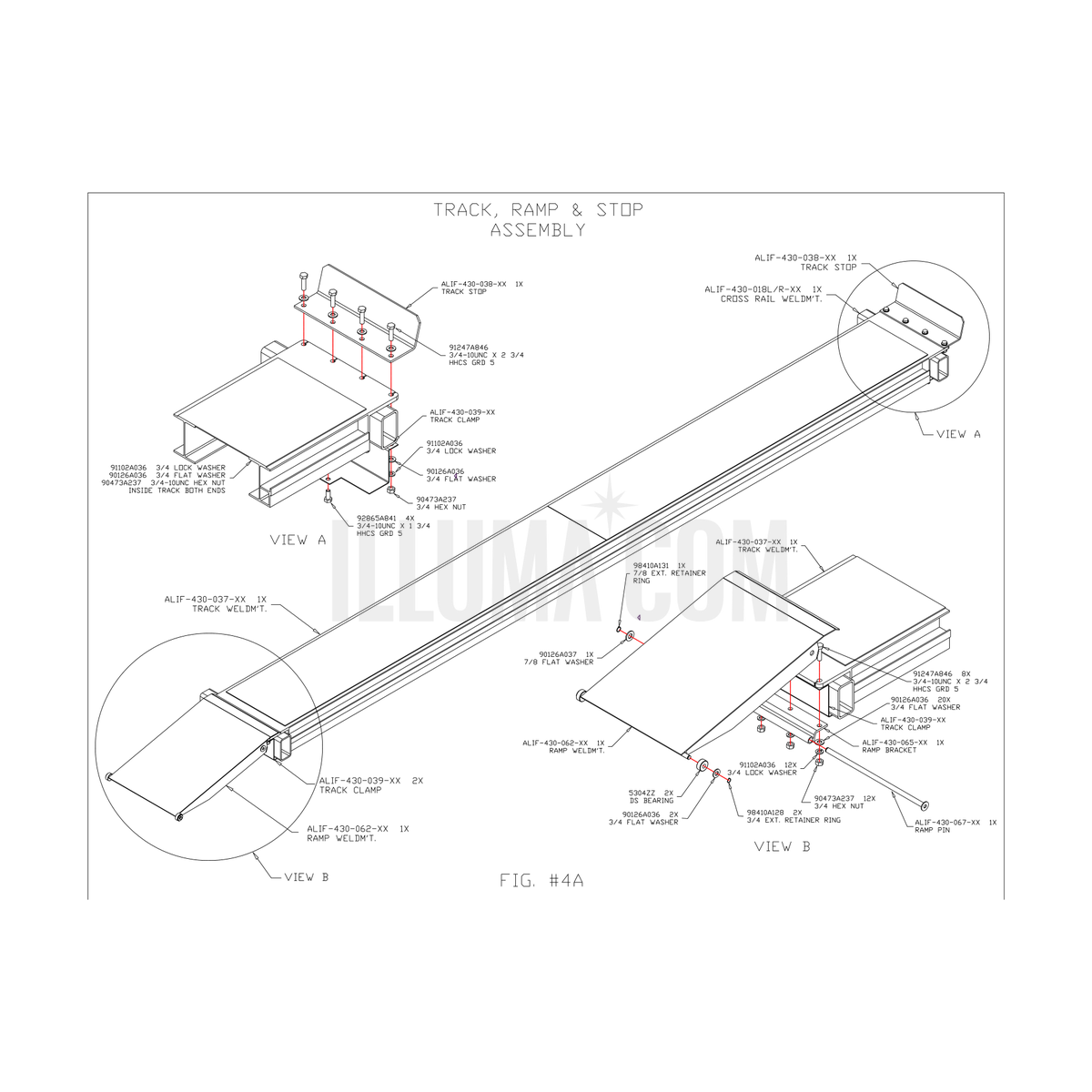

  • Ramp Weldm't.
    ALIF-430-062-XX
    Ramp Weldm't.
    Qty 1$1,580.29View

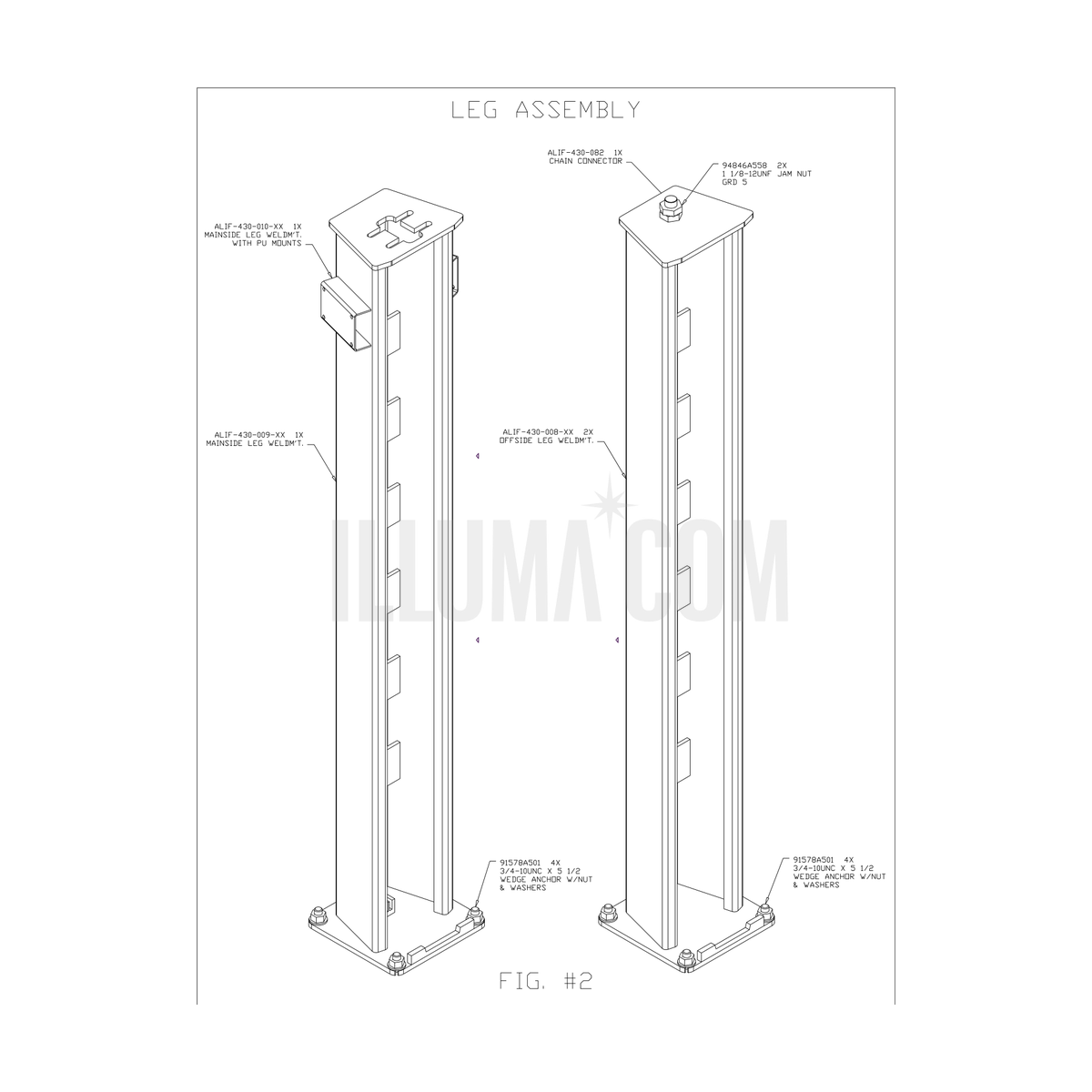

  • A
    ALIF-430-008-XX
    Offside Leg Weldm't.
    Qty 1Not carried

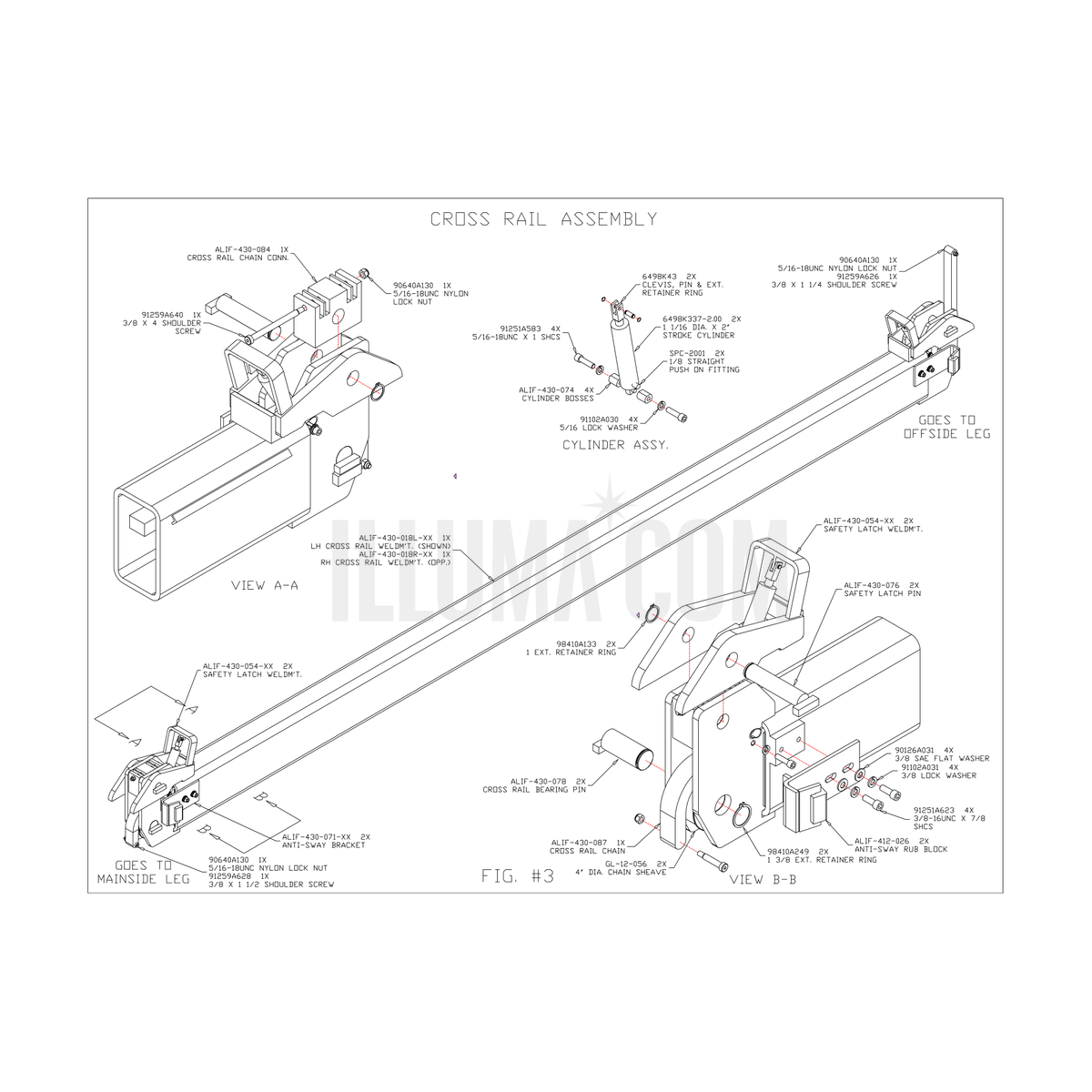

  • Cross Rail Chain (BL844, 216 Pitch M & F Ends)
    ALIF-430-087
    Cross Rail Chain (BL844, 216 Pitch M & F Ends)
    Qty 1$2,511.44View
  • 3/4 Lock Washer
    91102A036
    3/4 Lock Washer
    Qty 1$2.30View
  • 1/4 MNPT Pneumatic Coupling
    6534K46
    1/4 MNPT Pneumatic Coupling
    Qty 1$9.54View
  • 5" Dia. x 60" Stroke Hyd. Cylinder
    AA5015001
    5" Dia. x 60" Stroke Hyd. Cylinder
    Qty 1$9,312.78View
  • 3/4" Retainer Ring
    98410A128
    3/4" Retainer Ring
    Qty 1$0.75View
  • DS Bearing
    5304ZZ
    DS Bearing
    Qty 1$108.90View
  • Cylinder Bosses
    ALIF-430-074
    Cylinder Bosses
    Qty 1$114.24View
  • 9
    91257A844
    3/4-10UNC x 2 3/4 HCS Grd. 8
    Qty 1Not carried

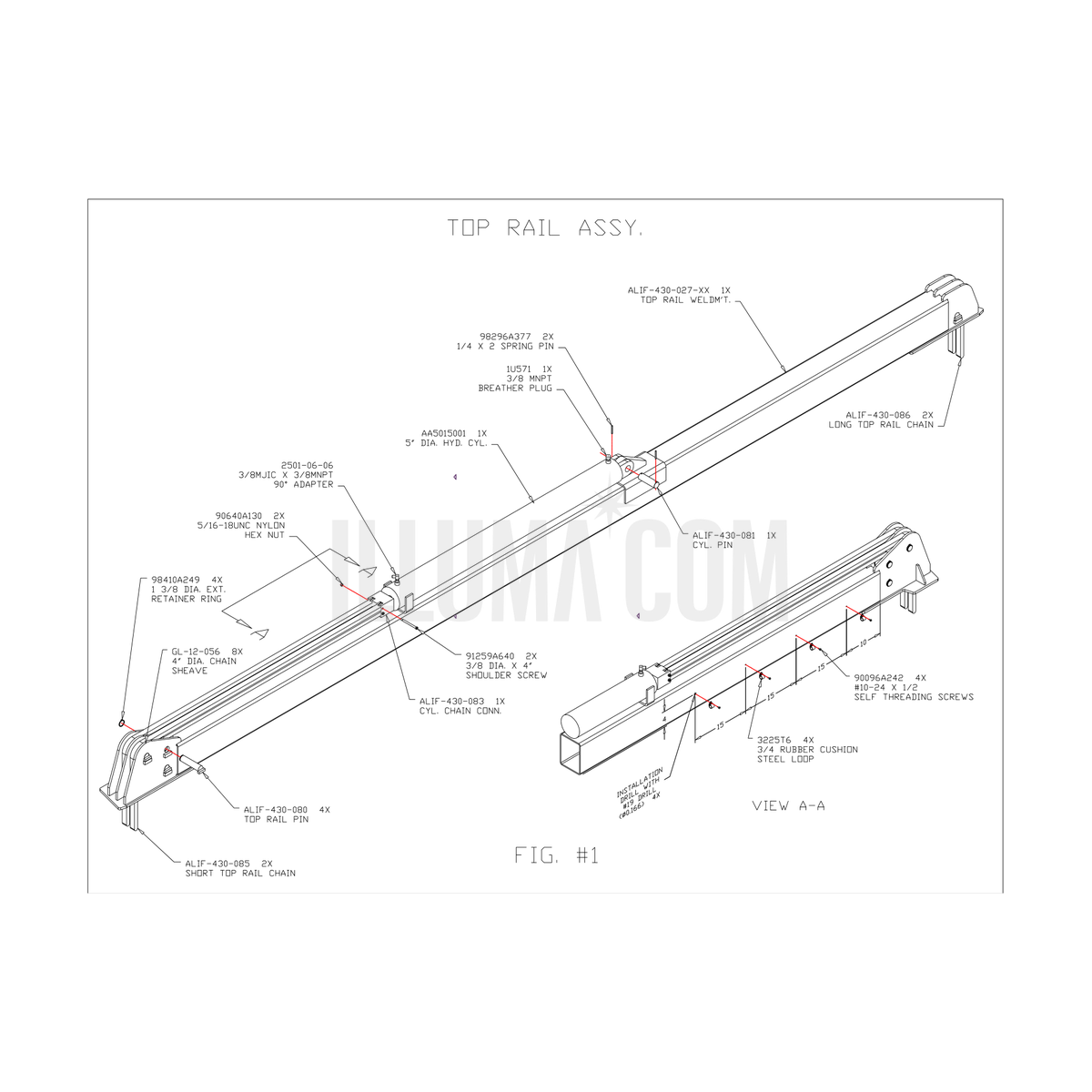

  • A
    ALIF-430-386
    Long Top Rail Chain (BL844, 445 Pitch Male Ends)
    Qty 1Not carried
  • 3/4-10UNC x 1 3/4 HCS Grd. 5
    92865A841
    3/4-10UNC x 1 3/4 HCS Grd. 5
    Qty 1$13.33View
  • A
    AH-3350
    Power Unit
    Qty 1Not carried
  • 9
    90126A031
    3/8 Flat Washer
    Qty 1Not carried
  • Short Top Rail Chain (BL844, 91 Pitch Male Ends)
    ALIF-430-085
    Short Top Rail Chain (BL844, 91 Pitch Male Ends)
    Qty 1$1,735.42View
  • 5
    5485K22
    1/4NPT Brass Nipple
    Qty 1Not carried
  • 5/16-18 Nylon Lock Nut
    90640A130
    5/16-18 Nylon Lock Nut
    Qty 1$0.20View
  • 3/8-16UNC SHCS x 7/8
    91251A623
    3/8-16UNC SHCS x 7/8
    Qty 1$3.90View
  • Top Rail Pin
    ALIF-430-080
    Top Rail Pin
    Qty 1$233.09View
  • 3/4-10UNC Hex Nut
    90473A237
    3/4-10UNC Hex Nut
    Qty 1$7.13View
  • A
    ALIF-430-009-XX
    Mainside Leg Weldm't.
    Qty 1Not carried
  • 5
    5406-04-02
    1/4 MNPT x 1/8 FNPT Reducer
    Qty 1Not carried
  • 9
    91102A033
    1/2 Lock Washer
    Qty 1Not carried
  • 8
    8876T13
    1/4 Nylon Loop Strap
    Qty 1Not carried
  • A
    ALIF-430-037-XX
    Track Weldm't.
    Qty 1Not carried
  • Track Weldm't.
    ALIF-430-237-XX
    Track Weldm't.
    Qty 1$50,145.73View
  • Anti-Sway Bracket
    ALIF-430-071-XX
    Anti-Sway Bracket
    Qty 1$392.20View
  • Chain Connector
    ALIF-430-082
    Chain Connector
    Qty 1$426.71View
  • 3/8 MNPT x 3/8 MJIC 90° Adpt.
    2501-06-06
    3/8 MNPT x 3/8 MJIC 90° Adpt.
    Qty 1$27.66View
  • 5/16 LOCK WASHER
    91102A030
    5/16 LOCK WASHER
    Qty 1$0.18View
  • Long Top Rail Chain (BL844, 325 Pitch Male Ends)
    ALIF-430-086
    Long Top Rail Chain (BL844, 325 Pitch Male Ends)
    Qty 1$1,773.54View

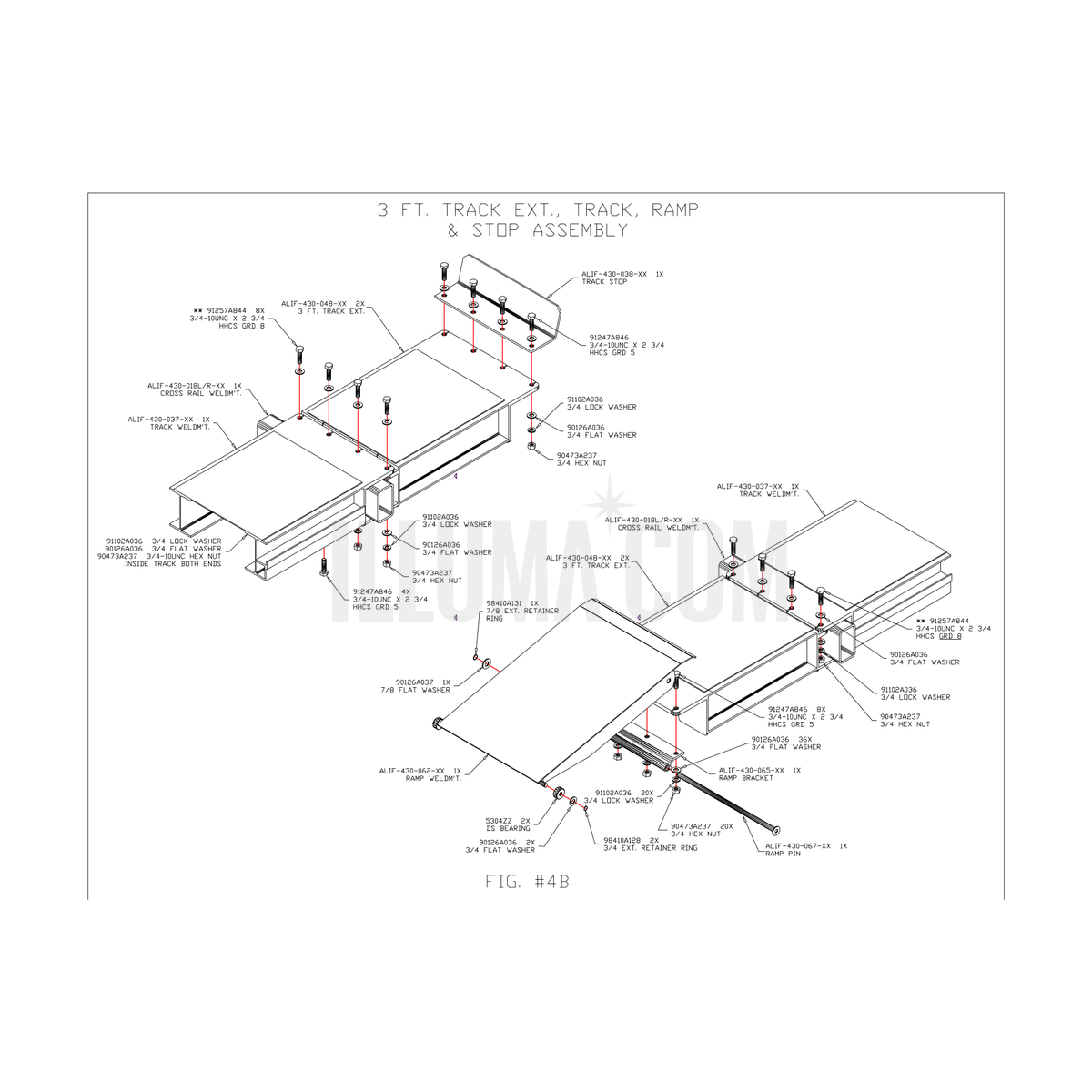

  • A
    ALIF-430-048-XX
    3 Ft. Track Ext.
    Qty 1Not carried
  • Ramp Pin
    ALIF-430-067-XX
    Ramp Pin
    Qty 1$126.70View
  • 1 1/16 Dia. x 2" Stroke Cylinder
    6498K337-2.00
    1 1/16 Dia. x 2" Stroke Cylinder
    Qty 1$162.09View
  • Long Top Rail Chain (BL844, 385 Pitch Male Ends)
    ALIF-430-286
    Long Top Rail Chain (BL844, 385 Pitch Male Ends)
    Qty 1$4,462.17View
  • 1" Retainer Ring
    98410A133
    1" Retainer Ring
    Qty 1$4.45View
  • 3/8 Dia x 1 1/2 Shoulder Screw
    91259A628
    3/8 Dia x 1 1/2 Shoulder Screw
    Qty 1$20.01View
  • A
    ALIF-430-081
    Cylinder Pin
    Qty 1Not carried
  • A
    ALIF-430-010-XX
    Mainside Leg Weldm't. with PU Mounts
    Qty 1Not carried
  • 9
    90126A037
    7/8 Flat Washer
    Qty 1Not carried
  • 4" Dia. Pulley
    GL-12-056
    4" Dia. Pulley
    Qty 1$549.70View

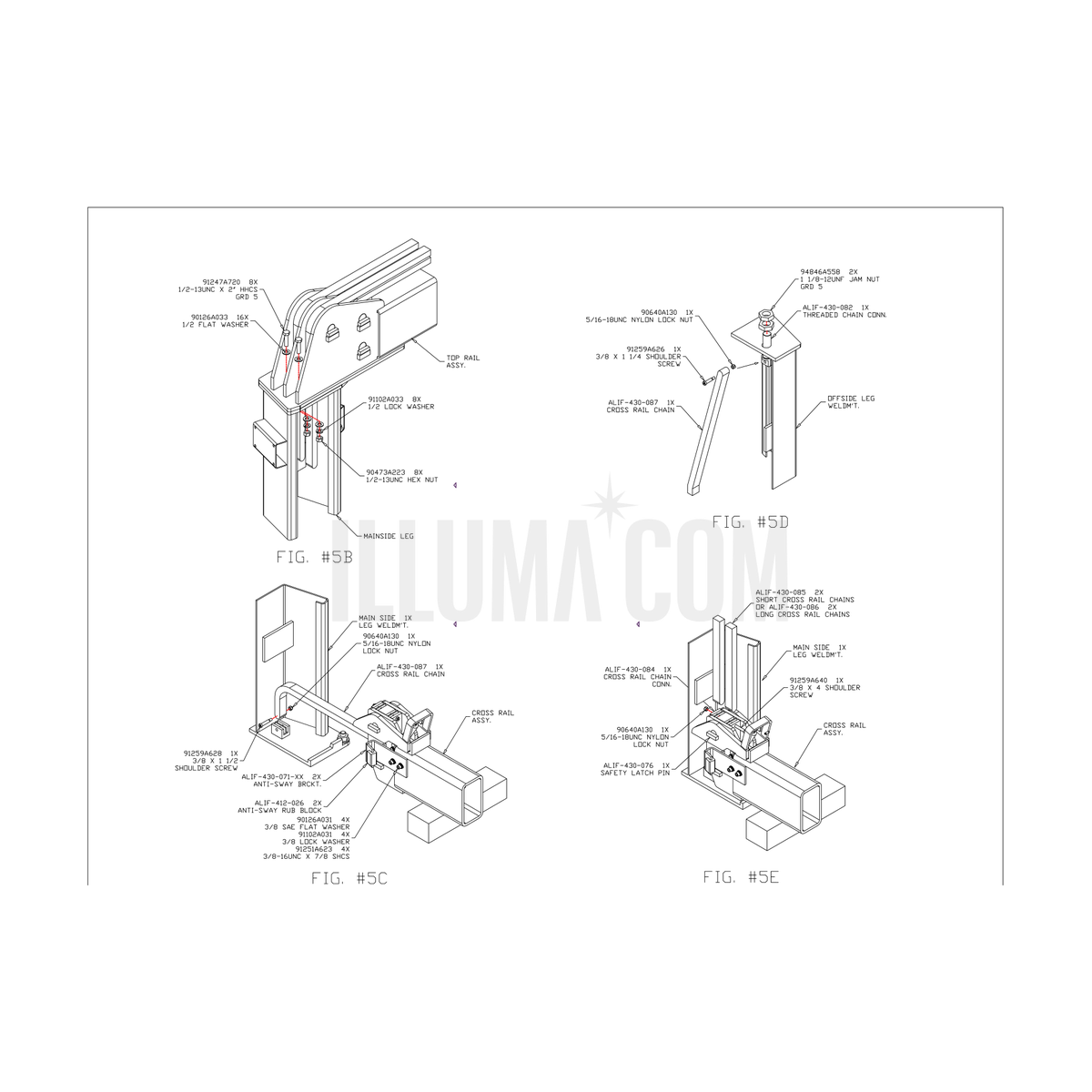

  • 9
    90126A033
    1/2 Flat Washer (Top Rail to Mainside Leg)
    Qty 1Not carried
  • 2
    296-2-LT
    Pneumatic Control Valve
    Qty 1Not carried
  • 3/8 x 1 1/4 SHOULDER SCREWS
    91259A626
    3/8 x 1 1/4 SHOULDER SCREWS
    Qty 1$7.13View
  • 3/4 Flat Washer
    90126A036
    3/4 Flat Washer
    Qty 1$1.53View
  • S
    SPE-20
    1/8 Push-On Union Tee
    Qty 1Not carried
  • 3/8 LOCK WASHER
    91102A031
    3/8 LOCK WASHER
    Qty 1$0.97View
  • A
    ALIF-430-018L-XX
    LH Cross Rail Weldm't. (Shown)
    Qty 1Not carried
  • Safety Latch Pin
    ALIF-430-076
    Safety Latch Pin
    Qty 1$155.68View
  • S
    SPC-2001
    1/8 Straight Push-On Fitting
    Qty 1Not carried
  • A
    ALIF-430-039-XX
    Track Clamp
    Qty 1Not carried
  • A
    ALIF-430-083
    Cylinder Chain Connector
    Qty 1Not carried
  • 9
    91251A544
    1/4-20UNC x 1 1/4 Lg. SHCS
    Qty 1Not carried
  • EXT.-Top Rail Weldm't.
    ALIF-430-227-XX
    EXT.-Top Rail Weldm't.
    Qty 1$28,512.56View
  • 3/8 x 108" Hyd. Hose
    ALIF-412-029
    3/8 x 108" Hyd. Hose
    Qty 1$555.73View
  • Sway Guide Rub Block
    ALIF-412-026
    Sway Guide Rub Block
    Qty 1$37.18View
  • A
    ALIF-430-027-XX
    STD.-Top Rail Weldm't.
    Qty 1Not carried
  • 1 3/8 EXT. RET. RING
    98410A249
    1 3/8 EXT. RET. RING
    Qty 1$2.37View
  • #10-24 x 1/2 Self Threading Screws
    90096A242
    #10-24 x 1/2 Self Threading Screws
    Qty 1$1.48View
  • A
    ALAJ-002001
    Air Bracket
    Qty 1Not carried
  • 9
    91247A846
    3/4-10UNC x 2 3/4 HCS Grd. 5
    Qty 1Not carried
  • A
    ALIF-430-018L/R-XX
    Cross Rail Weldm't.
    Qty 1Not carried
  • 1 1/16 CLEVIS
    6498K43
    1 1/16 CLEVIS
    Qty 1$34.79View
  • Ramp Bracket
    ALIF-430-065-XX
    Ramp Bracket
    Qty 1$213.33View
  • Cross Rail Bearing Pin
    ALIF-430-078
    Cross Rail Bearing Pin
    Qty 1$135.01View
  • A
    ALIF-430-018R-XX
    RH Cross Rail Weldm't. (Opp.)
    Qty 1Not carried
  • 1
    1U571
    3/8NPT Breather Plug
    Qty 1Not carried
  • P
    PT23002BK
    1/8 O.D. Black Tube (ft)
    Qty 1Not carried
  • A
    ALIF-430-038-XX
    Track Stop
    Qty 1Not carried
  • 1
    14R1C00080
    Pressure Limiter
    Qty 1Not carried
  • 1 1/8-12UNF JAM NUT
    94846A558
    1 1/8-12UNF JAM NUT
    Qty 1$13.52View
  • 5/16-18UNC x 1 SHCS
    91251A583
    5/16-18UNC x 1 SHCS
    Qty 1$1.55View
  • 9
    91247A720
    1/2-13UNC x 2" HHCS Grd. 5 (Top Rail to Mainside Leg)
    Qty 1Not carried
  • Safety Latch Weldm't.
    ALIF-430-054-XX
    Safety Latch Weldm't.
    Qty 1$937.84View
  • 9
    98296A377
    1/4 x 2 Spring Pin
    Qty 1Not carried
  • 3/8 Dia. x 4" Shoulder Screw
    91259A640
    3/8 Dia. x 4" Shoulder Screw
    Qty 1$23.27View
  • 7/8 Retainer Ring
    98410A131
    7/8 Retainer Ring
    Qty 1$2.15View
  • 9
    90473A223
    1/2-13UNC Hex Nut
    Qty 1Not carried
  • Cross Rail Chain Connector
    ALIF-430-084
    Cross Rail Chain Connector
    Qty 1$806.29View
