4018XFX

4018XFX

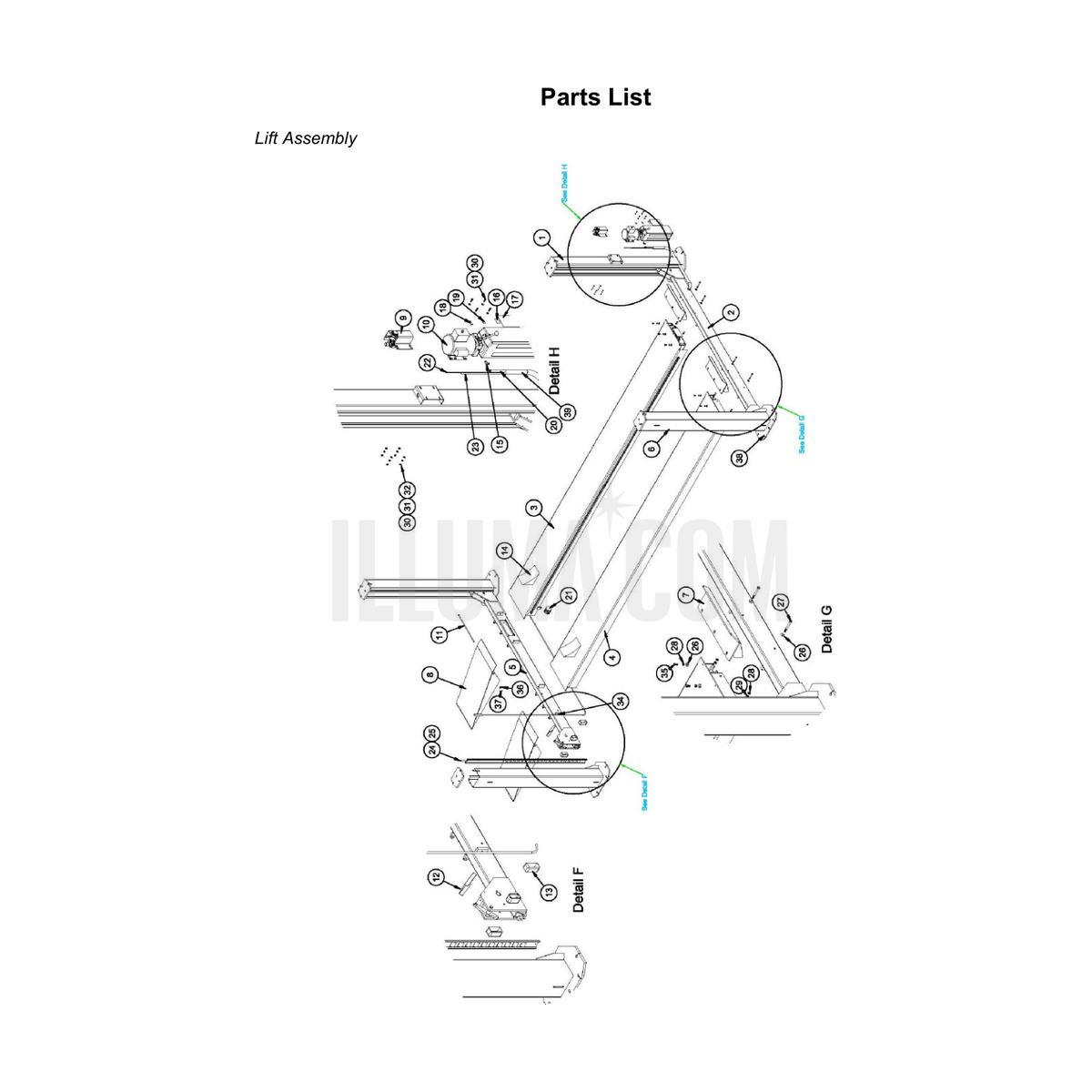

Illustrated Parts Lists

Click a diagram to see every part with clickable callouts — no PDFs.

All parts for this model

  • 6
    6-1892
    ROD SEAL, 1-1/2"ID x 1 7/8" OD x 1/4"
    Qty 1Not carried
  • LOCK WELDMENT
    2-1424
    LOCK WELDMENT
    Qty 1$230.19View

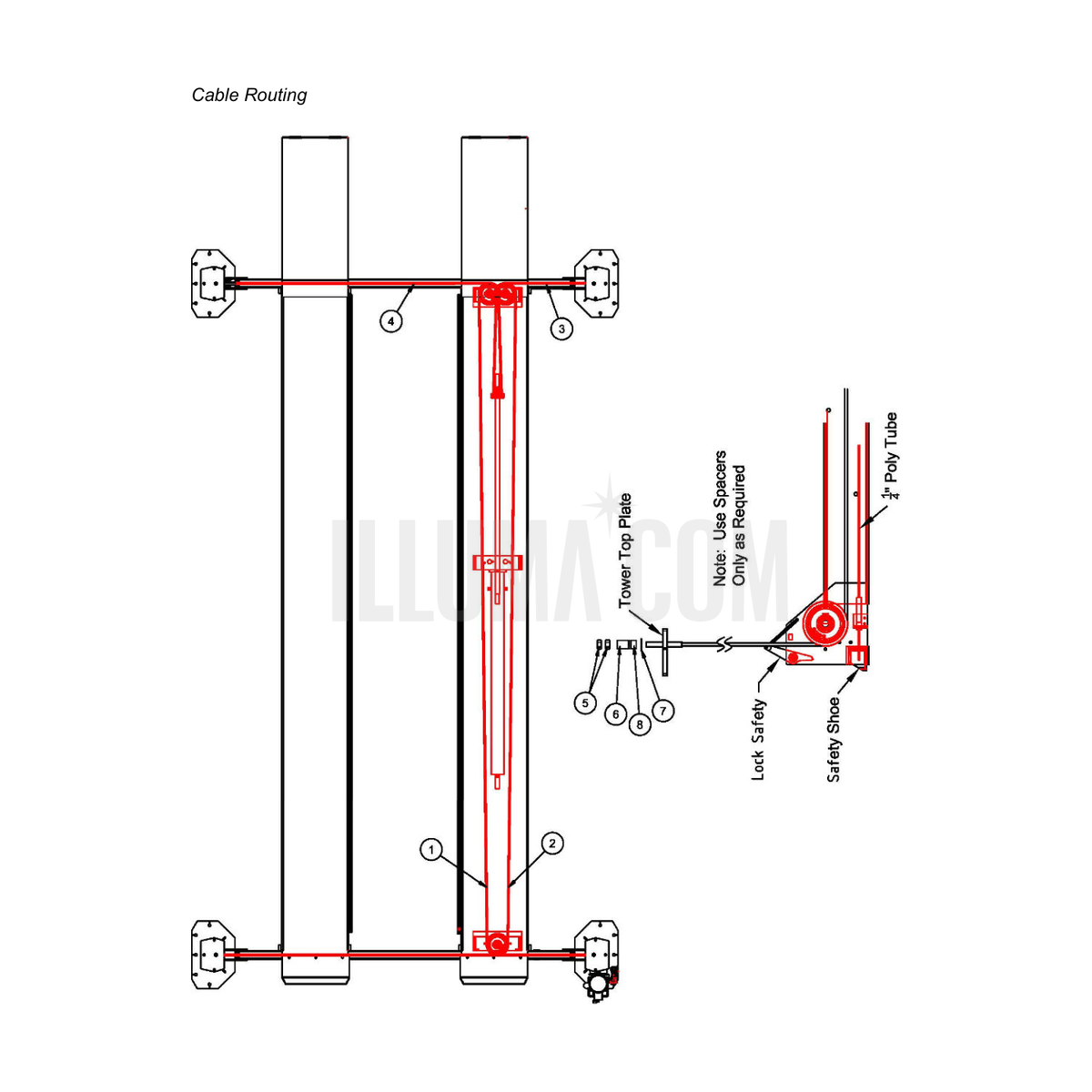

  • CABLE ASSY. 162" - REAR LEFT
    2-1362
    CABLE ASSY. 162" - REAR LEFT
    Qty 1$164.64View
  • 4
    4-1458
    POWER SLAVE ASSY
    Qty 1Not carried
  • CABLE SPACER, 2" LG
    1-0800
    CABLE SPACER, 2" LG
    Qty 1$17.40View

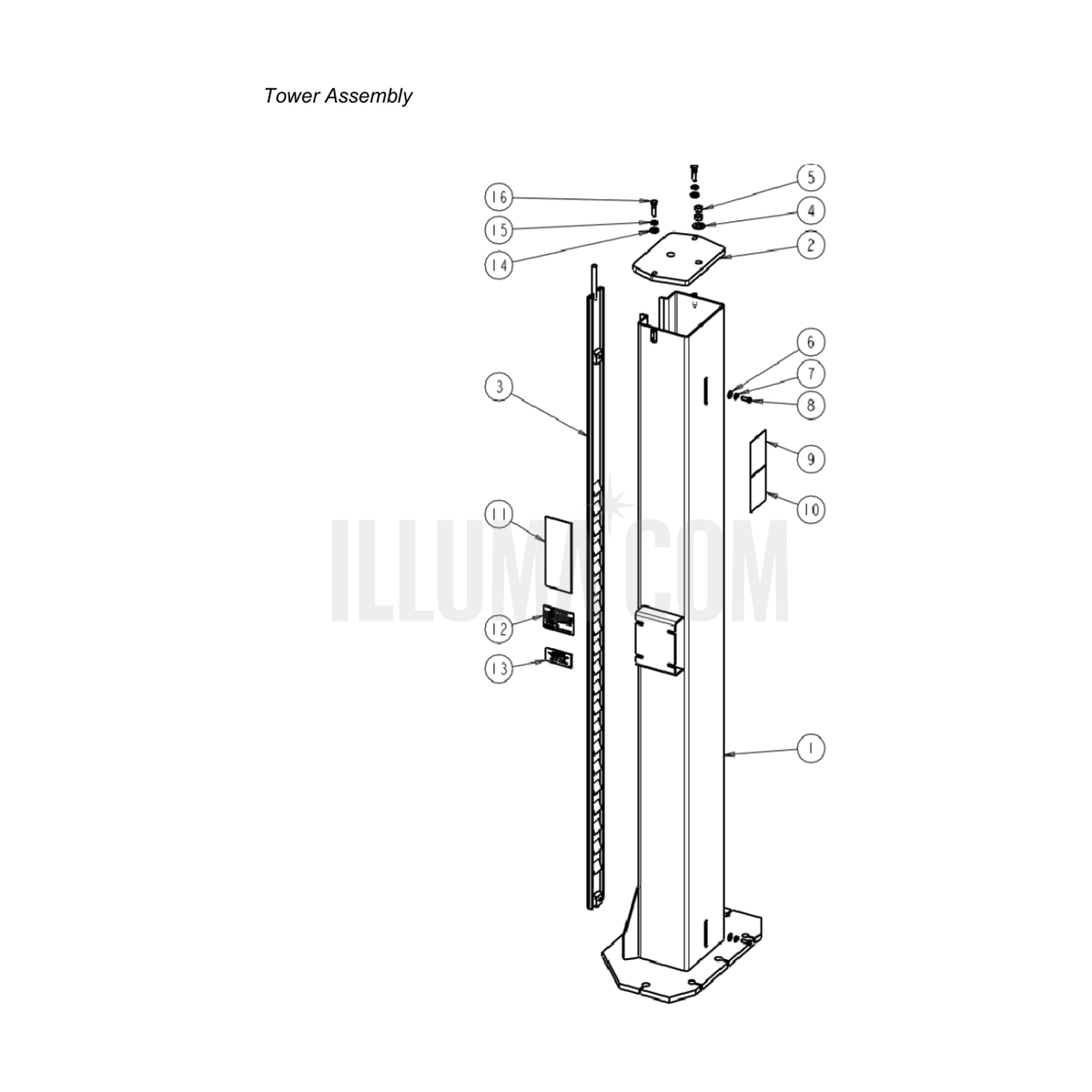

  • TOWER WELDM'T, POWER
    4-1449
    TOWER WELDM'T, POWER
    Qty 1$2,476.66View
  • 6
    6-1688
    PUMP ASSEMBLY
    Qty 1Not carried
  • HEX HEAD BOLT, 5/16-18UNC x 1" LG.
    6-0293
    HEX HEAD BOLT, 5/16-18UNC x 1" LG.
    Qty 1$0.30View
  • 6
    6-1089
    RELIEF VALVE CAP
    Qty 1Not carried
  • SHEAVE ASSEMBLY
    CL2-1377
    SHEAVE ASSEMBLY
    Qty 1$431.42View
  • 1/4" PUSHLOCK TEE
    6-2971
    1/4" PUSHLOCK TEE
    Qty 1$7.25View
  • 2
    2-1343
    TUBE NUT
    Qty 1Not carried
  • 6
    6-1959
    MOTOR, 230V AC, 1 PHASE, 60 HERTZ 3HP
    Qty 1Not carried
  • HEXHD. BOLT, 1/4-20 UNC x 1" LG.
    6-0008
    HEXHD. BOLT, 1/4-20 UNC x 1" LG.
    Qty 1$0.18View
  • WARNING DECAL, DECK LEVELLING
    6-4086
    WARNING DECAL, DECK LEVELLING
    Qty 1$3.60View
  • 6
    6-0248
    Flat Washer, 1/2"ID SAE
    Qty 1Not carried
  • CABLE ROLLER ASSEMBLY
    CL1-0766
    CABLE ROLLER ASSEMBLY
    Qty 1$31.81View
  • HHCS, 3/8 UNC X 1, GR.8
    6-0668
    HHCS, 3/8 UNC X 1, GR.8
    Qty 1$0.71View
  • WHEEL CHOCK
    6-1661
    WHEEL CHOCK
    Qty 1$53.29View
  • TENSION SPRING
    1-0768
    TENSION SPRING
    Qty 1$9.65View
  • DECAL, SAFETY RELEASE
    6-3623
    DECAL, SAFETY RELEASE
    Qty 1$1.07View
  • 6
    6-0594
    "NOTICE" DECAL
    Qty 1Not carried
  • SAFETY SHOE WELDMENT
    2-1378
    SAFETY SHOE WELDMENT
    Qty 1$112.12View
  • HEX BOLT, 3/8-16UNC X 4.5LG
    6-1693
    HEX BOLT, 3/8-16UNC X 4.5LG
    Qty 1$1.53View
  • 7/8 ID FLAT WASHER
    6-0725
    7/8 ID FLAT WASHER
    Qty 1$0.59View
  • 1/4" WASHER FENDER
    6-0626
    1/4" WASHER FENDER
    Qty 1$0.18View
  • NYLON THRUST WASHER
    1-0757
    NYLON THRUST WASHER
    Qty 1$3.09View
  • CABLE ASSY. 228" - REAR RIGHT
    2-1363
    CABLE ASSY. 228" - REAR RIGHT
    Qty 1$171.80View
  • 6
    6-0988_ALI-WL200C
    ALI DECAL, CAUTION
    Qty 1Not carried
  • 6
    6-1636
    ROD SEAL, 4" OD x 3-1/2"ID
    Qty 1Not carried

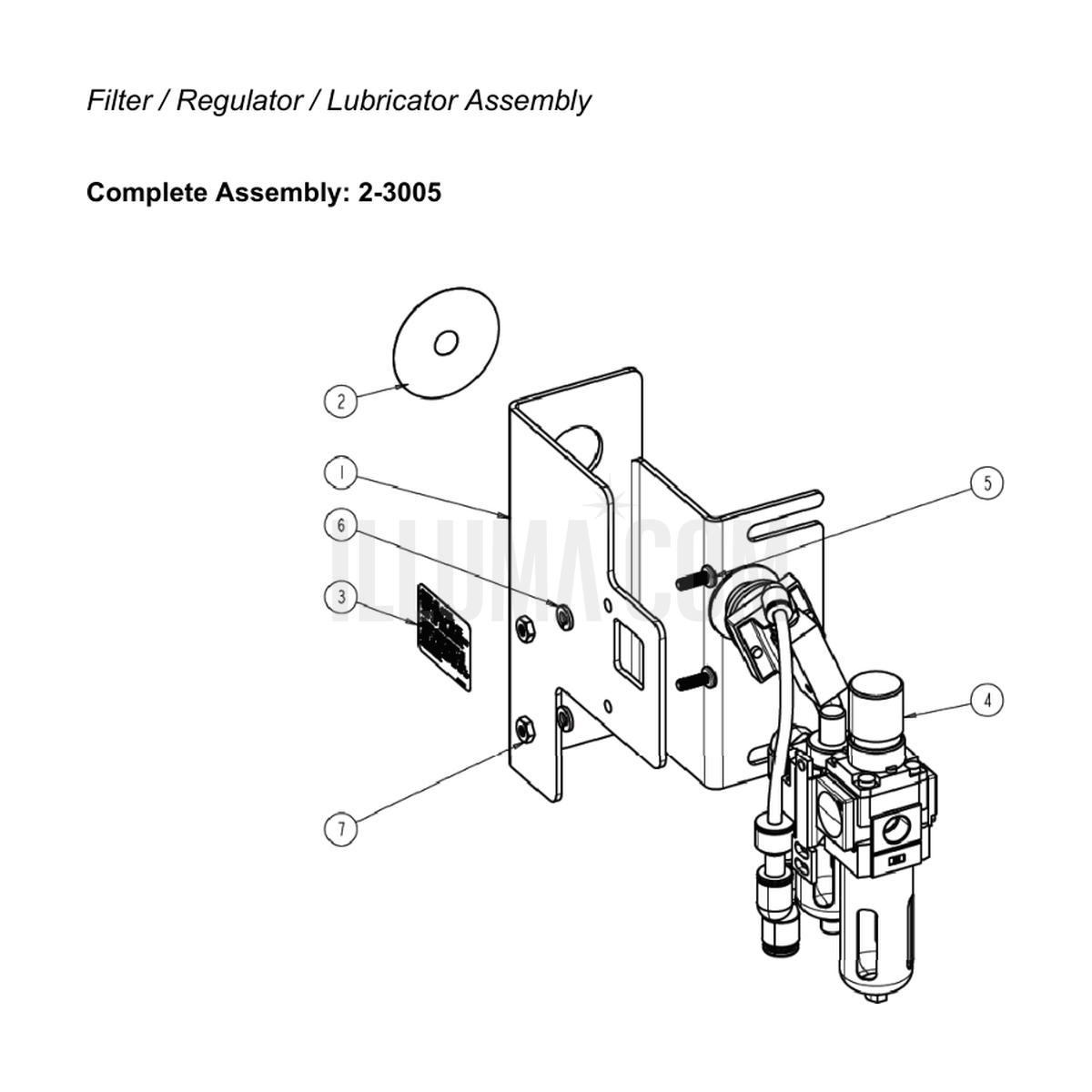

  • FRL & SAFETY RELEASE ASS'Y
    2-3005
    FRL & SAFETY RELEASE ASS'Y
    Qty 1$421.42View
  • 6
    6-0662
    HEX JAM NUT, 5/8-18UNF
    Qty 1Not carried
  • 3
    3-0673
    GLAND
    Qty 1Not carried
  • HEX NUT, 3/8" NC
    6-0034
    HEX NUT, 3/8" NC
    Qty 1$0.30View
  • 6
    6-0875
    RESERVOIR "O" RING
    Qty 1Not carried
  • Shoulder Bolt, 3/8DIA. X 5/8LG.
    6-0069
    Shoulder Bolt, 3/8DIA. X 5/8LG.
    Qty 1$6.19View

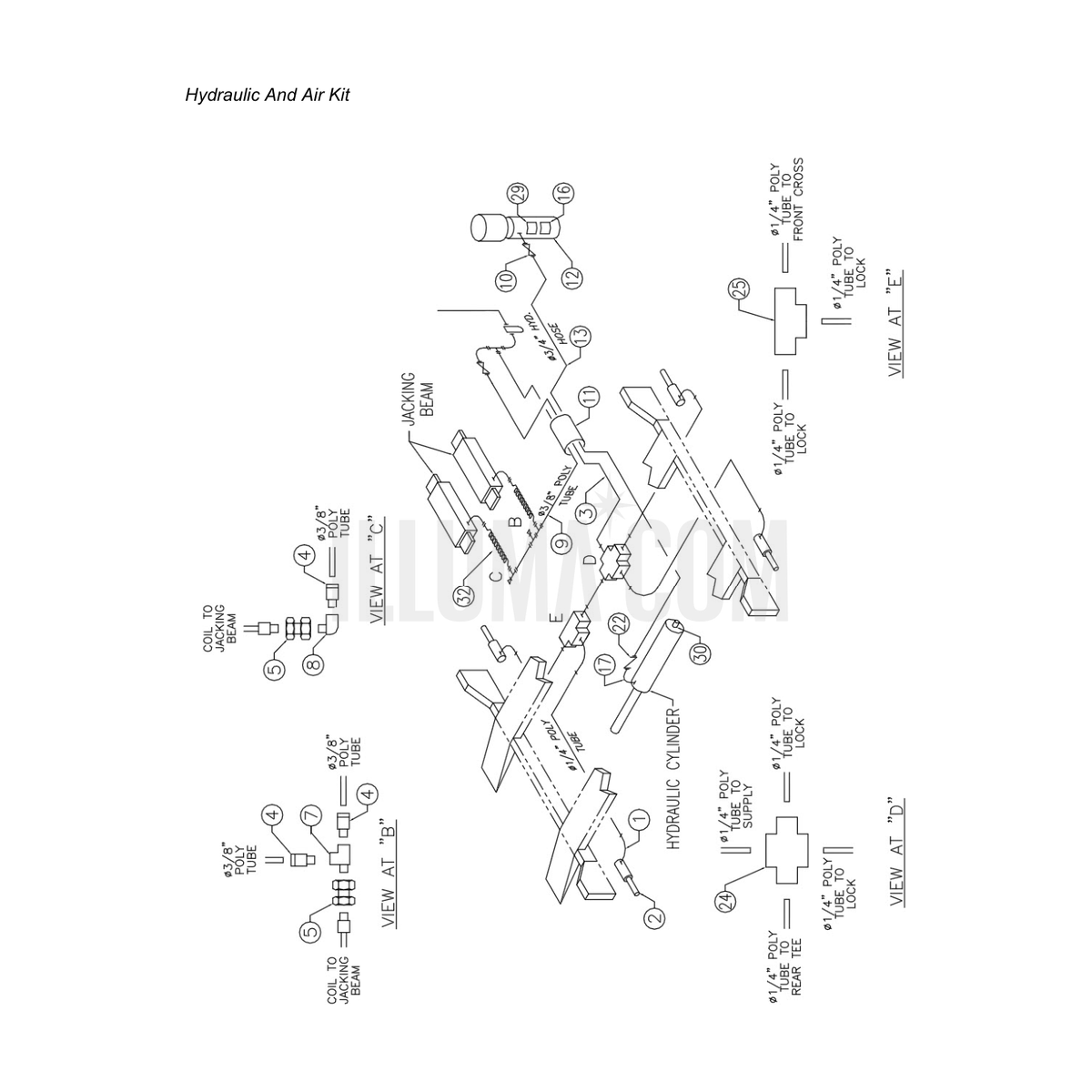

  • HYDRAULIC HOSE ASSEMBLY
    6-1692
    HYDRAULIC HOSE ASSEMBLY
    Qty 1$197.17View
  • 2
    2-1377
    SHEAVE ASSEMBLY
    Qty 1Not carried
  • 6
    6-0776
    RELEASE BRACKET & HANDLE ASSEMBLY
    Qty 1Not carried
  • 1/4" POLYTUBE, 10FT LONG
    6-1396
    1/4" POLYTUBE, 10FT LONG
    Qty 1$31.81View
  • 6
    6-0784
    BREATHER FILLER CAP
    Qty 1Not carried
  • SLIDER BLOCK
    2-0772
    SLIDER BLOCK
    Qty 1$8.88View
  • 1/4-28 UNF LOCK NUT NYLON
    6-1563
    1/4-28 UNF LOCK NUT NYLON
    Qty 1$0.18View
  • HEX NUT, 5/16-18 UNC
    6-0294
    HEX NUT, 5/16-18 UNC
    Qty 1$0.33View
  • 5/8" HEX NUT, GRADE 8
    6-0673
    5/8" HEX NUT, GRADE 8
    Qty 1$0.98View
  • 6
    6-0881
    MICROSWITCH AND WIRING ASSEMBLY, 1PH
    Qty 1Not carried
  • 6
    6-2828
    RESERVOIR
    Qty 1Not carried
  • 4
    4-1457
    POWER TOWER (FL) ASSY
    Qty 1Not carried
  • SHEAVE PIN WELDMENT
    CL2-1356
    SHEAVE PIN WELDMENT
    Qty 1$81.99View
  • HOSE CLAMP, 4-1/2"
    6-0665
    HOSE CLAMP, 4-1/2"
    Qty 1$11.54View

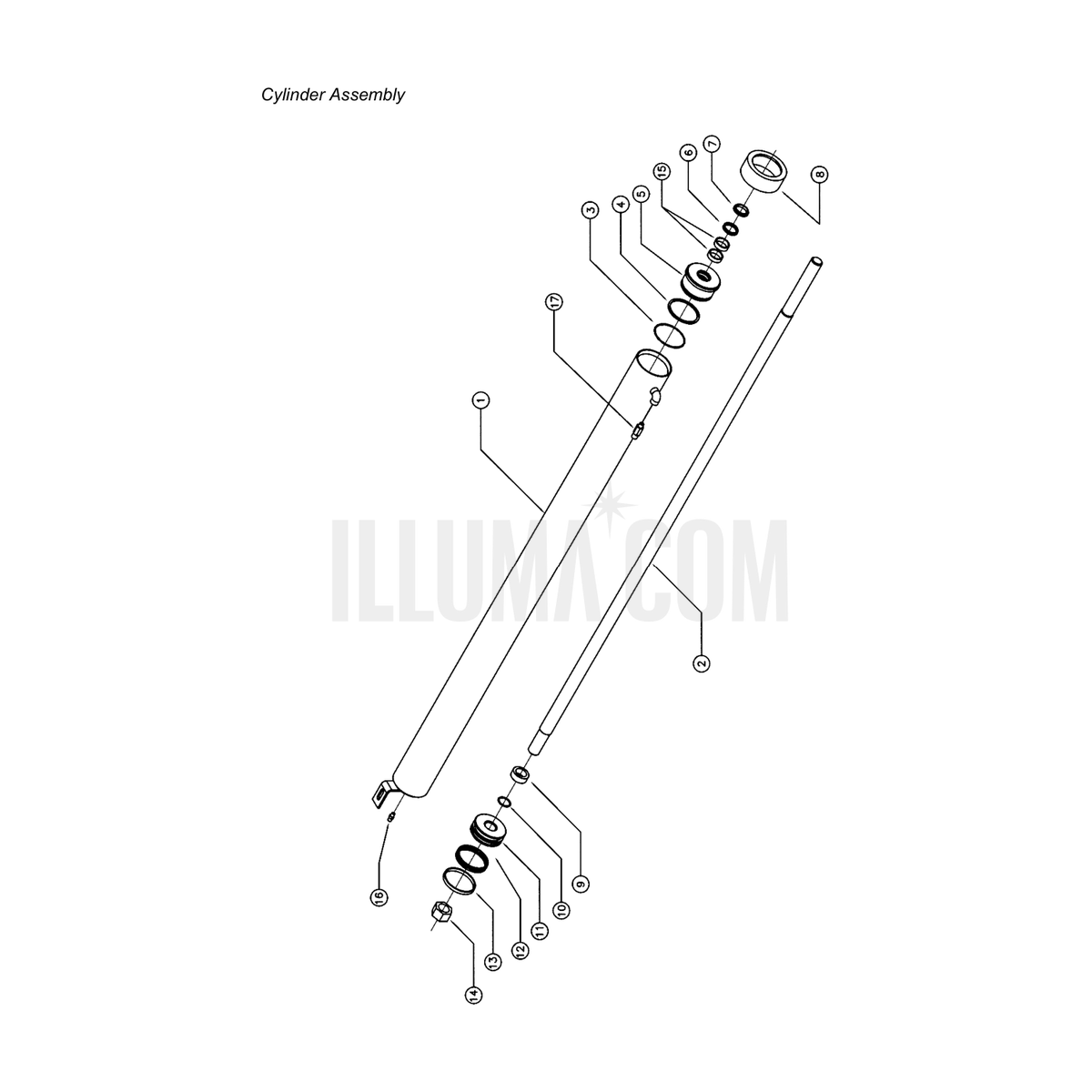

  • HYDRAULIC CYLINDER ASSEMBLY
    3-0681
    HYDRAULIC CYLINDER ASSEMBLY
    Qty 1$2,308.80View
  • DECK SHEAVE PIN
    CL2-1355
    DECK SHEAVE PIN
    Qty 1$115.17View

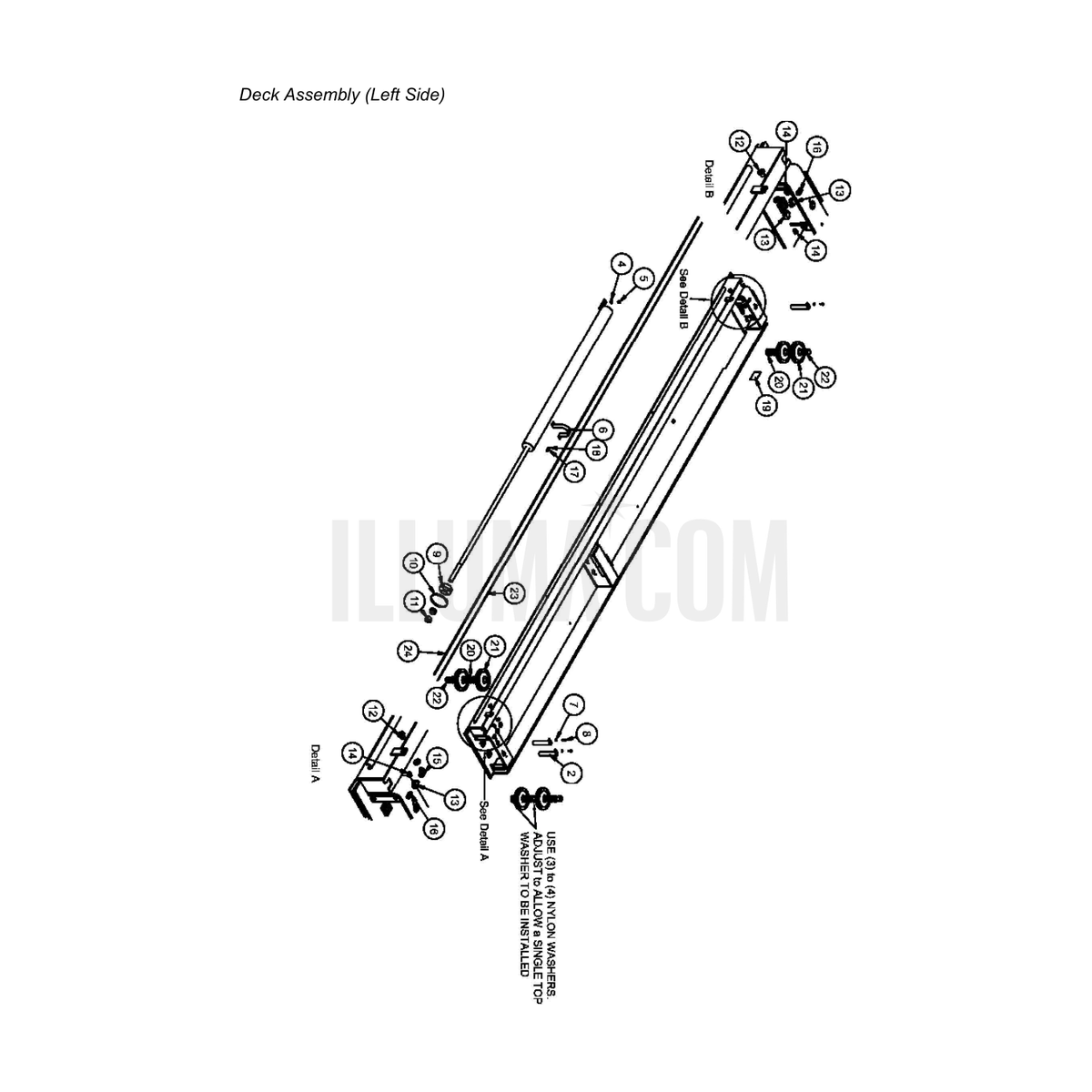

  • GENERAL SERVICE DECK ASSEMBLY, LS
    4-0656-3GS
    GENERAL SERVICE DECK ASSEMBLY, LS
    Qty 1$20,371.87View
  • 6
    6-1634
    BACKUP RING
    Qty 1Not carried
  • 6
    6-0783
    RETURN TUBE
    Qty 1Not carried
  • CABLE SPACER, 1" LG
    1-0801
    CABLE SPACER, 1" LG
    Qty 1$11.28View
  • CABLE FLANGE
    2-1432
    CABLE FLANGE
    Qty 1$445.64View

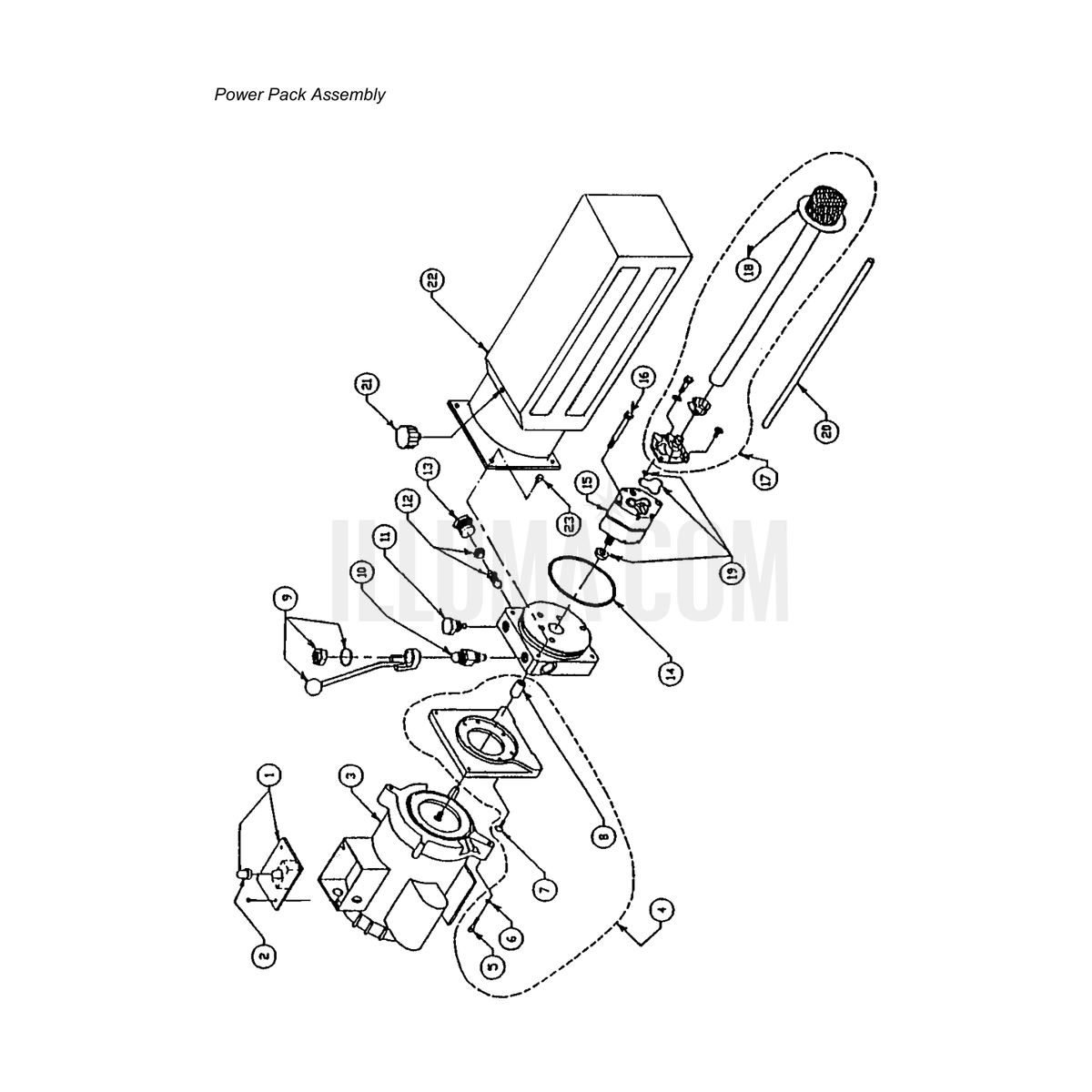

  • Power Pack, 208-230 V, 1 PH
    CL6-1695
    Power Pack, 208-230 V, 1 PH
    Qty 1$2,625.79View
  • 6
    6-1632
    ORING, 1 3/8"ID x 1/8"C/S
    Qty 1Not carried

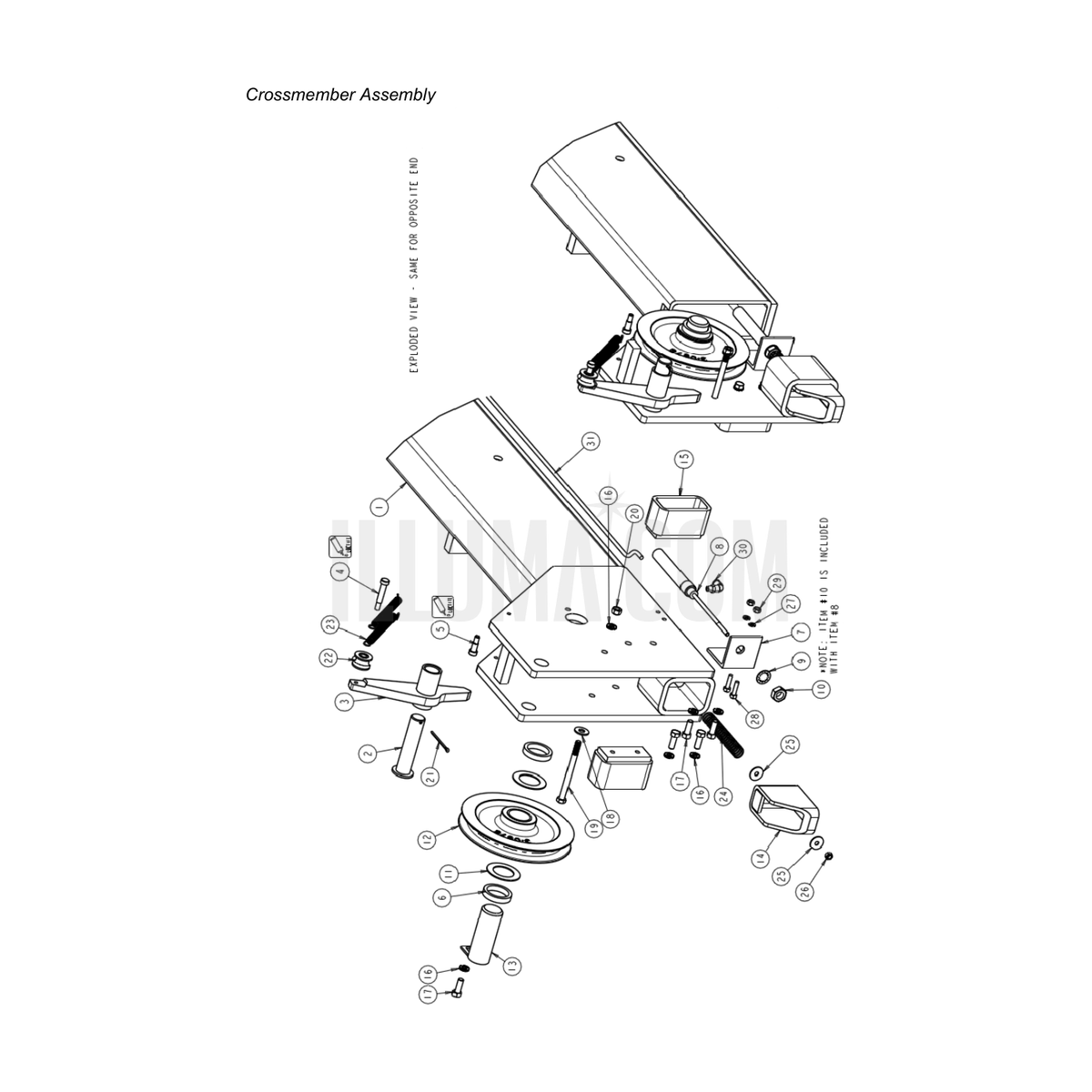

  • FRONT CROSSMEMBER ASS'Y
    4-0657-3
    FRONT CROSSMEMBER ASS'Y
    Qty 1$9,872.39View
  • DECAL, "UP"
    6-3031
    DECAL, "UP"
    Qty 1$2.40View
  • SAFETY DECAL
    6-1637
    SAFETY DECAL
    Qty 1$2.34View
  • TOP PLATE - FLAMECUT
    2-3026
    TOP PLATE - FLAMECUT
    Qty 1$270.63View
  • APPROACH RAMP WELDMENT
    3-0680
    APPROACH RAMP WELDMENT
    Qty 1$1,952.43View
  • MOUNTING BRACKET, FRL
    2-3022
    MOUNTING BRACKET, FRL
    Qty 1$48.31View
  • Flat Washer, 1/2"ID SAE
    CL6-0248
    Flat Washer, 1/2"ID SAE
    Qty 1$0.28View
  • LOCK SAFETY PIN WELDMENT
    1-1744
    LOCK SAFETY PIN WELDMENT
    Qty 1$60.22View
  • FLOW CONTROL
    6-1691
    FLOW CONTROL
    Qty 1$160.08View
  • PHMS, #12-24 X 5/8" LG
    6-4145
    PHMS, #12-24 X 5/8" LG
    Qty 1$0.21View
  • 6
    6-1084
    MICROSWITCH BOOT
    Qty 1Not carried
  • CYLINDER SLING
    1-1747
    CYLINDER SLING
    Qty 1$39.61View
  • HEX NUT, #12-24
    6-4146
    HEX NUT, #12-24
    Qty 1$0.30View
  • DECAL, "DOWN"
    6-3032
    DECAL, "DOWN"
    Qty 1$0.98View
  • 6
    6-1091
    RESERVOIR SCREW
    Qty 1Not carried
  • INTERNAL TOOTH WASHER, 5/8"
    CL6-0663
    INTERNAL TOOTH WASHER, 5/8"
    Qty 1$0.21View
  • Hex HD. Bolt, 1/2"-13 UNC x 4 1/2" LG.
    6-1694
    Hex HD. Bolt, 1/2"-13 UNC x 4 1/2" LG.
    Qty 1$3.57View
  • 3/8" POLYTUBE, 10FT. LONG
    6-1400
    3/8" POLYTUBE, 10FT. LONG
    Qty 1$35.93View
  • 6
    6-0709
    90 degree ELBOW, 1/8" NPT x 1/4" POLYTUBE
    Qty 1Not carried
  • 6
    6-0280
    ADAPTOR, 1/8" NPT-M TO 1/4" JIC-M
    Qty 1Not carried
  • COTTER PIN, 1/8 DIA X 2 LG
    6-0115
    COTTER PIN, 1/8 DIA X 2 LG
    Qty 1$0.23View
  • 6
    6-0047
    HEX HD BOLT, 1/2-13 X 1-3/4 LG, GR.5, PL
    Qty 1Not carried
  • PLASTIC CAP, 3/8" JIC
    6-0021
    PLASTIC CAP, 3/8" JIC
    Qty 1$1.24View
  • LOCK WASHER, 3/8"
    6-0058
    LOCK WASHER, 3/8"
    Qty 1$0.20View
  • LOCK WASHER, 1/4" I.D.
    CL6-0056
    LOCK WASHER, 1/4" I.D.
    Qty 1$0.30View
  • Hex HD Bolt, 1/2" x 1/2"
    6-0044
    Hex HD Bolt, 1/2" x 1/2"
    Qty 1$0.84View
  • Hex Nut, 1/4"-20UNC
    6-0032
    Hex Nut, 1/4"-20UNC
    Qty 1$0.30View
  • AIR CYLINDER BRACKET
    1-1712
    AIR CYLINDER BRACKET
    Qty 1$34.65View
  • STREET TEE, 1/4" NPT M-F-F
    6-0014
    STREET TEE, 1/4" NPT M-F-F
    Qty 1$17.86View
  • WHEELSTOP WELDMENT
    CL2-0998
    WHEELSTOP WELDMENT
    Qty 1$370.08View
  • ADAPTER, 3/8" POLY X 1/4"NPT M
    CL6-0710
    ADAPTER, 3/8" POLY X 1/4"NPT M
    Qty 1$17.38View
  • 6
    6-0774
    COUPLING
    Qty 1Not carried
  • FOUR POST OPERATING INSTRUCTIONS
    6-4045
    FOUR POST OPERATING INSTRUCTIONS
    Qty 1$18.11View
  • 6
    6-0988_ALI-WL200W
    ALI DECAL, WARNING
    Qty 1Not carried
  • 6
    6-0282
    PLUG, 1/4 NPT, 01CP-4
    Qty 1Not carried
  • 2
    2-1345
    CYLINDER TUBE WELDMENT 4" BORE
    Qty 1Not carried
  • Capacity Decal
    6-1762
    Capacity Decal
    Qty 1$6.97View
  • 6
    6-0731
    CABLE TIE
    Qty 1Not carried
  • 2
    2-1340
    PISTON ROD - MACHINED
    Qty 1Not carried
  • FLAT WASHER, 1/2"
    6-0063
    FLAT WASHER, 1/2"
    Qty 1$0.38View
  • FRONT CROSSMEMBER WELDMENT
    4-0627
    FRONT CROSSMEMBER WELDMENT
    Qty 1$4,553.56View
  • RECOIL HOSE
    6-0337
    RECOIL HOSE
    Qty 1$85.18View
  • 6
    6-1633
    ORING, 4" OD x 1/8"C/S
    Qty 1Not carried
  • SAFETY RACK WELDMENT
    3-0581
    SAFETY RACK WELDMENT
    Qty 1$390.48View
  • SET SCREW, 1/2-13 UNC X 1 LG
    6-0726
    SET SCREW, 1/2-13 UNC X 1 LG
    Qty 1$2.02View
  • 2
    2-1344
    PISTON
    Qty 1Not carried
  • VELOCITY FUES, 8 GPM
    6-1684
    VELOCITY FUES, 8 GPM
    Qty 1$103.45View
  • 3/4"x5-1/2" LG.
    6-1379
    3/4"x5-1/2" LG.
    Qty 1$9.46View
  • 6
    6-0593
    "LIFT OPERATION" DECAL
    Qty 1Not carried
  • NUT, 1/2-13 UNC, HEX
    6-0035
    NUT, 1/2-13 UNC, HEX
    Qty 1$0.30View
  • DECAL, SAFETY RELEASE
    6-3558
    DECAL, SAFETY RELEASE
    Qty 1$4.37View
  • 6
    6-3869
    1/4" PUSHLOCK CROSS
    Qty 1Not carried
  • DECAL, OIL LEVER
    6-3696
    DECAL, OIL LEVER
    Qty 1$4.14View
  • REAR CROSSMEMBER ASS'Y
    4-0658-3
    REAR CROSSMEMBER ASS'Y
    Qty 1$9,955.52View
  • POLYTUBE, 1/4"
    8-0141
    POLYTUBE, 1/4"
    Qty 1$1.32View
  • 6
    6-1085
    SOCKET HD.CAP SCW. 1/4"-20UNC X 1 5/8"LG.
    Qty 1Not carried
  • C
    CL6-0713
    TERMINAL BOLT, 3/4", SHORT
    Qty 1Not carried
  • 6
    6-1087
    VALVE CARTRIDGE CHECK
    Qty 1Not carried
  • AIR CYLINDER
    6-0651
    AIR CYLINDER
    Qty 1$96.71View
  • ELBOW 1/4NPT STREET 90D.
    6-0015
    ELBOW 1/4NPT STREET 90D.
    Qty 1$16.07View
  • 6
    6-0001
    ROD WIPER, 1-1/2"ID x 1 7/8" OD x 3/16"
    Qty 1Not carried
  • GENERAL SERVICE DECK WELDMENT LS
    4-0629GS
    GENERAL SERVICE DECK WELDMENT LS
    Qty 1$13,453.20View
  • 6
    6-1401
    FLAT WASHER 5/8"
    Qty 1Not carried
  • FLAT WASHER 3/4" SAE
    6-0738
    FLAT WASHER 3/4" SAE
    Qty 1$3.27View
  • 6
    6-0796
    90 degree ELBOW, 1/4" NPT M x 3/8" NPT F
    Qty 1Not carried
  • 1
    1-1689
    KEEPER WASHER
    Qty 1Not carried
  • 6
    6-1645
    LOCKNUT, 1 3/8"-12UNF
    Qty 1Not carried
  • HOSE GUARD
    CL6-0714
    HOSE GUARD
    Qty 1$13.65View
  • PIN WELDMENT - RAMP
    2-1381
    PIN WELDMENT - RAMP
    Qty 1$92.78View
  • 0
    0-0197
    MOTOR ADAPTER KIT
    Qty 1Not carried
  • SHEAVE SPACER
    1-0786
    SHEAVE SPACER
    Qty 1$41.95View
  • Hex Nut, 7/8"-14UNF
    6-0724
    Hex Nut, 7/8"-14UNF
    Qty 1$2.10View
  • SHOULDER BOLT, 3/8x 1 1/2LG.
    6-0801
    SHOULDER BOLT, 3/8x 1 1/2LG.
    Qty 1$3.31View
  • Lock Washer, 1/2"
    6-0059
    Lock Washer, 1/2"
    Qty 1$0.20View
  • 0
    0-0198
    INLET PLUMBING KIT
    Qty 1Not carried
  • LOCK WASHER, 5/16 I.D.
    6-0674
    LOCK WASHER, 5/16 I.D.
    Qty 1$0.18View
  • SLIDER BLOCK WELDMENT
    2-1376
    SLIDER BLOCK WELDMENT
    Qty 1$90.55View
  • 6
    6-0988_ALI-WL200S
    ALI DECAL, NOTICE
    Qty 1Not carried
  • 6
    6-0880
    VALVE CARTRIDGE RELEASE
    Qty 1Not carried
  • 6
    6-1086
    ALLEN FLAT HD.SCW. 1/4"-20UNC X 3/4"LG.
    Qty 1Not carried
  • CABLE ASSY. 407.5" - FRONT LEFT
    2-1360
    CABLE ASSY. 407.5" - FRONT LEFT
    Qty 1$271.37View
  • 6
    6-0056
    LOCK WASHER, 1/4" ID
    Qty 1Not carried
  • Hex HD Bolt, 1/2"-13UNC x 1" LG
    6-0045
    Hex HD Bolt, 1/2"-13UNC x 1" LG
    Qty 1$1.20View
  • 0
    0-0199
    PUMP "O" RING KIT
    Qty 1Not carried
  • 6
    6-1635
    WEAR RING, 4" OD x 3/8" WIDE x 1/8" THK
    Qty 1Not carried
  • CABLE ASSY. 473.5" - FRONT RIGHT
    2-1361
    CABLE ASSY. 473.5" - FRONT RIGHT
    Qty 1$368.49View
  • SHEAVE SPACER 1" LG
    CL1-1697
    SHEAVE SPACER 1" LG
    Qty 1$41.74View
  • 3/8 ID WASHER REG PLT USS
    6-0625
    3/8 ID WASHER REG PLT USS
    Qty 1$0.30View
  • FRL ASSEMBLY W/ RELEASE BUTTON (complete assembly)
    2-3021
    FRL ASSEMBLY W/ RELEASE BUTTON (complete assembly)
    Qty 1$376.78View
  • 6
    6-1090
    PUMP MOUNTING BOLT
    Qty 1Not carried
  • 6
    6-0786
    INLET HOSE / FILTER ASSEMBLY
    Qty 1Not carried
  • TOWER WELDM'T, SLAVE
    4-1450
    TOWER WELDM'T, SLAVE
    Qty 1$2,478.23View
  • GENERAL SERVICE DECK ASSEMBLY, RS
    4-0659-3GS
    GENERAL SERVICE DECK ASSEMBLY, RS
    Qty 1$10,890.15View
  • POLYTUBE, 3/8"
    8-0142
    POLYTUBE, 3/8"
    Qty 1$2.29View
  • 6
    6-1319
    FIXED RELIEF VALVE ASSEMBLY (RV 19)
    Qty 1Not carried
  • HEX NUT, 1.375-12 UNF
    6-1644
    HEX NUT, 1.375-12 UNF
    Qty 1$9.23View
  • 5/16 SAE FLAT WASHER
    6-0295
    5/16 SAE FLAT WASHER
    Qty 1$0.36View
  • 6
    6-1686
    WEAR RING, 1 3/4" OD x 1/2" WIDE x 1/8" THK
    Qty 1Not carried
  • COMPRESSION SPRING, SAFETY
    EAM0139T01A
    COMPRESSION SPRING, SAFETY
    Qty 1$34.05View
  • PULLEY COVER
    2-1379
    PULLEY COVER
    Qty 1$19.82View

Can't find the part you need?

Send us your model and part description and our parts team will track it down.

Contact Parts
