Challenger Lifts

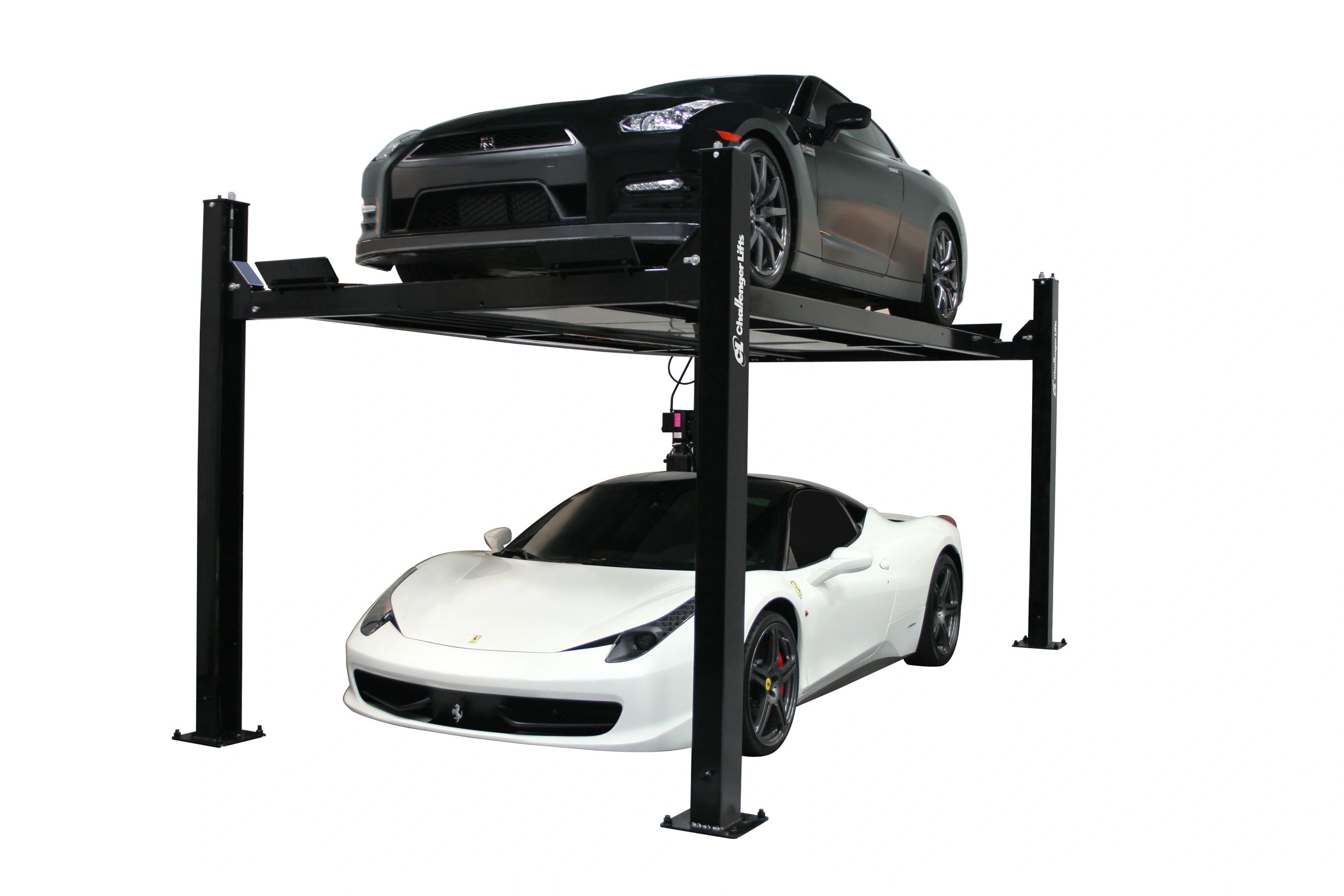

Challenger CL4P9X 9,000 lb Home Storage Lift — Extended Length

SKU: CL4P9X-SR

$6,373.91$9,959.24
Save 36% ($3,585.33)
Ships from manufacturer

9,000 lb ALI/ETL-Certified cable-driven 4-post home storage lift with 80" drive-under clearance, extended 85½" rise, and 179" maximum wheelbase for longer vehicles. Features 14 lock positions, single-point manual lock release, and dual motor options (1HP 115V or 2HP 230V). Extended length and height model with larger columns and base plates for maximum vehicle accommodation.

MFR #: CL4P9X-SR

Extended Length & Height Home Storage Lift

The Challenger CL4P9X is a 9,000 lb capacity cable-driven 4-post lift that extends the CL4P9 platform with longer runways and taller columns for homeowners who need to accommodate larger vehicles or want maximum drive-under clearance. With 85½ inches of rise and 80 inches of drive-under clearance in the top locked position, the CL4P9X provides enough room to park full-size SUVs and trucks underneath. The extended 179-inch maximum wheelbase handles crew-cab pickups, long-wheelbase SUVs, and other vehicles that won't fit on the standard CL4P9S.

Flexible Installation & Dual Motor Options

Like all Challenger Home Storage lifts, the CL4P9X offers free-standing or bolt-to-floor installation with ALI/ETL certification maintained either way. Choose between the standard 1HP 115V motor (plugs into a standard 20A household outlet) or the optional 2HP 230V motor for faster 60-second rise times. Adjustable lock ladders accommodate uneven garage floors, and 14 lock positions from floor level to maximum rise provide precise height control for both storage and service applications.

Built for Longer, Taller Vehicles

The CL4P9X bridges the gap between the standard CL4P9S and the maximum-width CL4P9W. At 19 feet 5½ inches long, it's two full feet longer than the CL4P9S, with between-column spacing of 15 feet 4¾ inches to handle extended-wheelbase vehicles. The 8-foot ½-inch column height delivers 85½ inches of rise — over a foot more than the standard model. Commercial-grade formed steel runways with 20-inch width and built-in rail system accept optional rolling jacks and oil drip trays (sold separately) for light-duty service work.

Installation Requirements & Bay Sizing

The CL4P9X requires a minimum bay size of 11 feet wide by 22 feet long — two feet longer than the CL4P9S to accommodate the extended runway length. Challenger recommends a minimum 4-inch thick concrete floor rated at 3,500 PSI (cured at least 28 days) if you choose to bolt down, though anchoring is optional for certification. The power unit requires a dedicated 20-amp circuit. This lift is rated for indoor use only in environments between 41°F and 104°F. The overall footprint is 19 feet 5½ inches long by 9 feet 4¼ inches wide with a column height of 8 feet ½ inch — verify your garage ceiling height accommodates the lift plus your tallest vehicle before purchasing.

Features & Benefits

9,000 lb Capacity

ALI/ETL-Certified cable-driven lifting system handles full-size trucks, SUVs, and heavier vehicles with extended runway length for longer wheelbases.

  • Single hydraulic cylinder with synchronized cable system for even lifting
  • 4,500 lb capacity per runway for balanced weight distribution
  • 14 lock positions from floor level to 80" drive-under clearance

Extended Length & Height

Two feet longer and over a foot taller than the standard CL4P9S, with 179" max wheelbase and 85½" rise for maximum vehicle accommodation.

  • 19'5½" overall length handles crew-cab pickups and long-wheelbase SUVs
  • 85½" rise provides 80" of drive-under clearance for taller vehicles underneath
  • 15'4¾" between columns for extended-wheelbase vehicle support

Single-Point Manual Lock Release

One-handle lock release simultaneously disengages all column locks for safe, controlled lowering without compressed air.

  • No compressed air required — fully mechanical lock operation
  • Adjustable lock ladders accommodate uneven garage floors
  • 14 locking positions for precise height control during storage or service

Larger Columns & Base Plates

The 9K models feature oversized columns and wider base plates compared to the CL4P7 for increased structural stability.

  • Engineered for the added stress of 9,000 lb lifting capacity
  • Wider base plates distribute weight more evenly on garage floor
  • Commercial-grade formed steel construction throughout

Free-Standing or Bolt-to-Floor

Install with or without floor anchoring — ALI/ETL certification is maintained either way for maximum installation flexibility.

  • Free-standing option ideal for rental properties and temporary setups
  • Bolt-to-floor option for permanent installation into 4" concrete
  • 4" concrete at 3,500 PSI recommended if anchoring (28+ day cure)

Built-In Runway Rail System

Commercial-grade formed steel runways with integrated rail system for optional rolling jacks and oil drip trays.

  • 20" wide runways with extended usable runway length
  • 38" between runways for comfortable underbody access
  • Powder coat black finish for lasting durability in garage environments

Specifications

Lift ConfigurationHome Storage 4-Post
Voltage115V / 230V Single Phase
Overall Length233.5 in
ALI/ETL CertifiedALI/ETL
Width of Runways20 in
Rise Height85.5" "
Motor1HP, 115v, 60Hz, 1Ph / 2HP, 230v, 60Hz, 1Ph HP
Colors AvailableBlack
Product TypeHome Storage Lifts
Overall Width112.25
Lifting Capacity9,000 lb lbs
Speed of Rise~120s (115V) / ~60s (230V) sec
Max Wheelbase179 in
Width Between Runways38 in

Before You Buy

Concrete Floor Recommended

Challenger recommends a 4-inch thick concrete floor rated at 3,500 PSI (cured 28+ days) if anchoring. Anchoring is optional — ALI/ETL certification maintained free-standing. Minimum bay size: 11' wide x 22' long.

Dedicated Electrical Circuit Required

The CL4P9X requires a dedicated 20-amp circuit — either 110V for the standard 1HP motor or 220V for the optional 2HP motor. No other devices should share this circuit. Verify your garage panel has an available breaker before ordering.

Indoor Use Only

This lift is rated for indoor use only in environments between 41°F and 104°F. Do not install in outdoor, uncovered, or unheated garage spaces that drop below freezing.

Hydraulic Fluid Not Included

The CL4P9X ships without hydraulic fluid. You will need 10-weight anti-foam hydraulic oil or Dexron III automatic transmission fluid. Purchase fluid before your installation date to avoid delays.

Verify Garage Ceiling Height

Column height is 8 feet ½ inch. Your ceiling must accommodate the column height PLUS the height of the tallest vehicle you plan to store on top. This model is taller than the standard CL4P9S — measure carefully before ordering.

Extended Bay Size Required

The CL4P9X requires a minimum 11' x 22' bay — two feet longer than the standard CL4P9S. Verify your garage dimensions accommodate both the lift footprint and adequate approach clearance before ordering.

Free Freight Shipping

This lift ships via freight carrier at no additional charge to most commercial addresses in the contiguous United States. Residential deliveries may require additional coordination — contact us for a delivery quote to your home address.

Unloading Requirements — Freight Delivery

This is a heavy 9,000 lb capacity extended-length 4-post lift that ships on a freight truck and must be unloaded at the delivery location. A loading dock, forklift, or similar equipment is required. Most residential deliveries will need a liftgate service — contact us before ordering.

Frequently Asked Questions

Challenger recommends a minimum 4-inch thick concrete floor rated at 3,500 PSI that has been cured for at least 28 days if you plan to anchor. Anchoring is optional — the CL4P9X maintains its ALI/ETL certification in both free-standing and bolted configurations.
Professional installation is strongly recommended. The CL4P9X is a heavy 9,000 lb capacity extended-length lift that requires proper assembly of the hydraulic system, cable routing, and electrical connections. Improper installation can affect safety and void warranty coverage.
Regular maintenance includes inspecting cables for wear or fraying, checking hydraulic fluid levels (10-weight anti-foam hydraulic oil or Dexron III ATF — fluid NOT included), lubricating lock ladders, and inspecting all mechanical connections. The single hydraulic cylinder and cable system have fewer moving parts than direct-drive lifts.
All three are 9,000 lb capacity models. The CL4P9S is the standard model (17'5½" long, 9'4¼" wide, 73¼" rise). The CL4P9X (this model) extends length and height (19'5½" long, same width, 85½" rise, 80" clearance). The CL4P9W extends everything including width (19'5½" long, 10'7¼" wide, 9'2" inside columns). Choose based on your vehicle size, clearance needs, and garage dimensions.
No. The CL4P9X uses a single-point manual lock release that operates entirely mechanically — no compressed air is required. One handle simultaneously disengages all column locks for controlled lowering.
The CL4P9X-SR (Standard Rise) provides 85½ inches of rise with 80 inches of drive-under clearance. The CL4P9X-ER (Extended Rise) offers even more rise height. Both share the same 9,000 lb capacity, footprint, and feature set.
The CL4P9X accommodates vehicles with up to a 179-inch wheelbase and overall width under 7 feet 11 inches. This covers virtually all consumer vehicles including crew-cab long-bed pickups, full-size SUVs, and extended-wheelbase luxury sedans. The extended runway length and column spacing handle vehicles that are too long for the standard CL4P9S.
The CL4P9X requires a dedicated 20-amp circuit. The standard 1HP motor operates on 115V (standard household outlet), while the optional 2HP motor requires 230V. Rise time is approximately 120 seconds on 115V and 60 seconds on 230V.
No. The CL4P9X maintains its full ALI/ETL certification in both free-standing and bolt-to-floor configurations. This makes it ideal for rental properties or situations where you don't want permanent floor modifications.
The CL4P9X is 2 feet longer (19'5½" vs 17'5½"), has taller columns (8'½" vs 7'½"), more rise (85½" vs 73¼"), more drive-under clearance (80" vs 67¾"), and a longer max wheelbase (179" vs 155"). Same 9,000 lb capacity and width. The tradeoff is a larger bay requirement (11'x22' vs 11'x20').
The CL4P9X provides 80 inches (6 feet 8 inches) of drive-under clearance when in the top locked position. This is over a foot more than the standard CL4P9S (67¾") and enough to accommodate most SUVs, crossovers, and many trucks underneath the raised vehicle.
Rise time depends on your motor selection. The standard 1HP 115V motor raises the lift in approximately 120 seconds, while the optional 2HP 230V motor cuts that to approximately 60 seconds. Note that rise time may be slightly longer than the CL4P9S due to the greater rise height.
