ATEATTD-414A-FPD

Atlas Automotive Equipment

Atlas 414A 14,000 lbs 4-Post Alignment Lift

SKU: ATEATTD-414A-FPD

$9,499.00
Ships from manufacturer

14,000 Lb Capacity, 70 Inch Rise, Chain-Driven, Air-Operated Safety Locks, Turning Plates, Slip Plates, Runway-Based Design

Part #: ATEATTD-414A-FPD

MFR #: ATEATTD-414A-FPD

Heavy-Duty 4-Post Alignment Lift for Premium Vehicle Service

The Atlas 414A extends capacity to 14,000 pounds, accommodating mid-size SUVs, crossovers, and light trucks alongside standard vehicles. This runway-based alignment lift combines professional-grade construction with precision alignment capabilities through integrated turning plates and slip plates, making it ideal for multi-brand service facilities that handle diverse vehicle types. The extended runway length of 208.625 inches accommodates longer wheelbases while maintaining the stability and control required for alignment work, and Panther Lift has selected this model for service centers that demand versatility without compromising on alignment precision.

Extended Runway for Vehicle Diversity

The 208.625-inch runway and 46.875-inch free width between runways provide substantial working space for larger vehicles and technician movement. Turning plates enable precise vehicle positioning at angles required for modern alignment specifications, while slip plates minimize friction and allow smooth repositioning across the platform. This combination transforms the lift into a dedicated alignment workstation where vehicles can be efficiently positioned, adjusted, and verified without requiring supplementary equipment. The runway design supports consistent workflow regardless of vehicle wheelbase or service requirement.

Consistent Performance Across Applications

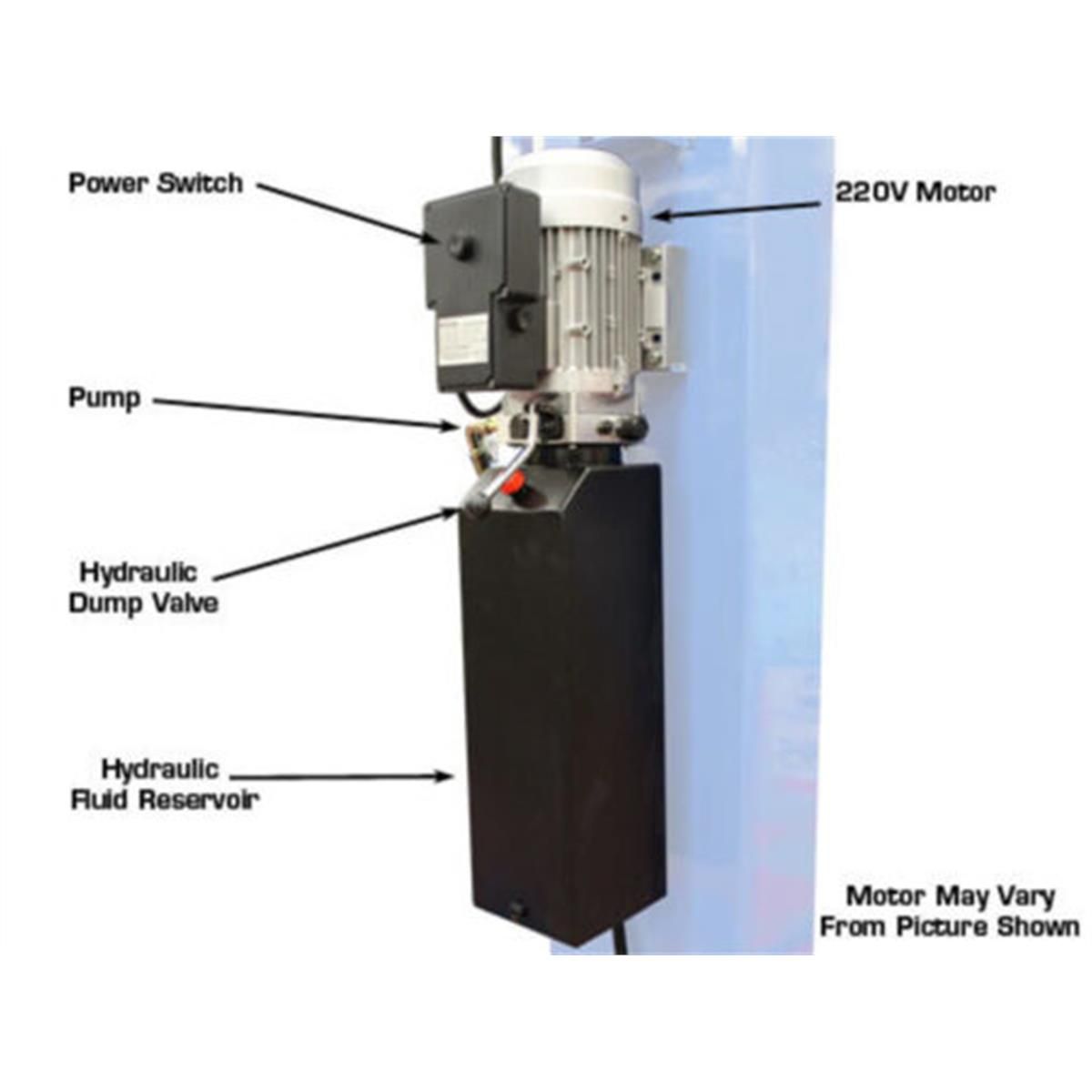

The Atlas 414A rises approximately 70 inches in 62 seconds, reaching optimal working height while maintaining the same reliable chain-driven mechanism and air-operated safety locks as lighter-duty models. The dual-column construction with chain drive ensures balanced load distribution across the platform, critical when working with heavier vehicles and complex suspension geometries. The 220V, 60Hz motor operates efficiently within most shop electrical configurations, and the compressed air requirement of 87-116 PSI remains compatible with standard shop air systems that support pneumatic tools throughout the facility.

Built for Demanding Service Environments

At 3,814 pounds, this lift requires the same 4-inch, 3000 PSI concrete foundation as the 412A model, ensuring consistent installation requirements across your facility if you operate multiple lifts. The noise level of 80 dB(A) at 1 meter remains manageable in active shops, and the hydraulic system operates safely indoors from 41°F to 104°F. Panther Lift's installation specialists assess your bay layout, electrical capacity, and compressed air infrastructure before delivery, ensuring this larger platform integrates seamlessly into your existing service facility. The proven design delivers decades of reliable alignment and maintenance capability.

Features & Benefits

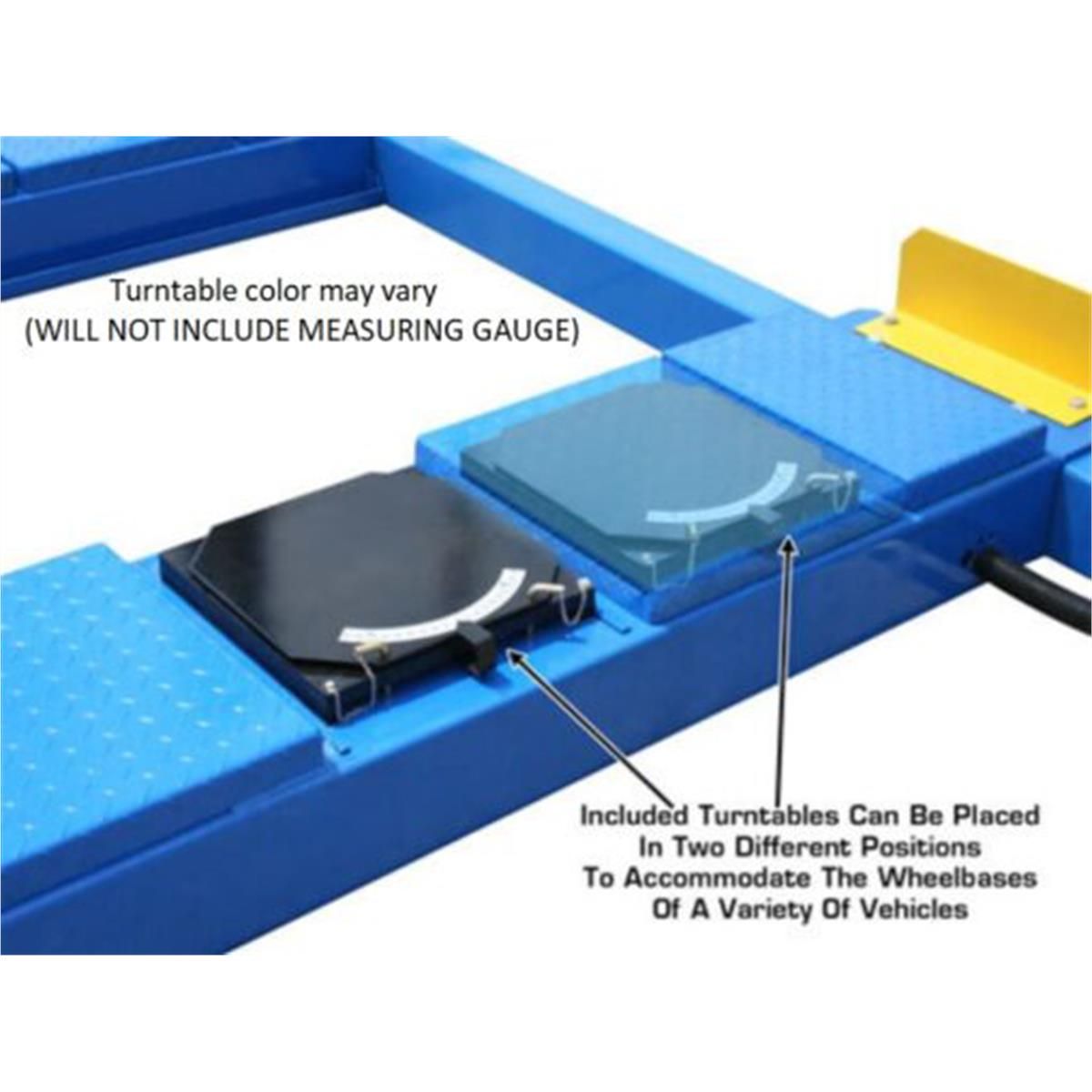

Turning Plates & Slip Plates

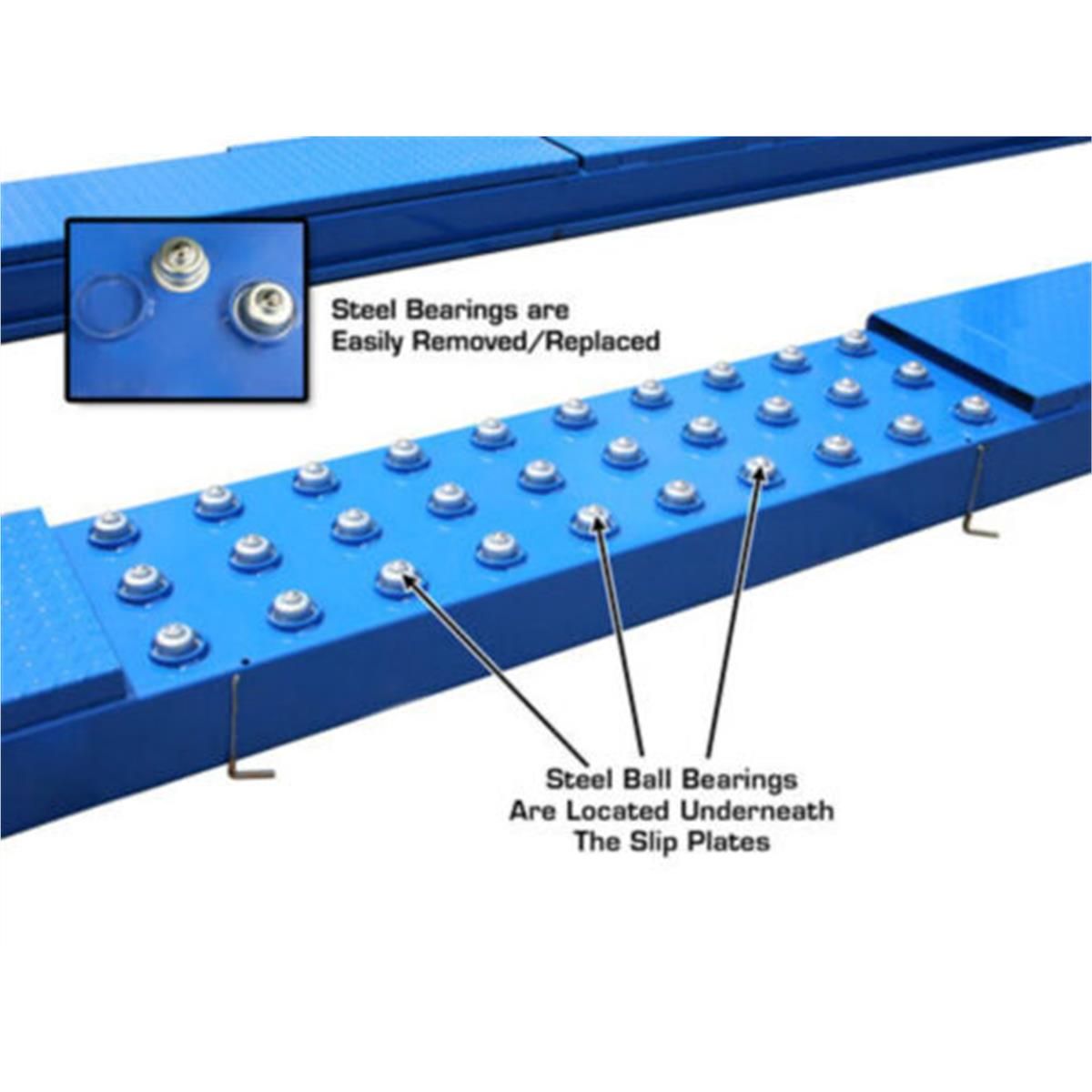

Integrated turning plates enable precision positioning for wheel alignment on larger vehicles, while slip plates minimize friction for smooth repositioning without floor damage.

  • Turning plates for angle adjustment
  • Slip plates for low-friction movement
  • Supports alignment on SUVs and crossovers

Extended Runway Platform

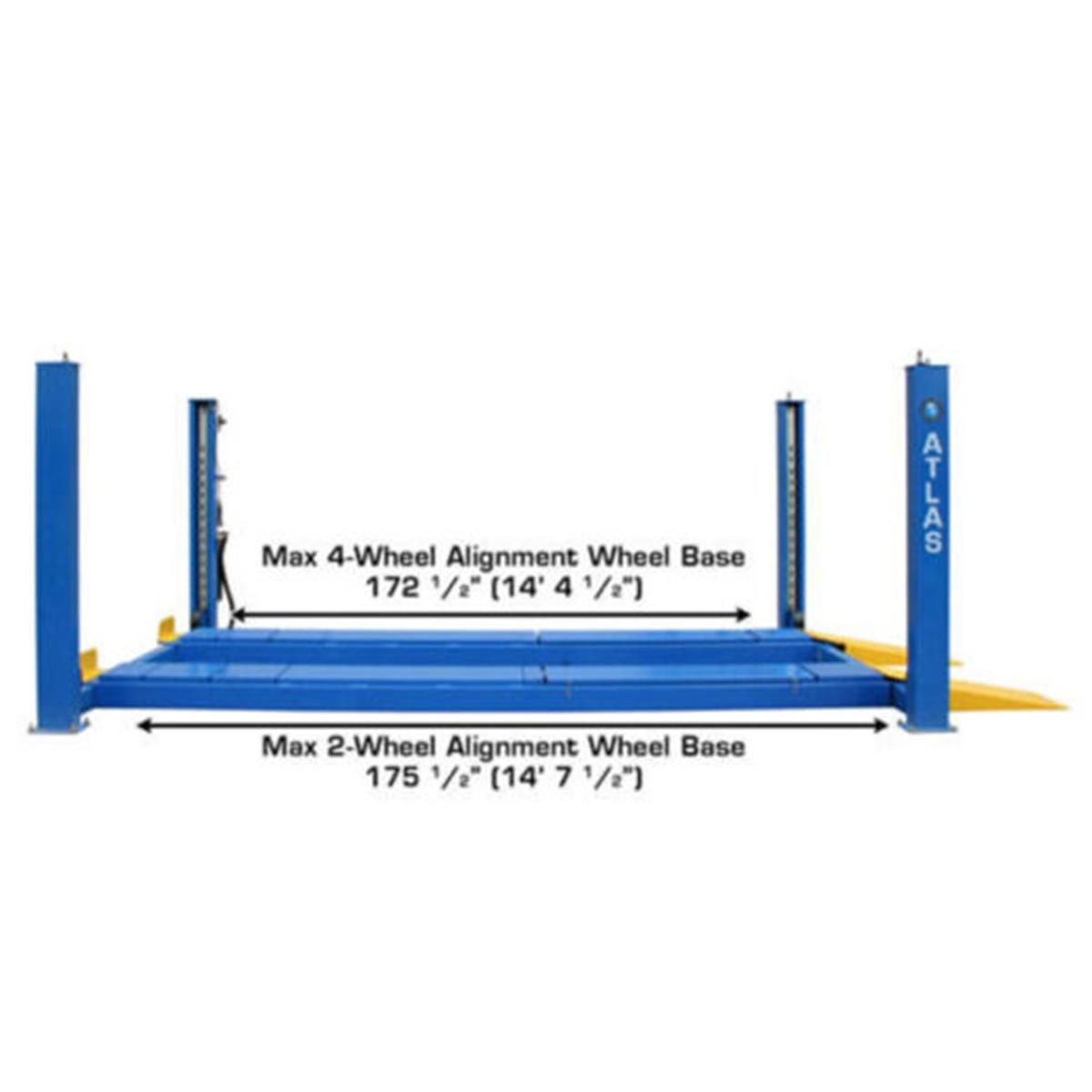

208.625-inch runway accommodates longer wheelbases of mid-size SUVs and light trucks. The 46.875-inch free width between runways provides ample technician access and movement space.

  • 208.625 inch runway length
  • 46.875 inch free width between runways
  • Supports larger vehicles up to 14,000 lbs

Efficient Rise Performance

Achieves 70 inches of rise in 62 seconds, maintaining rapid cycle times for efficient workflow while handling heavier vehicle loads without speed compromise.

  • 70 inch total rise
  • 62 second rise time
  • Consistent performance under heavy load

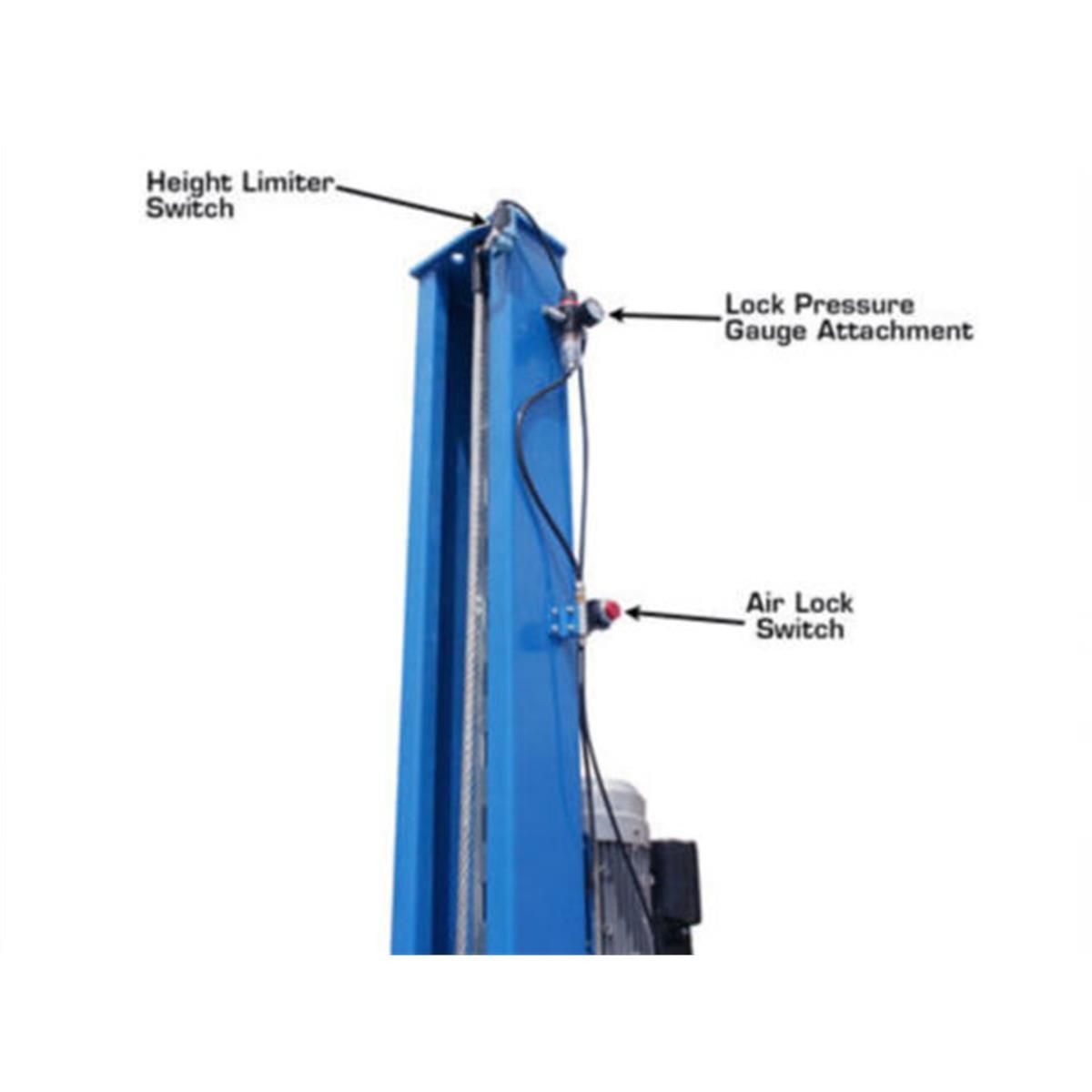

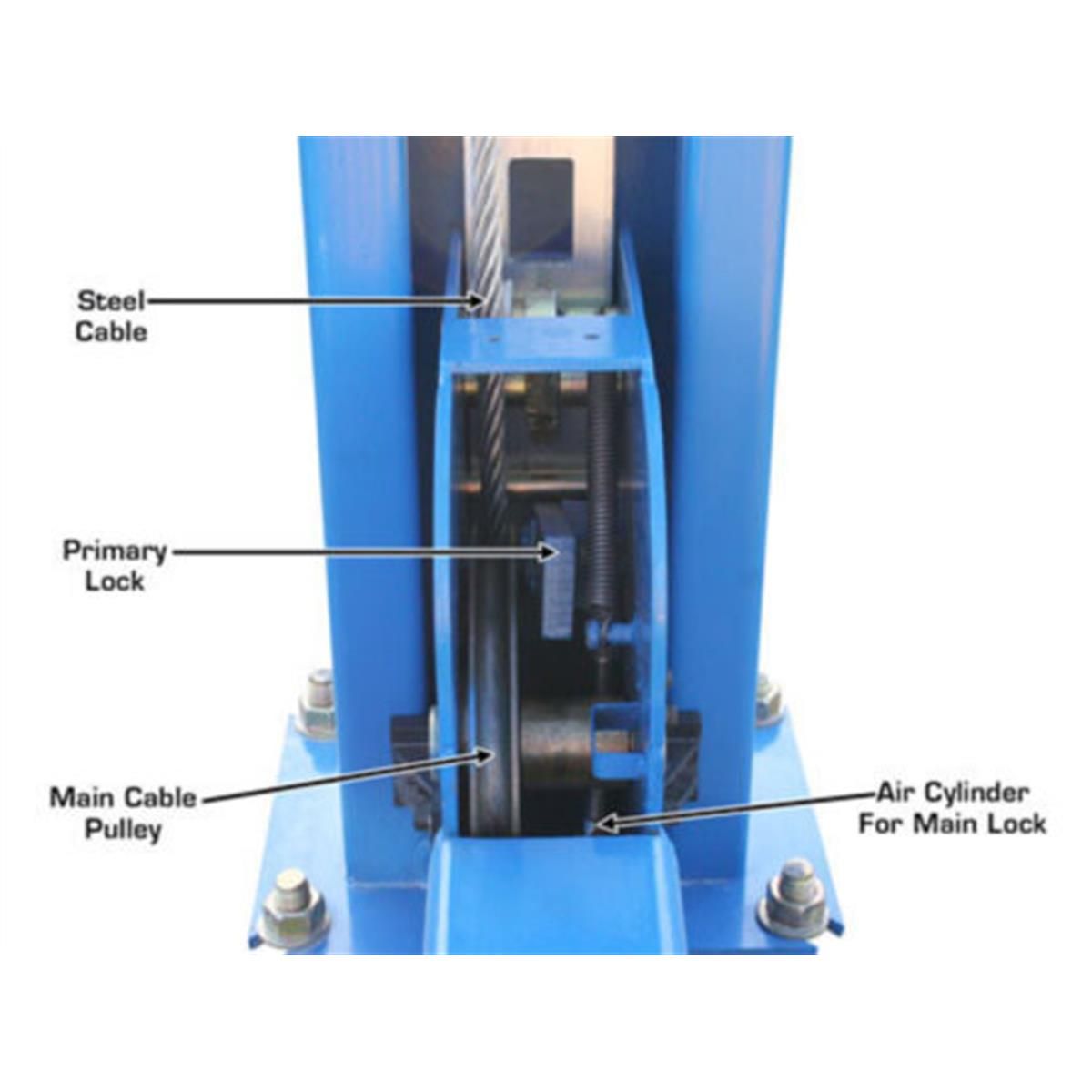

Air-Operated Safety Locks

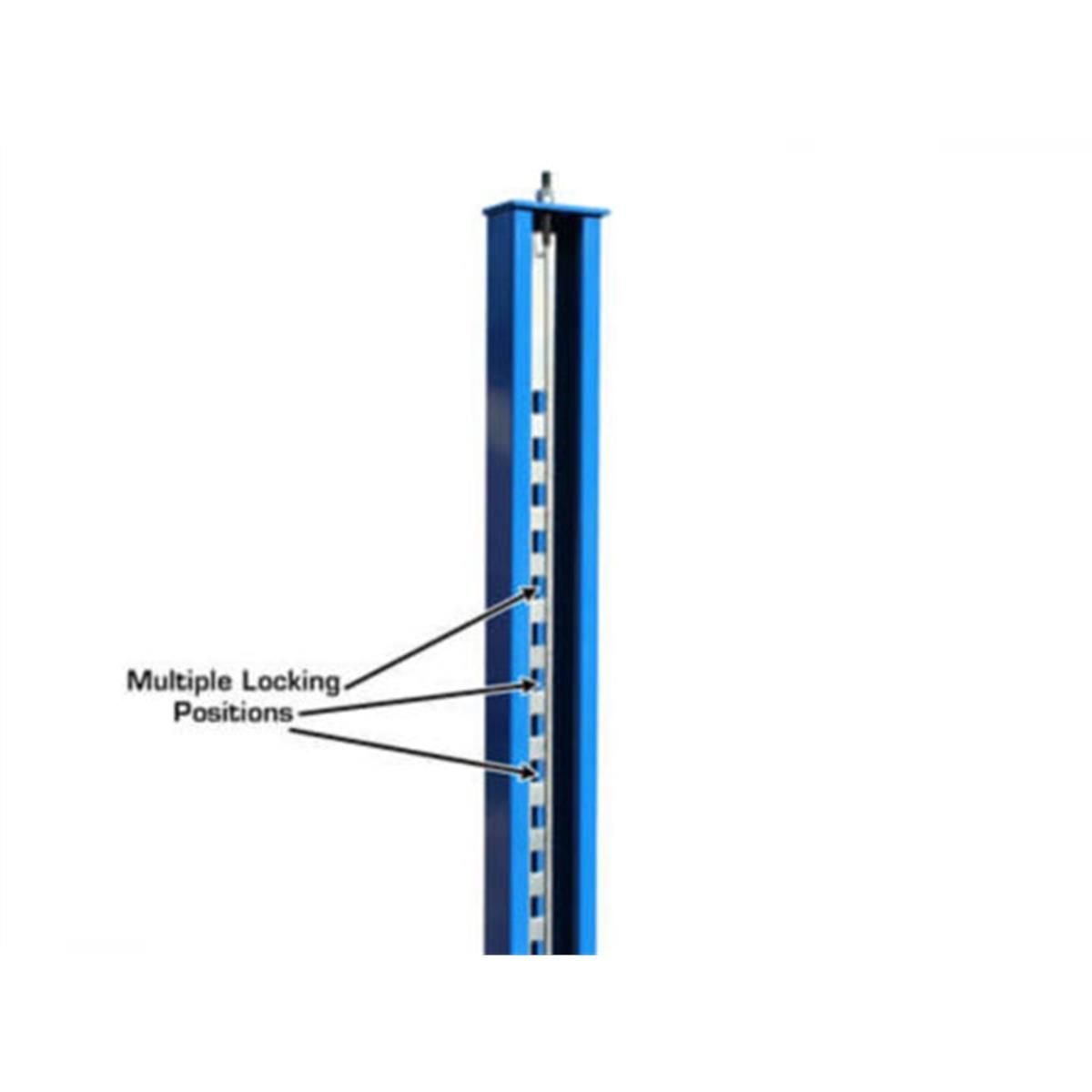

Dual air-operated safety locking mechanisms provide redundant protection exceeding industry standards, critical when supporting heavier vehicles in alignment operations.

  • Dual air-operated locks
  • Exceeds safety standards
  • Reliable for heavy-duty use

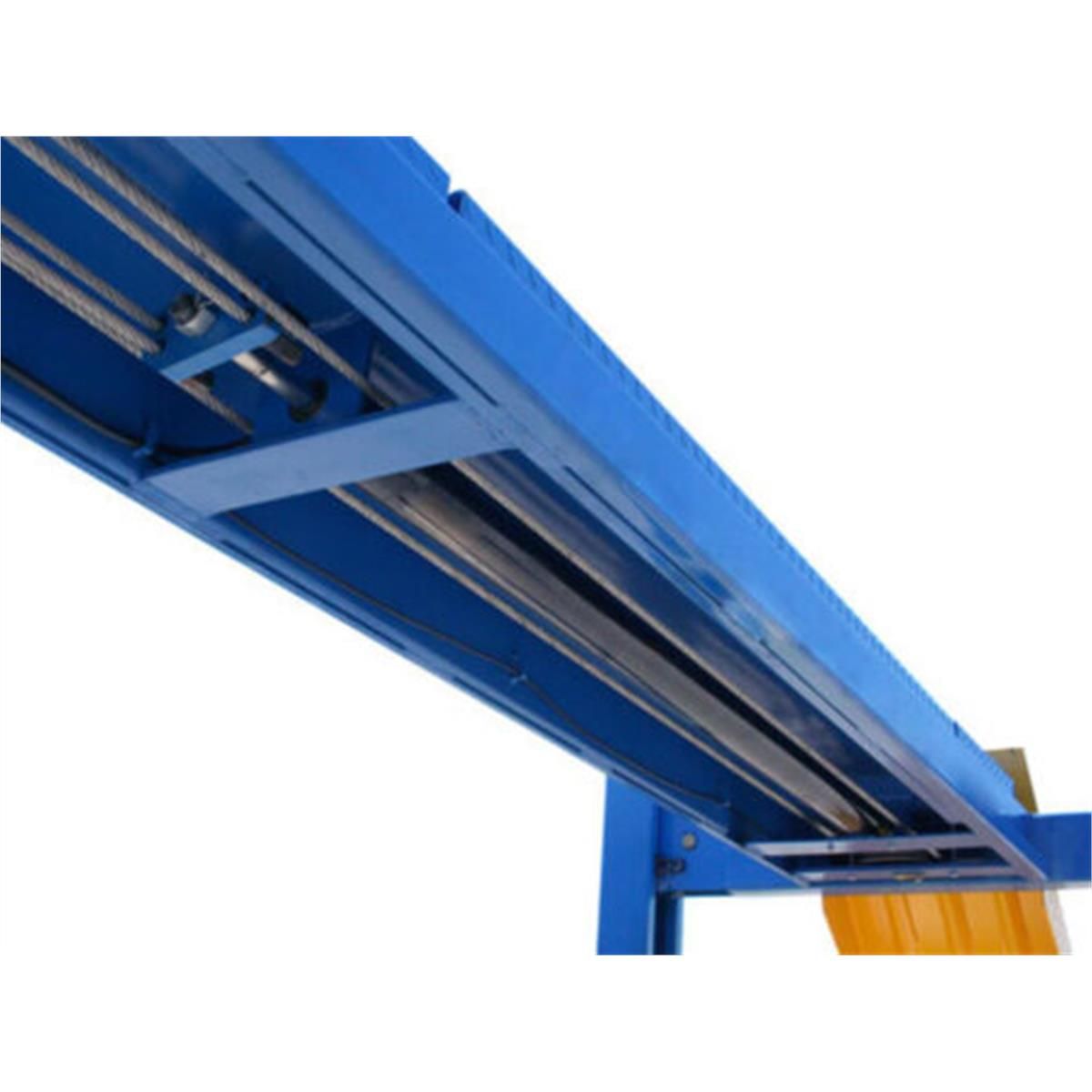

Chain-Driven Dual Column System

Robust chain-drive with dual columns distributes loads evenly across the platform, ensuring consistent performance when working with heavier SUVs and light trucks.

  • Dual column construction
  • Chain-driven mechanism
  • Even load distribution on larger vehicles

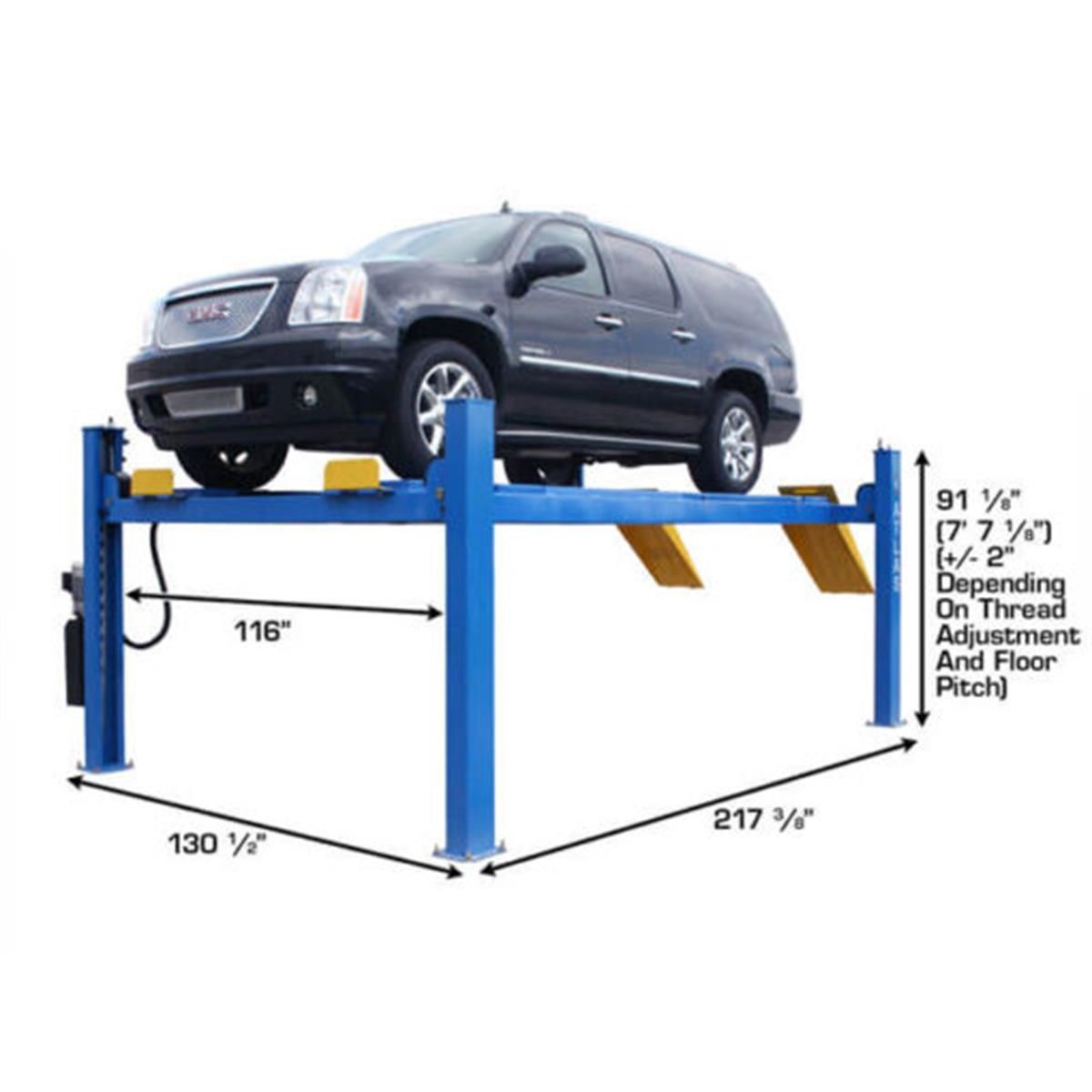

Generous Bay Footprint

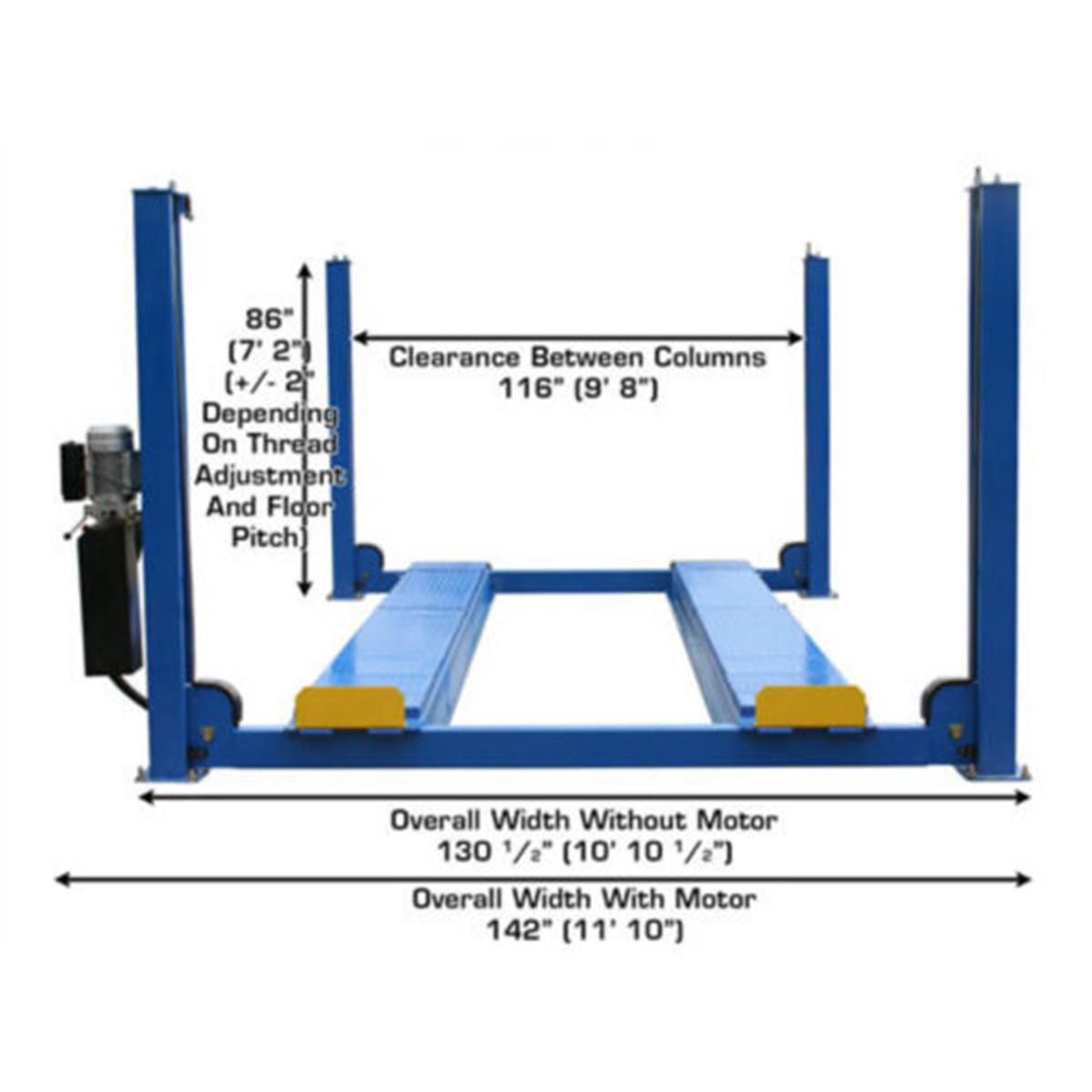

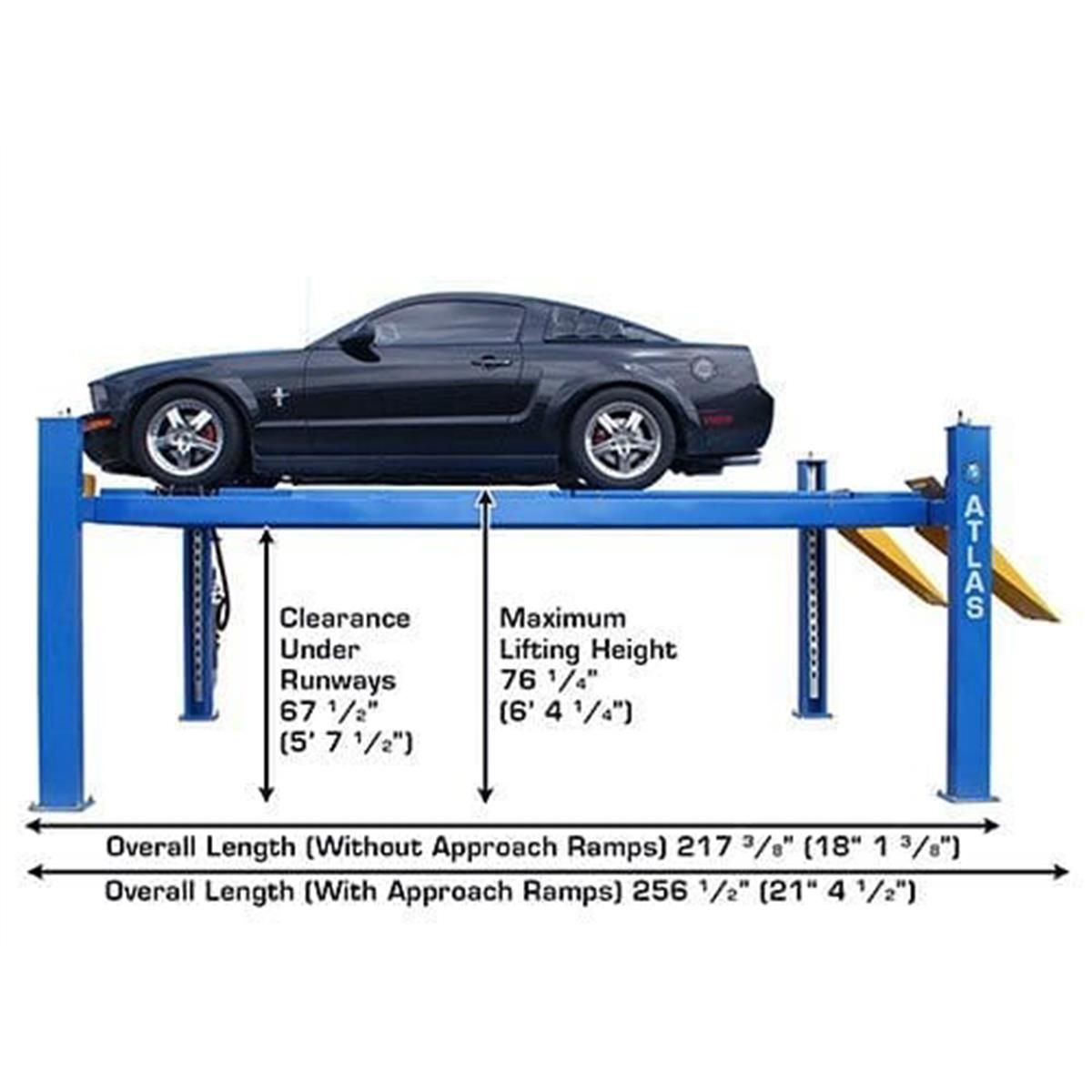

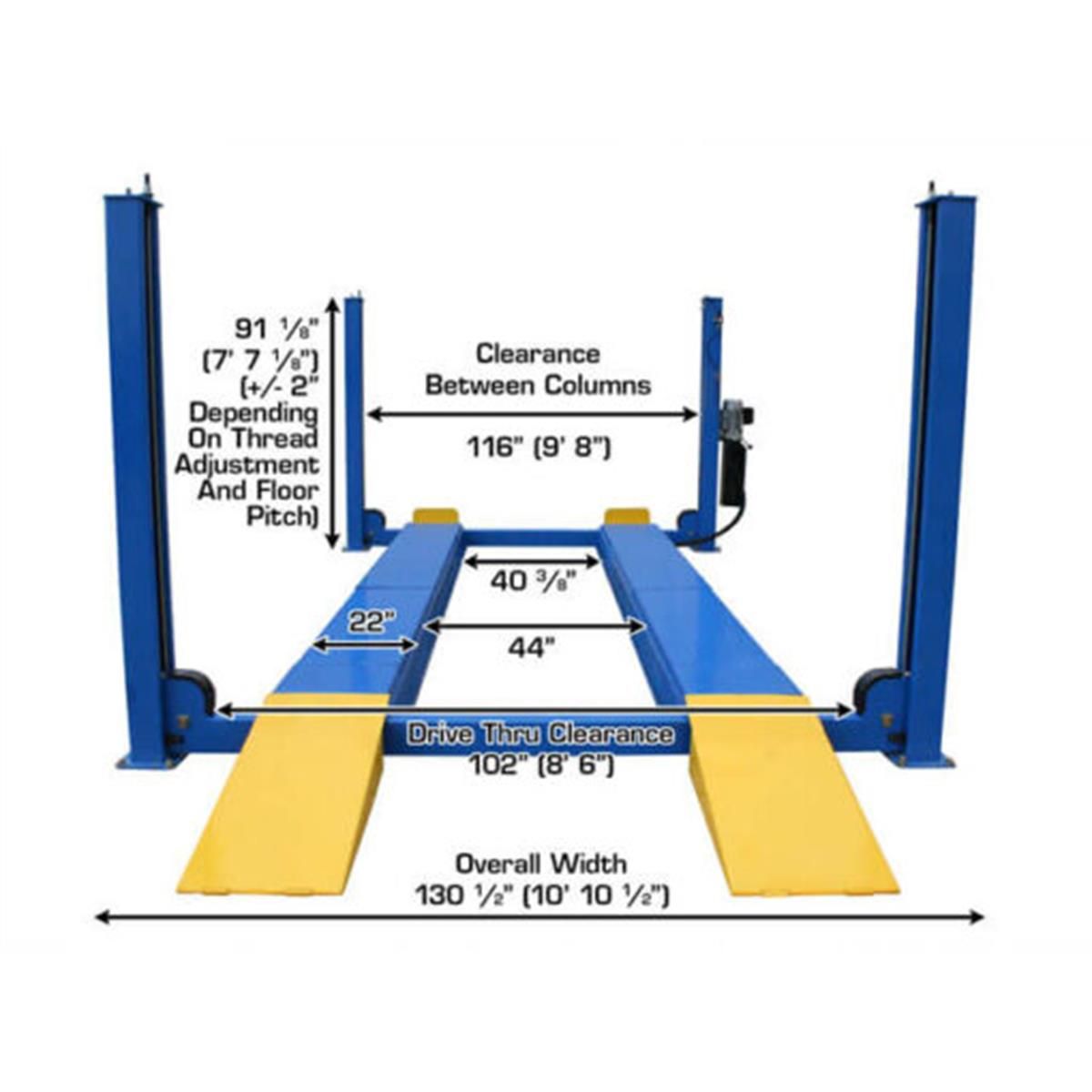

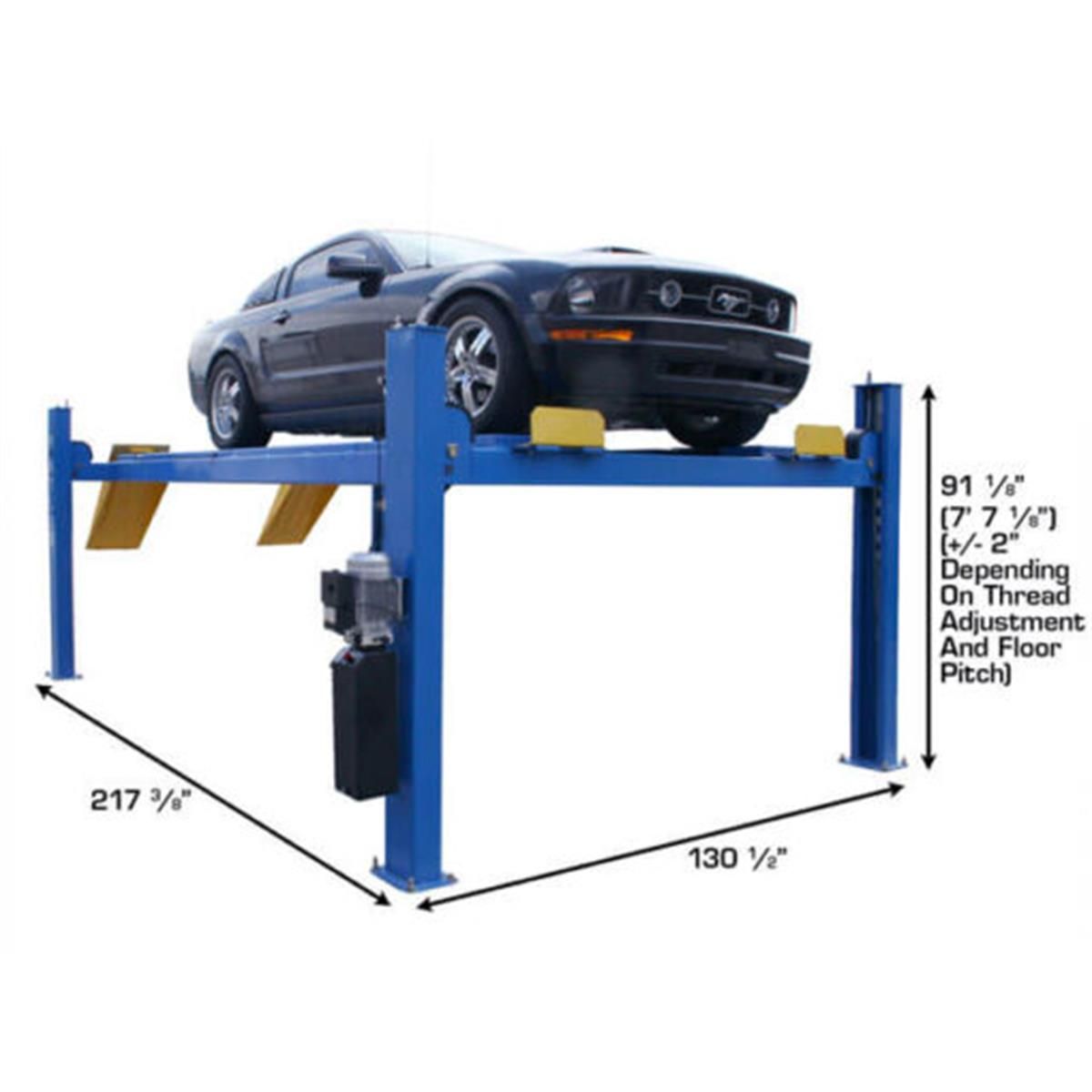

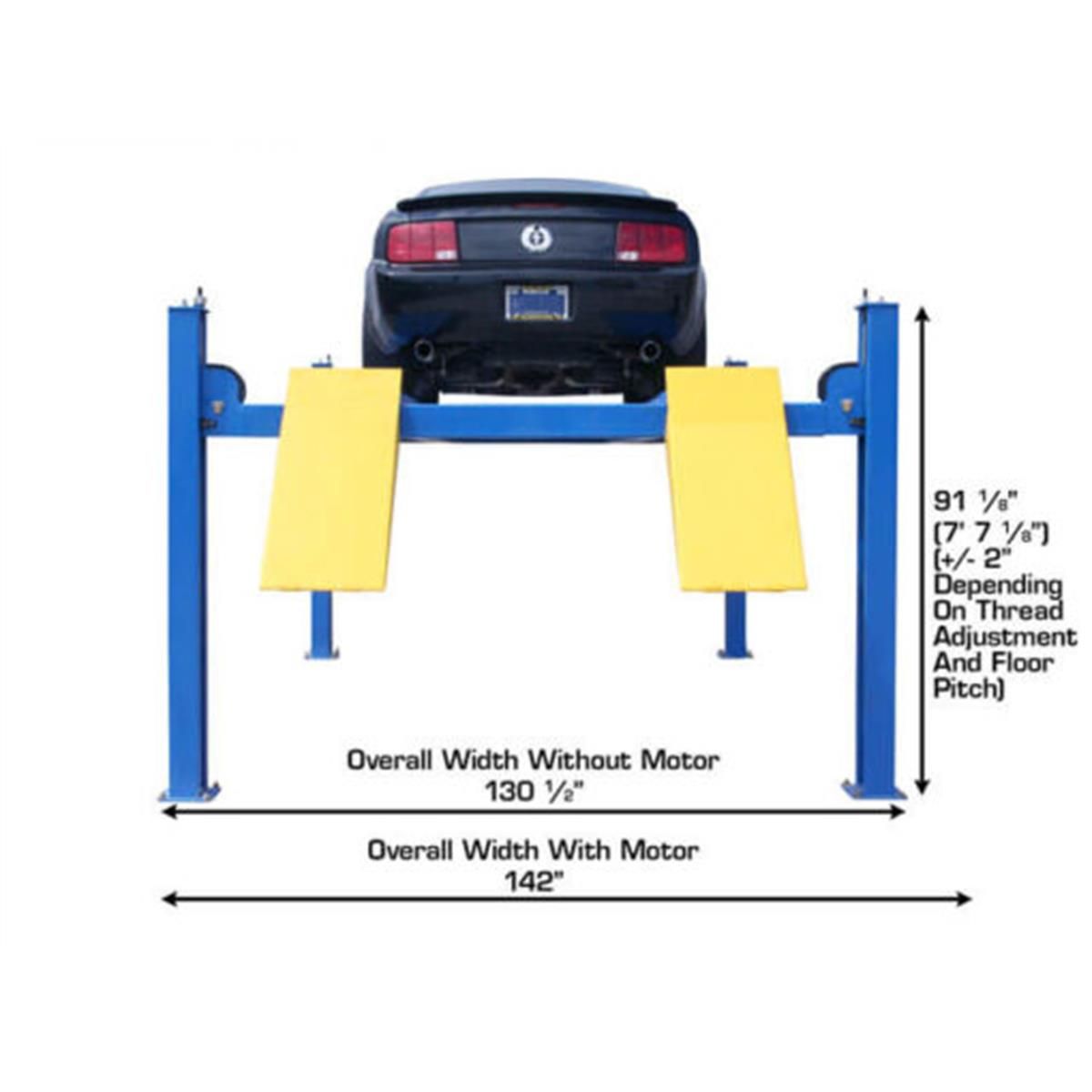

Overall dimensions of 130.875 inches wide and approximately 216.875 inches long (without ramps) provide substantial footprint while delivering 91.125 inches of raised working height.

  • 130.875 inch overall width
  • 217 inch length without ramps
  • 91 inch raised height

Before You Buy

Free Freight Shipping

Ships free via freight carrier to commercial addresses in the continental United States (48 states). Alaska, Hawaii, Puerto Rico, and Guam are excluded from free freight — contact us for a shipping quote to those locations.

Unloading Requirements

This lift ships curbside via freight truck and weighs approximately 3,814 lbs. You are responsible for offloading at your location. A forklift, tractor with forks, or equivalent heavy equipment must be available on-site at the time of delivery. The carrier will not unload the freight.

Compressed Air System Required

The Atlas 414A requires 87-116 PSI of compressed shop air for safe operation. Your facility must have a functioning air compressor and distribution system in place before installation. We recommend a minimum compressor capacity of 5 HP to avoid pressure drop during peak usage with larger vehicles.

Bay Size & Ceiling Height

Plan for minimum bay dimensions of 135 inches wide by 260 inches long with at least 10 feet of ceiling clearance. This accounts for the extended lift footprint, vehicle approach space, technician movement around larger vehicles, and ramp storage. Panther Lift can assess your specific facility layout during the pre-installation consultation.

Frequently Asked Questions

The Atlas 414A has a 14,000-pound capacity, making it suitable for standard sedans, full-size SUVs, crossovers, minivans, and light-duty pickup trucks. This higher capacity provides flexibility for multi-brand service facilities that work with diverse vehicle types, from compact cars to larger family vehicles.
The 414A increases capacity from 12,000 to 14,000 pounds, extends the runway from 194.5 to 208.625 inches, and widens the free space between runways from 43.25 to 46.875 inches. Rise height increases from 69 to 70 inches, and rise time extends from 55 to 62 seconds. Both models feature the same alignment capabilities, safety systems, and electrical requirements. Choose the 414A if you service larger vehicles or need the extra platform length.
The Atlas 414A requires 87-116 PSI (6-8 bar) of compressed air, identical to the 412A. Most service facilities already maintain this pressure range for tire tools and pneumatic equipment. Verify your compressor capacity can sustain this pressure during continuous lift operation without significant drop.
Yes. Panther Lift provides professional lift installation services throughout the United States. Our installation team handles everything from concrete inspection and electrical prep to full lift assembly, hydraulic setup, and final safety testing. Contact us to schedule an installation or to get a quote for your location.

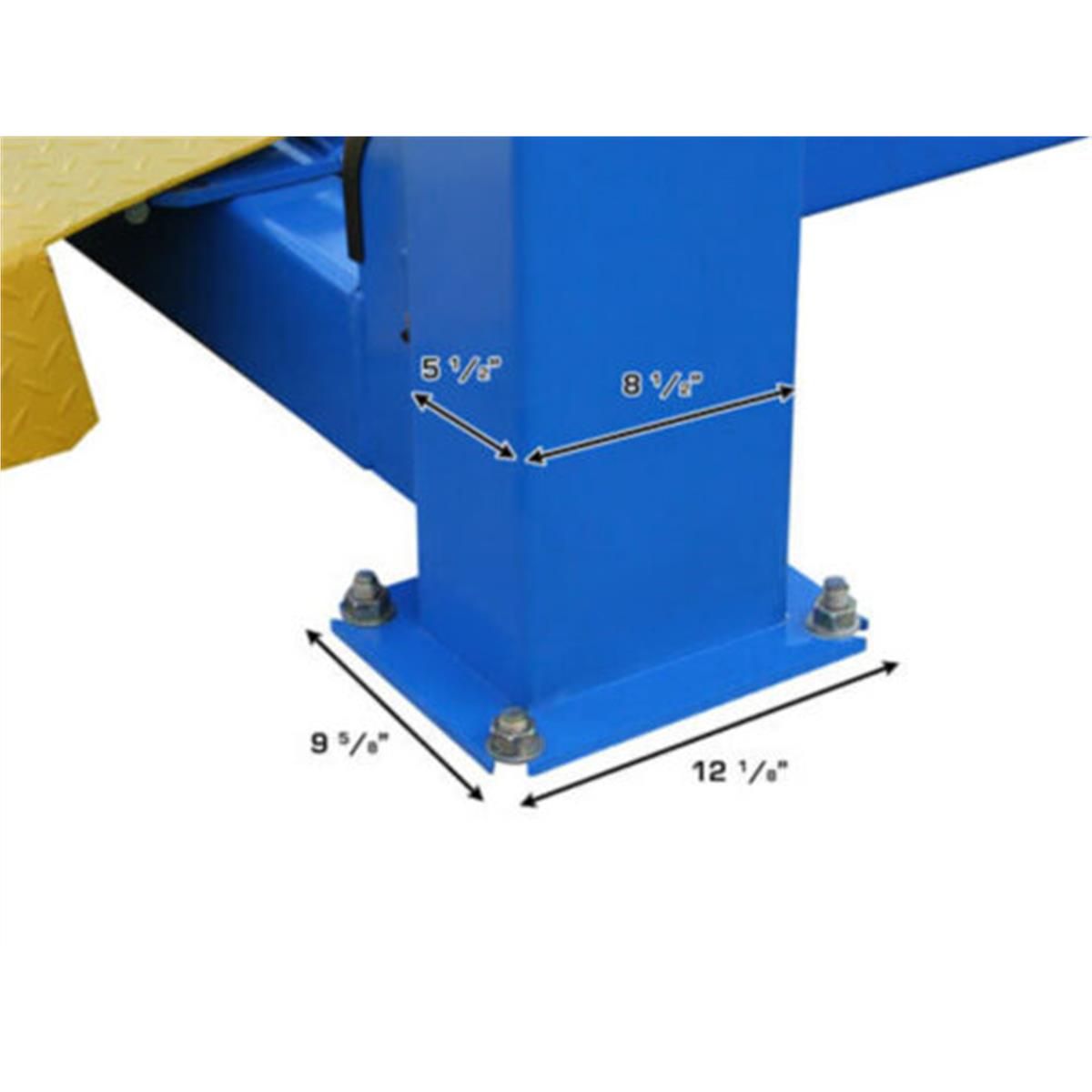

The Atlas 414A requires a minimum 4-inch thick concrete foundation with 3000 PSI compressive strength, identical to the 412A. The concrete must be properly cured and level to within 1/2 inch across the lift footprint. Panther Lift's installation team verifies concrete condition during the pre-installation site survey.
The lift itself measures approximately 130.875 inches wide and 216.875 inches long (without ramps), with a raised height of 91.125 inches. We recommend a minimum bay of 135 inches wide and 260 inches long with at least 10 feet of ceiling clearance to accommodate vehicle approach, technician access, and ramp storage. Panther Lift can assess your specific bay during pre-installation consultation.
The Atlas 414A rises to full height in approximately 62 seconds, with lower time typically similar. This slightly longer cycle time than the 412A reflects the additional load capacity and larger platform size, while still maintaining excellent workflow efficiency for multi-vehicle service operations.
Regular maintenance includes monthly visual inspection of the pump, motor, and hydraulic hoses for leaks or damage; quarterly hydraulic fluid level and condition checks; annual safety lock and chain tension inspection; and every two years, complete hydraulic fluid replacement and professional service. Panther Lift offers maintenance packages and can schedule preventive service to extend lift lifespan and maintain reliability.
No, the Atlas 414A is designed for indoor use only. Outdoor installation voids the warranty and exposes electrical and hydraulic systems to weather damage. The lift operates safely indoors within the temperature range of 41°F to 104°F.

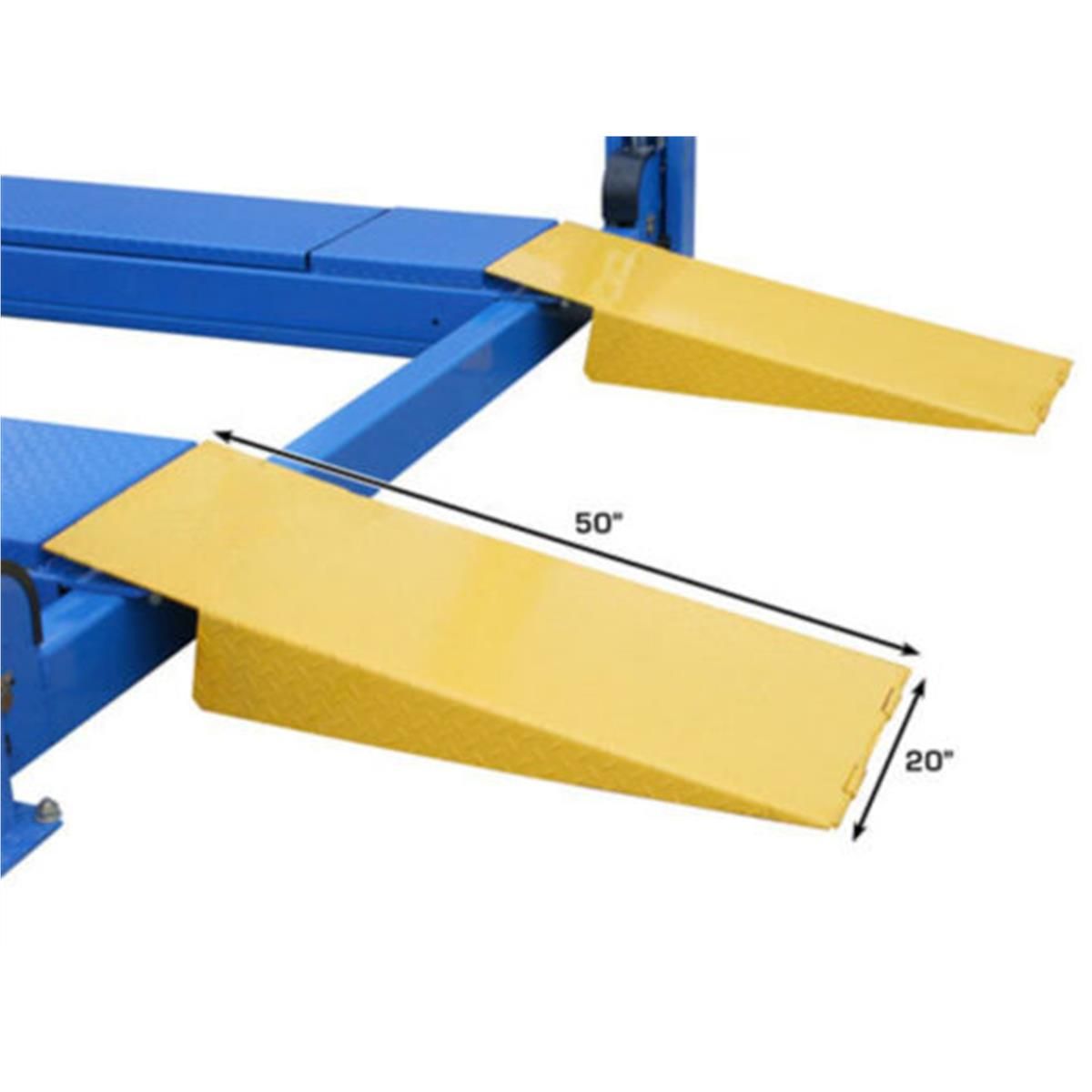

The purchase includes the complete lift assembly with integrated turning plates and slip plates, dual columns, chain-driven mechanism, air-operated safety locks, hydraulic pump and motor, and all necessary runways. Standard ramps are included. Professional installation, operator training, and optional service packages are available separately through Panther Lift.
