ATEATTD-412A-FPD

Atlas Automotive Equipment

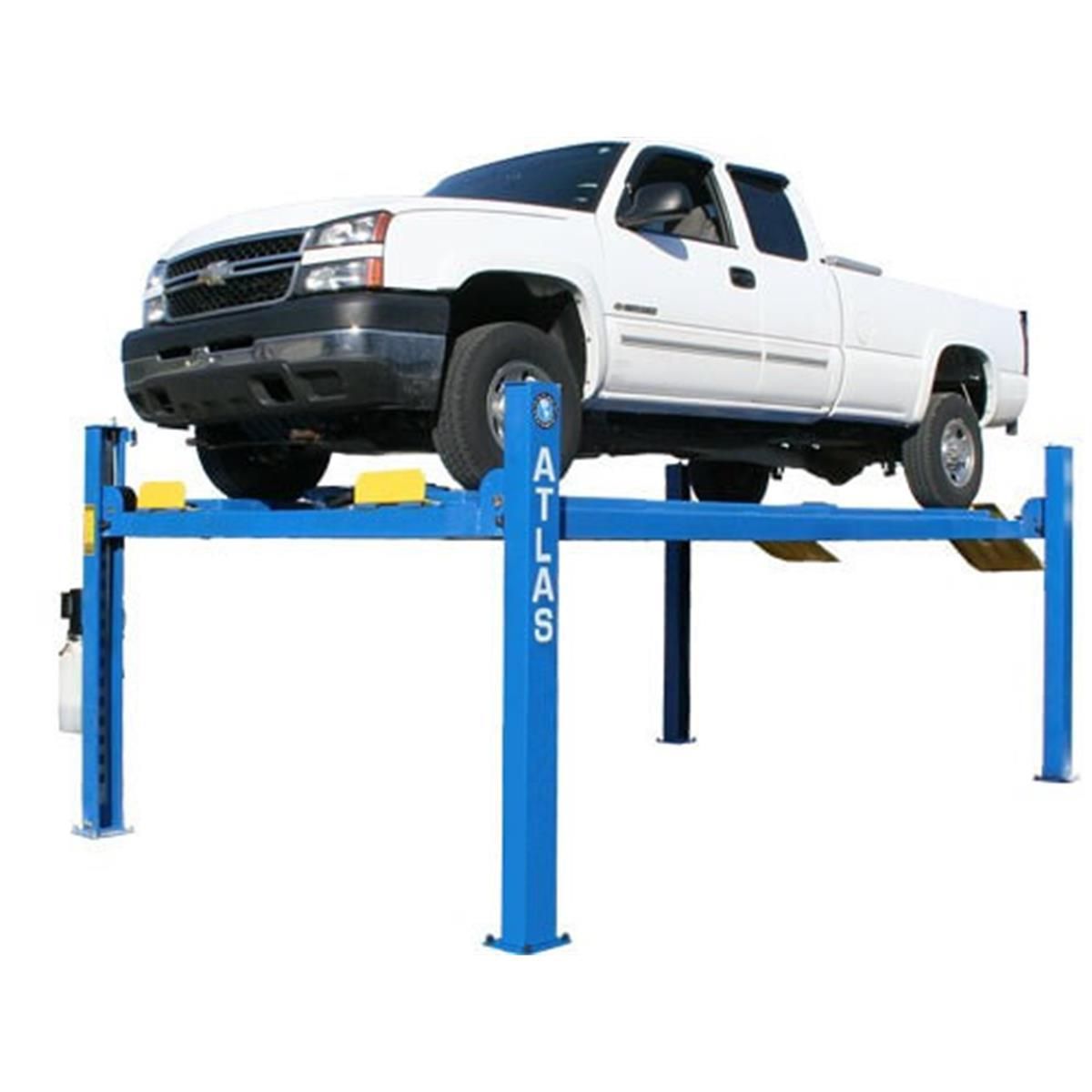

Atlas 412A 12,000 lbs 4-Post Alignment Lift

SKU: ATEATTD-412A-FPD

$10,949.00
Ships from manufacturer

12,000 Lb Capacity, 69 Inch Rise, Chain-Driven, Air-Operated Safety Locks, Turning Plates, Slip Plates, Runway-Based Design

Part #: ATEATTD-412A-FPD

MFR #: ATEATTD-412A-FPD

Professional 4-Post Alignment Lift for Fleet Operations

The Atlas 412A is engineered for automotive service facilities that demand precision wheel alignment and routine maintenance capabilities. With a 12,000-pound capacity and innovative turning plates combined with slip plates, this runway-based lift system delivers the stability and repeatability required for alignment work while maintaining the heavy-duty durability expected in commercial service environments. The chain-driven mechanism with air-operated safety locks provides reliable performance across thousands of vehicles annually, making it an investment that serves high-volume operations efficiently.

Advanced Runway Design for Alignment Precision

The 194.5-inch runway accommodates diverse vehicle wheelbase lengths while the 43.25-inch free width between runways provides ample space for technician movement and access to suspension components. Integrated turning plates enable vehicles to be positioned at precise angles for alignment adjustment, while slip plates reduce friction and allow smooth repositioning without damaging flooring or equipment. This thoughtful design eliminates the need for supplementary alignment equipment and centralizes your wheel alignment workflow in a single, robust platform that Panther Lift has selected for its proven track record with alignment specialists.

Operational Efficiency and Safety Integration

The Atlas 412A rises approximately 69 inches in just 55 seconds, achieving optimal working height rapidly to minimize technician fatigue and maximize throughput during an 8 or 10-hour service day. Chain-driven construction with dual columns delivers balanced load distribution, while air-operated safety locks provide redundant protection that exceeds industry standards. The 220V, 60Hz single-phase motor at 2.2kW consumes minimal electrical infrastructure, and the compressed air requirement of 87-116 PSI integrates seamlessly with most shop compressed air systems already supporting tire tools and other pneumatic equipment.

Engineered for Long-Term Facility Investment

This lift requires a minimum 4-inch concrete foundation with 3000 PSI strength and operates safely indoors from 41°F to 104°F. At 3,065 pounds, it ships via freight carrier and arrives ready for installation by Panther Lift's professional team. The noise level of 80 dB(A) measured at 1 meter remains manageable in active shop environments, and the proven hydraulic system with its 210 bar maximum pressure delivers consistent performance over decades of operation. Panther Lift recommends consulting with our installation specialists to assess your bay dimensions, electrical infrastructure, and compressed air capacity before purchase.

Features & Benefits

Turning Plates & Slip Plates

Integrated turning plates enable precision vehicle positioning for alignment work, while slip plates minimize friction for smooth repositioning without floor damage.

  • Turning plates for angle adjustment
  • Slip plates for low-friction movement
  • Enables wheel alignment workflow integration

Runway-Based Platform Design

Extended 194.5-inch runway accommodates vehicles of varying wheelbases. The 43.25-inch free width between runways provides technician access and movement space.

  • 194.5 inch runway length
  • 43.25 inch free width between runways
  • Supports diverse vehicle types

Rapid Rise Capability

Achieves 69 inches of rise in 55 seconds, allowing technicians to quickly reach optimal working height and maintain workflow efficiency throughout the service day.

  • 69 inch total rise
  • 55 second rise time
  • Minimizes technician fatigue

Air-Operated Safety Locks

Redundant safety system with air-operated locking mechanisms provides layer protection beyond mechanical stops, exceeding industry safety standards.

  • Dual air-operated locks
  • Exceeds industry standards
  • Reliable protection for high-volume use

Chain-Driven Dual Column System

Heavy-duty chain drive with dual columns ensures balanced load distribution and consistent performance across thousands of vehicles, proven in demanding service environments.

  • Dual column construction
  • Chain-driven mechanism
  • Balanced load distribution

Compact Footprint with High Rise

Overall dimensions of 126.125 inches wide and approximately 200.75 inches long (without ramps) fit efficiently into standard service bays while delivering 89.75 inches of raised height.

  • 126 inch overall width
  • 201 inch length without ramps
  • 90 inch raised height

Before You Buy

Free Freight Shipping

Ships free via freight carrier to commercial addresses in the continental United States (48 states). Alaska, Hawaii, Puerto Rico, and Guam are excluded from free freight — contact us for a shipping quote to those locations.

Unloading Requirements

This lift ships curbside via freight truck and weighs approximately 3,065 lbs. You are responsible for offloading at your location. A forklift, tractor with forks, or equivalent heavy equipment must be available on-site at the time of delivery. The carrier will not unload the freight.

Compressed Air System Required

The Atlas 412A requires 87-116 PSI of compressed shop air for safe operation. Your facility must have a functioning air compressor and distribution system in place before installation. We recommend a minimum compressor capacity of 5 HP to avoid pressure drop during peak usage.

Bay Size & Ceiling Height

Plan for minimum bay dimensions of 130 inches wide by 240 inches long with at least 10 feet of ceiling clearance. This accounts for the lift footprint, vehicle approach, technician movement, and ramp storage. Panther Lift can assess your specific facility layout during the pre-installation consultation.

Frequently Asked Questions

The Atlas 412A supports vehicles up to 12,000 pounds. This capacity is suitable for most light-duty vehicles including sedans, coupes, and compact SUVs. For heavier commercial vehicles or trucks, please refer to the Atlas 414A model.
The Atlas 412A incorporates turning plates and slip plates specifically designed for wheel alignment work. The turning plates allow vehicles to be positioned at precise angles for suspension and alignment adjustment, while slip plates reduce friction to permit smooth repositioning. These features are integrated into the runway-based platform, making wheel alignment a primary workflow function rather than an accessory task.
The Atlas 412A requires 87-116 PSI (6-8 bar) of compressed air for operation. Most service facilities already maintain shop air systems at this range for tire tools and pneumatic equipment. We recommend verifying your existing compressor capacity and air line infrastructure before purchase to ensure adequate supply without pressure drop during use.
Yes. Panther Lift provides professional lift installation services throughout the United States. Our installation team handles everything from concrete inspection and electrical prep to full lift assembly, hydraulic setup, and final safety testing. Contact us to schedule an installation or to get a quote for your location.
The Atlas 412A requires a minimum 4-inch thick concrete foundation with a compressive strength of 3000 PSI. The concrete must be properly cured and level to within 1/2 inch across the lift footprint. Panther Lift's installation team assesses your existing concrete during the pre-installation site survey and can recommend reinforcement or repair if needed.
The lift itself measures approximately 126 inches wide and 200.75 inches long (without ramps), with a raised height of 89.75 inches. Account for additional space for vehicle approach, technician movement around the vehicle, and ramp storage. We recommend a minimum bay of 130 inches wide and 240 inches long with at least 10 feet of ceiling clearance. Panther Lift can help assess your specific bay layout.
The Atlas 412A rises to full height in approximately 55 seconds. Lower time is typically similar. This rapid cycle time maintains workflow efficiency during high-volume alignment operations and reduces technician wait time between vehicle movements.
Regular maintenance includes monthly visual inspection of the pump, motor, and hydraulic hoses for leaks or damage; quarterly check of hydraulic fluid level and condition; annual inspection of safety locks and chain tension; and every two years, complete hydraulic fluid replacement and professional service. Panther Lift offers maintenance packages and can schedule preventive service to maximize lift lifespan and reliability.
No, the Atlas 412A is designed for indoor use only. Outdoor installation voids the warranty and exposes electrical and hydraulic components to weather damage. The lift operates safely indoors within the temperature range of 41°F to 104°F.
The Atlas 412A includes the complete lift assembly with integrated turning plates and slip plates, dual columns, chain-driven mechanism, air-operated safety locks, hydraulic pump and motor, and all necessary runways. Standard ramps are included. Installation, training, and optional service packages are available separately through Panther Lift.
